Supertech Services Pvt. Ltd. Lalbagh Road, Bangalore, Karnataka

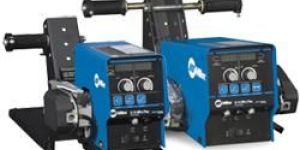

Raising the bar for industrial-class wire feeders with the traditional features, plus enhanced flexibility provided by features such as trigger hold, dual tension control, automatic run-in, and toolless rotatable drive. Tool-less rotatable drive assembly allows operator to rotate the drive housing, eliminating severe bends in the wire feed path which reduce gun liner life. Also aids in feeding difficult wires. Automatic run-in control significantly improves arc starts. Run-in can be independently set on the DX model. Trigger hold allows operator to make long welds without having to hold the trigger continuously. Reduces operator fatigue. Posifeed™ Provides positive wire feeding performance through use of the tool less rotatable drive assembly, calibrated drive roll pressure adjustment arm and 24 VDC high-torque, permanent-magnet motor.

Autoline Allows for any input voltage hook-up with no manual linking, providing convenience in any job setting. Blue Lightning high-frequency arc starter for more consistent non-contact starts and greater reliability compared to traditional HF arc starters. Lift-Arc start provides TIG arc starting without the use of high frequency. Hot Start adaptive control provides positive Stick arc starts without sticking. Fan-On-Demand cooling system only operates when needed to reduce noise, energy use and contaminants pulled through the machine. Auto-postflow calculates the length of postflow time based on the amperage setting. Eliminates need to independently set postflow time. Maxstar 210 Additional Features 2 models available. Standard model provides basic TIG and Stick functions. DX models comes with pulser and sequencer functions Portable with adjustable shoulder strap. You can take it anywhere Maxstar 350/ 700 Additional Features High-speed DC TIG pulse controls capable of 5000 pulses per second. 120 V auxiliary power dual receptacle to power cooling system or small tools. Program memory features nine program memories that maintain/save your parameters.

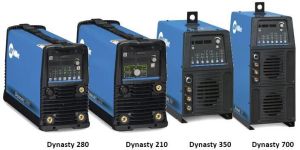

Dynasty Series Features Autoline allows for any input voltage hook-up with no manual linking, providing convenience in any job setting. Blue Lightning high-frequency arc starter for more consistent non-contact starts and greater reliability compared to traditional HF arc starters. Lift-Arc start provides AC or DC arc starting without the use of high frequency. Hot Start adaptive control provides positive arc starts without sticking. Fan-On-Demand cooling system only operates when needed to reduce noise, energy use and contaminants pulled through the machine. Auto-postflow calculates the length of postflow tim based on the amperage setting. Eliminates need to independently set postflow time. AC balance (30 – 99%) controls amount of oxide cleaning enabling high-quality TIG welds on aluminum (280 base model has 60 – 80% range). AC waveforms include advanced squarewave, soft squarewave, sine wave and triangular wave (280 base model has soft squarewave only). AC frequency controls the width and the force of the arc in TIG welding (280 base model has limited range) and adds stability. Dynasty 210 Additional Features Three models available. SD model provides basic TIG and Stick functions. DX model adds pulser and sequencer functions. Portable with adjustable shoulder strap. You can take it anywhere Dynasty 350/ 700 Additional Features AC amperage allows independent amperages to precisely control heat input. High-speed DC TIG pulse controls capable of 5000 pulses per second. Program memory features nine program memories that maintain/save your parameters. 120 V auxiliary power dual receptacle to power cooling system or small tools.

Auto-Line™ provides state-of-the-art flexibility by automatically connecting to 120-460 VAC, single- or three- phase power without removing the covers to relink the power source. Low OCV Stick reduces open-circuit voltage to 9-14 VDC when power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers. Superior Stick arc performance on all input voltages. Even on the difficult to run electrodes like E6010. Portable in shop or at job site – at 14.5 kgs the Maxstar 200 STR is easily moved from location to location. Lift Arc™ start for TIG arc starts without the use of high frequency. Adaptive Hot Start™ for Stick arc starts automatically increases output amperage at start of weld should the start require it. Prevents electrode from sticking and creating an inclusion. Fan-On-Demand™ operates only when needed reducing noise, power consumption, and the amount of airborne contaminants pulled through the machine. Wind Tunnel Technology™ Internal air flow that protects electrical components and PC boards from dirt, dust, debris… greatly improving reliability. LVC™ Line Voltage Compensation Keeps output of the power source constant regardless of fluctuation in input power ± 10%

Rugged, reliable performance and superior arc characteristics. Hot Start and built-in arc control. Enclosed circuit board. Thermal overload protection with light. Fan – On- Demand. 15 A, 115 VAC duplex receptacle. Power efficient. Remote control capability. Optional digital volt and amp meters.

All arc welding processes radiate hazardous UV- and IR-rays. Even people passing by the area are endangered by these rays. Occupational Health & Safety stipulates that premises, plant and systems of work must be safe and without risk to health. This would include ensuring that all persons are protected against the harmful effects of these rays on the eyes and skin. Sinotec welding curtains and strip curtains protect according to the DIN EN 1598 standard and offer optimal protection during welding with a risk factor < 1. Moreover the curtains also protect against grinding and spatter. Welding protective curtains in T75M (dark green), T55 (eurogreen), T50 (red-brown) and T40 (red-orange) protect against hazardous rays and are certified according DIN EN 1598. We can offer variety of Welding Curtains of different thickness, widths and colours with fabricated stands. We can do a survey and understand your welding stations and suggest the best possible installation options.

Aquasol® purge paper is used to dam Argon or Helium gases during Tungsten Inert Gas (TIG) welding of stainless steel and aluminum pipes. The greatest advantage of Aquasol® water- soluble purge dams is that they can be placed in close proximity to a weld zone, then dissolved with water or steam introduced through the pipe.

Reliable, Versatile & Compact Internationally Proven :: Save gases by using Facility to Lock Pressure & Flow :: S.S Sintered Central Micro Flow :: No contamination of Valve Seat :: No gas leakages :: Maintenance free :: Thick NBR diaphragm ::Supported by large Backup Plate :: Minimum pressure fluctuation :: High flow rates even at low cylinder pressures :: Pressure relief valve :: Prevents dust and contaminants from entering the regulator :: Forged brass body & housing cap :: Fire- retardant valve seat material

Country of Origin : India

Type : Gas Pressure Regulators

Material : Brass

TIG welding is a game changer! Keyhole TIG (K-TIG) welding is a revolutionary technology that eliminates the constraints and inefficiencies of traditional TIG (Tungsten Inert Gas) welding. Is 10x to 100x faster than TIG Delivers weld quality which meets the most demanding requirements of the nuclear, aerospace & defence industries; Welds in a single, full penetration pass & requires no filler or edge preparation.

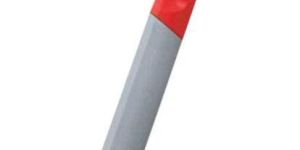

Weldcraft, since 30 years, provides the highest quality TIG welding products, accessories and service in the industry. Weldcraft’s TIG products are engineered using high-quality materials, durable components and innovative designs to optimize your TIG welding performance. Weldcraft over the years has remained committed to one simple principle: providing uncompromising quality, value and service and that’s what makes Weldcraft “The TIG Welder’s Choice.”

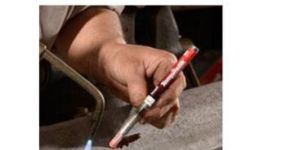

Tempilstik The simple surface Tempil – Temperature Indicators that delivers reliable and accurate results. :: Temperatures available: 38°C to 1093°C :: Reliably accurate – melts within +/- 1% of the rated temperature :: Lead and sulfur free :: Certification available upon request :: Lot numbered for traceability

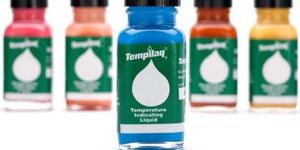

Optimal for cold and/or smooth surfaces, Tempilaq G® Indicating Liquid is a quick, easy and cost-effective method to verify the achievement of a specific temperature on a wide range of surfaces under dynamic conditions. :: 43 different temperature ratings from 175°F to 1900°F (79°C to 1038°C) :: Reliably accurate – melts within ±1 percent of rated temperature :: Easy to apply quick-drying fluid

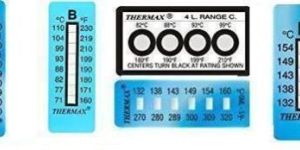

Thermax Irreversible Temperature Sensitive Products Irreversible Temperature Labels: A fast simple temperature monitoring system based on Proprietory colour change technology. Inexpensive and easy to use. Immediate Response Permanent Record of highest temperature Oil, water and steam resistant. Labels or strips Silver to black colour change. Tempil Thermax  Temperature Indicating Labels is uniquely designed to immediately deliver accurate and reliable readings consistently – in a variety of applications or environments. Featuring a self-adhesive backing, Thermax labels can be quickly affixed to any surface. These are available in 10 Level strips, 8 Level strips, 6 Level strips, 5 Level strips, 4 Level strips, 3 Level strips with different temperature range. Packing: 10 labels in a pack Features – Immediate response – Accurate to +/- 2% of the Fahrenheit rating – One-way color change – Permanent record for inspection and quality control – Constantly Calibrated – Lot numbered for traceability – Oil, water and steam resistant

SWELDex Welding fume extraction In order to prevent health defect from the welder and uninvolved persons, it is required to lead away welding fume by necessary precautions that the fume does not reach the breathing area of the persons concerned. Only the direct extraction of harmful welding smoke at the point of origin offers an efficient protection. SINOtec has a wide range of mobile and stationary fume filtering units. These units provide different advantages for the user. Advantages:     Extraction of contaminated air at the breathing area of the user     High effectiveness of SINOtec units due to a separating efficiency of 99.9%     Low running costs, because high supply air can be saved particularly during the heating period     Easy operation of the SINOtec units     Availability of mobile units enabling to be used at different working places     No expensive investment for pipes, ventilators, etc.      High acceptance by the user because these protection measures are for his health and security. With the various options of SWELDex fume extraction systems & with our experience, we can suggest the most appropriate fume extraction system based on your plant and welding booth surveys.

Miller’s Subarc Series are three-phase, CC/CV DC power sources designed to provide a superior arc for the SAW welding process. Also available in square wave AC/DC powersources for thick structures, cladding overlays etc. Easier setup and operation – The improved user interface of the Subarc Series makes setting up and operating the power source relatively simple. The operator is presented only with the necessary functions to set process and control output. Greater control of deposition, penetration, and heat input. Miller SAW solutions are designed to deposit large amounts of filler material and achieve deep penetration on thick or large surface area weldments. Multi-arc capable. AC welding output enables the Subarc AC/DC to be used in tandem arc welding systems with a DC lead arc and AC trailing arc, or with AC / AC arc combinations. Using multiple arcs further increases deposition rate, resulting in shorter welding cycles for very thick weldments without compromising quality Part of a customized system. Miller power sources and system components enable users to implement a customized SAW solution that best fits their operations when combined with the travel and manipulation equipment they prefer. HDC 1500 Controller Both HDC 1500 automatic weld controllers offer reliability, flexibility, and performance with their ability to interface with DC, CC/CV power sources having remote contactor and output control capabilities. HDC 1500DX DC controller CV and CV+C process modes. New CV+C mode allows operator to preset and monitor voltage as well as amperage rather then wirefeed speed. Crater, Burnback and Run-In standard 12 pre-settable and lockable programs. Internal terminal strip allows easy hookup for automatic flux valve, peripheral equipment and provisions to add remote start/stop and inch up/down.

Maintaining a consistent position of the torch over the weld joint is absolutely critical for automated welding. Tactile seam tracking employs an electromechanical probe that is mounted ahead of the torch. The probe has a tip that rides in the weld joint and when deflected causes the motorized slides to respond vertically or horizontally. The tactile seam tracker can be used to initially find the weld joint, then track the joint while welding, and retract the torch up and away from the part at weld completion.

Smith’s HB1500 series single stage regulators and Series 30 double stage regulators comprise of complete line of versatile regulators for welding, cutting, heating and other industrial applications. Heavy duty construction and simplified design provides high gas flow and longer trouble-free operation.

Material : Stainless Steel

Voltage : 220V

Application : Industrial

Operating Temperature : 10-50D/C

Driven Type : Electric

Warrenty : 2 Years

A silicone-based coating, is specifically formulated for protecting, decorating, or color identifying metal surfaces that will be subjected to high temperatures. :: Pyromark provides long-lasting protection against oxidation and corrosion :: It has excellent coverage characteristics – no blistering, chipping, cracking or peeling at rated temperatures.

Purge Bladder I-Purge™ Modular Inflatable Bladder System, the most advanced and versatile solution for pipe purging, enables to accomplish a number of different purge requirements with one interchangeable solution. It is equipped with Quick Connect Fittings, components easily snap on and off in seconds! With the Isolator™ Adaptor Kit, a one sided plug can be created to close off the end of a pipe for servicing, cleaning, inspection or sealing. The Proprietary Relief Valve Technology enables the system to inflate at a precise rate. I-Purge Modular Systems are available in sizes 2 – 36 (51 – 914 mm) and can be customized to suit your specific purging requirement.

 New Generation Nozzle Mixing Technology :: High resistance to back fires :: 90° Solid Forged Brass Head :: Comfortable working for continuous operation :: Torch Weight: 1050 gms :: Length: 510 mm :: Rugged design ensures maximum strength :: Precise flow rates :: Heavy duty applications even at low cylinder pressures :: Cutting Range: 3 – 300 mm :: Reduced Post Cut Grinding Operation :: Same torch can be used for Acetylene / LPG / BMCG(Bharat Metal Cutting Gas)

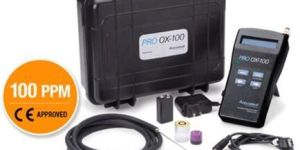

The “Pro OX® -100 Kit” is a durable, battery powered instrument that accurately measures oxygen concentration with 0.1%(1000ppm)  with 0.01%(100ppm)resolution. The “Pro OX® -100 Kit” Kit is ideally suited for high purity welding where evacuation of oxygen is paramount. Prior to welding, the pipe will be pre-purged to displace oxygen with an inert gas. Constant monitoring of the oxygen level is necessary until it is ascertained that the oxygen has been evacuated to 0.1%(1000ppm)  with 0.01%(100ppm) to enable the commencement of welding to prevent oxidation, discoloration and coking. The “Pro OX® -100 Kit” accurately measures low concentrations of oxygen in purged tubing and high purity weldments, ensuring a high quality finish.

Extra Heavy Duty Torches Ideal for Scrap/Demolition Cutting: Safety engineered; designed for severe applications. Works with all gases including Propane/ LPG, Natural Gas & Acetylene. Extra high capacity cuts to 24” (610 mm) with Acetylene. Cuts to 20” (508 mm) with Propane.

The Minitherm torch range has been developed to meet the need of trade and industry for a small injector torch to handle special jobs. ::Various torch inserts from micro fine applications to powerful heating, welding and soldering work ::High safety levels due to injector suction principle ::Work without fatigue due to low weight ::Optimum freedom of movement due to compact size ::Can be used with all gasses

  Outstanding multiprocess inverters with built-in features providing the ultimate in productivity.  Wind Tunnel Technology protects electrical components and PC boards from contamination. Fan-On-Demand cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine. Lift-Arc allows TIG starting without use of high-frequency. Starts the arc without contaminating weld with tungsten. Adaptive Hot Start increases the output amperage at the start of a weld if necessary, eliminating electrode sticking. Inverter arc control technology provides greater puddle control for superior 6010 Stick electrode performance. Lightweight, aerospace-grade aluminum case offers protection with the benefit of reduced weight. Low OCV Stick — A built-in, selectable feature, that reduces the Stick mode open-circuit voltage (OCV) to nearly 15 volts when the welding power source is not in use. Eliminates the need for add-on voltage reducers. Large, dual digital meters are easy to view and presettable to ease setting weld output. Process selector switch reduces the number of control setup combinations without reducing any features.
