Tension Meter Dealers in Bangalore

The T6 series tension meter is used to accurately measure the running line tension on a wide variety of yearns, fibers, and wires (copper, aluminum, plastic & etc.).   Advantages : Large LCD display panel, clear display with high brightness backlight. Clean, streamlined handle design, easy handling. Simple and user friendly function buttons for easy operation. Direct display of real time measurement, with maximum and minimum measured values displayed simultaneously. Memory back-up function. Display unit selectable (gram/cN) Suitable for tension measurement of enameled copper wire, cotton thread, plastic wire, metal wire etc. Powered by rechargeable environmental-friendly polymer lithium battery with long battery life.

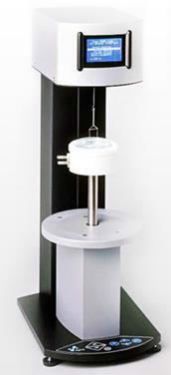

Details : The SIGMA 2000 interfacial tensiometer is a fully automatic device for the measurement of interfacial tension in transformer oil accord. to ASTM-D971 and IEC60422. No previous knowledge of IFT measurement is required, the step-by-step instruction on the large LCD display guides you through the measurement process and ensures fail-safe measurement every time. Measurement in transformer oil made easy. Accord. to ASTM-D971 and IEC60422 Requires no knowledge of IFT measurement Step-by-Step instructions Large LCD display Immediate display of data on screen

• Application: Industrial
• Feature: Accuracy, Multi Jet
• Warranty: 1 Year
• Instrument Size: 220mm x 280mm x 340mm
• Instrument Size with carrying Case: 250mm x 350mm x 365mm
• Weight of the Instrument: 05 Kgs
• Weight with Carrying Case: 13 kgs

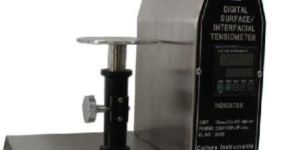

Standards The instrument is based on the DuNuoy principle and confirms to various National and International standards like IS:6104/1972; ASTM-D-971, 1590, 1331   Applications Surface and Interfacial tension testing has become indispensable to a variety of industries including Paint, Chemicals, Dyes, Coatings,Inks, Plating, Soaps and Detergents, Surfactant, Emulsions, Crude,Transformer oils, Lubricants and many many more. These Tensiometer are also being used in many research & technical centers as an important instrument for scientific studies. The most widely used application being to verify transformer oil condition, by various players in the power distribution and generation fields  Advantages : Digital Read Out Of Tension In Dynes/Cm Or Mn/M Easy And Quick Change Of Torsion Wire Quick And Easy Calibration Even On Field Higher / Infinite Range Of Testing Can Be Carried Around In The Field   CI’ Interfacial tensiometer is supplied complete with Power Cord - 1 no. Sample Dish - 1 no. Platinum Ring 6cm - 1 no. Manual - 1 no. Carrying Case - 1 no.

Pg701 series of vibration transmitters are designed to monitor the vibration levels of the above mentioned rotating machines. The 4-20ma signal being proportional to the “g” level can be connected directly to the monitoring device such as a plc, else customized display devices & data logging system, can be provided by us.

• Output: 4
• Measure Range: Acceleration 0.5 to 200 m/s
• Frequency Range: 10 Hz to 1 Khz * Sensitivity relative during the frequency range meet ISO 2954
• Accuracy: ± ( 5% +2d) reading, 160Hz, 80Hz. *23±5ºC
• Calibration Point: Acceleration 50m/s
• External Adjustment: ZERO VR ( 4 mA Adjust VR) SPAN VR ( 20 mA Adjust VR)

• Type: Tensiometer
• Material: Stainless Steel
• Application: Industrial
• Voltage: 110V, 220V
• Operating Temperature: 10-50D/C
• Warranty: 1 Year
• Display: Local
• Automation Grade: Automatic, Semi Automatic
• Country of Origin: India

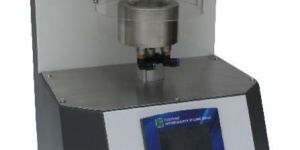

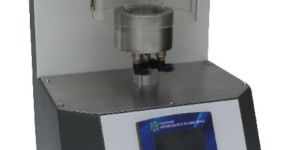

We are offering interfacial tensiometer is versatile in nature and used for verifying surface tension of liquids as well as interfacial tension of 2 liquid media. The interfacial tensiometer is further used for quality testing of transformer oils. Besides, we are one of the distinguished manufacturers of interfacial tensiometer. features : du-nunoy principle measurement : up to 90dynes/cm accuracy : 0.5 dynes applications : paint pharma fmcg oil .

• *Measurement Principle: Force
•  :
• *Max. Load: 50gm
•  :
• *Resolution: 100ugm
•  :
• *Sampling Rate: 80Hz
•  :
• *Unit of measurement: Dynes/cm or mN/m
•  :
• *Range: 0 - 999.99 dynes
•  :
• *Display Resolution: ± 0.001
•  :
• *Accuracy: ± 0.005 Dynes/cm.
•  :
• *Table Speed: 0.1mm/Sec to 50mm/min
•  :
• *Stroke Length: 50mm

• Temperature range: 10
• Dimension: 208×90×100mm,400mm×220mm×350mm etc

Everything in operator’s view - The measuring rollers -The readings -The measured material.No deformation, long life.Combination of both test methods of platinum plate and ring; The display value is that of surface tension in test method of platinum plate.Tensiometers are used to measure and adjust the tension of sewing machines to get best and highest quality stitched seams.

• Application: Laboratory
• Display Type: Digital
• Body Material: Plastic
• Accuracy: 0.01%
• Range: 0-50 N/cm
• Scale: 54 mm
