Thermal Overload Relays Dealers in Bangalore

• Type: Thermal Overload Relays
• Material: Bakelite
• Certification: AN ISO CERTIFIED COMPANY
• Color: Black
• Voltage: 220V, 380V, 440V
• Frequency: 50Hz
• Current Type: AC
• Terminals: 3Terminals
• Relay Type: Dry Filled
• Brand Name: PrakashMaruti
• Application: Motor Starter
• Phase type: Single Phase, Triple Phase
• Application: Motor Starter

• Mounting: Contactor Mounting : Type LK1
• Current Ranges:: 1-1.6A, 1.5-2.5A, 2.5-4A, 4-6.5A, 6-10A, 9-14A, 10-16A, 11-18A, 13-21A
• Trip Class:: 10A
• Terminals capacity: 4sqmm

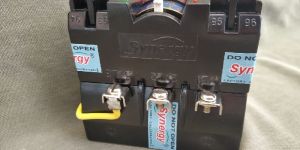

Thermal Overload Relay Unit Type LK1 is a three pole Bimetallic unit housed in a Bakelite enclosure. It is individually calibrated & tested on automatic machines to ensure foolproof protection to the motor from overload & resulting burnouts. The relay is ambient temperature compensated for operation between 5degC to 55degC. Available in a wide range of current ranges with easily adjustable current setting knob in the front for easy access, the relay comes with a Manual reset button that also acts as the STOP button.

These types of relays consist of bimetallic elements, which are individually calibrated and tested for optimum protection of motors against overloads. The tripping curve shows the inverse time characteristic of all bimetallic relays starting from cold condition. Once the realy is tripped due to overload it cannot be reset immediately as the relay has a specific reset time. Resetting is done maually. Wide range of relays are available depending on various ac loads.
