Transformers Dealers in Bangalore

• Application: CNC Machines

3 phase isolation transformers,  used for C N C  Machines & Electrical Panels

Toroidal Core - 03, Toroidal Cores, Toroidal Core - 02, Toroidal Cores - 07

• Coil Structure: Toroidal
• Brand Name: Jasma
• Material: Epoxy Moulded
• Cooling Type: Oil Cooled
• Power: 30 Kv
• Voltage: 220 - 240 V
• Working Frequency: 50 Hz
• Phase: Single Phase
• Supply: AC

• Phase: Single Phase
• Voltage: 110-240 V
• Frequency: 47-63 Hz
• Coil Structure: EFD
• Ambient temperature: 5 Degree C to +50 Degree C

Miracle Electronics best Toroidal transformers in India are small-sized, light-weight, less noisy, highly efficient and provide excellent regulation with minimal temperature rise because they possess a lower exterior magnetic field. The ideal choice for your utility.

Over the years, our organization has a carved a niche for itself in Bangalore(India) and is dedicated towards becoming a trustworthy trader in other markets as well. We make sure that all our products are in compliance with the industry standards and thus cross checked at all stages including manufacturing, warehousing, packaging and final dispatch.

• Input Voltage: 110Vrms
• Output Voltage: 2.3 Volts
• Burden Resistance: 3.3Kv
• Turns Ratio: 48:1

Voltage transformers (VT), also called potential transformers (PT), are used for metering and are designed to present negligible load to the supply being measured . They have an accurate voltage ratio to enable accurate metering.VT1329 has the following specifications: 110 Vrms 2.3 V 3.3 k Ω 48 : 1 4.0 kV AC -10 ... +60° C Pin Terminals PCB

• Frequency: 50/60 Hz
• Capacity: UPTO 2.5 MVA
• Class Of Insulation: Class B/F/H with Temp Rise of 70/90/115 Deg C or as per customer requirement.
• Tapping Range: OCTC or OLTC As Per Customer Requirements
• Winding Material: Copper
• Duty Type: Outdoor / Indoor , Convertor Duty, Special Type
• Voltage Class: UPTO 33 kV
• No of Phases: 1 Phase or 3 Phase
• Vector Group: Dyn1 or Dyn5 or Dyn11 or any other connection as per customer requirement.
• Tap Changer: Off Circuit or On Load.
• Applicable Standards: IS 11171, IEC 60076
• Painting: Painting : Powder Coated with RAL 7032 Shade or As Per Customer Requrement
• Degree of protection: IP 23,43 or As Per customer requirement.
• Duty Type: Outdoor/Indoor, Convertor Duty, Special Type

We have garnered wide acclaim for bringing forth cost-effective product range that is available at Bangalore(India). Using ultramodern packaging equipment and superior grade materials, we secure our products and make them safe from external damages. In addition, the packs are labeled properly for information.

Started our business operations as manufacturer, supplier, exporter and trader, we are engaged in offering TAP Position Indicator. Suitable for industrial environment, thee indicators are offered with potentiometer provision for trimming, in order to compensate the lead resistance. Apart from this, to ensure robust construction, these indicators are checked thoroughly. Features: Functional accuracy Precise reading Durable finish Details: Visual 7 segment digital display Onoff switch with lamp indication provided for power supply status Potentiometer provision for trimming to compensate the lead resistance Panel mounting with aesthetic value Robust & Rugged i.e. suitable for industrial environment Greater degree of accuracy & consistent reliability Specifications: Auxiliary Voltage 110 or 230 or 415V AC +15%, 50 Hz Resistance Tel-transmitter 1 kilo OHMS per step, 3 wire connection Display 1 to 99 positions 2 digit 7 segment LED display Accuracy Tolerance + 2% Lead compensation Trough a potentiometer adjustment in the front fascia Type of mounting Panel Mounting Operating temperature 0°C to 55°C Break down voltage 2KV, between all live terminal connected together and body for 1min Dimensions in mm 96 mmx96 mmx70 mm (Panel cutout size:90mmx90mm+0.1 -0.00) Applications: OLTC panel to indicate tap position

LAMINATED CORE TRANSFORMERS Control Transformers Sensing Transformers Medium dry type Power Transformers and chokes for Drives and CNC machines Transformers (0.5 - 100KVA) UPS Transformers and chokes (offline and online) Isolation & Ultra isolation Transformers (both single & 3 phase) Transformers for Telecommunications (AVR, IPU & LCU panels) Auto Transformers (3 phase & single phase) Transformers for battery chargers and servo stabilizers Current Transformers 50 – 400Hz

We are acknowledged as one of the prominent Current Transformer Manufacturers in the country. Our range of High Voltage Current Transformer includes both HT Current Transformer and LT Current Distribution Transformer. A Current Transformer is a type of Instrument Transformer that is designed to provide a current in its secondary form which is accurately proportional to the current flowing in its primary. Steps of current flowing : Primary Current : Primary current is the load of the current transformer, is the measured current. Secondary Current : Is the range of current outputs Insulation Voltage : Insulation that current transformer provides when connected to a power source Accuracy Class : Is the degree of certainty with which the measured current agrees with the ideal value VA Burden : Is expressed in Volt-Ampere (VA) the product of the voltage applied to a circuit and the current. Type of Encapsulation : Tape Wound Enclosure (ABS/PC) Resin Cast Features : Highly durable Fabricated of optimum quality raw materials Abrasion resistant High performance based

• Efficiency: 98%
• Protection: HIGH VOLTAGE , LOW VOLTAGE , SINGLE PHASE and MOTOR PROTECTION
• Input voltage of 1KVA - 150KVA SINGLE PHASE: 170 V - 270 V
• Input voltage of 3KVA - 1,500KVA THREE PHASE (AIR/OIL COOLED): 340 V - 470 V
• OUTPUT REGULATION: +/-1%
• RATE OF CORRECTION: 70 V / Sec Ph-Ph
• CONTROL: MICRO PROCESSOR
• DUTY CYCLE: CONTINUOUS
• COOLING: AIR / OIL COOLED

Excelon cvt consists of buck-bust transformer ,whose secondary is connected in series with the main input and the load. The primary is supplied by an auto-transformer driven by a servo-motor. The motor is driven by a solid state sensing and control which senses output voltage.

• ONLINE MOISTURE ABSORBING EQUIPMENTS: SILICA GEL AIR BREATHERS
• SILICA GEL BREATHER: TRANSFORMER AIR BREATHER

Silica gel Air Breathers: SILICA GEL Air Breathers, [on line moisture extraction equipment from Oil Cooled Transformers] used in oil cooled Power / Distribution Transformers, Bus ducts, Gas turbines, wind turbines & many more applications. Available in different sizes of 125gms. To 15kgs. Capacity depends on the capacity of Transformers. Silica Gel Breathers available in two different models one with fully clear view type and another with metallic with small window view type. Both models are connected with Plastic [ABS] & Aluminum Die-cast top & bottom caps fitted with rubber ‘O’ rings to arrest air in joints with clear view oil cup. Silica gel Breathers Clear view type with Aluminum & ABS die cast top & bottom caps with Transparent Acrylic tube body Silica Gel container of different diameter & height depends upon the Silica Gel filling capacity. Available in different end connections of Thread & flange type as per client’s specification and requirement. Silica gel Breathers Metal with Window view type fitted with Aluminum Die-Cast top & bottom caps with aluminum body Silica gel container of different diameter & height depends upon the Silica Gel filling capacity. Available in different end connections Thread & flange type as per client’s specification and requirements.

• Capacity: 100
• Material: MS
• Winding Material: Copper
• Material: Copper
• Driven Type: Electric
• Cooling Type: Dry Type
• Operating Type: Manual
• Production Power: 2500
• Waveform Distortion: NA
• Usage: Industrial
• Feature: Distribution
• Hardness: NA
• Mounting Type: Ground Mounted
• Type: Power Transformers
• Weight: 5-10 Tons
• Frequency: 50 Hz
• Tensile Strength: NA
• Phase: Three Phase
• Efficiency: Greater Than 90%
• Warranty: 2 Year
• Cooling System: Air Cooling
• Country of Origin: India
• Enclosure: MS
• Relative Humidity: Less Than 90%
• Corrosion Resistance: Yes
• Energy Efficiency Level: 98%
• Max Ambient Air Temperature: 50
• CT Ratio: NA
• Class Of Insulation: F
• Coil Structure: Wound
• Tapping Range: +5 to -10%
• Maximum Ambient Air Temperature: 50
• Transformers: As desired
• Surface: Polished

• Country of Origin: India
• Onsite Support Available: Yes
• Brand Name: OPTEK MAKE
• Winding Material: Copper
• Certification: ISO 9001:2008
• Number of Phase: Single Phase
• Voltage Ratio: 220V
• Power Rating: 50-100 KW
• Operating Type: Manual
• Driven Type: Electric
• Warranty: 1 Year
• AMC Available: No
• Color: GREEN
• Cooling Type: Air Cooled
• Surface Finishing: Coated
• Shape: Rectangle
• Insulation Class: F Class
• Standard: ISO 9001-2015
• Winding Turns: Step Up, Step Down, Variable, One To One
• Usage: Outdoor, Industrial
• Size (mm): AS PER SPECIFICATION
• Weight: AS PER SPECIFICATIO
• Overall Length: AS PER SPECIFICATION
• Packaging Type: AS PER CUSTOMER REQUIRMENT
• Speciality: Easy To Use
• Max Ambient Air Temperature: 60 C
• Enclosure: WTIH OR WITH OUT ENCLOOSURE AS PER CUSTOMER REQUIREMENT
• CT Ratio: AS PER CUSTOMER REQUIREMENT
• Hardness: AS PER CUSTOMER SPECIFICATION
• Dimension: AS PER CUSTOMER SPECIFICATION
• Operating Temperature: 60DEGREE
• Connection Type: SINGLE PHASE OR THREE PHASE
• Energy Efficiency Level: AS PER CUSTOMER REQUIRMENT
• Frequency: 50
• Tapping Range: AS PER CUSTOMER REQUIRMENT
• Pulse Transformers: NOT APPLICABLE
• Interface Transformers: NOT APPLICABLE
• Driver Transformers: NOT APPLICABLE
• Coil Structure: SHELL TYPE
• SINGLE PHASE TRANSFORMER: THREE PHASE TRANSFORMER
• AUTO TRANSFORMER: ISOLATION TRANSFORMER
• STEPDOWN TRANSFORMER: STEP UP TRANSFORMER

• Weight: 100 Grms
• Country of Origin: Made in India
• Color: Blue
• Brand Name: Lovato
• Usage/Application: Car

Silica Gel Breather, spherical silica gel beads, Silica Gel

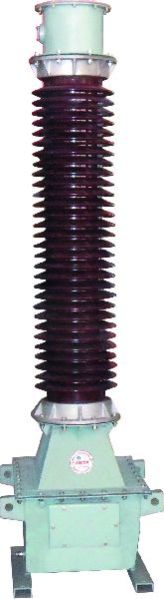

• Type: High Voltage Transformer
• Rated Voltage: 110kV
• Warranty: 2 Year
• Packaging Type: Wooden Box
• Accuracy Class: 0.1 to 1.0 & 0.2S, 0.5S
• Frequency: 50Hz
• Dimension: Customer requirement

The above-mentioned price is tentative only, the price will vary based on an actual technical specification

A ENERGX CVT, the AC mains powers the input which is widely separated physically from the solated output winding. The input winding normally runs at very moderate Flux linkage levels. The output winding exhibits energy characteristic and this energy storage operates in conjunction with mains capacitor to produce self generated AC flux field which is indirectly excited from the winding. The result is instantaneous voltage regulation and spikes. Sine wave output. A perfect answer for every electronic equipment.

Isolation transformer is a reliable source of conditioned power designed to protect sensitive equipments from all types of power disturbance and electrical noise. Features : Open air cooled Resin cast Low transfer output impedance Low load regulation Protects sensitive loads Low leakage current Isolation upto 110 KVA

• Material: Copper
• Core Type: Ring Core Type CT
• Brand Name: Navago
• Features: Safe packaging, Easier maintenance
