TRANSWIND TECHNOLOGIES PVT LTD Peenya Industrial Area, Bangalore, Karnataka

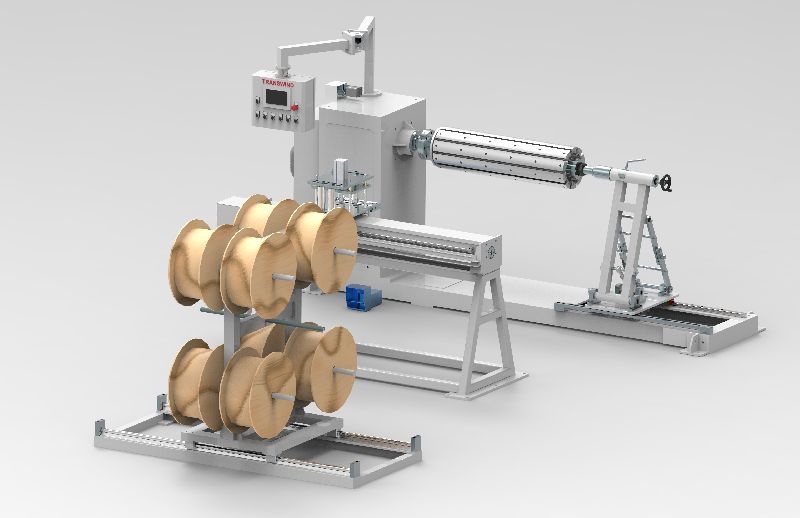

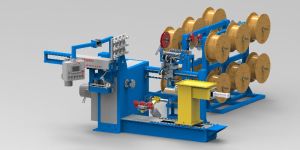

TRANSWIND STRIP WINDING MACHINE (TSW-800 TIG) The machine is designed to wind with one or two COPPER OR ALUMINUM foils for the low voltage coils of Electric Transformers. A closed loop control system will control the tensioning system to produce the uniform stiff coils of Width ranging from 50mm to 300mm and Diameter up to 500mm. This system will achieve the high productivity.

Capacity : 100-200kg/h

Finishing : Polished

Width : 1500mm

Machine Weight : 1000-2000kg

Power : 3-6kw

Packaging Type : Carton Box

Pressure : Medium Pressure

Overall Length : 65mm

Size (mm) : 100-1500mm

Usage : Transformers Industry

Specialities : Rust Proof, Long Life, High Performance, Easy To Operate

Dimension (LxWxH) : 375x290x275mm

Type : Spm Machine

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Material : Mild Steel

Shape : Rectangular

Certification : CE Certified

Color : Blue

Voltage : 110V

Condition : New

Driven Type : Electric

Warranty : 1 Year

Country of Origin : India

Operating Mode : cutomized

Machine Structure : Horizontal

Color : Blue

TOROIDAL CORE WINDING MACHINE For Toroidal Cores TCW Series will operate with a wide range of steel qualities, producing outside transformer core diameters ranging from 8 mm to 250 mm with a range of strip width from 3 to 100 mm. The machine will strictly adhere to the core winding specifications as it is manufactured to highest engineering parameters activating advanced electronics in logic control sequences. The integral welder is also under fully automatic control of the HMI and PLC that brought into operation at the beginning and end of the transformer core winding cycle. The welding system has been selected to complement the associated engineering standards of the TCW Series to give the highest degree of reliability.

Capacity : 50-100kg/h, 1000kg (max)

Finishing : Polished

Width : 5-100mm

Machine Weight : 100-1000kg, 1000-2000kg

Power : 3-6kw

Packaging Type : Carton Box

Pressure : Medium Pressure

Overall Length : 65mm

Size (mm) : 100mm

Usage : Transformers Industries

Specialities : High Performance

Dimension (LxWxH) : 375x290x275mm

Type : Spm Machine

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Material : Mild Steel

Shape : Rectangular

Certification : ISO 9001:2008 Certified

Color : Blue

Voltage : 110V

Condition : New

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

Country of Origin : India

Operating Mode : Automatic

Corrosion Resistance : Yes

Machine Structure : Horizontal

Thickness : 0.15-0.50mm

Color : Blue

Thickness : 0.15-0.50mm

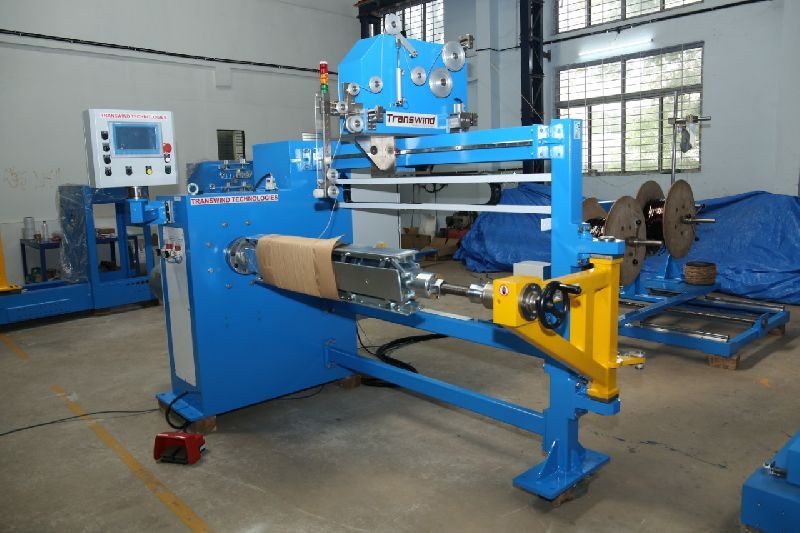

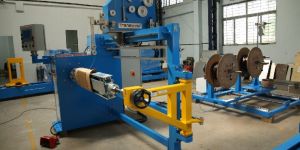

Steel Wire Winding machine The machine is designed to wind with one or two COPPER OR ALUMINUM foils for the low voltage coils of Electric Transformers. A closed loop control system will control the tensioning system to produce the uniform stiff coils of Width ranging from 50mm to 300mm and Diameter up to 500mm. This system will achieve the high productivity.

Type : Wire Winding Machine

Certification : CE, ISO 9001:2008 Certified

Weight : 1000-2000kg

Color : BLUE

Voltage : 110V

Condition : New

Automatic Grade : Automatic, Customized

Power : 3-6kw

Driven Type : Electric

Warranty : 1year

Country of Origin : India

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Color : Blue

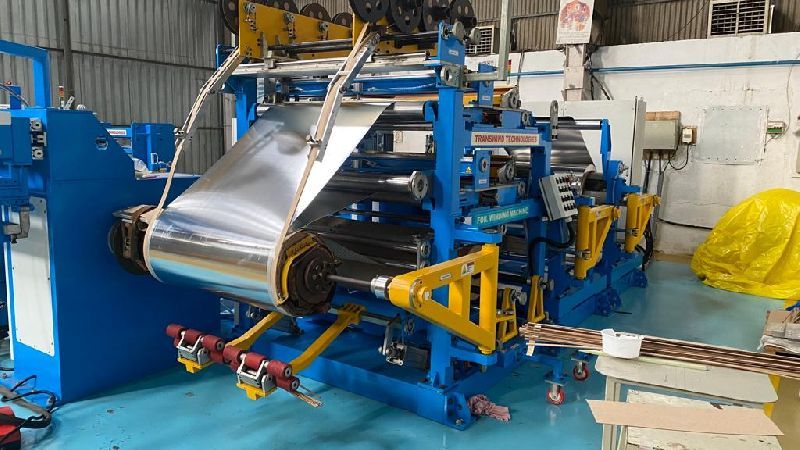

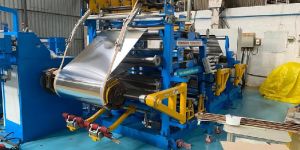

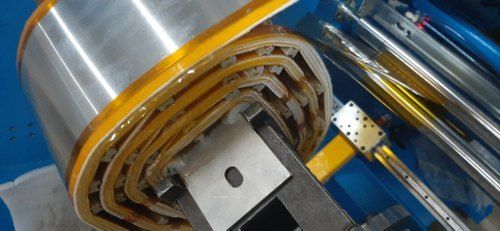

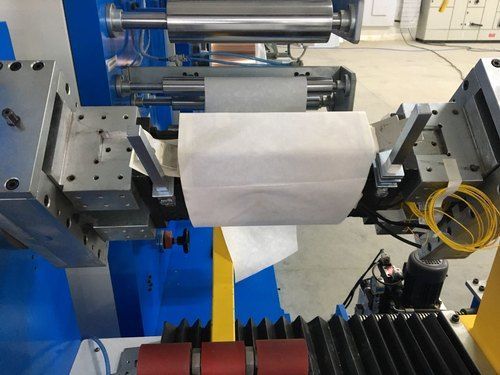

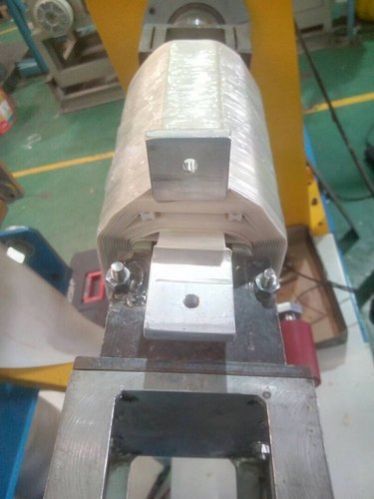

LV FOIL WINDING MACHINE (TFW 1600 AUD) For LV Transformer Coils (Power Transformer, Inductors. Reactors and UPS Transformers) The machine is designed to wind with one or two COPPER OR ALUMINUM foils for the low voltage coils of Electric Transformers. A closed loop control system will control the tensioning system to produce the uniform stiff coils of Width ranging from 300mm to 1600mm and Diameter up to 1000mm. This system will achieve the high productivity

Capacity : 500KG

Finishing : Polished

Width : 1600MM

Machine Weight : 2000-3000kg

Power : 1-3kw

Packaging Type : Carton Box

Pressure : Medium Pressure, High Pressure

Overall Length : 210mm

Size (mm) : 100mm, 1600mm

Usage : Distribution transformers

Specialities : Long Life, High Performance

Dimension (LxWxH) : 375x290x275mm

Type : Spm Machine

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Shape : Rectangular

Certification : ISO 9001:2008 Certified

Color : Blue

Voltage : 110V

Condition : New

Driven Type : Electric

Phase : Double Phase

Warranty : 1 Year

Country of Origin : India

Operating Mode : customized

Machine Structure : Horizontal

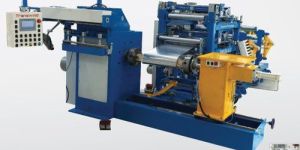

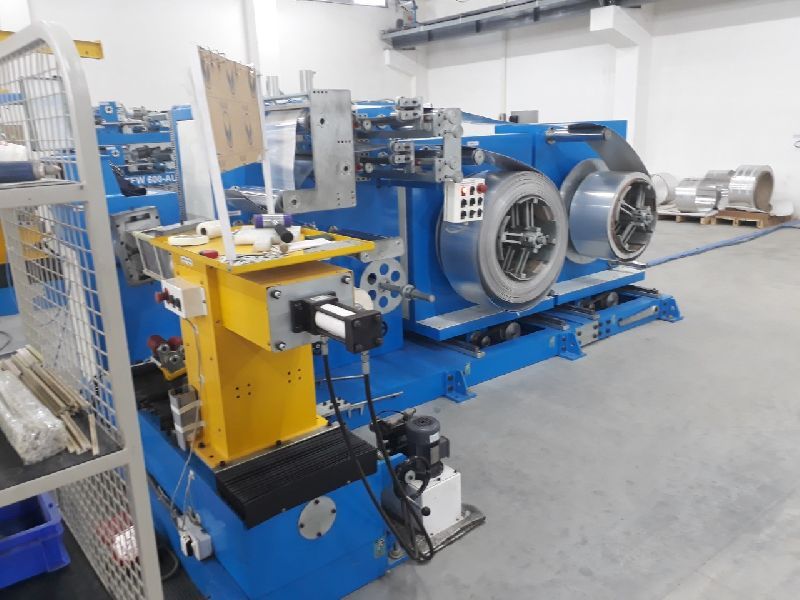

LV FOIL WINDING MACHINE (TFW 600 AUS) For LV Transformer Coils (Power Transformers. Inductors. Reactors and UPS Transformers) The machine is designed to wind with one or two COPPER OR ALUMINUM foils for the low voltage coils of Electric Transformers. A closed loop control system will control the tensioning system to produce the uniform stiff coils of Width ranging from 50mm to 400mm and Diameter up to 600mm. This system will achieve the high productivity.

Capacity : 100-200kg/h

Finishing : Polished

Width : 600mm

Machine Weight : 1000-2000kg, 2000-3000kg

Power : 3-6kw

Packaging Type : Carton Box

Pressure : High Pressure

Overall Length : 210mm

Size (mm) : 600mm

Usage : Transformers Industry

Specialities : Long Life, High Performance, Easy To Operate

Dimension (LxWxH) : 375x290x275mm

Type : Spm Machine

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Material : Mild Steel

Shape : Rectangular

Certification : ISO 9001:2008 Certified

Color : Blue

Voltage : 110V

Condition : New

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

Country of Origin : India

Operating Mode : Customized

Machine Structure : Horizontal

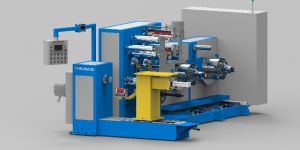

LV FOIL WINDING MACHINE (TFW 300 AUS) For LV Transformer Coils (Power Transformers. Inductors. Reactors and UPS Transformers) The machine is designed to wind with one or two COPPER OR ALUMINUM foils for the low voltage coils of Electric Transformers. A closed loop control system will control the tensioning system to produce the uniform stiff coils of Width ranging from 50mm to 300mm and Diameter up to 500mm. This system will achieve the high productivity.

Capacity : 10-50kg/h

Finishing : Polished

Width : 50mm

Machine Weight : 100-1000kg, 1000-2000kg

Power : 3-6kw

Packaging Type : Carton Box

Pressure : Medium Pressure

Overall Length : 65mm

Size (mm) : 300mm

Usage : Transformers Industry

Specialities : High Performance

Dimension (LxWxH) : 375x290x275mm

Type : Spm Machine

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Material : Mild Steel

Shape : Rectangular

Certification : ISO 9001:2008 Certified

Color : Blue

Voltage : 110V

Condition : New

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

Country of Origin : India

Operating Mode : Customised

Machine Structure : Horizontal

Reverse Rotation : Yes

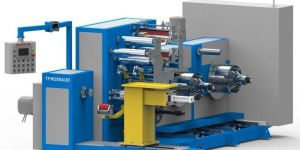

LV FOIL WINDING MACHINE (TFW 300 AUD) For LV Transformer Coils (Power Transformers. Inductors. Reactors and UPS Transformers) The machine is designed to wind with one or two COPPER OR ALUMINUM foils for the low voltage coils of Electric Transformers. A closed loop control system will control the tensioning system to produce the uniform stiff coils of Width ranging from 50mm to 300mm and Diameter up to 500mm. This system will achieve the high productivity.

Capacity : 100-200kg/h

Finishing : Polished

Width : 50-300mm

Machine Weight : 2000-3000kg

Power : 3-6kw

Packaging Type : Carton Box

Pressure : High Pressure

Overall Length : 65mm

Size (mm) : 300mm

Usage : Transformers Distribution Industry

Specialities : Rust Proof, Long Life, High Performance, Easy To Operate

Dimension (LxWxH) : 375x290x275mm

Type : Spm Machine

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Material : Mild Steel

Shape : Rectangular

Certification : ISO 9001:2008 Certified

Color : Blue

Voltage : 110V

Condition : New

Driven Type : Electric

Phase : Double Phase

Warranty : 1 Year

Country of Origin : India

Operating Mode : Automatic

Color : Blue

Usage : Transformers Distribution Industry

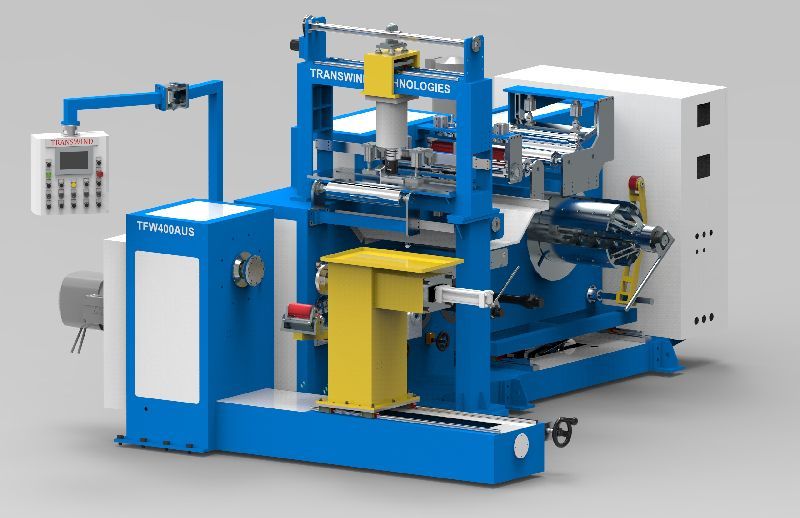

LV FOIL WINDING MACHINE (TFW 400 AUS) For LV Transformer Coils (Power Transformers. Inductors. Reactors and UPS Transformers) The machine is designed to wind with one or two COPPER OR ALUMINUM foils for the low voltage coils of Electric Transformers. A closed loop control system will control the tensioning system to produce the uniform stiff coils of Width ranging from 50mm to 400mm and Diameter up to 500mm. This system will achieve the high productivity.

Capacity : 100-200kg/h

Finishing : Polished

Width : 400mm

Machine Weight : 2000-3000kg

Power : 3-6kw

Packaging Type : Carton Box

Pressure : High Pressure

Overall Length : 210mm

Size (mm) : 400mm

Usage : Transformers Industy

Specialities : Long Life, High Performance, Easy To Operate

Dimension (LxWxH) : 375x290x275mm

Type : Spm Machine

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Material : Mild Steel

Shape : Rectangular

Certification : ISO 9001:2008 Certified

Color : Blue

Voltage : 110V

Condition : New

Driven Type : Electric

Phase : Single Phase

Warranty : 1 Year

Country of Origin : India

Operating Mode : customized

Machine Structure : Horizontal

LV FOIL WINDIGN MACHINE TFW-200 AUD For LV Transformer Coils (Power Transformers. Inductors. Reactors and UPS Transformers) The machine is designed to wind with one or two COPPER OR ALUMINUM foils for the low voltage coils of Electric Transformers. A closed loop control system will control the tensioning system to produce the uniform stiff coils of Width ranging from 30mm to 200mm and Diameter up to 500mm. This system will achieve the high productivity.

Capacity : 50-100kg/h

Finishing : Polished

Width : 30-200MM

Machine Weight : 2000-3000kg

Packaging Type : Carton Box

Overall Length : 35mm

Size (mm) : 200mm

Dimension (LxWxH) : 375x290x275mm

Type : Spm Machine

Brand Name : Patson

Shape : Rectangular

Certification : ISO 9001:2008 Certified

Color : Blue

Voltage : 110V

Condition : New

Driven Type : Electric

Warranty : 1 Year

Country of Origin : India

Operating Mode : Automatic

Machine Structure : Horizontal

Thickness : 0.2 To 2.2mm

After-Sales Service Provided : 1 YEAR

Spindle Speed : 48rpm(max)

LV Coil Winding Machine for Transformer.(TTW LV-1200) We are one of the prominent manufacturer and supplier of HT Coil Winding Machine for Transformer. These products are comprehensive and user friendly which would ease human effort. Developed in accordance with international quality standards, the range has made us win huge accolades all over. Machine are supplied with pay-off with tension adjuster, standard chuck & face plate and tail stock.Features: Made from quality material Supreme quality Affordable rates

Country of Origin : India

Application : Winding Machine

Automatic Grade : Automatic, Customized

Type : Automatic Motor Coil Winding Machine

Certification : CE Certified, ISO 9001:2008

Color : Blue

Condition : New

Power : 1-3kw

Driven Type : Electric

Warranty : 1year

Weight : 2000-3000kg, 3000-4000kg

Voltage : 220V, 380V

EDGE WINDING MACHINE FOR Air coil reactor, Chokes & Inductors coils A Special machine for winding flat wire. This machine is optimized for manufacturing EDGE WINDING coils for power inductors including chokes, DC/DC converters or any product using wound flat wire.

Weight : 1000-2000kg, 100-1000kg

Automatic Grade : Fully Automatic

Type : Edge Winding Machine

Color : BLUE

Condition : New

Power : 1-3kw

Driven Type : Electric

Warranty : 1year

Country of Origin : India

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Voltage : 110V

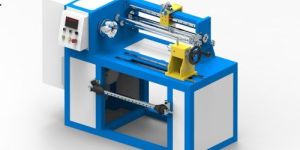

HT COIL WINDING MACHINE (TTW – 400) For HT Transformer Coils The machines are designed to wind coils of transformer with copper and aluminum wire (Diameter from 0.3mm to 3.5mm). A closed loop control system allows us to program various type coils with width up to 400mm and Diameter up to 300mm

Type : Transformer Coil Winding Machines

Certification : CE Certified, ISO 9001:2008

Weight : 1000-2000kg

Color : BLUE

Voltage : 110V

Condition : New

Automatic Grade : Automatic, Fully Automatic, Manual, Semi Automatic

Power : 3-5kw

Driven Type : Electric

Warrenty : 1 Year

Country of Origin : India

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

Color : Blue

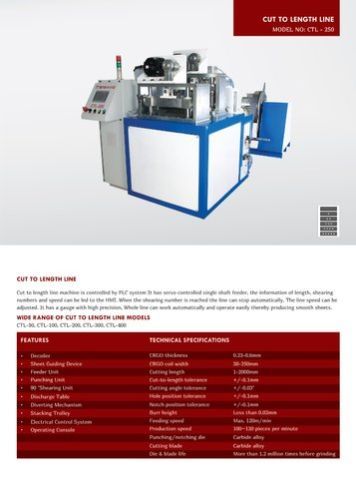

Cut to Length Line (CTL – 250) Cut to Length Line Cut to length line machine is controlled by PLC system It has servo controlled single shaft feeder, the information of length, shearing numbers and speed can be led to the HMI. When the shearing number is reached the line can stop automatically. The line speed can be adjusted. It has a gauge with high precision, Whole line can work automatically and operate easily thereby producing smooth sheets.

Type : Cut To Length Line

Certification : CE Certified, ISO 9001:2008

Application : Industrial

Weight : 1000-2000kg, 2000-3000kg

Color : Blue

Voltage : 110V

Condition : New

Automatic Grade : Automatic

Power : 1-3kw

Driven Type : Electric

Warranty : 1year

Country of Origin : India

Color : Blue

AUTOMATIC HV COIL WINDING MACHINE (TTW HV - 600 AUT) For LV Transformer Coils (Power Transformer, Inductors. Reactors and UPS Transformers) The machine is designed to wind with COPPER OR ALUMINUM wire (diameter from 0.3mm to 3.5mm) and strip (Max 120mm2). A closed loop control system allows us to program various type coils with width up to 600mm and diameter up to 600mm. FEATURES: ❖ Headstock (Spindle) Unit. ❖ Tailstock Unit ❖ Automatic Guiding Unit ❖ Insulation Paper Unit ❖ Tensioning Device ❖ Inner Layer Insulation Decoiler ❖ Edge Filling Unit ❖ Expandable Mandrill ❖ Closed Loop Control Unit ❖ Automatic Insulation Cut- Feed Unit ❖ Automatic Ribbon Stitching Unit

Type : Distribution Transformers

Certification : CE, ISO 9001:2008 Certified

Application : Coil Winding

Weight : 100-1000kg

Color : BLUE

Voltage : 110V

Condition : New

Automatic Grade : Automatic, Fully Automatic, Manual, Semi Automatic

Power : 3-6kw

Driven Type : Electric

Warranty : 1year

Country of Origin : India

Brand Name : TRANSWIND TECHNOLOGIES PVT LTD

After-Sales Service Provided : 1 YEAR

Color : Blue
