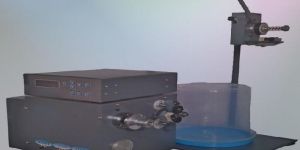

wire winding machine
With the aid of our updated transit facilities, we are capable of delivering the orders at requested destinations with ease. Buyers across Bangalore(India) and other markets can contact us for purchasing our product all year round.
...more

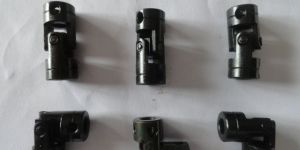

Toroidal Winding Machine Universal Joint
We have garnered wide acclaim for bringing forth cost-effective product range that is available at Bangalore (India). As a reliable name, we ensure that payment procedures remain secured with us. For this, we issue invoice to the customers stating the products, quantities and agreed prices. We offer a wide range of winding Machine Universal Joint available in black and white colors.
...more

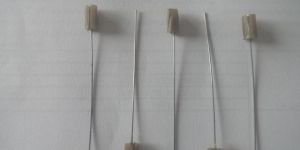

Toroidal Winding Machine Slider
The inventory of raw materials has also been maintained by us in order to keep a record of the entire stock. Moreover, the quality of the inputs is strictly checked by our experts before procurement. We have hired a team of professionals who hold immense knowledge of packaging. They make use of premium packaging material so as to make damage free deliveries. We offer a wide range of Toroidal Winding Machine Sliders available in various heights ranging from 5cm to 30cm.
...more
Toroidal Winding Machine Shuttle
Strong industrial base along with a wide area network, we deliver the range in the stipulated time span. Being a Supplier of Toroidal Winding Machine Shuttle, we continue in the same vein and keep enchanting our customers with our spotless quality. The offered product is available in a thickness range of 5mm to 15mm.
...more
Toroidal Winding Machine Core Roller
We are offering a huge product basket that the customers can obtain right from Bangalore(India). Our storage facility is capacious to maintain large stock. So, clients are free to approach us for urgent and massive requirements. We offer a wide range of Toroidal Winding Machine Core Rollers made of stainless steel in a wide variety of colors like red, green, blue etc.
...more

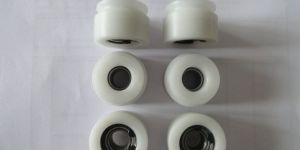

Toroidal Winding Machine Cam Pulley
We make sure that our payment procedures are protected and simple to use. Also, we facilitate our clients with methods like payment gateway, electronic funds transfer and various others. Our stringent quality procedures and analysis as per the guidelines help us in presenting reliable product range. Our premium quality Winding Machine Cam Pulley is used in machinery, furniture, toy, wood board, wall etc.
...more

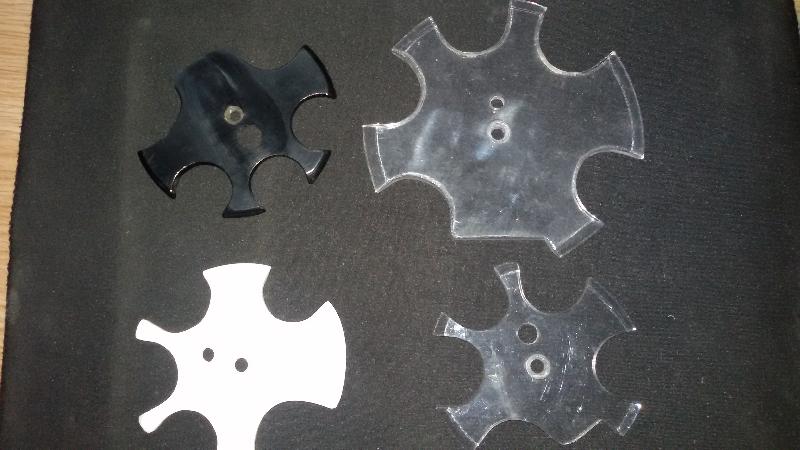

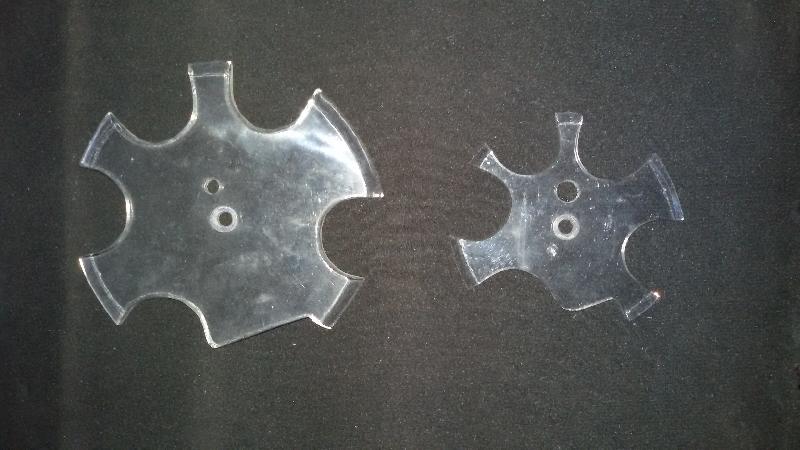

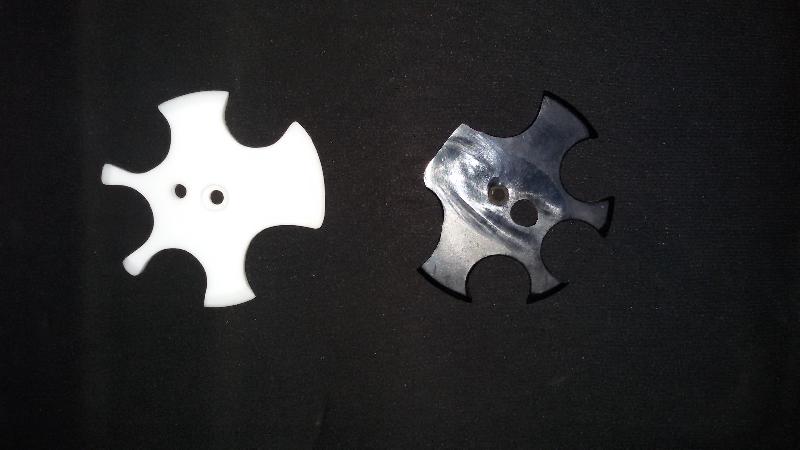

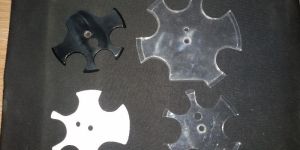

Toroidal Winding Machine Boss Plate
We can be contacted for customized packaging solutions. Besides the standard packs, we can sort items in desired quantity and pack them accordingly. Our packaging is premium. By guaranteeing complete security of the products, we make sure that our buyers remain satisfied with us. For this, we store the entire lot in our state-of-the-art warehouse. The offered Toroidal Winding Machine Boss Plates are corrosion resistant, highly durable and have glossy texture.
...more

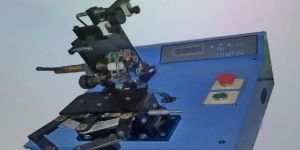

toroidal winding machine
In order to ensure product compliance with stated quality norms, we conduct several tests at several stages. The raw materials that are used for the production of our finished products are acquired in minimally processed or unprocessed states; these are free from impurities as well. The offered product is available in a quality warranty of 12 months. Trophy-T-1OO S/B (SIider/Belt Type) Finished ID - 12/8 mm Finished OD - 40 mm Finished HT - 20 mm Wire Dia - 0.08-0.30/0.30-0.60 mm Speed - 1500/1000 rpm Memoryn - 499 Programs Bifilar Winding - Yes Foot Switch - Yes Power off Data Backup - Yes Power - AC, 230V, 200W
...more
Tension Monitoring System
14,000 - 30,000 Per Piece
1 Nos (MOQ)
Besides monitoring and displaying real-time tension, TD-EX1000-01A also does tension data acquistions via PC*. Details : Its also alerts users (via a contact output) when the tension is detected to be out of the pre set range (Upper and lower tension limits can be pre-set). This system uses 485 communicatons ports, allows detection and recording of 12 measurement points at the same time and provides a simple and convenient way to improve the quailty of coil winding. *TROPHY's RTMS (Real-time Tenstion Monitoring System) Software is required in order to acheve the following through TD-EX-100-01A; Real-time tension data acquistion Analysis of historical tension data Tension data diagram monitoring Group zero reset More Details : Power Supply - DC 24V Specifications are subject to change without notice. Also Available in cN
...more

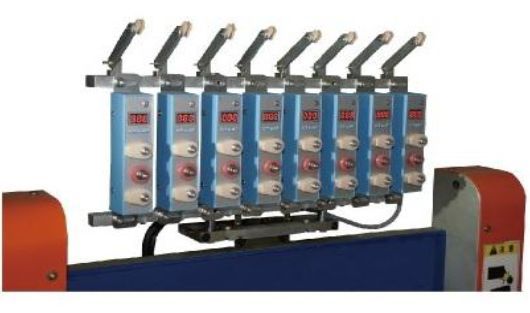

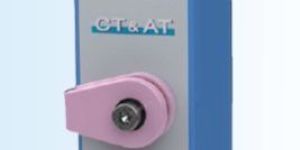

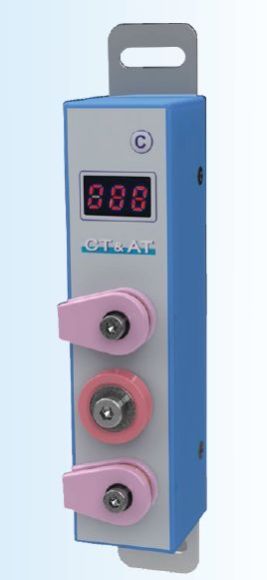

TD Series Digital Tension Meter
13,000 - 20,000 Per Piece
1 Piece (MOQ)
The TD digital tension meter (mout-on-type) is designed to be mounted on winding machines. It accurately measures and display the real time tension of the travelling wire.Advantages Compact in size Simple installation Precise meashurement Direct and clear display of real-time tension measurement Independent operation for single spindle and multi-spindle machines
Brand Name : TRophy
Body Material : Aluminum, Plastic, Stainless Steel
Color : Blue
Automatic Grade : Automatic
Power : 24v
Power Source : Electric
Application : For Tension
Feature : Light Weight
...more

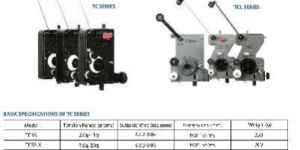

TC Series Mechanical Tensioners
25,000 - 75,000 Per Piece
1 Nos (MOQ)
Tensioners are one of the vital parts in the coil winding process. They are used to ensure wire tension consistency during winding processes. By using a tensioner, the wire tension can be adjusted to the required value accordingly, so as to achieve appropriate winding conditions and ensure conformity of each coil’s technical parameters. The trophy mechanical tensioner tc series operates by using the principle of mechanical friction to generate tension on the tension pulley. This main pulley is integrated with a braking system & the “back tension” mechanism, to create a stable and consistent tension. Tc tensioners come with wire breakage detection switch.
...more
T6 Series Digital Tension Meter
40,000 - 75,000 Per Piece
1 Nos (MOQ)
The T6 series tension meter is used to accurately measure the running line tension on a wide variety of yearns, fibers, and wires (copper, aluminum, plastic & etc.). Advantages : Large LCD display panel, clear display with high brightness backlight. Clean, streamlined handle design, easy handling. Simple and user friendly function buttons for easy operation. Direct display of real time measurement, with maximum and minimum measured values displayed simultaneously. Memory back-up function. Display unit selectable (gram/cN) Suitable for tension measurement of enameled copper wire, cotton thread, plastic wire, metal wire etc. Powered by rechargeable environmental-friendly polymer lithium battery with long battery life.
...more

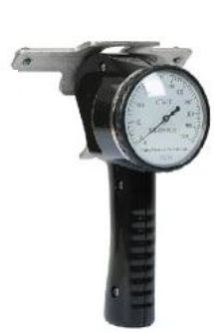

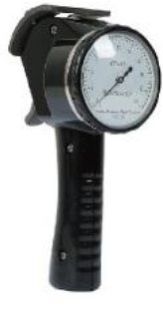

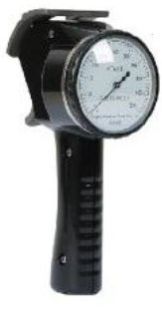

T1 Series Mechanical Tension Meter
50,000 - 70,000 Per Piece
1 Nos (MOQ)
Tension meter T1 series is used to accurately measure the running line tensions on all kinds of tyres (copper, aluminum, plastic etc.), cotton thread and fibres. With precise jeweled (Ruby bushing) movements, precision ball bearing mounted rollers and a built-in damper, the T1 tension meter completely eliminates the vibrations and resistance caused by the instrument itself, providing reliable, accurate and steady tension readings even as it fluctuates . Casing Material : ABS Plastic
...more
Single Spindle Coil Winding Machine
With the aid of our updated transit facilities, we are capable of delivering the orders at requested destinations with ease. Buyers across Bangalore(India) and other markets can contact us for purchasing our product all year round. Technical Specification : Winding Turns - 0.1 TO 99999.9TURNS Winding Width - 0.1 TO 130.0MM Winding Pitch - 0.02 TO 9.999MM (winding capacity MAX 0.8) Winding Swing Diameter - 80MM (MAX) Winding Speed - 200 TO 9000RPM Spindle Motor - 180W / 1/4HP, 180VDC, 3000RPM, PMDC Wire Feeding Motor - Hybrid Stepper Motor 1.8, 1A, 13kg. Brake - Electro Magnetic Disc Screw Rod - 10mm Pitch. Power Supply - 220/240V AC, 50HZ, 0.5KVA Processor - MICRO CONTROLLER Memory Type - Eeproms, 100 Programs Display - 4 Line 20 Character Lcd Modules key Board - Normal Keyboard
...more

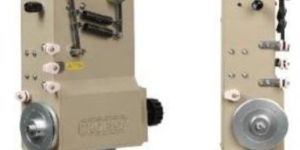

Servo Tensioner
Finishing : Color Coated
Color : Blue,Grey
Condition : New
Automation Grade : Automatic
Application : Industrial
Feature : High Quality
Type : Servo Tensioner
Country of Origin : India
Machine Type : Tensioner
Design : Standard
Brand Name : Trophy
Power Supply : DC 48V
Advantage : LED Indicator, Precise, stable and consistent tension for hi-speed precision winding, Two stage tension setting, Comes with real-time tension measurement and display
...more

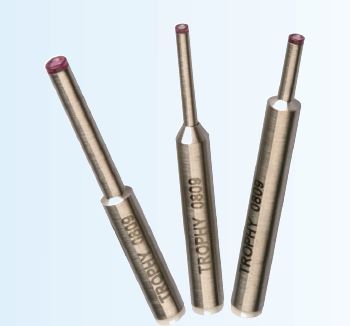

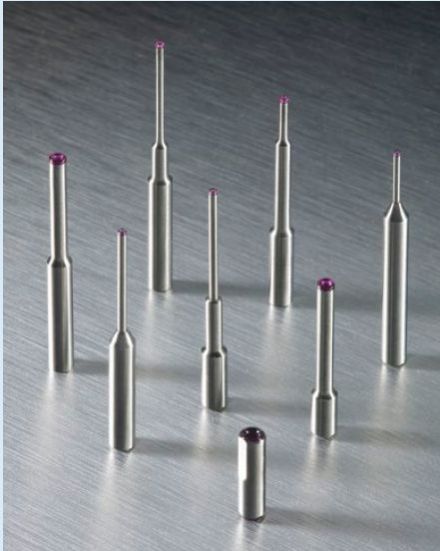

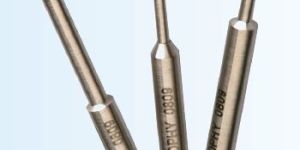

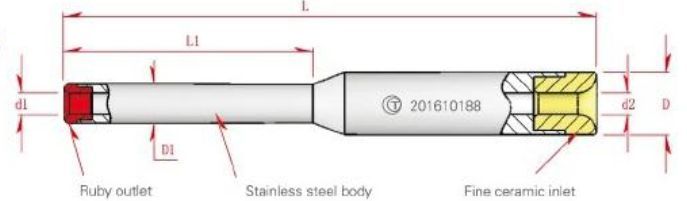

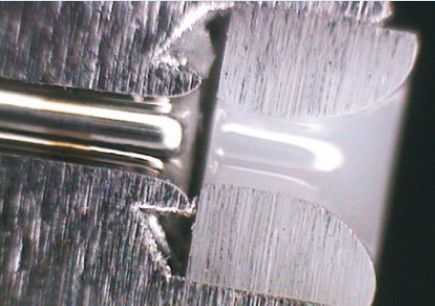

Ruby Coil Winding Nozzles
Owing to our well-maintained and organized inventory system, we deliver the same in the committed time. We are working with highly experienced packaging experts and they make every endeavor to meet the personalized and standard requirements of the clients. We sternly make our product safe from external factors. This product is the perfect unit of high flexible stainless steel and the ruby which hardness attained HV1600 with the special polishing treatment. In this way, it can ensure all the working parts are polished and the wire can slide between the hole and working parts smoothly with the greatest extent to protect the insulating layer. Advantages : High wear resistance : The tip is made of Ruby which has a superior hardness of Vickers 1,800 – 2,200. Thanks to its mono crystalline structure, ruby surfaces are polished to Ra0.025 surface finish; thus, ensuring high wear resistance and low friction co-efficiency during high speed winding. Body is made of hardened stainless steel with dully polished inner bore, coupled with fine ceramic (alumina) inlet for easy threading and smooth travelling of wire. Precision : Concentricity between the clamping diameter and the outlet diameter is 0.01mm. Inner bore diameter’s tolerance is 0.01 mm. Our precision wire guide nozzles are excellent for precise coil layering. Extensive range : With over 1500 types of ruby tipped wire guide nozzles in our database, we keep stock for most of the common sizes in our inventory. Assembled with high precision Ruby outlet has excellent hardness and very low friction coefficient High wear resistance For special and custom sizes, we can usually produce and ship within a week.We can also produce small quantities based on customers’ requirements. The ruby coil-winding nozzle is a vital component in good quality coil winding. It is wdety used in various types of high-end automatic and semi -automatic, winding machines to guide the enameled copper wire throughout the winding process. TROPHY's Ruby nozzle RC series has an outlet tip made of Ruby, which has a superior hardness - the inner bore and the radius surfaces of the ruby tip are polished to a Ra.0.025 surface finish. This ensures high wear resistance and low friction co-efficiency during high -speed winding. Its body is made & hardened stainless steel with duly polished inner bore, coupled with a fine ceramic alumina inlet for easy threading and smooth travelling of wire. Concentricity between the camping diameter and the outlet diameter is 0.01mm The inner bore diameter's tolerance 0.01 mm. Our precision ruby nozzles are excellent for precise coil layering. Applicable : High Speed Coil winding processing Ruby Nozzle (RC series) part number guide : Example : RCO530 - 030- 0810 'R' - indicates that the outlet material's ruby 'C' - indicates that the inlet material is precision ceramic The specification of above example is as below (mm) D1 = 0.5, d2 = 0.6. L = 30, D = 3, d2 = 0B, L1 =10 Manufacturing limitation : d1 to be > 0.2mm, D1 to be > 0.6 mm
...more
Round Type Wire Twister
buyers can contact us all year round for purchasing reliable round type wire twister at market leading prices. backed by a team of deft professionals, it has become easy for us to furnish divisive demands of the buyers and that too within shortest time possible. model – 5025 wire twister is a totally new approach for twisting of multistrand copper wire into a lead wire. uses : coils, transformers, thin wires etc. specs : dc operated 12 volts wire size : 25 – 50 swg (0.5 to 0.03mm) competitively priced.
...more

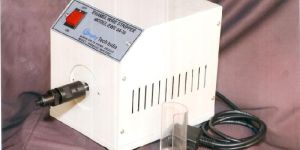

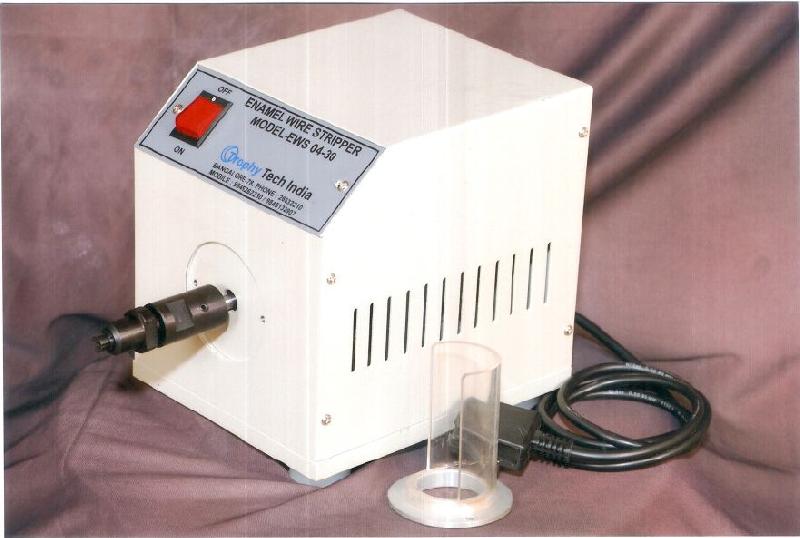

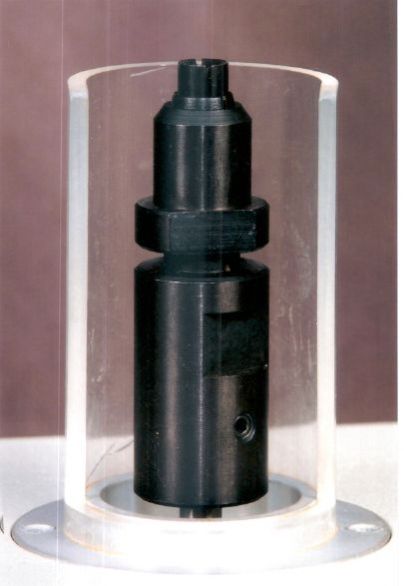

Round Type Enamel Wire Stripper
Raw materials are feedstock for the finished products and thus it becomes crucial to source these inputs only from certified vendors. So, as a reliable name, we do the same. We follow stringent quality measures to ensuring the product quality so as to attain maximum client satisfaction. The sturdy wire strippers we offer has a plastic cover handle in various colors. Specifications : The EWS 04-50 will strip many Film Insulations including Enamel, Varnish etc., for a range of wire sizes between 0.5 to 5.0mm. Using a high speed rotary stripping insert, which is precisely adjustable to match the diameter of the bare conductor, surface insulation is easily removed. The insert is held in a special adjustable chuck assembly which, when locked in position, allows precise repetitive stripping without risk of damage to the conductor. 4 Conical Stripping Insert provided along with the Stripper suitable for different wire sizes. Insert 1 = 0.5 – 0.8MM; Insert 2 = 0.8 to 1.5mm; Insert 3 = 1.5 to 3.0mm (Insert 4 = 3.0mm to 5.0mm. Can be provide according to the customer requirement). Simple Setup & Stripping Operation Insert the Wire stopper to collate and adjust the stopper according to your application for unique length of wire stripping. Loosen the Chuck Assembly with the two wrenches provided. Place Stripping Insert into the chuck and hand tighten. Place the work piece into the insert and tighten the Chuck Assembly with the wrenches provided so that the insert closes but the work piece can still be removed. Remove the work piece and start the Machine. Strip the wire by pushing into the Stripping Insert and remove to examine. If insulation is not completely removed switch off the Machine, tighten Chuck Assembly and repeat stripping operation.
Warranty : 6 Months.
...more

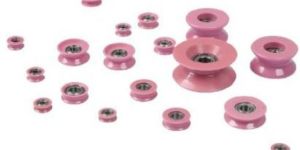

NT Series Miniature Ceramic Pulley
500 - 1,500 Per Piece
5 Nos (MOQ)
These pulleys are commonly used components in coil winding machines and textile machines in instances where there are radical changes in the direction of a passing material such as copper wires. The ceramic roller rings are made of fine ceramic (Alumina Al2O3), with a hardness of HRA88, density of 3.85 and the surface polished to ultra-fine Ra0.2 finish. It has a high-spaed precision bearing within the ceramic roller ring. which keeps the sliding distance between the enameled wire and the roller below 0.2 mm, so as to protect the coating of the wire and to maintain the stability of the wire tension.
...more

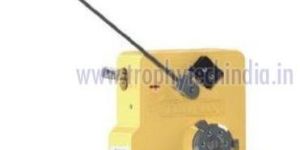

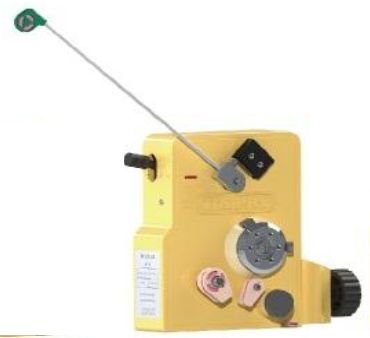

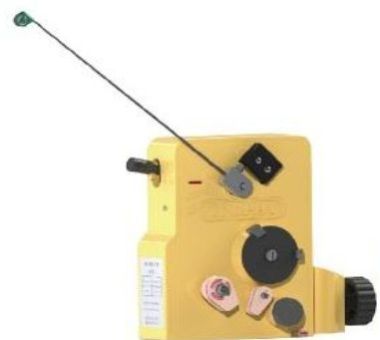

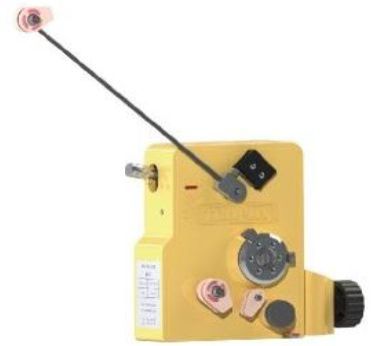

NMTE Series Magnetic Tensioner
The magnectic tensioner NMTE series uses permanent magnets to control tension strength by varying the gap in between the magnets and the main tension wheel. the non-contact mechanism design provides stable, consistent and precise tension. Details : It features a built - in photoelectric sensor for wire breakage detection and an LED indicator for wire breackage indication. Users, who do not wish to connect to 24VDC power can alternatively select the micro switch version for wire breackage detection. The main pulley's latest improved and upgraded desing eliminated wire jumps and jams to ensure smooth winding. Mounting of wire break detecion switch also been re-designed to improve its lifespan. NMTE tensioners come with back tension adjustments; are suitable for a wide range of winding applications.
...more

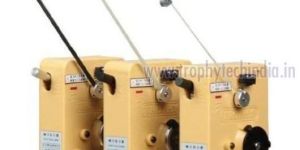

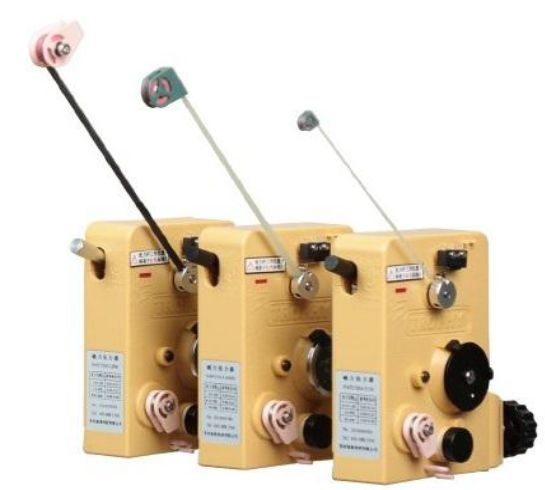

NMTC Series Magnetic Tensioner
The Magnetic tensioner NMTC series uses permanent magnets to control tension strength by varying the gap in between the magnets and the main tension wheel. The non - contact mechanism design provides stable, consistent and precise tension. Details : The main pulley's latest improved and upgraded design eliminated wire jumps and jams to ensure smooth winding. Mounting of wire break detection switch also been re - designed to improve its lifespan. NMTC tensioners come with back tension adjustments and wire breakage detection switch; are suitable for a wide range of winding applications.
...more

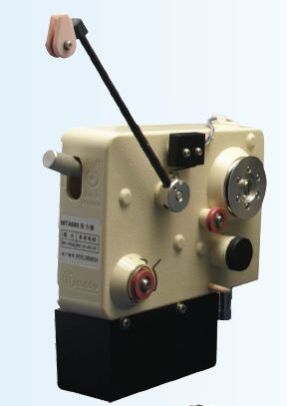

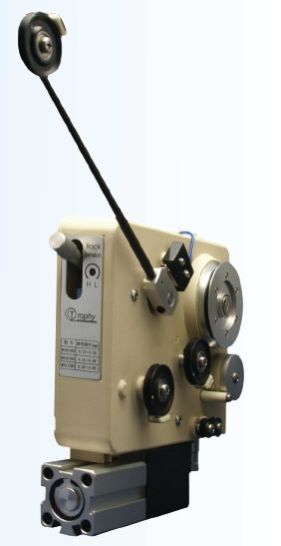

NMA/MTA Series Magnetic Tensioner
The Magnetic tensionerNMA/MTA series (with tension release function) uses permanent magnets to control tension strength by verying the gap in between the magnets and the main tension wheel. The non - contact mechanism design provides stable, consistant and precise tension. Details : The NMA/MTA series comes with a tension release mechanism to assist in special operation processes such as low tension termination, wire hooking etc., The main pulley's latest improved and upgraded design eliminated wire jumps and jams to ensure smooth winding. Mounting of wire break detection switch also been re-designed to imits lifespan. NMA/MTA tensioners come with back tension adjustments and a wire breakage detection switch; are suitable for a wide range of winding applications.
...more

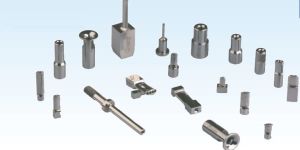

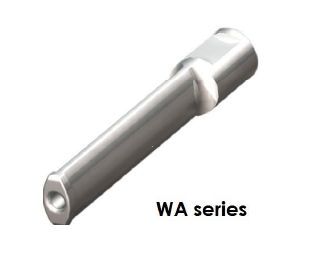

Motor Winding Nozzles
Made of a solid piece of high grade super hard material, there are no joints, so as to ensure a smooth path for wire travel during nozzle movement.Advantages : Precision : Made to a high precision standard, excellent for precise coil layering. Minimum friction : Every inner bore & radius is fully polished. Both inlet & outlet radius are carefully calculated, shaped & polished to mirror finish to eliminate scratching of the enamelled layer of wire. Excellent for winding special winding instances such as motor Rotors and Stators We are also able to produce small quantities based on customers’ drawings & requirements. TROPHY's Motor Nozzles are made of tungsten carbide material or hardened SKD-11. with an excellent balance between the wear resistance and being too brittle. Each nozzle is made of a solid piece of material with no joints so as to ensure a smooth path for wire travel. They are widely used in winding of fan coils, micro - motor coils, stator coils, rotor coils etc. Advantages Inner bore, inlet and outlet radii are scientifically calculated and have undergone 12 fine grinding and polishing processes to complete mirror finish surfaces. This ensures smooth travelling and minimum stress to the wire during winding 80X digital magnifying glass is used for quality check to ensure no scratches on polished surfaces before shipment Magnetizing Machine Model - MTS9000 Specification Electrical Power Source – 3P+E, 380V AC ( + or - 10%) Current consumption - 16 AMPERES Electrical source frequency - 50 Hz Maximum energy - 11760 JOULES (+ OR - 5%) Capacitance - 12000 uF Voltage - 1400 V DC Current - 40 kA Voltage output weveforrn - pulse / sine half wave / demagnetization Magnetizer weight - 280 - 300 kg Magnetizer Size - Length 600 x Width 800 x Height 1800 mm)
...more
motor winding machine
Made of a solid piece of high grade super hard material, there are no joints, so as to ensure a smooth path for wire travel during nozzle movement. Precision : Made to a high precision standard, excellent for precise coil layering. Minimum friction : Every inner bore & radius is fully polished. Both inlet & outlet radius are carefully calculated, shaped & polished to mirror finish to eliminate scratching of the enamelled layer of wire. Excellent for winding special winding instances such as motor Rotors and Stators
...more
