U - Tech Associates Mallathahalli, Bangalore, Karnataka

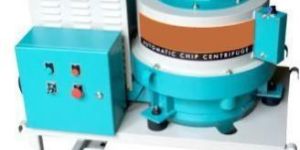

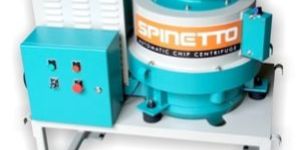

U-Tech make Chip Centrifuge Spinetto-150 is an online type centrifuge designed to separate waste cutting oil from machining scrap. The main purpose of this machine is to reclaim the oil which is used as a coolant for various operations. The oil thus reclaimed can be used again thereby saving lakhs of investment on cutting oil. Features Reclaim maximum oil for re-use Automatic Batch Type Timer controlled Run it little longer if you want it drier Maintenence friendly Can be kept under existing Machine Conveyors Smal and Compact Optional air Cleaning Device   We have carved a niche amongst the most dominant names in this domain, engaged in offering Automatic Chip Centrifuge. The principle of operation is the use of centrifugal force to separate out chips and coolant. Spinetto has been designed by making the best use of technologies incorporated in a batch type centrifuge as well as an on-line type centrifuge. Thus, the user has complete control over how much time is required to separate oil with maximum efficiency. Spinetto – 150 can process up to 150 kgs of steel chips in an hour. Spinetto is so compact that it can easily be kept under exiting machine conveyors. It also comes with an automatic air-cleaning device to clean the main drum of the centrifuge of scrap that might have been stuck to the pores. Spinetto has typically an ROI of 5 to 6 months.

Brand Name : U-Tech

Features : Sturdy Construction, Less maintenance required, Reliable

Shredding Material : Metal

Automatic Grade : Automatic

Shredding Capacity : 1-500 kg/hr, 500-1000 kg/hr

Shredding Machine Type : Double Shaft

The QUAD unit, thanks to its small dimension is easy to use and extremely efficient, and represents the addressed solution for aspiration, filtration and deodorization of work premises where fumes, solvent, vapours and aerosol are generated by welding processes. QUAD is designed according to up-to-date technologies, suitable in industrial and handicraft field, where portability and small size are requested to the filtering units. Three different versions are available: QUAD, QUAD E and QUAD 2E, where the last two versions are supported by electrostatic filter cells.     Description  QUADQUAD/E 1QUAD/E 2 Cells – 1 2 Power (hp – kW) 1,5 – 1,1 1,5 – 1,1 1,5 – 1,1 Voltage (V – PH – Hz) 230/400 – 3 – 50 230/400 – 3 – 50 230/400 – 3 – 50 RPM 2800 2800 2800 Filtering area (m² – sq ft) 7,8 – 84 – – Air flow with charcoal filter (m³/h – cfm) 1300 – 764 1380 – 812 1420 – 835 Air flow without charcoal filter (m³/h – cfm) 1400 – 823 – – Filtering efficiency (%) 99 >99 >99 Activated charcoal weight (kg – lb) 2,5 – 5,5 3 – 6,6 6 – 13,2 Net weight with evolution 150/3 arm (kg – lb) 101 – 223 136,5 – 300 156, 5 – 344

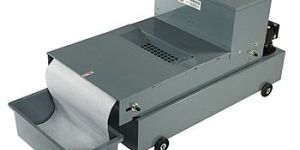

Paper Filter (Paper Band Filter) can filter contaminant by filter media. Filter media moves automatically when the contaminants accumulates and clog filter media. Clean filter media is replaced and the soiled filter media is moved to a sludge box. Filter both ferrous and non-ferrous contaminants. Filtration accurancy depends on filter media, choosing from 50, 30, or 15 micron. Paper Filter is not suitable for heavy duty because it will consume to much filter media. In order to reduce consumption of filter media, use magnetic separator as a previous filtration process.

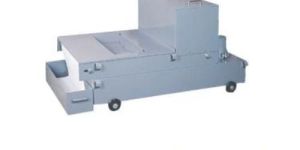

Paper Filter (Paper Band Filter) can filter contaminant by filter media. Filter media moves automatically when the contaminants accumulates and clog filter media. Clean filter media is replaced and the soiled filter media is moved to a sludge box. Filter both ferrous and non-ferrous contaminants. Filtration accurancy depends on filter media, choosing from 50, 30, or 15 micron. Paper Filter is not suitable for heavy duty because it will consume to much filter media. In order to reduce consumption of filter media, use magnetic separator as a previous filtration process. MAKE AN ENQUIRY

Brand Name : Kube

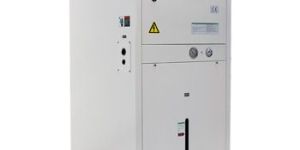

Purpose: High Speed Spindle Mold Colling Laser Vacuum Pump Cooling Water For Cutting Machine All Equipments Needed To Cool By Water Suited: CNC Lathe Machine CNC Machine Center CNC Wire Cutting Machine PCB Drilling Or Routing Machine Medical Appliances Injection Machine| Laser Cutting & Marking Machine Chiller Of Low Temperature(-35°C) Food Machine All Product Equipments & Instruments For Semiconductor

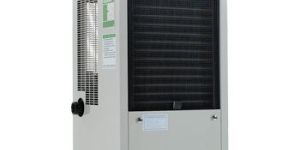

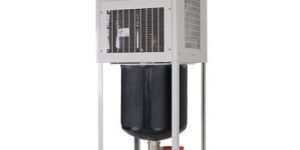

Spindle Oil cooling Hydraulic Oil Cooling Grinding Oil Cooling EDM Oil Cooling Lubricating Oil Cooling Cutting Oil Cooling Gear Lubricating Oil Cooling Suited: CNC Lathe Machine CNC Machine Center Special Purpose Machine CNC Grinding Machine CNC Purching Machine All Hydraullic Equipments

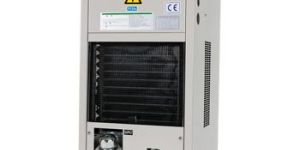

Purpose: Spindle Oil cooling     Hydraulic Oil Cooling     Grinding Oil Cooling     EDM Oil Cooling Lubricating Oil Cooling     Cutting Oil Cooling     Gear Lubricating Oil Cooling Suited:  CNC Lathe Machine          CNC Machine Center        Special Purpose Machine CNC Grinding Machine      CNC Purching Machine      All Hydraullic Equipments

Purpose: Spindle Oil cooling     Hydraulic Oil Cooling     Grinding Oil Cooling     EDM Oil Cooling Lubricating Oil Cooling     Cutting Oil Cooling     Gear Lubricating Oil Cooling Suited:  CNC Lathe Machine          CNC Machine Center        Special Purpose Machine CNC Grinding Machine      CNC Purching Machine      All Hydraullic Equipments

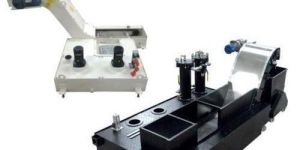

Features Noise-free operations Robust construction Non-interrupted performance Efficient handling of machine chips With the help of our expert team members, we have been able to provide Magnetic Chip Conveyor System.   Other details: Scraper conveyor Hinge belt conveyor Magnetic conveyor Drum type scraper conveyor Screw conveyor

Brand Name : U-TECH

Usage : Water Filter, Oil Filter

Brand Name : U-Tech

Spindle Oil cooling Hydraulic Oil Cooling Grinding Oil Cooling EDM Oil Cooling Lubricating Oil Cooling Cutting Oil Cooling Gear Lubricating Oil Cooling

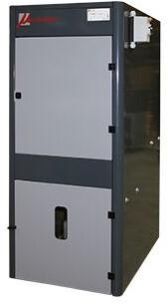

ECOTECH has been designed and built in order to provide a versatile, modular solution for the filtration of oil mists, vapours and fumes generated by various types of machine tools; among them Machining Centers, Lathes, Milling and Grinding Machines of different sizes, as well as Washing Machines and other machine tools used in metalworking processes. ECOTECH series born with 5 stages of progressive filtration and is designed to ensure, before anything else, excellent performance of pre-filtration and pre-separation of the polluting particles, according to their nature and dimensions. After these 5 stages an additional absolute filter, classified HEPA H13, can be added as option, to obtain an efficiency higher than 99.99%. The range consists in 7 models providing flow rate from 2000 to 12000 m3/h. Modularity allows to get  also higher flow rates.   Description  ECOTECH 2000ECOTECH 3000ECOTECH 4000ECOTECH 6000ECOTECH 8000 Max delivery (m³h – CFM) 2000 – 1177 3000 – 1765 4000 – 2353 6000 – 3530 8000 – 4706 Power (kW) 1,1 1,5 2,2 4 5,5 Absorbed power (A) 2,46 3,26 4,61 6,1 10,5 Average sound level without absolute filter [dB(A)] 73 73 75 76 78 Weight without absolute filter (kg) 200 230 290 420 620 Filtering area (m²) 10 18 25 30 56 Ø intake opening (mm – inch) 220 – 0,85 280 – 1,092 2×280 – 2×1,092 3×280 – 3×1,092 4×280 – 4×1,092 Wheeled collection bins capacity (L) 5 5 5 10 10 Filter cartridge Cellulose Cellulose Cellulose Cellulose Cellulose Coalescence prefilter Polypropylene (>95%) Polypropylene (>95%) Polypropylene (>95%) Polypropylene (>95%) Polypropylene (>95%) Filtering efficiency With absolute filter (99,997%) With absolute filter (99,997%) With absolute filter (99,997%) With absolute filter (99,997%) With absolute filter (99,997%)

Filters down to 10-3micron Can be used for either coolant or straight cutting oil Best Material usedFilters down to 10-3micron Can be used for either coolant or straight cutting oil Best Material used

Occupies less space, only 13rd of conventional paper band filter Paper Lasts Longer, and hence more time interval between paper changes Can filter coolant and oil with ferrous and non-ferrous metal and non-metal materials Clean coolant to provide brilliant surface on the workpiece Filtration depends on the paper used 50, 20, 10-micron papers available

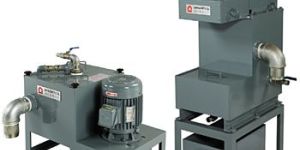

Features Contaniments in coolant are easy to be cleaned. The coolant filtration system is easy to separate powder of carbide, glass, aluminum, stainless steel, graphite, quartz from coolant. No consumption on filter media. Additive will not be separated. It works for oil and water-based coolant.   Description Centrifuge is to pour the coolant that contains contaniments into a high speed rotary body. Because coolant with contaniment has larger gravity than ordinary, when rotating the contaniments will attach on the wall of rotary body due to centirfugal force. Then clean coolant flow out from the center of body.

Features  Mobile Coolant Centrifuge – can move from machine to machine Suitable for both coolant and straight cutting oil Media less – no paper consumption Auto level control and contactor logic to aviod overflow Achieves 10 MICRONS filtration.     Description TECHNICAL SPECIFICATIONS: Capacity – 50 LPM Suction Pump (Heavy Duty SludgePump) – 1.7 kW, 50 LPM Transfer Pump – 0.2 kW, 50 LPM Delivery Pump – 0.2 kW, 50 LPM Level Gauges with Proximity sensors Control Panel with Contactor Logic Coolant Tank Dirty Side – 100 Litres Clean Side – 100 Litres

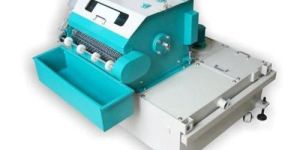

Compact Band Filters are used for filtration of contaminated coolant coming out of any CNC machine tool. These machines offer better filtration and efficiency compared to standard paper band filters because of the design. U-Tech Compact Band Filter offers a very high degree of reliability and guarantees that the coolant will be filtered with the least use of filter paper and motor power.

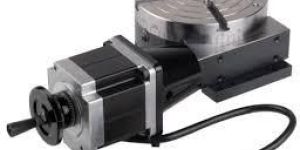

Worktable diameter Ø125, Ø170, Ø210, Ø255. Exclusive patented dual pneumatic piston braking system. Higher rotation speed. Equipped with high precision cross roller. Full gear depth transmitted by dual lead worm drive,resulting in higher efficiency and lower backlash. Specification
