• Breaker: IEC 62271-100
• Current transformer: IS 2705/1992 and IEC 60044-1
• Potential transformer: IS 3156/1992 and IEC 60044-2
• Busbar: IS 5082 for Aluminium
• Sheet Steel:: IS 513
• Cables: IS 694

The Power +V3 are an Indoor 33kV VCB Switchgear Panels with current ratings from 1250A to 2500A. We use 33kV ABB VD4 VCB for our 33kV Switchgear Panels and this is latest circuit breaker from their portfolio. This VCB is manufactured in India and supplied worldwide of their plants. Panel shall be constructed with IP4X degree of protection externally and IP2X between compartments. GENERAL FEATURES Modular & compact for better strength and flexibility in extension. Fully Compartmentalized construction for optimal safety and protection For compactness in panels rated upto 2000A special bus raiser panel is provided with bus coupler panel extended in the rear side. IP4X degree of protection is provided externally & IP2X between compartments. Our design enables adequate space for large cable sizes. Even larger cables and additional runs rear extension is provided for cost effectiveness. Independent exhaust vents for all HT compartment are provided for natural cooling and exit for any flue gasses. Dedicated Circuit breaker compartment as per internationally proven ABB design. Cassette mounted ABB Circuit Breaker with draw out feature for easy maintenance and fail-safe safety. Live parts covered by automatic metallic shutters when breaker is racked out. Electrical anti-pumping design avoids mishaps due to mishandling of the breaker. Additional feature includes a separate Racking in/out mechanism which is provided in the breaker which can change from “test” to “service” positions and vice versa with the cubicle door closed. Only Branded and type tested sub components are used in our panels. Current and Voltage transformers are placed in chamber below Circuit breaker to avoid any kind of flashovers which may damage the breaker. Wiring done with flexible copper cable affirming to IS 694 for Longitivity and Durability. Optional integral earth switch can be provided on the cable side for Earthing. We provide Foundation frame as standard supply All hinged doors are provided with gaskets to keep away dust and water from the electrical components. Multiple guides are provided for safe and sure engagement of fixed and moving contacts. Breaker trolley shall be given along with the breaker panel for maintenance.

BEL Vacuum interrupters used in 12kV/15kV/24kV/36kV Medium Voltage segments and current ranging upto 50kA. We also provide Vacuum Interrupters for Vacuum Contactors, Tap Changers and Auto-recloser applications. We have RDSO approved vacuum Interrupters for Railway applications. ADVANTAGES OF BEL VIs Hermetically seated ready-to-use device Conforms to IEC 62271-100IEC 60265IEC 60694IS:7567 15:9920RDSO specifications Highly reliable and efficient Non-hazardous and Noise-free operation Ideal for use in different environments Absolutely maintenance free Perrnits modular construction of circuit breakers & offers flexibility to mount in VCB's. RMU's LB's & Vacuum contactors. Long operating time. Low operation cost. High safety Stable dielectric SALIENT FEATURES Radial Axial magnetic field design Low chopping current Low contact erosion long contact life Compact size Manufactured by state-of-the-art technology

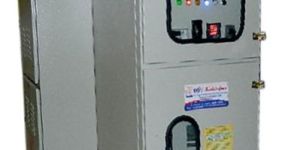

The 11/12 KV Switching Panel with VCB is suitable for indoor & outdoor applications. The Switching Panel consists of a Vacuum Circuit Breaker that can be used for Protection of the Transformer.   Features: The Protection / Tripping System is Implemented though Vacuum Interrupters & control relays The Cubicle is Powder Coated with 60-120 microns for its Inner / Outer texture with High Quality Process. The type tests conducted by us in CPRI Bangalore is as follows Ingress Protection Test IP 55.

VCB Panel - Outdoor / Indoor VCB Panel – Out door & Indoor type is made out of 14/16 SWG CRCA Steel, suitable for operation on 11kV, 3Ö, 50Hz., AC earthed system. The Panel contains the equipments and components complete with bus bar interconnections, control wiring, designation labels, caution notices, EB sealing and pad locking facilities wherever required. Necessary space is provided for entry of H. T. cables from the bottom through detachable gland plates. The Panel is finished with one coat of air drying epoxy primer and two coats of Epoxy paint confirming to shade 631 of IS:5. Features:- KPTCL / ESCOM approved. CPRI Type Tested. Available in both Indoor & Outdoor type. Designed as per IP standards. Excellent Breaking Performance. System components confirming to IS & IEC standards. Metal Clad, No direct access to live parts. Suitable space for cable termination. Easy Maintenance.

• Rated Voltage: 12kV
• Brand: ABB
• Model Name/Number: VD4
• Rated Frequency: 60 Hz
• Rated Thermal Current: 4000A
• Making Capacity: 80kA
• Weight: 105kg

Maintenance free design, Horizontal drawout and isolation, Positive racking mechanism, Interlocks to prevent insertionwithdrawal of closed CB, CB can operate in test or service position only, Fully type tested as per IEC60056IS 13118IEC 62271-100, Easy retro fitting with cassette system, Spring Charging Motor Voltage:230V AC, 110V DC, 220V DC.

• Rated Current: 1250 to 4000
• Country of Origin: Made in India
• No. of Poles: 3
• Brand: ABB
• Curve Type: C
• KV: 11
• SCC: 44
• COIL VOLTAGE: 110
• features: spring charging motor
• special: In built protections
• width: 750mm

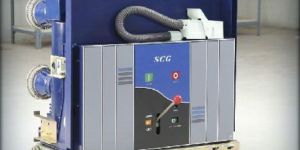

iCB series comprises embedded pole type vacuum circuit breakers for medium voltage and indoor use. They are suitable for three phase AC operations for 12kV, 17.5kV, 24kV and 36kV and are used for the protection of the electrical equipment in various industries, mining, and especially for medium voltage distribution sub stations, together with suitable air-insulated cubicles.The iCB used German Technology and is available in complete series for medium voltage and for all commonly used rated currents, from 630A to 4000A, and for rated breaking current up to 40kA. The iCB circuit breaker come with a mechanical lifetime of 30,000 operations. The embedding with epoxy resin covers the vacuum interrupter as well as the upper and lower contacts of the circuit breaker, thus creating a full insulation for the internal electrical circuits. The embedding is done with a fully automated process, the APG (automated pressure gelatin) process. Thus, the iCB is no longer subjected to environmental hazards, and is fully maintenance free in this aspect. A special flexible bedding fills the space between the vacuum interrupter and the epoxy resin, creating a cushion that responds to all thermal expansions and contractions, safeguarding the iCB from the occurrence of any electrical gap and therefore flash overs. The embedded pole technology protects the circuit breaker from shock and mechanical stress, pollution and condensation. Flash overs between the interrupters are now virtually a thing of the past. Also, the creep age length of the interrupter and therefore the voltage withstand level (BIL) of the circuit breaker increase dramatically, opening new dimensions in cubicle design. The use of modern, small-size vacuum interrupters with first class technology, the above features ensure the highest level of reliability for the iCB circuit breaker. While meeting all relevant standards, with a lifetime of over 30,000 mechanical operations, and the ability to function as a recloser, the iCB can surely meet the highest demands of the industry. Last not least, the high level of automation and technology used make the iCB also economically competitive and interesting for panel builders around the world.   Application Suitable for 3-phase AC operations for 12kV, 17.5kV, 24kV and 36kV Medium voltage distribution sub stations

We manufacture 11KV Vacuum circuit breakers both Indoor and outdoor breaker. The capacity is for manufacture of 100 VBC per month. Our new product vacuum circuit breaker (VCB) is tested and certified by Central power research Institute, Bangalore as high voltage switch gear and control gear for 12kV, 1250A indoor type. The product has been certified on the following tests:  Short time withstand current and peak withstand current tests Lightning impulse voltage withstand test Power frequency voltage withstand test Temperature rise test Measurement of contact resistance & mechanical endurance

• Rated Current: 630A,800A,1250A,2000A,3150A

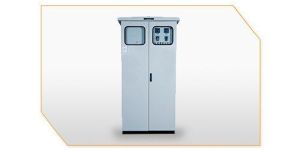

The Power +FO are an Outdoor SF6 Switchgear Panels. Outdoor Panels are of Kiosk Type construction with double door in the front. The Rear door that is both hinged and bolted for safety. Adequate slope given on roof top to drain rain water. Panels are manufactured to meet the requirement of outdoor application of IP55 degree of protection externally and IP2X between compartments. Features: Modular& compact for better strength and flexibility in extension. Fully Compartmentalized construction for optimal safety and protection Our design enables adequate space for large cable sizes. Even larger cables and additional runs rear extension is provided for cost effectiveness. Independent exhaust vents for all HT compartment are provided for natural cooling and exit for any flue gasses. Dedicated Circuit breaker compartment as per internationally proven ABB design. Cassette mounted ABB Circuit Breaker with draw out feature for easy maintenance and fail-safe safety. Live parts covered by automatic metallic shutters when breaker is racked out. Electrical anti-pumping design avoids mishaps due to mishandling of the breaker. Additional feature includes a separate Racking in/out mechanism which is provided i the breaker which can change from test to servicepositions and vice versa with the cubicle door closed. Only Branded and type tested sub components are used in our panels. Current and Voltage transformers are placed in chamber below Circuit breaker to avoid any kind of flashovers which may damage the breaker. Wiring done with flexible copper cable affirming to IS 694 for Longitivity and Durability. Optional integral earth switch can be provided on the cable side for Earthing. We provide Foundation frame as standard supply All hinged doors are provided with gaskets to keep away dust and water from the electrical components. Multiple guides are provided for safe and sure engagement of fixed and moving contacts. Breaker trolley shall be given along with the breaker panel for maintenance. Our Design Standards: Breaker IEC 62271-100 Current transformer IS 2705/1992 and IEC 60044-1 Potential transformer IS 3156/1992 and IEC 60044-2 Busbar IS 5082 for Aluminium Sheet Steel: IS 513 Cables IS 694 Special Features For Outdoor Kiosk Panels: Kiosk Type construction With Double door in the front shall be provided. Rear door is both hinged and bolted for safety. Adequate slope given on top roof to drain rain water, dust & Particles. Robust weather & dust proof  IP5X degree of protection externally & IP2X between compartments.

We are the promising Manufacturer, Exporter, Importer and Supplier of VCB Panel. Our VCB Panel is widely demanded in the market due to its premium quality and durability. Further, VCB Panels, offered by us, are recommended for applications above 1000 KVA of transformer. We provide VCB Panel at market leading prices to our esteemed clients. Applications Coupling at station level Ring main unitsFeeder controlTransformer control Minimum order Quantity : Above Rs.50,000

• Power: 12kV, 1250A

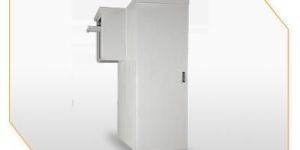

Outdoor VCB Panel is tested and certified by Central power research Institute, Bangalore as high voltage switch gear and control gear for 12kV, 1250A indoor type. The product has been certified on the following tests: Short time withstand current and peak withstand current tests.

We are manufacturer and exporter of vcb panels, which are designed by the team of experienced engineers. The robust construction of our vcb panels is raising their demand in the global markets. Variety : outdoor kiosk with roof bushingindoor type with single or multi-panel formations features : fixed portion comprise of sheet steel housingseparate metal clad compartments for busbars, breakers, ct & cable terminationpts are drawn out type and are mounted at the top of the panelmoving portion takes the form of a four wheeled truckcarries the circuit breaker with operating mechanismvacuum switchgear panel may be obtained either with vcb or combination of vcb & vacuum contactor applications : multiplexesfactoriesmallscinema halls

The circuit is designed for AC DC supply including Anti Pumping contactor. The type tests conducted by us in CPRI Bangalore is as follows Lighting Impulse & Power Frequency Voltage Withstand Test (Dry) as per IS 34271997 RA IEC 62271-2003 LI 75kV (peak) & PF 28kV. Temperature Rise & Milli volt drops test on 1250A VCB as per IEC 62271-100-2003 . Short- time & peaks withstand current tests as per IEC 62271-100-2001 25 .61kA rms for 3 .07 secs and peak 69.42kA. Measurement of the resistance of the main circuit & Mechanical endurance test for 1000 operations

Features: Vaccum Circuit Breaker, Rating : 630-2000A Current Transformer,ACC:1-5P10 Potential Transformer, ACC : 1 Ammeter, Voltmeter with selector switches Insulation Level : 12/28/75 kv   Optional Accessories: IDMT Relay (CDG-31) Auxiliary Relay (VAA -33 ) Annunciation Scheme .other relays and accessories as per customer specifications Panel is extensible
