VST TILLERS TRACTORS LTD. Whitefield, Bangalore, Karnataka

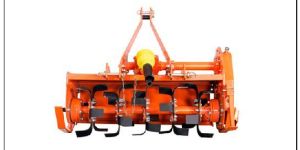

VST Regular Series Rotary Tillers with simple in construction but strong design are appropriate for medium soil conditions. The application includes: Soil conditioning, seedbed preparation and puddling in wet land Most suitable for large & medium farmers and field preparation for crops like sugarcane, cotton, rice, potato, wheat, vegetables and dry land crops

Rotated & Adjustable Handle Ergo Handles Extendable Tine Shield Extendable & Replaceable Tines Belt & Chain Drive

Side clutch for easy drive – LHS & RHS turning with minimum turning radius Telescopic adjustable handle- length can be adjusted Powerful Honda engine – GX200 Cutting height adjustment – 4 inches to 22 inches

Type : Walking Type Reaper

Weight : 135 Kgs

Name VST Yanji Shakti 8 Row - Paddy Transplanter Engine Model 170F Single Cylinder Air Cooled Diesel Rated Power 2.94 KW Rated Speed 2600 rpm Weight 305 Kg Overall Dimensions (L x W x H) 2500 x 2131 x 1300 mm Row Number 8 Row Spacing 238 mm Distance b/w Hills 140-170 (Standard), 100-120, 120-140, 170-200, 200-230 mm (Optional) Planting Speed 0.44-0.54 mt/sec Road Travelling Speed 8.2 km/hr

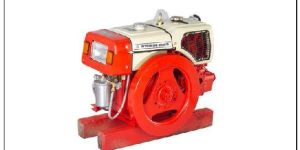

Name VWH 120 Engine Model VWH-120 Type Horizontal 4 Stroke / Single Cylinder Water cooled Diesel engine / O.H.V Combustion Chamber Pre Combustion Chamber Type Bore x Stroke 92 mm(3.6.2 in) x 95 mm(3.74 in) Displacement (Swept Volume) 631 cu.cm (38.5 cu.in) Compression Ratio 21:1 Max. Torque 3.0 Kg-m / 1900 rpm Output / Rated 9.0 hp / 2200 rpm S.F.C. (Specific Fuel Consumption) 215 gm / hp-hr Cooling System Water cooled, condenser type thermo Siphon System Governor System Mechanical Centrifugal Type Dry Weight 119 kgs Starting System Hand Cranking Pulley Diameter 120 mm
