W S Test Systems Pvt Ltd Doddajala, Bangalore, Karnataka

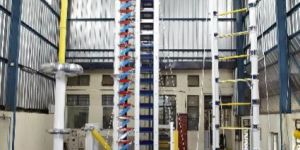

Voltage Impulse Generator is a well-developed set-up that is specifically designed to test the strength of any electric power equipment against lightning as well as switching surges. Our advanced Voltage Impulse Generator is highly appreciated by the clients owing to its flawless functionality and longer functional life. Voltage Impulse Generator that we offer efficiently provides high-voltage insulation or dielectric testing of different devices, components and equipment.

Type : Impulse Generator

Color : Sky Blue, Yellow

Condition : New

Output Type : AC Single Phase

Frequency : 50 Hz

Automation Grade : Automatic

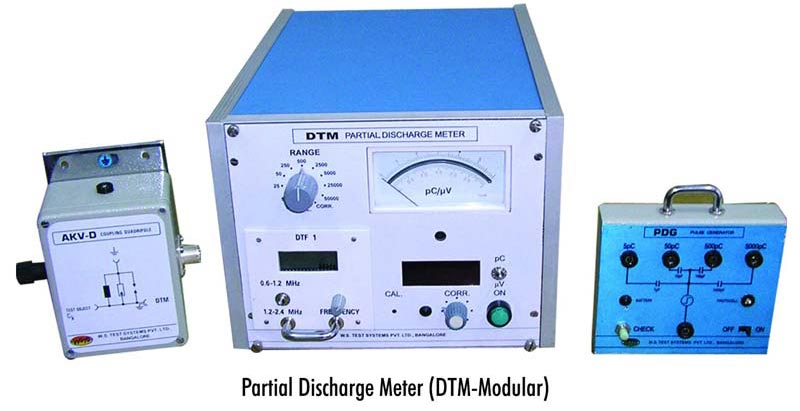

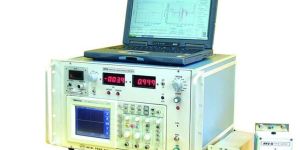

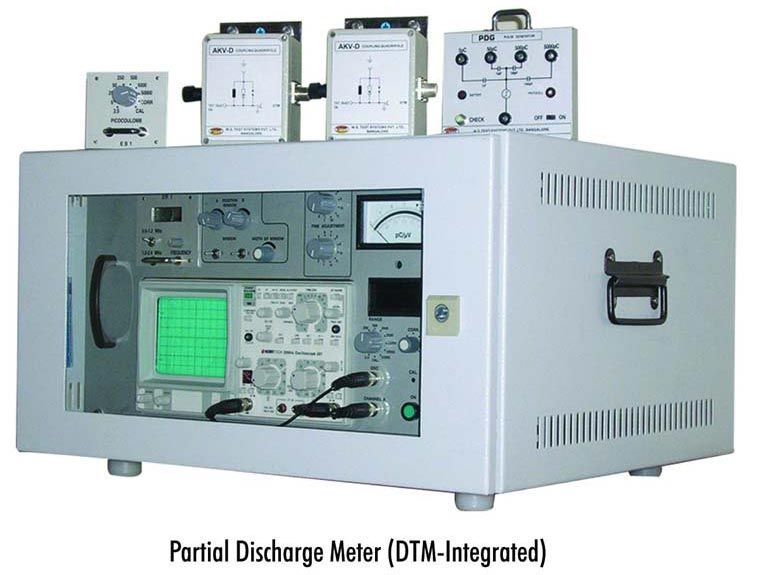

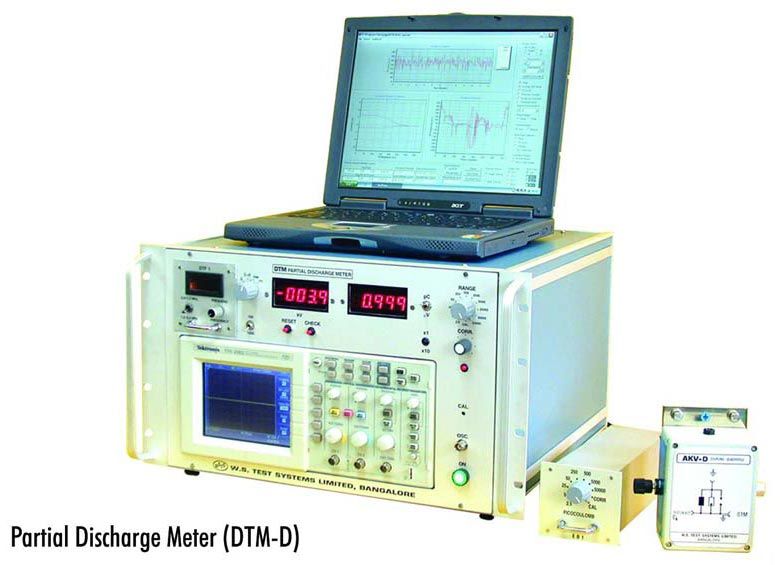

Ours is the most acknowledged name involved in offering different models of Partial Discharge Meters that includes DTM D, DTM Integrated and DTM Modular. Partial Discharge Meters is used for the measurement of partial discharges in pC and RIV in µV. Partial Discharge Meters feature variable selective filter ranging from 600 kHz to 2400 kHz. And, the alternatively fixed bandwidth wide band filter is from 40 to 220 kHz. These Partial Discharge Meters have built-in oscilloscope to display PD pulses on elliptical time base and window gating facility to mask unwanted noise. Also, these meters have facility to conduct balance mode PD detection to minimize the background noises. All models conform to IEC60270.

Application : Industrial, Real time Moniterin

Frequency : 50-60 HZ

Voltage : 110 V

Shape : Rectangular

Power Source : Electric

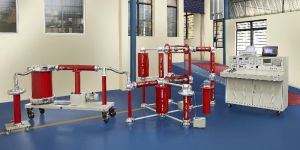

High Voltage Test and Measuring Equipment – Impulse Voltage Test System, 300kV, 1125 joules. The system conforms to following Reference Standards: 1) IEC60060 for Negative Impulse Voltage Generator 2) ASTM D3300

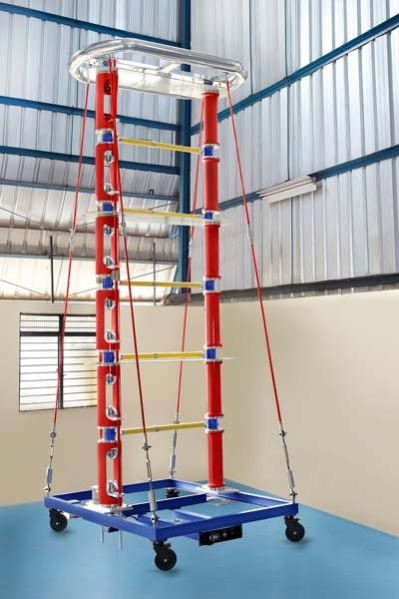

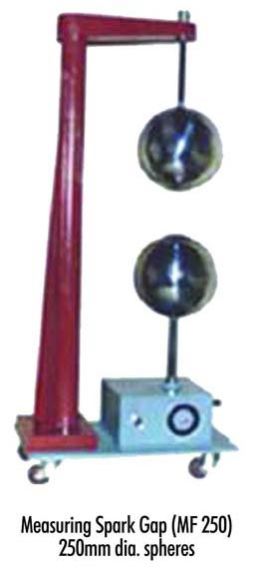

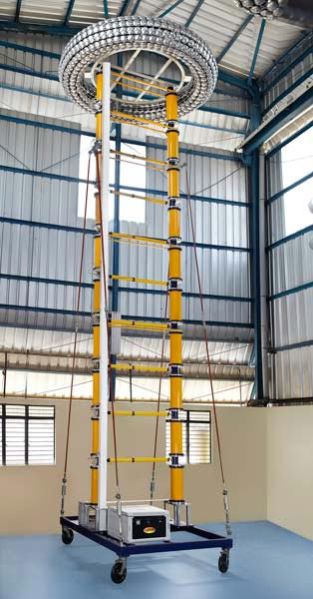

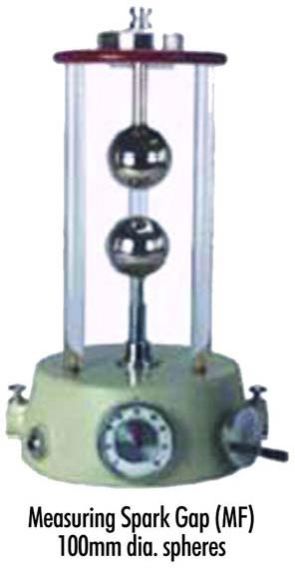

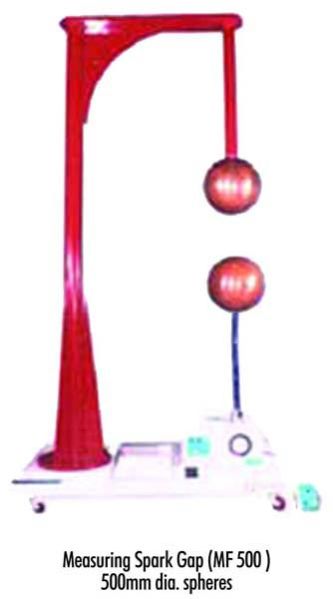

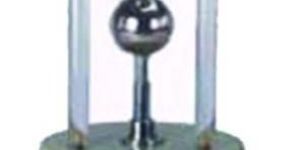

Measuring Spark Gap are widely used for high voltage measurement, calibration & during chopped wave impulse tests. We offer these Measuring / Chopping Gaps with sphere diameters 100mm, 250mm, 500mm, etc. These Measuring / Chopping Gaps are designed in compact size and are light in weight, which make them portable. We offer these Measuring / Chopping Gaps at very reasonable prices.We also manufacture Multiple Chopping Gaps (Electro magnetically operated and also pneumatically operated) for integration with our Impulse Generators for chopping tests.

Type : Weatherproof Enclosure

Application : Electrical Transients

Max Discharge Current : 70 kA

We offer state of the art SF6 gas filled Standard Capacitors, Measuring Capacitors & Coupling Capacitors to our clients. Our Standard Capacitors are suitable for integration with capacitance and Tan Delta Bridge for accuracies in the range of 10-5. The offered Standard Capacitor is customized and available at very reasonable price. Furthermore, the Standard Capacitor provided by us is known for its high performance and durability. In addition we make oil filled measuring & coupling capacitors for HVAC & Partial Discharge measurements in the range of 60kV to 800kV (100pF to 1000pF)other capacitance ratings also available as per customer requirements.Features :As a Standard Capacitor (Reference) for Tan delta measurements. The capacitor is manufactured with state of the art technology reliable, rugged and maintenance free.Available Ranges : Standard Capacitors : 50KV - 300KV, 100pF and 400kV, 50pF Coupling & Measuring Capacitors : 60kV to 800kV in 100pF & 1000pF models. Other capacitance ratings can be designed & supplied as per customer requirement.

Material : Metal

Usage : Domestic, Industrial

Voltage : 110V, 220V

Condition : New

Operating Temperature : -25 +85deg C

Frequency : 50Hz

Power : 0-5Kw

Driven Type : Electric

Specialities : Auto Controller, Dipped In Epoxy Resin, Durable, High Performance, Stable Performance

Voltage Impulse Generator is a well-developed set-up that is specifically designed to test the strength of any electric power equipment against lightning as well as switching surges. Our advanced Volt.....

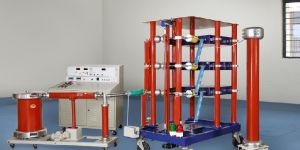

Our Impulse Test Setup is specifically designed to generate impulse voltages, which stimulates lightning strokes and switching surges. Our Impulse Test Setup is available in 140KV, 280KV and 420KV. Impulse Test Setup features charging rectifier, impulse voltage divider, impulse voltage measurement system, etc. Impulse Test Setup is widely used for impulse testing for different industries & educational institutions.

Frequency : 50 - 60 Hz

Voltage : 340 V

High Voltage Test and Measuring Equipment – Impulse Voltage Test System, 300kV, 1125 joules. The system conforms to following Reference Standards: 1) IEC60060 for Negative Impulse Voltage Generator 2) ASTM D3300

Voltage Impulse Generator is a well-developed set-up that is specifically designed to test the strength of any electric power equipment against lightning as well as switching surges. Our advanced Volt.....

Type : GU1600-80

Brand Name : W.S Test Systems

Application : Impulse testing on power transformers

Power : 1600kV, 80kJ

Country of Origin : India

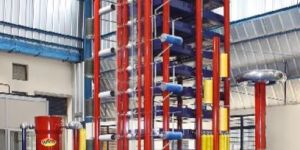

Current Impulse Generator that we offer is widely appreciated for its uniform functionality and multiple waveforms. Current Impulse Generator is widely applied to the residual voltage test on lightning arrestors

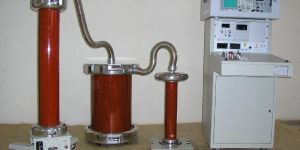

100kV AC, Partial Discharge Meter with Coupling Capacitor to test 33kV class current transformers, lightning arrestors, insulators, etc.,

High Voltage Transformer is designed to provide a short-time or continuous high ac Voltage. The frequency is normally 50 or 60Hz, but can be higher in special cases. A typical feature is that the excitation of the low voltage winding (excitation winding) is continuously variable up to the required value and right up to the rated voltage of the test transformer. A further feature of a test transformer is that it is able to withstand short-circuit conditions over an arc on a great number of occasions. The time period in which a test transformer is excited is normally short. It often amounts to one minute, sometimes up to 15 minutes. The oil cooled test transformers manufactured by WSTS in modular design are specified with two output power ratings one for continuous duty and the other for short time duty. Wide range of transformer ratings is available ranging from 100kV, 5kVA to 500kV, 500kVA. Partial discharge levels between <2 pC to 10pC up to rated voltage. Since the load connected to a test transformer is mostly capacitive, the possibility of compensation with additional reactors, mostly variable, should be considered. Such reactors are important in cascade circuits where they can be installed in the each stage and excited by the coupling windings.

Frequency : 50 - 60 Hz

Power : 150 Kv

Phase : Three Phase

Cooling Type : Oil Cooled

Usage : Electricity Distribution

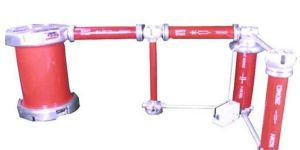

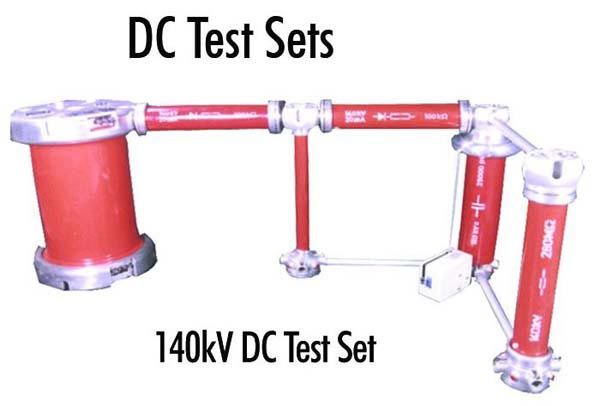

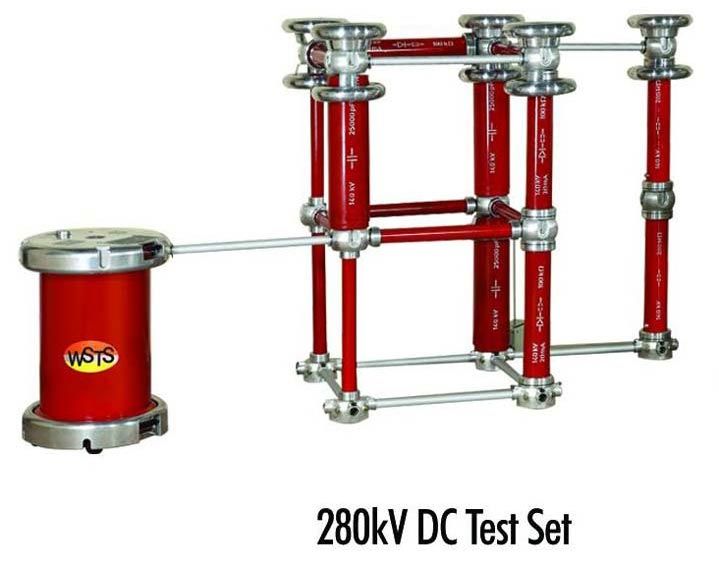

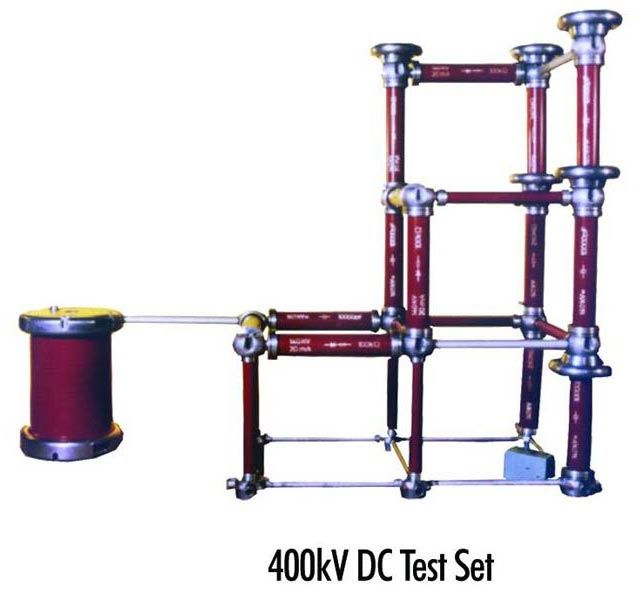

We are offering precisely designed High Voltage DC Test Set that is used for insulation resistance testing, leakage current measurement, etc. We make available High Voltage DC Test Set in 140KV, 280KV and 400KV. Our High Voltage DC Test Set is portable and highly in demand owing to its excellent performance. We make available High Voltage DC Test Set at competitive rates.

Usage/Application : Testing Purpose

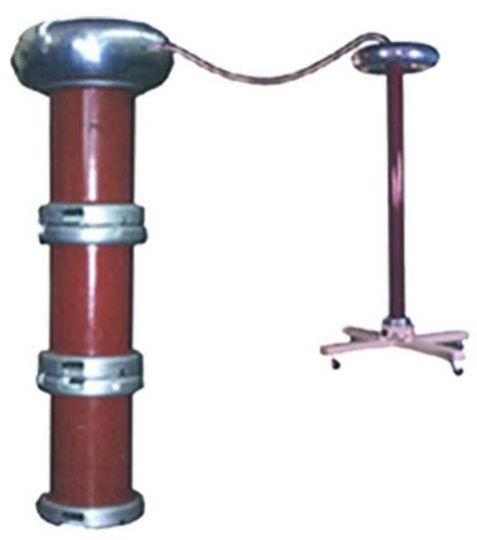

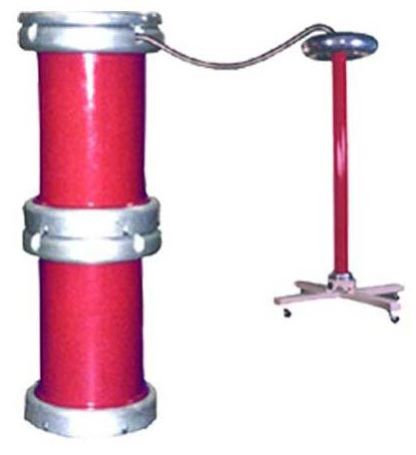

We are acknowledged as one of the recognized firms engaged in providing highly efficient High Voltage AC Test Set that is available in 100KV, 200KV and 300KV. High Voltage AC Test Set is specifically designed to test cables and other electrical equipment as well as industrial appliances. Our High Voltage AC Test Set is known for compact design and high level of accuracy in results as per IEC60060 & IS 2071.

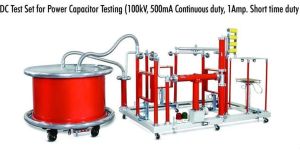

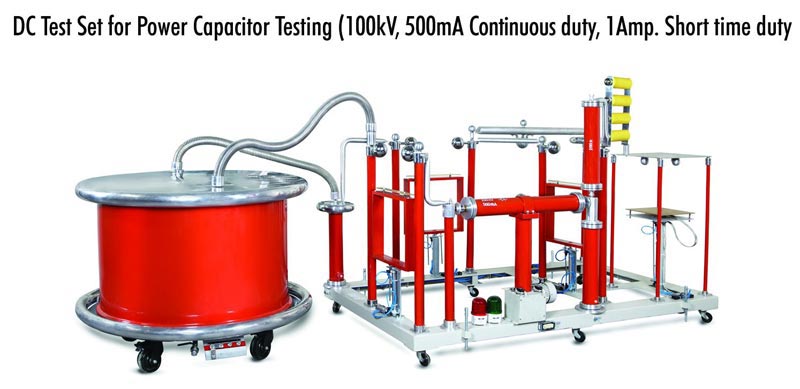

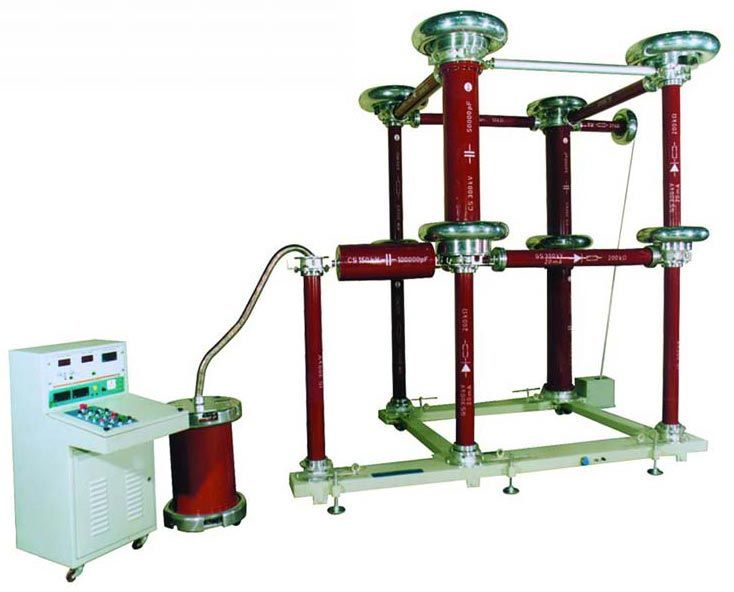

DC High Voltage Test Set is widely applied in electrostatic systems, accelerators, lasers, x-ray systems, dc transmission line components, etc. Our variety of DC High Voltage Test Set includes 100kV & 100kV A for Power Capacitor Testing and 500kV DC Test Set. DC High Voltage Test Set that we offer is known for its minimal set-up time, simple control panel and easy & accurate testing.

Usage/Application : Testing Purpose

Current Impulse Generator that we offer is widely appreciated for its uniform functionality and multiple waveforms. Current Impulse Generator is widely applied to the residual voltage test and the operating duty test on lightning arresters. Current Impulse Generator that we offer is highly in demand by the clients owing to its high efficiency and affordable rates.

Type : Impulse Generator

Color : Light White, Yellow

Condition : New

Output Type : AC Single Phase

Frequency : 50 Hz

Automation Grade : Automatic

100kv ac test set with coupling capacitor and pd meter to test current transformers up to 33kv class.
