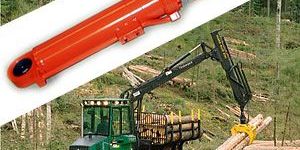

WiproSingleStage Cylinders
Wipro Infrastructure Engineering Oy's single stage cylinders are tested, either single or double-acting hydraulic cylinders. One stage cylinders have been designed according to clients' specifications. They are durable in any load carrying environment. It is also possible to use a client's own design directly or do the needed modifications to make it applicable for used production technology. We manufacture single stage cylinders from smallest auxiliary cylinders up to Ø250mm in piston diameter. Wipro's cylinders are used by the industry's leading companies. These companies distribute their products world-wide and trust Wipro's quality and reliability.
...more
Wipro double acting cylinder
Wipro Infrastructure Engineering Oy also manufactures single-stage double or single-acting hydraulic cylinders. They are used, amongst others, in the cargo handling, mining, forestry, freight and waste processing industries. Within Wipro, the single stage cylinders are devided into different groups depending on the size and the working pressure. Groups are big, medium sized, small cylinders and heavy cylinders with high pressure. Cylinders made in Pernio are mainly medium sized. Typical clients for Wipro's single-stage cylinders are the OEMs (Original Equipment Manufacturers) who distribute their products world-wide. Single Stage Cylinders Wipro Infrastructure Engineering Oy's single stage cylinders are fully tested, either single or double-acting hydraulic cylinders. Read more Wipro Overall Service Wipro's overall services include everything from design, production and distribution to supply of warranty and spare parts.
...more
Wheel Loader Cylinders
Range of cylinders developed Operating Pressure range 123~ 265 bar Cylinder bore size range 70 ~ 170 mm Cylinder rod size range 28 ~ 110 mm Features Robust designs for severe usage in Off road conditions High strength material for Tubes, Rods & hydraulic pipes to meet tough construction & mining applications. Tubes of burnished bore up to 0.1Ra surface finish for better durability of Seal life Finer surface finish up to 0.15Ra on piston rod for better durability of Seal life Superior quality hard chrome plating on rod for better corrosion resistance Friction welded rod-eye joints for durable joint life CO2 welding for tube-Cap. Field proven robust sealing system for tough working conditions. High strength piston & rod bearings to withstand higher side loads.
...more
Under Body Tippers
Under Body Tippers have their load body hinged at the rear to the chassis. They are tipped using telescopic cylinders, which are mounted on the middle of the chassis. Sometimes a pair of telescopic cylinders (double jack) is often used to tip depending on the load carrying capacity of the Tipper. Full range of Under-body tipping kits for vehicles ranging from 1 Tonne GVW to 25 Tonnes GVW Simple design construction for easy serviceability Offers single and double acting cylinders Lightweight cylinders Under Body Tippers Elements Pump Fixed displacement Axial Piston Pump WAP 330 WAP 430 WAP 625 WAP 531 WAP 431 Valve Manual operated Linear Spool - Pneumatic operated - Valve-single / double acting - Limiter Valve (stroke) Cylinder Double acting Telescopic (all stages) Single acting Telescopic Double acting (single stage) Accessories Tank, Filler Breather, Filters, Strainers
...more
Typical Backhoe Loader Cylinders
Operating Pressure range 120 ~ 250 bar Cylinder bore size range 50 ~ 140 mm (~17 sizes) Cylinder rod size range 25 ~ 70 mm (~13 sizes) Features Robust designs for severe usage conditions High strength material for Rod to meet tough applications Burnishing on tube ID for durable seal life Rod surface finish up to 0.15Ra for durable seal life Superior quality hard chrome plating on rod for better corrosion resistance Friction welded rod-eye joints for durable joint life Robotic welding for tube-flange & tube-cap Smooth cushioning/dampening on both ends of cylinder stroke to absorb shocks Field proven robust sealing system for tough working conditions. High strength piston & rod bearings to withstand higher side loads.
...more

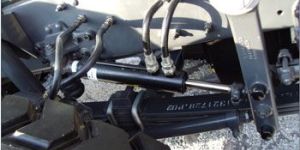

Truck Steering Cylinder
Bore : 63 mm Rod : 30 mm Stroke : 250 mm Working Pr. : 180 Bar Type : Double Acting
...more
Truck Cast Iron Gear Pump
Compact and light - Easy to install even on small machines Quiet operation Robust and reliable - Means a long trouble free service life Side and rear ports Applications Truck Tipper Garbage Compactor Car Carrier Truck Mounted Crane
...more

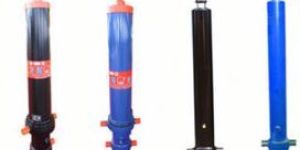

Telescopic Hydraulic Cylinder
We offer full range of hydraulic tipping solutions for Rigid Tippers and Tip Trailers. Our designs have evolved with vast experiences from European and Indian design team. Wipro "Wet Kit" which include all the key components like Tipping cylinder, Pump, Valve, Oil Tank, Mounting Brackets and other accessories that are needed for hydraulic system on a Tipping Truck. Wipro and Wipro-Nummi range of Front-end and Underbody Tipping Kits are preferred the world over by OEMs and Truck owners for vehicles up to 70 Ton capacity.
...more
tail lifts
Cantilever Lifts (500 kg -2500 kg) Slide Lifts (750 kg -2500 kg) Features Tail Lift cylinders are equipped with sealing system for precise movement. The cylinders are verified in extreme environment as they are placed in a very exposed position on trucks. The different cylinder types are Lifting and Tilting cylinders. Every product is thoroughly validated in R&D labs with focus on corrosion requirements and leakage. These cylinders require special treatment on rods, cylinder bottoms and cylinder heads as the cylinder is exposed to highly corrosive environment. The manufacturing architecture is specifically suited to produce the demanding standards required for such cylinders.
...more
Strong heavy duty NUMMI RT
The famous NUMMI twin ram tipping cylinder is a very strong model, where two cylinders provide a heavy duty lifting power as well as a good lateral stability for tipping. The most important advantages: - weight saving compared to front end tipping gears - small oil volume = fast and safe operation and weight saving - provides great tipping stability - low center of gravity = improved stability in the traffic and in the tipping Stability for multi-purpose bodies When long bodies with drop-sides are used, or when the rigidity of the vehicle doesn't allow enough lateral support, the strength and sturdiness of NUMMI twin ram type, RT, is the best solution. It is also ideal for long trailers. Wide range of use NUMMI RT cylinders are available in various sizes, from two-axle utility vehicles to heavy trucks with 13-metre trailers and to the heaviest earth moving tasks. The maximum load allowed for these models vary from 16 to 50 tonnes. Approved Nummi quality To prevent wear and tear, friction on the seals has been minimised by having all ram tubes hard chrome-plated. Each ram has twin seals which keep the ram leak-proof even at extremely low temperatures.
...more
Stabilizing front end tipping cylinders
Stabilising NUMMI front tipping cylinders have been designed not only for lifting but also for giving stability during tipping. For this reason, they are well suited for vehicles with long bodies or tipping semitrailers. Maximizing front axle payload In the NUMMI JTC and JTD models, the cylinder is attached to the body with lifting arms which absorb vibrations during transport and allow the flex between the body and the chassis. Because of this attachment method only a small space is needed for the tipping cylinder between the cab and the body. This allows the body to be brought further forward to fully utilise the front axle capacity. The difference between the JTC and JTD models is the type of the attachment on the bottom end. The NUMMI DFC model is equipped with a cover tube with which it is attached to the body. The cover tube prevents inpurities entering the cylinder during driving. The DFC model is suitable for long bodies and large loads. The patented cover tube construction and the long overlaps of the cylinder tubes provide a stabilising effect during the tipping. The NUMMI DFE cylinder is attached from the top directly to the front wall of the body and the front wall needs to be sloped. This attachment method enables the tipping cylinder to be lightweight, giving maximizing payloads. The DFE model has the similar cylinder tubes as the DFC model so it is also suitable for heavy-duty work which requires increased stability.
...more

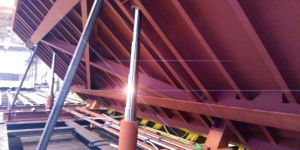

Special Cylinders
s well as the standard models, NUMMI has many tipping cylinders designed for specific tasks. Chip and peat cylinder LT cylinders are suitable for use in chip and peat transport solutions. Cylinders are available both as single and double acting, for example a model with 4 stages of which the two smallest ones are double acting. This makes it possible to pull back the body after it has passed the tipping roll center. To provide the necessary safety, model range also includes 9 ton hydraulic support legs supplied with locking valves for truck or trailer. Taylor made cylinders The starting point of the design is a customer specific need in different operating conditions, in industry vehicles or lifting devices.Typical applications are mining machines, concrete moulds and special vehicles. Standard technology for leading mining vehicles The world's leading special purpose vehicle manufacturers such as Sandvik and Cargotec have chosen NUMMI cylinders for their applications.
...more
Single stage cylinders
Wipro Infrastructure Engineering Oy's single stage cylinders are tested, either single or double-acting hydraulic cylinders. One stage cylinders have been designed according to clients' specifications. They are durable in any load carrying environment. It is also possible to use a client's own design directly or do the needed modifications to make it applicable for used production technology. We manufacture single stage cylinders from smallest auxiliary cylinders up to Ø250mm in piston diameter. Wipro's cylinders are used by the industry's leading companies. These companies distribute their products world-wide and trust Wipro's quality and reliability.
...more

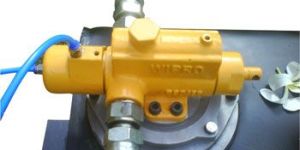

Truck Hydraulics Valves
Tipping Valve Range: 3 position,3 port & 4 port Flow: 100 to 210 lpm Actuation: Mechanical, Pneumatic, Electrical
...more

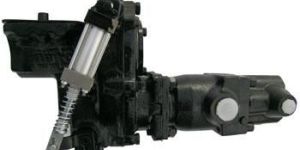

PTO PUMP
PTO Range: Co-axial, Parallel Axis, Side & Rear mounted, Ratio: 0.7 to 1.32 -Custom made PTO's for all major gearboxes available. Pump Range: Axial Piston Pumps and Gear Pumps, Flow: 21cc to 100 cc, Pressure: Upto 210 bar
...more

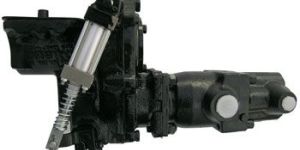

pto
PTO Range: Co-axial, Parallel Axis, Side & Rear mounted Ratio: 0.7 to 1.32 -Custom made PTO's for all major gearboxes available. Pump Range: Axial Piston Pumps and Gear Pumps Flow: 21cc to 100 cc Pressure: Upto 210 bar
...more
precision engineered
Precision Engineered - Hydraulic and Mechanical Components Actuators and Parts (Cylinders and Pistons) Manifold Blocks / Valve Blocks Liquid Reservoirs / Accumulators Other Hydraulic Components Power Door Opening System (PDOS) parts Precision engineered mechanical components
...more
Power Packs
Range:12V & 24V Tank Capacity: 10 to 35 ltrs

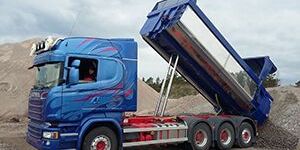

NUMMI Tipping Gears
Different clients, different circumstances and different vehicles have different requirements for tippers. Wipro has taken into consideration its clients' wishes and has developed the largest selection of durable, fast and reliable tippers available, for heavy-duty as well as regular use. Our product range consists of single and double cylinder under body tippers, several versions of front end cylinders, special cylinders and customised cylinders. Reliability NUMMI tipping cylinders are the result of many years of product development. Every cylinder is tested before delivery to the customer. In this way the durability of the cylinder is established and the quality and fitting of the seals are controlled. NUMMI tipping cylinder provides reliable and durable lifting power long into the future, because all NUMMI tipping cylinders are designed to last, even in heavy-duty use and in extreme conditions. Wipro also guarantees the availability of spare parts for 10 years from the date of phase out of the product. Globally present Wipro has, through its own organisation and partners, marketing contacts world-wide. Co-operation with the world's leading contractors has made NUMMI tipping cylinders known by lifting professionals globally.
...more
Multi-Barrel Rocket Launcher (MBRL)
Features and Functions Power Unit and Cylinders which enable auto leveling and firm rigging on the ground, before firing of rockets. Hydraulic Power Unit which is highly advanced and developed, comprising Solenoid Operated Proportional Valves and Load Control Valves. Highlights Launch platform which is levelled by sensor controlled outrigger cylinders 4 cylinders (2 in the front and 2 in the rear)which rig up the platform and hold firmly (within minutes of accuracy) for release of missiles Valve system with regeneration Load control valves for position accuracy
...more
Motor Grader
Operating Pressure range 140 ~ 200 bar Cylinder bore size range 50 ~ 100 mm Cylinder rod size range 32 ~ 50 mm Robust designs for severe usage in Off road conditions High strength material for Tubes, Rods & hydraulic pipes to meet tough construction & mining applications. Tubes of burnished bore up to 0.1Ra surface finish for better durability of Seal life Finer surface finish up to 0.15Ra on piston rod for better durability of Seal life Superior quality hard chrome plating on rod for better corrosion resistance Friction welded rod-eye joints for durable joint life CO2 welding for tube-Cap. Field proven robust sealing system for tough working conditions. High strength piston & rod bearings to withstand higher side loads.
...more
Mobile Launcher
Features and Functions Specially designed Out Rigger Cylinders with mechanical lock to align the platform and provide firm grip during launch of missiles
...more
Mining Machine
Mining techniques can be classified into two types of excavation - Surface Mining and Sub-surface (underground) Mining. This segment consists multiple equipment like Haulage, Tunneling, Drill and Rock Drills. Wipro is closely associated with global leaders like Sandvik and Atlas Copco for delivering hydraulic cylinders suited to their various Mining equipment. As the application is severe, and safety being the primary requirement, Wipro's deep expertise in hydraulic cylinder's domain and partnership with global OEMs in design and execution constitute the key to our success. Underground Loaders (3 - 15 Tonnes) Drill Rigs (38 mm – 203 mm) Types of Underground Loaders Cylinders Loader hauler Stab cylinder Hoist cylinder, Steer cylinder Puch-plate cylinder Tow hook cylinder Suspension cylinder Tailgate cylinder Dump cylinder Cabtilt cylinder Types of Drill Rig Cylinders Boom lift cylinder Break out jaw cylinder Boom extension cylinder Rod gripper cylinder Rod transfer cylinder Break out wrench cylinder Sleeve retainer cylinder Suctions hood cylinder Drill steel support cylinder Feed cylinder Feed dump cylinder Gripper cylinder Magazine gate cylinder Features Mining cylinders are equipped with sealing system for precise movement, and have a very robust design in order to handle both the environment with rocks and stone hitting the cylinders as well as the external loads in the application. These cylinders are tested for extreme environmental conditions as they are all exposed to highly corrosive environment. Every product is thoroughly validated in R&D labs with focus on endurance requirements. The manufacturing architecture gives the high degree of flexibility needed for this application area.
Country of Origin : India
Type : Mining Machinery
Certification : CE Certified
Application : Mining Process
Weight : 100-1000kg
Color : White
Condition : New
Automatic Grade : Semi Automatic
Driven Type : Hydraulic
...more

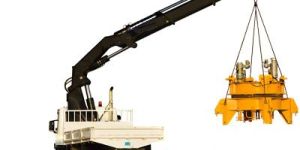

Loader Cranes
Tonnage Light (Less than 10 tm) Med (From 10 - 23 tm) High (Greater than 23 tm) * (tm = Tonne*metre) Loader Crane cylinders are equipped with sealing system for precise movement with slow speed. They have surface treatment on the rods where the corrosion resistance is specified in different levels. Other typical cylinder types are Inner/Outer Boom cylinders, Extension cylinders, Support legs and Slewing cylinders. An extremely advanced product is the sequence cylinder which is used when the crane has more than 5 extensions and the application requires the cylinder to work in a sequential order both extending as well as retracting. Every product is thoroughly validated in the R&D labs with focus on fatigue requirements, external loads as well as corrosion resistance performance. The manufacturing architecture is built on standardized product families in high volumes. Besides the normal loader crane application we have cylinders for special application like military and marine equipment's.
...more
poultry farm
Wipro's cylinders find prominence among global manufacturers of Farm & Agricultural Machinery. The steering cylinders are designed to reduce manual effort in steering tractors during haulage or farming operations. We provide cost effective cylinders to major Tractor and Axle manufacturers in Asia and Europe. Wipro established its operation in Brazil through the acquisition of RKM Equipamentos Hidraulicos, a leading hydraulic cylinder manufacturer in Brazil. R.K.M has more than 4 decades of experiences in designing and manufacturing cylinders primarily for the Agriculture and Construction Equipment segment. The state-of-the-art manufacturing facility is located in the industrial district of Piracicaba, about 150 kms from Sao Paulo, southeastern Brazil. Agricultural, mining, manufacturing and service sectors being major contributors, Brazilian economy is ranked high among all the South American countries and has attracted global construction equipment manufacturing leaders like CAT, JCB, Volvo, etc. Applications We manufacture cylinders for all applications Harvester(Sugar cane, Coffee and Grain) Sprayers Planters Tractor ( Steering and attachment cylinders) and Tractor implements Sugar cane transporters. Features Robust designs for severe usage conditions High strength material for Tubes, Rods, hydraulic pipes for tough applications Burnishing on tube ID for durable seal life Finer Rod surface finish up to 0.2 Ra for durable seal life High corrosion resistance for rod plating up to 72 hrs. (NSS). Robotic welding for tube-flange Smooth cushioning/dampening on both ends of cylinder stroke in some cylinders Special cylinders of Aluminum( Auto tracker), Transducers, Magnetic seals and with inbuilt valves
...more
