Zeebeetronics Domlur, Bangalore, Karnataka

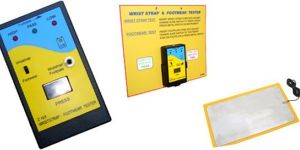

Wrist straps and ESD footwears are the first line of defence against electrostatic charge build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the wrist strap/footwear must remain electrically safe for the user. Thus, it is important to test every wrist strap/footwear regularly. In order to protect sensitive electronic components, the maximum wrist strap resistance should not be more than 10 meg ohms and footwear resistance should not be more than 35 Mega ohms. On the other hand, the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous levels of voltage and current flow.  The wrist strap and the footwear tester checks these parameters under actual operating conditions with the strap on the wrist or footwear to the foot. It clearly indicates whether or not the wrist strap/footwear system is safe to use.ALSO AVAILABLE WITH FOOTWEAR RANGE UPTO 100M OHMS

This is a wide-range, battery operated, portable instrument for measuring Surface Resistivity of virtually any surface.  In the circuit industry, products such as packaging materials, component storage bags and trays, work bench surfaces, table and floor mats, conveyor belts, etc., have resistance values which need to conform to stringent specifications.  Moreover, these values are expected to fall within specified limits.  The Surface Resistivity meter can play a vital role in monitoring and checking the resistivity characteristic of the above items. Surface Resistivity, Resistance between 2 points, and Surface to Ground can all be conveniently measured in accordance with EOS/ESD Association Std S4.1. Measurements in the conductive range i.e. upto 10^5 are made at 10V and all higher values at 100V. Measurements can be taken with built-in parallel electrodes or special external probes. A separate cord is also provided for Surface to ground measurements whereby the resistivity differential between any surface and any chosen ground can be determined. The surface resistivity is conveniently indicated through an LED scale that is colour coded to signify conductive, dissipative and insulative covering a total of 12 decades from 10^3 to 10^12 ohms/square with under range and over range indications.

This is an ultra wide-range, battery operated, portable instrument for measuring Surface Resistivity of virtually any flat surface.  In the circuit industry, products such as packaging materials, component storage bags and trays, work bench surfaces, table and floor mats, conveyor belts, etc., have resistance values which need to conform to stringent specifications.  Moreover, these values are expected to fall within specified limits.  The Surface Resistivity meter can play a vital role in monitoring and checking the resistivity characteristic of the above items. It also has unique additional feature of surface-to-ground measurement capability wherein the resistivity differential between any surface and any chosen ground can be determined. The surface resistivity is conveniently indicated by a row of LEDs covering a total of 10 decades from 10^3 to 10^13 ohms/square.

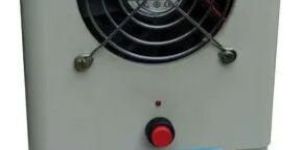

The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries and laboratories. For instance, static charges can create havoc with sensitive equipment and electronic components. This Bench Top instrument is designed to neutralise your ESD work-station or ESD protected area with a stream of ionized air. It does what Wrist straps and Conductive mats cannot do - i.e. remove static charges from non-conductive objects and surfaces. It is able to rapidly neutralise potentially dangerous charges in a localised area.  An axial fan gives the desired air flow to neutralise static on specific objects rapidly, as well as control static in the general area in front of the ionizer. This is a powerful, trouble free and compact solution to static control problems anywhere. The unique high efficiency ionization pulse circuitry provides fast discharge with minimum air flow. A high air flow would lead to operator discomfort and may also disturb small components. This static eliminator works on the principle of high voltage corona discharge to produce the neutralising ions. It is designed for continuous use and a current limitor circuit ensures operator safety even if the ion emitters are accidentally touched. The Z207 has special circuitry to ensure a balanced ion output. This ensures that no net charge is induced by the ion shower. Balance is maintained irrespective of supply voltage and even if the discharge electrodes are dirty. Balanced output is essential when used in ESD protected areas. APPLICATION  AREASAnti-static work stations and assembly units.Plastic film and paper industriesPlastic manufacturing and moulding units.Pharmaceutical industry.Clean rooms.

This is designed to safely drain away any static charges present on a Human body before entering an ESD safe area. A 1 megohm resistor is provided in the ground cord as precaution against risk of shock. Ground the stand to a suitable ESD ground point by means of the cord. Stand on the Base Plate while wearing the Conductive / Static Dissipative Footwear and also touch the top plate. Any static present on the body will get drained away.

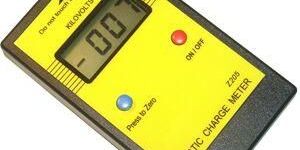

The Static Charge Meter Z205 is a non-contact, light weight digital instrument designed to measure static voltages on objects & surfaces. It features a large LCD display to indicate the magnitude and polarity of the electrostatic charge directly in Kilovolts. The special circuitry enables repeated and drift-free measurements without continual re-zeroing. The instrument has good directional sensitivity and is ideal for measuring electric charges encountered in critical electronic assembly and storage areas as well as Antistatic Work Stations. It can also be used for Plastics, Paper, Textiles, Food, explosives and Pharmaceutical Industries. The unit gives direct readings of electrostatic potentials on any surface, when held at a distance of 5 cms. However, higher electrostatic potentials can be measured by proportionately increasing the distance from the meter to the charged object. The use of very low current circuitry results in a long battery life of over 6 months under normal use.

Type : Meters

Application : Industrial, Laboratory

Voltage : 9V

Display Type : Digital

Power Source : Battery

Warranty : 1Years

Voltage : 230V

Frequency : 50 Hz

Country of Origin : Made in India

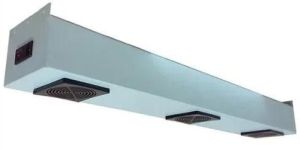

The generation and accumulation of unwanted electrostatic charges, both surface and airborne, poses a serious problem in various industries, work areas & laboratories. For instance, static charges can cause havoc in the electronic assembly shopfloor. This OVERHEAD unit can be conveniently hung over the work area for a large coverage to neutralise the charges on personnel or on any item entering an ESD sensitive area. This is achieved with a stream of ionized air. "Ion showering" is the only effective method of removing static charges from non-conductive objects and surfaces. The unique high-efficiency pulse circuitry provides fast discharge with limited air flow.  It works on the principle of high-voltage corona discharge to produce the neutralising ions. Ion Balance is maintained irrespective of supply voltage and even if the discharge electrodes are dirty. Balanced output is essential when used in critical ESD sensitive areas. APPLICATION  AREASESD sensitive  work areas and assembly units.Plastic  and paper industriesIT & Computer industryClean rooms.

Power Source : Battery

Feature : Accuracy, Durable

Country of Origin : Made in India

Color : White

Country of Origin : Made in India

Warranty : 12 Months

Material : Plastic, Steel

Country of Origin : Made in India

Material : Plastic

Condition : New

Automation Grade : Automatic

Application : Human Body Checking,Industry

Feature : Durable, Easy To Operated, Long Life

Country of Origin : India

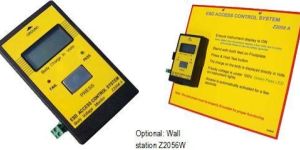

This instrument is designed to detect the level of Static Charges present on a human body and allow access into an ESD safe area provided the Body Static voltage is under 100V. It is very simple to use and only requires the personnel to Press & Hold the Test Button on the instrument. If the Body voltage is under 100V, the Green PASS Led will light and the magnetic lock is deactivated for a few seconds thereby allowing access through a door or turnstile. The personnel should normally be free of Static Voltage provided proper ESD protection measures have been taken.  Therefore, it also serves to verify whether the measures taken to make a particular area ESD safe are effective. By such measures we mean conductive flooring, ESD wrist straps & Footwear, ionizing equipment, etc.

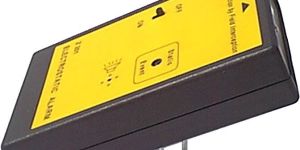

The  Electrostatic Alarm Z201 is a portable, battery-operated instrument, incorporating the latest technology, to indicate the presence of approaching static electricity. It is designed to provide a quick and convenient method of locating static charges and their approximate charge levels. It is primarily intended for use in static-safe handling areas, as an early warning system to alert the personnel nearby.The hazard may be in the form of personnel who are generating static or personnel who may be holding a charged object without observing the standard safety procedures for handling static sensitive devices. The instrument incorporates a unique self-resetting feature and therefore requires no manual adjustments or zeroing. It can be kept 'ON' for continuous monitoring of critical static-safe areas, thanks to its remarkably low current drain of only 1 ma.THEORY OF OPERATIONA static charge on any object produces an electric field whose strength is an inverse function of the distance from the charge. A given magnitude of charge always produces a given field strength at a given distance.The unique sensor of the instrument actually responds to this electric field. However, more specifically, it senses only changes in the electric field, so to detect a charge there should be relative motion between the instrument and the charged body.

Application : Industrial

Warranty : 12 Months

Country of Origin : Made in India

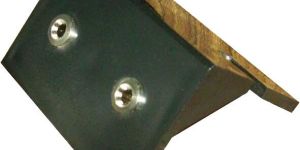

As per ANSI/ESD S20:20 all conductors including Personnel must be electrically connected and attached to a known ground.A common question about anti-static wrist straps is how and where to ground them. Anti-static work station operators need a convenient method of grounding their wrist straps where the ground cord won’t get in the way of their work. This convenient device  provides the means to ground anti-static wrist straps at your work station.The strong bracket mounts (with just 2 screws) to the bottom front edge of your work table or bench. Two banana sockets located in the front of the bracket allow for easy connection of two wrist strap cords (for operators working side by side). Features Designed to mount under bench, saving work surface space banana jacks allow for grounding two anti-static wrist straps at once Lug for attachment to earth ground Front edge bench mounting of ground block via two screw slots

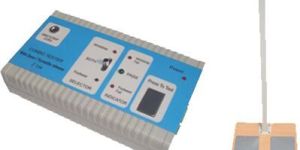

Wrist straps and ESD footwears are the first line of defence against electrostatic charge build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the wriststrap/footwear must remain electrically safe for the user. Thus, it is important to test every wrist strap/footwear regularly. The maximum wrist strap resistance should not be more than 10 meg ohms and Footwear resistance should not be more than 35 Mega ohms. Also the resistance should not be less than 0.75 Mohm as protection to the wearer from dangerous voltages.  This COMBO TESTER is a combination Wriststrap & DUAL  footwear tester which checks these parameters under actual realtime operating conditions. The footwear section gives a warning if either of the Footwear is defective. Door Access System:Before entering the EPA  (ESD Protected Area) personnel need to test their Wrist Strap/ESD footwear. Access into the EPA is allowed by the release of the Electromagnetic lock only if  the resistance of the Wrist Strap/ESD footwear is within the Pass limits.

Voltage : 220V

Weight : 1.5 Kgs

Warranty : 12 Months

Country of Origin : Made in India

Material : ABS Plastic

Warranty : 1 Year

Voltage : 220 V

Country of Origin : Made in India

Wrist Straps are the first line of defence against electrostatic charges build up on the human body. They are designed to carry away this change as soon as it is generated. At the same time the strap must remain electrically safe for the user. Thus, it is important to test every strap regularly.
