Sun Engineering Karamchari Nagar, Bareilly, Uttar Pradesh

  Lightning Strike Recorder, also known as a Lightning Strike counter, records the number of lightning strikes captured by our ESE LIGHTINING ARRESTOR Terminal. The LSR is designed for easy mounting at any location along the route of down conductor.   The LSR has a mechanical6digit display secured within a polycarbonate IP67rated enclosure. It has a current sensitivity of 1000 A @ 8/20 µs impulse and operates by sensing current by means of an inductive pick-up loop. The LSR is non-electronic, self powered and DOES NOT need any external power source or battery.

Brand Name : LSR

Finishing : Color Coated, Polished

Color : Black, Grey, Off White, White

Condition : New

Application : Industrial

Packaging Type : Box, Carton

Type : Lightning Strike Recorder

Weight : 250-300 Gm

Country of Origin : AUSTRALIA

We are providing of Precision Power Pty ltd a company based in Australia having strong foot prints in south east Asia and far east, are acknowledged experts in lightning protection since 1982. Precious power and their associates Sun Engineering have a vast experience in designing, providing, installation and certification of lightning protection system in some of the most lightning prone areas. Apart from providing Advance Terminals and Accessories, we also offer services for:- Carrying out Risk Assessment. Designing Optimum Area of Protection. Stormking Terminal are characterized- Superior Design. Superior Material. Superior Quality. Superior Performance. Tech Specification- Early Streamer Emission Air Terminal Supporting mast Downconductor Lightning Strike Recorder / Counter Disconnecting / Testing Link Earthing System MOUNTING ACCESSORIES We offer a complete range of high quality accessories for installation of complete Lightning Protection System.  Mounting Mast is  a wide selection of mast in G.I. ,Stainless Steel and FRP with cross over coupler available in Guyed, Free standing and Cantilevered Configuration.   Down conductors: - 1)  Single Core Copper Cable with minimum cross section area of 70sq.mm specially designed for lightning current. 2)  LIC (Low Induction Conductor),a high integrity low impedance cable which is particularly effective on structures containing high density human occupancy and those which contain sensitive electronic equipment, volatile liquids and other sensitive applications.   LSR, also known as a Lightning Strike counter, records the number of lightning strikes captured by the Terminal. The LSR is designed for easy mounting at any location along the route of down conductor. The LSR has a mechanical 6digit display secured within a polycarbonate IP67 rated enclosure. It has a current sensitivity of 1000 A @ 8/20 µs impulse and operates by sensing current by means of an inductive pick-up loop. The LSR is non-electronic; self powered and DOES NOT need any external power source or battery.   Earthing which we install are completely Maintenance Free Earthing for maintaining constant ohmic values. The system comprises of Copper Bonded Earth Rods as conductors, copper tapes and connecting clamps along with Earth Enhancing Compound / Backfill compound. These compounds are applied around conductors to reduce soil resistivity and lower earth impedance. The constant resistivity maintained by our Maintenance free Earthing ensures perfect and fail-proof working condition of Lightning Protection System.   Transient Earth Clamp when connected between different earthing systems remains as an "open circuit" under normal operating conditions. Under transient conditions, the TEC provides equipotential bonding by forming a "closed circuit" between different earthing systems.

Brand Name : Lpi

Color : Brown.Yellow, Golden, Gray, Silver

Application : Industrial Use, Buildings,Electrical Use,Factories,Solar,Schools & Colleges Protection From Lightning,Factories,Buildings,Schools & Colleges Protection From Lightning,Electrical Use,Lightning Protector

Type : Lightning Protection System, Lightning Arrestor,Lightning Arrestor

Country of Origin : AUSTRALIAN,AUSTRALIAN,Australia

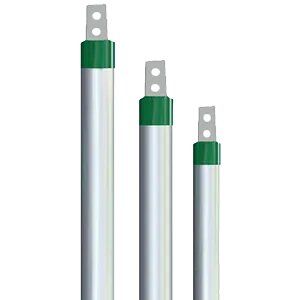

Sun Earthing Electrodes (Maintenance Free) are an innovative and Eco- friendly product which is made using the best quality products. Sun Earthing Electrodes (Maintenance Free) are as per IS: 3043-1987, clause 9.2.1, 9.2.8 and 9.3. Earthing Electrodes are strong, reliable, durable and are resistant to corrosion. They also have a low maintenance cost and there is smooth dissipation of fault, lightning and short circuit currents. The Need for Earthing Earthing of Grounding is the most important component in an electrical circuit. It is necessary to eliminate electrostatic discharge which can destroy sensitive equipment and disrupt power supply. The primary objectives of earthing are: to activate safety devices under fault conditions; to control radio frequency emissions and electro magnetic interferences; to provide stable reference potential for instrument accuracy; to provide safe discharge path for short circuit and lightning currents. Why Earth Resistance Should Be Low? Sun Earthing Electrodes Manufactured from Mild Steel 'B' which is hot dip galvanized. Tested for Independent testing laboratories Central power Research Institute (CPRI). Standard:- Sun engineering make Maintence Free Earthing Electrodes is designed as per IS: 3043. Sun Earthing Electrodes are Filled with Highly Conductive and Anticorrosive Mixture It contains natural elements, which are highly conductive as well as anti corrosive Advance Back fill compound Sun Earthing Electrodes comes with a great Advance Back fill compound. It is an excellent ground enhancer. When water is added to the Advance Back fill compound, it swells substantially. Consistently holds its own shape and adheres to any surface. These capabilities resolve the issues of compatibility of soil-rod contact that is crucial to an earthing system. There is no need to recharge the pits in normal soils. Advance Back fill compound contains soil friendly materials. Advance Back fill compound maintains moisture with in the sphere of influence of the electrode, resulting in lower earth resistance, which cannot be obtained from any other earthing system. Advance Back fill compound enhances the surrounding soil conductivity there by making the earthing reliable and effective. Advantages & Benefits Low electrical resistance as per soil Resistance to Corrosion Repeated current carrying capacity and continuity Provides stable reference Ideal earthing system for all kinds of earthing applications Safety of life and property form earth related electrical hazards Strong, Reliable, Long Life Less Maintenance Saving on maintenance Smooth dissipation of fault, lightning and short circuit currents Applications Telecommunication Towers and Microwave Antennas Transmission & Distribution Systems Substation and Power Generating Station Transformer Neutral Earthing Equipment Body Earthing Sensitive Electronic Machines Lighting Arrestor Earthing Data Processing Centres Refineries and Manufacturing Facilities Food Processing & Water Treatment Plants Industries Residences Wherever Electrical Safety is Needed Wherever Electrical Safety is Needed Use in place of plate Earthing.   Location of Earth Pit & Soil Resistivity The location of earth pit contributes to earth resistance value to a great extent. Soil resistivity will be high in sandy and rocky areas and in areas where there are obstructions like buildings, and in places where the soil is made up. Therefore, the earth resistance value (ohmic value) of an earth electrode will depend upon the resistivity of the soil in which it is installed. The factors determining the soil resistivity are the physical composition of the soil, moisture in soil, dissolved salts in water, rock formations/obstructions beneath the soil or near about the area of influence of the electrode, and current magnitude. Earth resistance value will be appreciably low in good soil.

Brand Name : SUN ENGINEERING, SUN ENGINEERING

Material : Stainless Steel, , GI CHEMICAL EARTHING

Finishing : NEW

Application : GET RID FROM ELECTRIC SHOCK, Earthing Purpose, GET RID FROM ELECTRIC SHOCK

Feature : GET RID FROM ELECTRIC SHOCK

Country of Origin : India,MADE IN INDIA

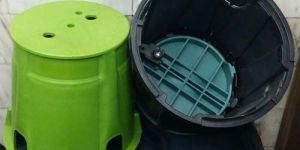

As SUN ENGINEERING have Innovative Team in same way we seek customer Need Time to Time in one our research we see that customer facing lot of issue during fixing of Earthing Chamber because Usually Earthing is used in Remote Areas In that area availability of brick and all are not possible easily and also conventional Earthing Chamber was not reliable thats why we Launch Poly Plastic Base Earthing Chamber. Features Factory Built Holes for accessing Strip/Wires easily at two sides. Made of heavy duty polyethylene for extra durability. Resistant Material. Assuring Long Use Life. Green Top Cap Matches the Environment. No Any Maintenance Require after Installation. No Brick Work Require at side. 3.ton Loading Capacity.

Shape : Round

Color : Dark-blue, Dark-green, Green

Application : Chemical Earthing Pit Cover

Type : Earthing Cover

Thickness : Upto 15 Inch

Country of Origin : India

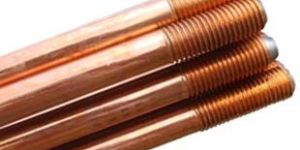

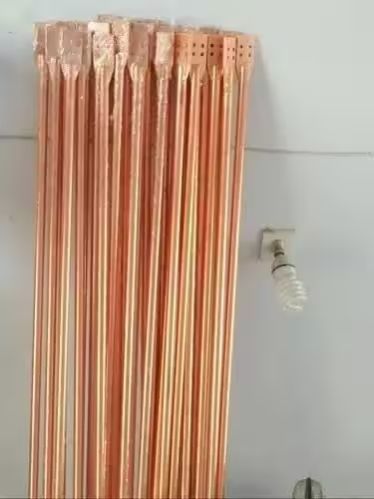

We have achieved great heights of success by providing top-notch array of Copper Earthing Electrode. We make sure the ranges of product we offer purchasers with are as per global quality management standards.   Sun Engineering Copper Earthing Electrode probably offer best and most economical earthing system made molecularly bonding 99.98 pure electrolytic copper

Brand Name : SUN ENGINEERING

Material : Copper, COPPER EARTHING,COPPER,COPPER EARTHING,Copper

Condition : New

Application : Earthing Purpose, CHEMICAL EARTHING,GENSET,HOUSEHOLD PURPOSE,GET RID FROM ELECTRIC SHOCK,Building Purpose,Earthing Purpose,Earthing Purpose,Earthing,ELECTRIC

Certification : ISI Certified

Feature : High Clarity, Proper Working, Smooth Texture, Uniform Finish, Water Proof,Long run, Maintenance Free, Cost Effective, Durable

Type : Copper Earthing Electrode, Chemical Earthing,Gel Earthing,GI Earthing,COPPER EARTHING,PURE COPPER EARTHING,Copper Earthing Electrode

Diameter : 2 Mtr 50 & 80mm , 3 Mtr 50 80mm

Thickness : 0-3mm, 0-5mm, 5-7mm

Country of Origin : India,Made in India,India

To prevent the earth from electrical hazards, we supply Sun Earthing Electrodes (Maintenance Free) of optimal quality to various renowned companies in India. Our Sun Earthing Electrodes are highly efficient and effective in their working. Our team of experts makes sure that these Sun Earthing Electrodes are manufactured under the best quality conditions using the best quality equipment. We also provide these electrodes at cost effective prices.

Brand Name : SUN CHEMICAL EARTHING, SUN ENGINEERING

Material : Stainless Steel, CHEMICAL EARTHING,Stainless Steel,Copper

Finishing : Polished

Condition : New,New,New

Application : Earthing Purpose, CHEMICAL EARTHING,GENSET,HOUSEHOLD PURPOSE,GET RID FROM ELECTRIC SHOCK,Earthing Purpose,Earthing Purpose,Earthing,Electrical earthing

Size : 2 Meter, 3 Meter, 2 & 3 Mtr.,Standard,Customized size

Certification : ISI Certified, MANY MORE

Length : 2Mtr. 3Mtr

Feature : Proper Working, Uniform Finish, Water Proof,High Clarity, Proper Working,Proper Working

Type : Earthing Electrodes, Chemical Earthing,Gel Earthing,GI Earthing,Copper Earthing,CHEMICAL EARTHING,Electrodes,Chemical Earthing Electrodes

Diameter : 50 Mm Diameter , 80 Mm Diameter

Country of Origin : India,Made In India,India,India

Length of Rod : 1-3 Mtr.
