A G Foundary & enginer GT Road, batala, Punjab

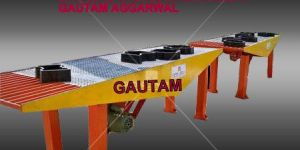

We are offering vibrating table. interlock tiles/paver making viberating table table vibrator is paving tiles producing machine known for producing excellent quality paving tiles. Tiles are produced with excellent finish and smoothness. Pvc and plastic moulds of required shape and sizes are supplied along with the machine. Table surface is specially prepared for smooth functioning of machine and thus enhancing the tile quality.pvc and plastic moulds of any shape and size are provided according to customer's requirement.

Brand Name : gautam brand

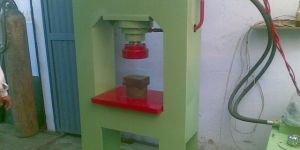

We are offering tile making press. this machine is used for manufacture of cement tiles by using moulds which are worked upon manually or automatically the main features include electro-hydraulic pressing operation using solenoid controls, timer controlled operation for uniform pressing, single button operation for pressing and return specially designed hydraulic seals for working under dusty conditions, hard chrome plated special steel piston, deep forged cylinder and mainly a rigid and robust frame for long life and trouble free operation. The hydraulic tank and the power pack is placed on the top of the frame or separated fitted which forms an integral part of the machine, which ensure maintenance free operation, eliminating the use of cumbersome hose connections. The function of machines controlled by the pane.

Brand Name : gautam brand

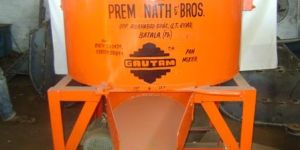

We are offering pan mixer. Pan mixer pnb 5000a we are appreciated by our loyal clients for offering them a huge quality range of pan mixers, that are known for qualities and rugged construction, making tile durable services , resistance to wear and tear and cost effectiveness. These are widely used are for mixing moist concrete material for making blocks. These pan mixers that follow a gamut of processes are offered in customized as well as standard forms. Timely delivery and affordable prices are our forte. features & benefits: • mixing is uniform and fast • gautam pan mixers are ideal for mixing color • mixing in gautam pan mixers does not result in loss of material • gautam pan mixers have cylindrical drums without any grooves • gautam pan mixers are available in three sizes and two types depending on the production capacities of the clients.

Brand Name : gautam brand

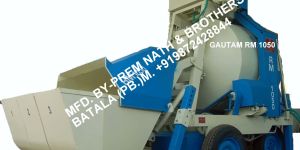

We are offering mini batching plant. special features : • reversible drum mixer • sturdy loader lifting hydraulically • reversing control of drum for material discharge. • electronic load cells weigh batching with digital display. • water dosing system for pre-determined quantity of water into the drum, with digital display and electric water pump. • control panel for easy operation of the batching plant by single operator. optional : • printing facility • admixture dosing system. • 2 bin / 3 bin weighing systems also available. • hydraulic mixer with diesel engine. technical data : mini mobile batching plants model bm 400 bm 600 bm 800 bm 1050 batching capacity ltr 400 600 800 1050 capacity per hour cu. M 8 12 15 20 weighing system type electronic load cell electronic load cell electronic load cell electronic load cell mixer hp 7.5 10 10 15 water tank ltr 75 100 130 200.

Brand Name : gautam brand

We are offering flyash brick making plant fully automatic. special features : has produced the most versatile plants for the manufacture of fly-ash bricks/ pavers/ tiles/ blocks made out of fly ash as the main constituent in combination with sand, lime and gypsum. Bricks can also be produced out of fly-ash and cement mix or sand lime or sand cement i.e. The same machinery can be employed for making concrete bricks/soil bricks. the process consists of mixing and grinding the materials in the pan mixer. With the addition of batching equipment, the material can be mixed with, in the required proportions by weight, to have uniform quality most economically. The mixed and ground materials are conveyed on the belt conveyor to thbrick making machine from where the hydraulically compressed bricks are continuously produced and taken to the curing site on pallets by the pallet trucks/conveyors, where, bricks are cured by water spray or steam cured for early strength.

Brand Name : gautam brand

We are offering concrete mixer machine. Concrete mixer machine with lift pnb700a designed and developed in compliance with the best quality standards, our range of lift machines are highly demand in the market. These lift machines are made with precision and accuracy and are used for various industrial purposes with a capacity of 10/7 ft (200 liters) lift attachment mixer is operated by 10 h.p air cooled diesel engine with 1500 rpm. It is easy to operate with conventional discharge. drum is easily tilted through a large geared hand wheel. When in operation spikes are provided for mixer balancing. .lift can be operated up to the height of 70-80 feet. Lift heavy duty robust made out of heavy steel sections. It is attached with pneumatic wheel for easy mobility. Mixer is available with non hopper and hydraulic hopper.

Brand Name : gautam brand

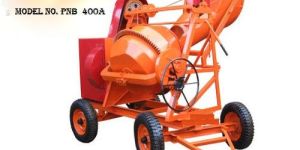

We are offering concrete mixer with hooper the wide range of concrete mixer machines with hopper type available with us is manufactured using high grade raw material, which ensures flawless finished products. Known for their sturdy construction and resistance to corrosion, these machines serve a long and smooth functional life. Offered at industry leading prices, these products are extremely popular among our clients in india and abroad. This machine is specially designed with mechanical hopper for mass production. We provide 10 hp air-cooled engine in this machine.

Brand Name : gautam brand

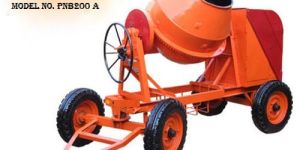

We are offering concrete mixer machine. Concrete mixers model pnb 200a – gautam brand concrete mixer are the highest quality one bag concrete mixer and is to mix cement, sand and other aggregates to produce cement of the required grade. Concrete mixer applications: mixing of concrete on construction sites. Concrete mixer features: brand new pneumatic tyres heavy duty m.s. Channel chassis concrete mixer without hopper technical specificatons: model no: no. Pnb 200a- hf capacity: unmixed : 10 cft. Mixed: 7 cft. Prime mover: 6.5/8 hp engine hopper: without hopper, hand feed drum speed: 18 rpm wheels: brand new maruti pneumatic tyre with hub and bearing system, and pressed steel plate rims - handi yoke: 100 x 50 x 5 mm c section m.s. Channel, bearing system chassis: heavy duty m.s. 100 x 50 x 5 mm channel chassis drive: veebelt branded mixing drum: heavy duty ms lower drum 12 mm m.s. Upper drum4mm and heavy duty m.s. Blades for mixing drum type: engine cabin: 16 g 1.6 mm thick weight: 800 kg approx. Concrete mixer export to: j and k himachal pradesh,haryana,rajasthan,m.p.,w,b., maharashtra mumbai, pune, nagpur, nashik, gujarat dahej, vadodara, ahmedabad, surat, bangalore, kolkata, hyderabad, chennai, delhi, raipur, ranchi, bhubaneswar - orissaodisha concrete mixer export to africa, asia and middle eastern countries like beirut, ghana, kenya, south africa, sri lanka, nepal and bangladesh.

Brand Name : gautam brand

We are offering concrete block making machine. Concrete block machine model no. Pnb 1000 this is an egg laying hydraulic concrete block making machine on wheels. It will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. Several standard moulds are readily available. Custom moulds can be produced. This machine applies pressure of 2000 psi. This machine can be used to produce hollow block, solid blocks, bricks galore and interlocking pavers.

Brand Name : gautam brand

We are offering concrete mixer machine with hooper & lift understanding the needs and of the various industrial sites we are offering a high range of concrete mixer machine lift with hydraulic hooper. These machines are widely valued and appreciated among different user all across the market for their compact design, sturdy construction, and ideal mixing of material. Model no. 675a.

Brand Name : gautam brand
