Faiz Engineering Works GT Road, Batala, Punjab

Positioned amidst the prominent Travelling Type Radial Drilling Machine Manufacturers, we offer a high-performance machine for particular drilling needs. Travelling Type Radial Drilling Machines are designed and manufactured by us in various sizes with different specifications. Travelling Type Radial Drilling Machine is manufactured under expert supervision and is fitted with high quality parts and components. Specifications Drilling cap : From 32mm to 100mm cap. Length of the bed for travel : As per customer�s choice Used In Wagon manufacturing workshops of railway

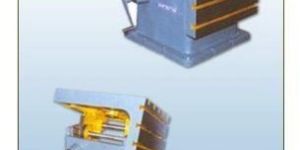

We are engaged in the manufacturing of well constructed Tilting Tables. The Tilting Tables are highly appreciated in the market and there has been consistent increase in their demand. Assuring high performance and durability, our Tilting Tables can be availed at market leading prices from us. Tilting Tables can be availed from us in various sizes as per the size of the Radial Drilling Machines. Description Two working sides of the table have a number of T-slots Table top can be tilted in any angle from 0-90 degree Raw Materials Pig Iron Steel Coal Application Areas Fabrication Heavy industry Steel plants Auto industry Sizes (in mm) 1000 x 725 x 500 825 x 725 x 500 600 x 500 x 500 550 x 420 x 420

We are amongst the well reckoned Manufacturers of Radial Drilling Machine. Made from high grade components, our Radial Drilling Machine is high on demand in the national market. We provide the Radial Drilling Machine in different sizes and highly affordable price range. Heavy Radial Drilling Machines are provided with Electro Hydraulic system for locking. Specifcations Drilling cap : From 32mm to 100mm in SteelDrilling radius : From 800mm to 2500mm Raw Materials Pig IronSteelCoal Application Areas Auto industryFabricationHeavy industrySteel plants Technical Specifications Model WDM-40B WDM-40C WDM-50B WDM-50C WDM-65B WDM-75B Drill Head Drilling Capacity (In steel/cast iron) 40/50 40/50 50/60 50/60 65/75 75/85 Drilling Depth 180 180 225 250 325 355 Taper Spindle Nose Scoket MT-4 MT-4 MT-5 MT-5 MT-5 MT-6 No. of Spindle Speed/ range (RPM) 6(55-665) 12(56-1000) 9(45-695) 12(45-1000) 12(18-810) 12(18-810) No. of Spindle Feed/ Range (RPM) 3(0.1 to 0.2) 3(0.1 to 0.2) 3(0.1 to 0.2) 6(0.125 to 1.25) 6(0.125 to 1.25) 6(0.125 to 1.25) Drill Power 1.5 KW 2.2 KW 2.2 KW 3.7 KW 3.7 KW 5.5 KW Capacity Drilling Radius Max(A) 1050 1050 1100 1300 1700 1900 Min.(B) 375 375 450 450 500 500 Drilling Head Traverse (C) 675 675 650 850 1200 1300 Distance Base Plate to Spindle Max(P) 1000 1000 1300 1300 1500 1750 Min(M) 225 225 225 325 300 400 Diameter of Column Sleeve (D) 255 255 310 310 355 405 Working Surface of The Base Plate GxH 900x680 900x680 920x830 1120x830 1500x1020 1850x1160 Dimensions of Base Plate Length x Width x Height (TxUxV) 1480x700x200 1480x700x200 1585x850x200 1800x850x200 2265x1040x225 2650x1180x225 Arm Elevator Motor 0.75 KW 0.75 KW 1.5 KW 1.5 KW 2.2 KW 3.7 KW Standar Box Table (XxYxZ) 400x350x350 550x420x420 550x420x420 550x420x420 600x500x500 600x500x500 Approximate Weight of Machine 1700 Kgs. 1850 Kgs. 3000 Kgs. 3500 Kgs. 4800 Kgs. 6500 Kgs.

Avail from us, well constructed Pillar Drilling Machine. The Pillar Drilling Machine is made from technologically advanced machinery while maintaining high quality standards. Available in different sizes, the Pillar Drilling Machine is provided at market leading prices from us. It is mainly used for drilling holes in steel. Drilling Capacity From 40mm and 50mm in Steel Raw Materials Pig IronSteelCoal Application Areas Auto industryFabricationHeavy industrySteel plants Technical Specifications ModelsWPD-40WPD-50Drilling Capacity in steel40 mm 50 mm Morse taper in spindlemt4mt5Column diameter 195 mm 195 mm No. of spindle speeds/range6(48-675 rpm) 6(48-675 rpm) No. of spindle feed/range mm/rev.3(0.1,0.2,0.4)3(0.1,0.2,0.4)Distance between column centre and spindle centre460 mm460 mm Working table dimentions455 x 555 mm500 x 600 mmNo. of-slots and size3 x 18 h123 x 18 h12Maximum distance from table to spindle500 mm 580 mm Minimum distance from table to spindle50 mm 50 mm Maximum distance from base plate to  spindle1170 mm 1250 mm Minimum distance from base plate to spindle 970 mm 1050 mm Vertical travel spindle200 mm 200 mm Size of base plate 1170 x 655 mm1170 x 655 mmNo. of t-slot and size3 x 18 h123 x 18 h12Drill power 2 hp 3 hp Coolant pump 0.10 hp 0.10 hp Approximate weight of machine1200 kgs. 1350 kgs. Electric panel as required as required Overall size of the machine1170 x 760 x 2500 mm1170 x 760 x 2650 mm

Catering to the needs of the clients, we bring forth Gang Drilling Machine. The Gang Drilling Machine is made using high-grade components and we check them under stringent quality tests under the strict company norms. The Gang Drilling Machine is used for drilling holes in steel and can be procured at market leading prices from us. Recognized as a reliable Gang Drilling Machine Manufacturer and Supplier, we are catering to many railway workshops that require the machines to manufacture Railway wagons.Different numbers of Radial Drilling Machine can be mounted easily on a single bed of any length as per requirement of the clients. Raw Materials Pig IronSteelCoal Application Areas Auto industryFabricationHeavy industrySteel plants

We are engaged in providing Column Drilling Machine for various industries. Used for drilling holes in Steel, our Column Drilling Machine matches up with the international standards. Assuring higher customer satisfaction, we provide the Column Drilling Machine in different sizes. Designed for railway workshops, these Column Drilling Machines have sturdy construction and accurate working mechanism. Useful for drilling and milling, the machines are provided in different specifications. Range available 40mm & 50mm Raw Materials Pig IronSteelCoal Application Areas Auto industryFabricationHeavy industrySteel plants Standard Accessories Two Electric MotorsOne Electric Coolant Pump Complete with FittingsMachine LampPanel Board For Electrical Controls Optional Accessories (At Extra Cost)Revolving Table Dia Approx. .400 mmTapping AttachmentBoring AttachmentMachine ViceMachine Lamp Technical Specifications ModelWCD-40WCD-50 Drilling Capacity in steel40 mm 50 mm Drilling Capacity in C.I. Casting50 mm 60 mm Taper in SpindleMT-4 MT-5 Spindle Traverse 200 mm 250 mm Vertical Adjustment of Spindle Head450 mm 500 mm Distance Between Spindle and Column400 mm 400 mm Number of Spindle Speeds and Range12 (56-1000 RPM) 12 (45-1000 RPM) Number of Spindle Feeds and Range3 (0.1-0.3 mm/Rev) 6 (.12-1.25 mm/Rev) Power of Main Motor3 H.P. 5 H.P. Power of Elevating Motor2 H.P. 2 H.P. Motor Suitable for Coolant0.125 H.P. 0.125 H.P. Table Working Surface of the Table500 x 1000 mm Longitudinal Movement of the Table ( Manual )500 mm Cross of the Table ( Manual )30 mm No. Of T-Slots / Size ( Width )3 Nos. / 18 mm Base Overall Size of the Base1170 x 770 mm No. Of T-Slots / Size ( Width )3 Nos. / 19.2 mm Max. Distance between Spindle and Base1100 mm 1200 mm Space Occupied L x B x H (Approx.)1600 x 850 x 3000 mm Net Weight (Approx.)2350 Kgs. 2700 Kgs. Cross Weight 2700 Kgs. 3100 Kgs.
