New Diamond Foundry GT Road, Batala, PB

Backed by a team of expert engineers, we offer premium grade Single Column Radial Drill Machines. These Geared Single Column Radial Drill Machines are provided with drilling heads with longest possible radius from the columns, which assist the users to perform the drilling works easily and speedily. The base of these machines is casted in heavy proportion & rigidity cross ribbed on the underside that prevents any kind of bowing effect under heavy loads. Our Geared Single Column Radial Drill Machines are made as per the international quality standards that make us the leading Single Column Radial Machine Exporter from Punjab. Features : Provided with drilling headsHeavy proportion & rigidity cross ribbed baseInternational qualityDrilling heads Technical Specifications : Drilling capacity in mild steel – 32 to 50 mmMaximum Drilling Radius – 750 to 1300 mmNumber of Spindle – 6 to 12Spindle Travel 175 to 250 mmMain Motor Drive 3 to 5 H.P.

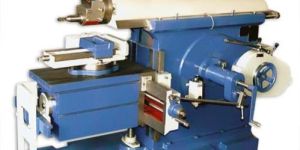

we manufacture high quality shaper machines, which are in high demand in global market because of their excellent performance. the gear shaper machines, provided by us, have a well ribbed based, which provides stability and can be fitted on foundation bolts. moreover, our hydraulic shaper machine is available with a column that is a heavy box section and has substantial internal webs. wide front and ram slides accurately scrapped, ensure rigidity and alignment when the full power of machine is utilized. the ram is of heavy cross section to resist cutting stresses. alignment is preserved by well proportion vee type bearings adequate means of lubrication are provided and flet wipers are fitted to protect the slides. the tool head is graduated and may be swiveled to any angle upto 90 degree. the cross slide has long guides, with a deep frontal bearing ensuring adequate support for the table. the verticals screw is fitted with a ball thrusts bearing to obtain a light and easy movement. the table universal or fix, is provided with the slots on the top as well as on one side and has bolts on the other side. the bull wheel is cut with helical teeth to prevent chattte and ensure a smooth even drive to the ram. a reliable stroke adjusting mechanism is provided in it. the drive from the motor is by multiple vee belts through a claw clutch for three different speeds. machines can be supplied when required with a pulley drive incorporating the clutch. the automatic self acting horizontal feed motion is arranged to give 3 optional feeds per stroke of the ram. the vice is of the single screw type and has deep and wide inter changeable jaws. the swiveling base is accurately graduated. such unbeatable features of our products make us the best industrial shaper machine manufacturer in batala from punjab. features : sturdy constructionlow maintenancehigh performanceeasy to operate shaping machines are available from 18" stroke to 42" stroke

we present a wide range of inexplicable quality plano miller machines that is available in various specifications. our double column plano miller machine is extensively used in heavy industries for various purposes. fabricated with premium quality raw materials, our double column plano miller machine is rugged. our plano miller machine is technically advanced machine that has high machining capacity. being a heavy duty and high speed machine, it provides excellent performance even in extreme conditions. our plano milling machine is a user friendly machine that needs low maintenance and helps us to be leaders among lathe plano miller machine suppliers in punjab, india. features : inexplicable qualityhighly durablemade from premium quality raw materialsheavy duty with high speeduser friendlylow maintenanceexcellent performance technical specifications : capacity 1200 – 2400distance between t-slots – 127 tp 198cutting feed – 30 ~ 500vertical crossrail - 1200 to 1800

we offer high quality planner machines, which are used in rolling mills, cement plants, paper mills, sugar mills etc. our heavy duty planner machines are designed keeping user friendliness as top priority. the automated planer machine has unbeatable features that include : design : it is a very double rigid column and body bore system planner fitted with ball bearings.the bed : the bed is of deep box section type and is tied together at frequent intervals by double walled bridge pieces extending to the bottom of the bed.the table : it is of box section type and is streamlined with hand scraped 'v' way to bear heavy load. it is heavily ribbed and the rack provided in it is accurately machines and milling cut.the bearings : the main bearings for the gearings are cast solid with the bed. thea gears teeth are hobbing machine cut except two gears are helical. gun metal bearings have been provided for all the shaft and loose pulleys. taper roller bearings can also be provided instead of gun metal bushes.the cross rail : this is of box section type with large surface. it is suitable for both hand and mechanical drive.tool posts : these are manufactured out of close grain alloy castings and steel to stand heavy cut. these can be driven both manually and mechanically.the uprights : the uprights are of rigid box section type. keysed firmly, bolted on to bed and are capable of absorbing the heaviest shocks without vibration, extra pins are provided to re-fit the machine accurately after once it is dismantled.the drive : the machine is arranged for direct individual as well as two belt drive.accessories : automatic lifting arrangements of cross rail. such unbeatable features of our product make us automated planer machine exporter from batala, punjab. features : heavy duty with high speeduser friendlylow maintenanceexcellent performance main components : beduprightscrossrailsdrivetool posts technical specifications sizeft. mm8"243810"304812"365714"426716"487618"548620"609622"670524"731526"792528"853530"9144length of bed v'sft. mm12"365715"457218"548621"640024"731527"822930"914433"1005936"1097339"1188742"1280245"13716length of bed all overft. mm13396216487719579122670522762028853431944934103643711278401219243131074614021stroke of tableft. mm82428103048123657144267164876185486206096226705227315267925288535309122length of table all overft. mm92743113553133962154572175181185791216401237010257620278230298840319449thickness of tableft. mm7-1/21907-1/21907-1/2190925925925925925925925925925planing width ft. mm412194-1/213714-1/213715-1/216766-1/419056-1/419056-1/219816-1/219816-1/219816-1/219816-1/219816-1/21981height under cross railft. mm4012194-1/213714-1/21371515245152451524515245152451524515245152451524cutting speed p.mft. mm40120004012000401200040120004012000309000309000309000309000309000309000309000return speed p.mft. mm551650055165005516500551650055165004513500451350045135004513500451350045135004513500method of driving planerbeltdrivenmethod of driving tablerack & pinionh.p. reco- 57-1/210101015151520202525weight in m. tons (appox)81011161820222528303235

We specialize in production of Milling Head, which is used for the shaping of metal and other solid materials. Our Mini Mill Head is a huge hit among our clients because of its unique design and small size. The Milling Cylinder Heads, manufactured by us, are made from high quality raw materials, which ensure strength and supreme performance of the machine. We are reckoned as one of the topnotch Cylinder Head Milling Machine Manufacturers in Batal, India.

Material : Metal

Application : Machinery

Thickness : 10-20mm

Certification : ISI Certified

Grade : Superior

Finishing : Polished

length of bed 12"14"16"18"20"22"24"26"28"30"32"34"36"width of bed28"28"28"28"28"28"28"28"28"28"28"28"28"total width of gap22"22"22"22"22"22"22"22"22"22"22"22"22"swing in gap dia78"78"78"78"78"78"78"78"78"78"78"78"78"admit between center72"96"120"144"168"182"216"240"264"288"312"336"360"height of center over bed25"25"25"25"25"25"25"25"25"25"25"25"25"maximum swing over carriage38"38"38"38"38"38"38"38"38"38"38"38"38" number of pedestals : all plano type beds.

24" bed width 21" c/heigt with plano type bed length of bed 10'12'14'16'18'20'22'24'26'28'30'32'34width of bed24"24"24"24"24"24"24"24"24"24"24"24"24"total width of gap21"21"21"21"21"21"21"21"21"21"21"21"21"swing in gap dia66"66"66"66"66"66"66"66"66"66"66"66"66"admit between center54"78"102"126"150"174"198"222"246"270"294"318"342"height of center over bed21"21"21"21"21"21"21"21"21"21"21"21"21"maximum swing over carriage31"31"31"31"31"31"31"31"31"31"31"31"31"

We manufacture Horizontal Boring Machines as per international standards, which are used in soughing and finishing operations within the range of Boring, Drilling, Facing & Milling. The High Precision Horizontal Boring Machine, supplied by us, is recommended for almost all classes of work. The machine is easy to maintain, thus easy to produce a quality machine tools matched to the needs of the factory for which it is intended. The various mechanisms are enclosed and all the external surfaces are smooth and easily cleaned. The massive construction is a guarantee to withstand fully all the working stresses. The design of the Boring Machine guarantees stiffness, accuracy and large output. The above mentioned unbeatable features of our product make us the key Horizontal Boring Machine Supplier from Punjab. Horizontal Boring Machine is Available from 65mm to 125mm Capacity.

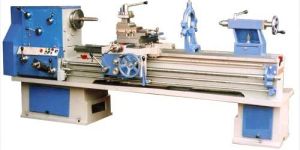

we are specialized in offering international quality geared lathe machines, which are widely demanded. the geared center lathe machines, are available with a rigid and box section type extra double walled configuration. our geared head lathe machines are provided with hardened & ground steel gears, which are mounted on precision spline shafts and offer smooth and excellent performance. they are further equipped with wide bed to provide maximum torsional stiffness. we offer these machines in different models to meet the requirements of different clients. such unbeatable features coupled with unmatched quality make us the best geared head lathe machine exporter from india. features : widely demanded by government organizations under the dgs&d rate contracts.comes with a rigid and box section type extra double walled configurationhardened & ground steel gearswide bed to provide maximum torsional stiffnessavailable in different models

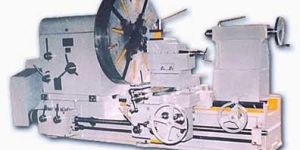

extra heavy duty roll turning lathe machine

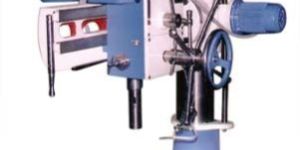

We offer Double Column Radial Drill Machines that are highly useful for drilling, counter boring, spot facing, reaming, tapping and various other industrial applications. These Geared Double Column Radial Drill Machines are available with robust construction and dimensions to meet clients' demands. The spindle head, radial arm &columns of these machines are clamped by the hydraulic clamping mechanisms. Further, these machines are provided with single-lever to control the forward, reverse & stop braking, speed & feed changing etc. We manufacture these machines keeping into view the ISO guidelines, which make us most reputed Double Coloumn Drilling Machines Supplier in the global market. Features : Robust constructionHydraulic clamping mechanismsWith single-lever to control the forward, reverse & stop braking Technical specifications : Drilling capacity in mild steel – 32 to 50 mmMaximum Drilling Radius – 750 to 1300 mmNumber of Spindle – 6 to 12Spindle Travel 175 to 250 mmMain Motor Drive 3 to 5 H.P.
