Dyna Fluid Valves & Flow Controls Pvt Ltd Udyambag, Belgaum, Karnataka

We are offering venturi tubes. A venturi is suitable for measuring liquids, gases or steam flow. Since the venturi offers no sharp edge protrusions into the flowing stream it is particularly useful in accurate flow measurement of any fluid containing suspended solids. venturis offer the best repeatability and pressure recovery, due to the continuous geometry of the contraction, throat, and divergent sections. The low overall pressure loss characteristic of a venturi, reduces operating costs and head requirements of prime movers in systems. Experience has shown that venturis have less stringent up- and downstream piping requirements than other flow systems.

We are offering swing check valve. Tilting disk design available check valves can be supplied with counter weight or dash pot arrangement full opening pig gable design available

Brand Name : DynaFluid

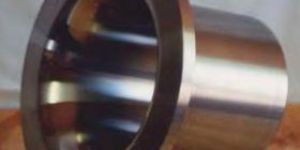

We are offering nozzles assemblies. Flow nozzles are suitable for measuring liquids and gases and are commonly used for measure steam and water flow. They are manufactured strictly in accordance with asme, mfc-3m, bs 1042 and iso 5167.

Brand Name : DynaFluid

We are offering multistage restriction orifice assembly. Restriction orifice plates have traditionally been used to reduce pressure in gas and liquid flow by forcing the flow through a restricted bore. The precise pressure drop is produced by accurately calculating the orifice bore taking in to consideration relevant process and flow conditions. While single restriction orifice plates are often sufficient to meet the requirements, there are some situations where limitations arise due to process conditions making a single restriction orifice plate unacceptable. Multistage restriction orifice prevents a) cavitation and flashing in liquids b) choked flow in gases c) excessive noisevibration. Construction of multi stage orifice assembly comprises of multi restriction orifice plates separated by a distance of one pipe diameter and welded with the pipes in between them. End connection is either suitable for butt welding or with end flanges.

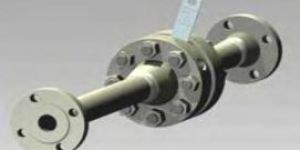

we are offering Meter Runs. Meter runs are used for the measurement of small flow rates precisely were high accuracy of flow rates is required. They are generally supplied as a unit normally of 1M length to ensure the necessary straight pipe length to achieve highest possible accuracy.

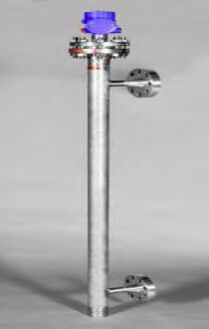

These high quality chambers which allow external mounting of level measurement and control instrumentation on process vessels. Normally used to mount Guided wave Radar (GWR) transmitters, Displacer Level gauges and so on. They are manufactured using only certified and traceable materials and is manufactured using full penetration welds, with welders and welding procedures qualified to both ASME and European standards. All chambers are hydro tested on completion, with a full range of NDT or customer inspection options available to order.

We are offering integral meter run assembly. An integral orifice assembly or integral meter run assembly is a specially designed prefabricated meter run used when a high accuracy in flow measurement is required for extremely small flow rates. It is also used when differential pressure transmitter is to be directly mounted on the assembly. This eliminates the cost of installation of differential transmitter with impulse piping to the orifice assembly. It is used for line sizes 2ã¢ï¿½ï¿½ and below.

They are used to connect to pressure transmitters. Manifolds eliminates several parts used in conventional piping and hence reduces cost. They are very compact in design and hence reduce lot of space requirement. They come in variety of types as shown below. Types of Manifold Valves based on number of valves - Two Valve Manifolds - Three Valve Manifolds - Five Valve Manifolds There are no available standard specification for double ferrule compression fittings. The following two standards which are applicable for Single compression fittings can also be used for double compression fittings. - BS 4368 Part IV : 1984 - IS 10103 :1982

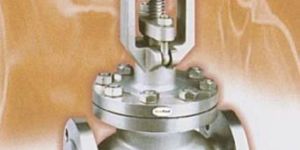

We are offering globe valve. For low temperature and cryogenic services extended bonnet as per bs 6364 available locking arrangement gear hydraulic or pneumatic actuator available

Brand Name : DynaFluid

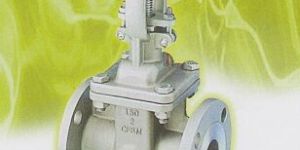

We are offering gate valves. Solid, flexible, split wedge, double disk, and parallel slide gate available. For low temperature and cryogenic services extended bonnet as per bs 6364 available locking arrangement gear hydraulic or pneumatic actuator available

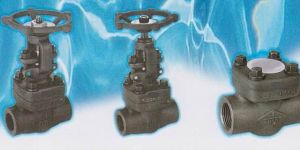

We are offering forged gate globe and lift check valves. Welded bonnet construction for low temperature and cryogenic services extended bonnet as per bs 6364 available locking arrangement.

We are offering flow straighteners, are used to produce swirl free, distortion free, highly repeatable velocity flow profile for measuring in flow meter and pump systems . these eliminates flow distortion effects of upstream elbows,pipe size changes, valves, dampeners and more to produce a consistent flow profile. They are used to minimize these straight run requirements.

Brand Name : DynaFluid

We are offering condensate pots. The main function of the condensate is to catch and hold condensate and foreign particle. This prevents the damage to the metering system and or manifold. They are used as barrier between main line and secondary instruments in the measurement of steam or other vapors which condense to the liquid state insuring compatibility with the secondary instruments. They can also be used to cool very high temperature liquids.

Brand Name : DynaFluid

We are offering butterfly valve. Dyna fluid butterfly valves are designed, manufactured and tested generally as per is-13095 bs 5155 awwa c-504

Brand Name : DynaFluid

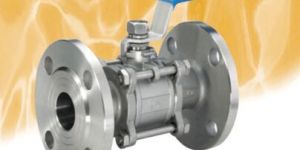

We are offering ball valve. Bubble tight shut-off blow out proof stem actuator mounting available as per iso 5211 bi-directional shut-off high precision spherical turning of ball is maintained along with mirror finish which reduces torque locking arrangement is available negligible pressure loss at high flow rates other operating means like gear box,pneumatic actuator, electrical actuator also available

We are offering averaging pitot tubes. Averaging pitot tube is a differential pressure producer suitable for liquid, gas and steam flow measurement. It offers simple, low cost installation into pipes and ducts, and high energy savings due to its low unrecovered pressure loss. There are no moving parts or sharp edges to wear, so long term accuracy can be maintained.

Aerofoil is primary flow element used to measure flow in rectangular duct. It works on the principle of the relationship between flow velocity and the pressure fields in friction less flow. Since the air particles follow the curved streamlines above the upper surface there must be a centripetal force across the streamlines which is accelerating the flow towards the centre of the curvature. That force must be associated with a pressure gradient across the streamlines i.e. ambient atmospheric pressure at some distance from the surface grading to a lower pressure on the upper wing surface.

We are offering orifice plates with flange assemblies are employed. For measuring the rate of flow or quantity of moving fluids like liquids, gases or vapours.

Brand Name : DynaFluid
