Machinery World Udyambag, Belgaum, Karnataka

We are one of the well-known Hydraulic Press Brake Manufacturers, offering stout hydraulic press. Additionally, Machinery World is an eminent Hydraulic Press Brake Suppliers based in India. Welded in one piece, our vigorous hydraulic press brake is extensively admired by our esteemed clients. Furthermore, we proffer hydraulic press at most competitive price. Appreciated For : High tolerance powerEfficient functioning Long functional life Use of advance technologyExcellent performance Demanded By : Heave Engineering IndustryAutomation Industry

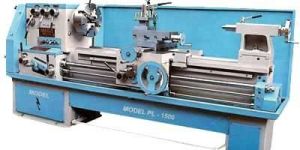

Machinery World is leading Manufacturer and Supplier of Geared Lathe Machine. Our Geared Lathe Machine comes in three models viz. MDG – 1, MDG - 2, and MDG - 3. Special Features : Hardened & profile ground Gears & Spline shafts for long-life & noise-less operation. Easy Speed selection & Gear changing. Full Norton Gear box enabling to cut multiple threads. Induction hardened A24 type Spindle with proven make Taper Roller Bearings. Box type cross section ribbed 280 mm wide Bed providing max. torsional stiffness & rigidity. Independent Feed shaft minimizing wear & tear of lead-screw. Electromagnetic Brake with foot pedal (optional). Readily available & completely interchangeable spare-parts. Standard Accessories : Flame hardened Bed Norton Gear Box Electricals Chuck Back plate Spindle Sleeve Dead Centres Tool post Key Oil Can Set of Spanners & Allen keys Spare parts / Instruction Manual Optional Accessories : True Chuck / Dog Chuck Face PlateSteady RestMachine Lamp Revolving Centre - MT 4 3 - Position Carriage Stop Electromagnetic Brake with Foot PedalFollow RestRear Tool post Coolant pump with tank & adj. NozzleD1-4 Camlock Spindle in lieu of Std. Spindle Chuck Plate, for (a) A24 Spindle (b) D1-4 Camlock SpindleTaper Turning Attachment Quick Change Tool postKey - way Milling AttachmentSplash Guard Machine Lamp Revolving Centre - MT 4 3 - Position Carriage Stop Electromagnetic Brake with Foot Pedal Specifications ModelMDG - 1MDG - 2CapacityHeight of Centre205 mm205 mmSwing over Cross Slide240 mm240 mmSwing over Bed410 mm410 mmAdmit Between Centre500 mm850 mmSwing in Gap660 mm660 mmBed Type2 V & 2 Flat2 V & 2 FlatWidth of Bed280 mm280 mmLength of Bed1370 mm1660 mmHead StockHole through Spindle40 mm40 mmTaper in SpindleMT-5MT-5Spindle Nose typeA24A24Spindle Speed : Steps, Range; Std.8, 50 to 1200 rpm8, 50 to 1200 rpmOptional8, 70 to 1600 rpm8, 70 to 1600 rpmTail StockTaper in QuillMT-4MT-4Quill Travel150 mm150 mmQuill Dia.50 mm50 mmSlide Travel Top Slide travel115 mm115 mmCross Slide travel205 mm205 mmTool shank Cross section20x20 mm20x20 mmFeed RangeLongitudinal feed per revolution0.05 to 0.8 mm/rev.0.05 to 0.8 mm/rev.Transverse feed per revolution0.03 to 0.48 mm/rev.0.03 to 0.48 mm/rev.Threads : No. of Steps, RangeMetric20, 0.5 to 7.5 mm20, 0.5 to 7.5 mmInches36, 4 to 60 TPI36, 4 to 60 TPILead ScrewDiameter32 mm32 mmPitch4 TPI4 TPIElectricalsMain Motor2 HP (1.5 KW)2 HP (1.5 KW)Power Supply415V, 3 ph, 50 cycles A/C.415V, 3 ph, 50 cycles A/C.Weight & DimensionsNet Weight of Machine (App.)695 Kgs.775 Kgs.Wooden Case Dim. (App.)1675 x 900 x 1375 mm2100 x 900 x 1375 mm

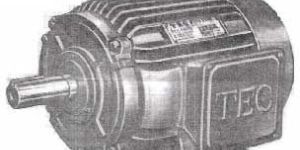

Machinery World is a widely acclaimed Manufacturer, Wholesale Supplier, and Trader of high-performance Electric Motors. Our Electric Motor comes in 71 to 160 M frame sizes, which are optimal for defining an electric motor̢۪s efficiency. However, the clients can also find a great versatility in our Electric Motor HP, which range from 0.5 (Horse Power) to 20.0 (Horse Power). The different models of our Electric Motors generate varied Speed RPM (1000) and promise for better performance over long use.

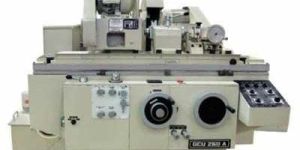

We provide one of the finest cylindrical grinder which is known for its ribbed design that provides high rigidity. Our cylindrical grinder is available for both production as well as tool room applications. The wheel head of cylindrical grinder has a very rigid spindle, running in hydro-dynamic and multi point bearings. It wheel spindle is made of alloy steel, which is heat treated specially to achieve high accuracy & stability for life. advantages with us : we have done more than 5000 installationour cylindrical grinder is best known for accuracies in its class.

We are offering core shooter model no. - h – 20. this core shooter h – 20 has shoot volume from five to 150 kilos. This core shooter has horizontal parting, hydraulic or pneumatic clamping, and plc control. This core shooter h – 20 has a steady construction due to which it is highly acclaimed by the clients. specifications : shoot volume : 5 - 150 kghorizontal partingclamping hydraulic / pnuematicplc controlsteady construction

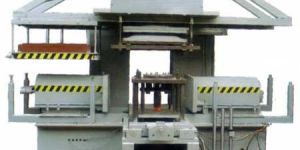

We are offering core shooter model no - g – 25. the core shooter g – 25 supplied by the company has shoot volume in 5 kilogram, 10 kilogram, 20 kilogram, up to100 kilogram. This core shooter has an average machine cycle time from 20 seconds. Our core shooter has hydraulic clamping and has the shortest cycle time. specifications : shoot volume : 5, 10, 20, 100 kgaverage machine cycle time from 20sec (without gassing, shoot & exhaust)shortest cycle timehydraulic clampingfor vertical & horizontal tooling up to four parts

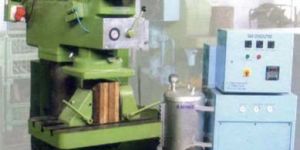

We offer Core Shooter.

We are offering an exceptional variety of cnc vertical machining centre that has met the desired expectations of the clients in terms of quality and performance. The cnc vertical machining centre that we supply is known for its rugged construction. This cnc vertical machining centre is offered at reasonable prices. salient features : high rigidity and vibration dampering, bed and column.fail safe brake for z  axis.rigid tappinglinear guide ways for all  axistpm friendly machineno hydraulic, less maintenancedirect drive for axes through torsionally flexible couplingsthree tier indication lamp.

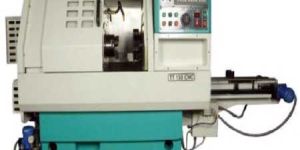

We are offering premium cnc turning centre that is highly appreciated by the clients due to its exceptional corrosion resistivity. Our cnc turning centre is made from quality components that ensure its exceptional durability. This cnc turning centre is offered at rock bottom prices. why our cnc turning centre? use of advance technologyexcellent performance easy to useeasy to operateenergy efficient features : optimized chip flow management extensive tool life excellent stability remarkable accuracy reduced loading time achieved by synchronized movement of wheel and spindles less loading time for production in pre-cut and full forged blanks of small to medium diameter

The company offers sturdily constructed CNC Lathe Machine that is manufactured from quality components. The CNC Lathe Machine in which the company trades is known to exhibits an exceptional performance. This CNC Lathe Machine is offered with optional that are Hydraulic Chuckirig, Servo Turrei, Chip Conveyor, and Bm Feeder. Salient Features : Optimum chip & coolant disposal structure Traverse of 30 mpm inducing minimum non-cutting timeLarger size C3 Class Ball screws Heavy size Guide ways Roller bearing mounted Tail stock Guide ways for easiest approach Fanuc Controls and Drives "L" shaped heavily ribbed Main Base casting Maximum rigidity and vibration damping Spindle Bearings (SNFA) for best accuracyHydraulic Brake over Spindle Specifications : 4 nos. Boring Bar Holders2 nos. Facing Tool HoldersAuto & Manul Coolant SystemCentralized & Programmable LubricationTail Stock with Live CenterL. M. Guide Ways8 Station Bi-direction Electro Mech. Turret 8 nos. OD Turning Tool Holders Technical Specifications CapacityRecom. Turning Diameter (mm)200Swing Over Bed (mm)400Max. Turning Diameter (mm)275Max. Turning Length (mm)500TravelZ - axis (mm)500X - axis (mm)190FeedRapid Traverse Rate (rpm)3SpindleSpindle Speed Range (rpm)45-4500Spindle NoseA26Hole Through Draw - Tube (mm)45TurretNo. of Tool Stations8/12Tool Cross Section (mm)25 x 25Max. Boring Bsr Diameter (mm)40TailstockQuill Diameter (mm)80Quill TaperMT4Quill Stroke (mm)100DriversSpindle Motor (kW)7.5/11 (15 min. rating)Slide Motor (kW)X - 1.2, Z - 1.8CNC SystemControls & DrivesFanucTank CapacityCoolant Tank Capacity (lit)150Machine SizeFloor Space (L x W x H mm)2735 x 1525 x 1770Weight Approx. (kg)3500
