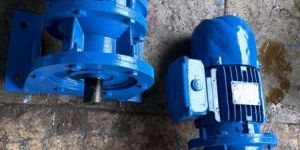

Brake Motor Dealers in Bhavnagar

• Type: Electro Magnetic Fil Safe
• Supply Voltage: 230V AC/190V DC/24V DC
• Duty: S1/S3/S5
• Torque: 4Nm to 500Nm
• Service Factor: 1/213
• Suitable For: AC Motors from 0.18KW to 45KW

New Series of Integral Brake Motors offer better performance, light in weight, aesthetically good and reliable. The Motors are highly engineered to cope up with sudden load increase, longer thermal life, higher altitudes and voltage variations. APPLICATIONS Integral Brake Motors are suitable for various industrial application like Textile, MachineTools, Hoists, Cranes, Lifts etc., where instantaneous stopping of the driven equipment isdemanded. Motors are fitted with Electro Mgnetic Normally on brakes. The electro-magnetic DC brake is mounted on the non-driving end of the motor. The coolingfan is mounted after the brake for better thermal dissipation and cooling of the brake also. Motor connection leads and brake coil leads are terminated in a single terminal box foreasy connection, Rectifiers are supplied in loose condition and Manual release is provided

AC Motors, Cooling Tower Motors, Single Phase Motor, two speed motor
