Magnetic Drilling Machines Dealers in Bhavnagar

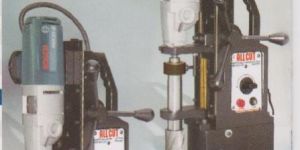

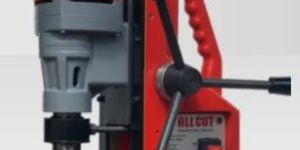

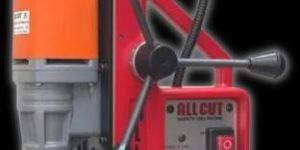

• Brand Name: ALLCUT
• Weight: 30 Kg
• Motor Power: 1800 W
• Power Supply: 220 V
• Core Drilling Capacity: 85 mm
• Core Drilling Depth: 50/75 mm
• Twist Drilling Capacity: 31mm
• Twist Drilling Depth: 250 mm
• Reaming Capacity: 31 mm
• Tapping Capacity: M24
• Stroke Length: 300mm
• Electromagnet Dimensions: 245X125X50 mm
• Spindle Taper: MT-3
• Adaptor: Mt-3 19/32
• Gearbox: 2-Speed
• Speed Range: 60-430 rpm
• Level 1 gear range: 60-230 rpm
• Level 2 gear range: 110-430 rpm
• Electronic Speed Control: Yes
• Reverse/Forward: Yes

• Model: JMB35
• Weight: 14 Kg.
• Annular Cutter: 35 mm
• Twist Drills: 1-13mm
• Countersinking: 10-25Ø
• Length: 255mm
• Width: 210mm
• Height: 370-512
• Stroke Length: 150mm
• Dim.of Magnet (LxWxH ): 163 x 120 x 67
• Magnetic Force: 900 Kgf
• Motor Power: 1000W
• Total Power: 1050W
• Spindle Speed: 330 RPM
• Spindle: 19,05 Weldon
• Available: 110V/220V

Manufacturer & exporter of tapping machine, drilling machine, automatic tapping machine, pillar drill machine, pneumatic tapping machine, radial drill machine, all gear auto feed radial drilling machine, drilling cum tapping machine, drilling cum milling machine, auto feed drilling machine, magnetic tapping machine, hydraulic press, magnetic drilling machine, lathe machine, milling machine, power press, pipe banding machine, belt grinder, cut off machine, sandblasting machine, hydraulic press machine, arbor press, band saw machine, hack saw machine, slotting machine, compressor, plate banding machine, tapping attachment, cnc tapping machine, industrial machinery. If you have any requirement of any machinery please contact us.

We are mainly into the manufacturing of Auto Feed & Fine Feed Heavy Duty Radial Drilling & Milling Machine. In machine tool industry our range of machines are considered best and we are the most preferred manufacturing unit. Apart from our standard manufacturing, We also take new innovative production steps from time to time for better output. Like, we have developed the new Radial Drill Machine with 32mm capacity with mechanical variator speed that change in the running condition with planetary gearbox in the year 1991. We also have another 'Apollo' brand of Electric Magnetic Drill Stand which is generally suitable for Fabrication and Field works.
