Electric Winch Dealers in Bhavnagar

• Condition: New
• Material: Metal
• Color: Black
• Feature: Durable
• Motor Power: 4.0 kw
• Working Speed: 22 m/min
• Wire Rope Dia: 9.3 mm

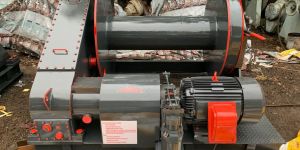

We bring forth Electric Winch that works with an induction type motor. Our Electric Winch is preferred for quiet running.Specification Winch *Lifting capacity kg wire rope top layer : 500 kg *380V-440V x 3ph AC  Winch Electromagnetic spring-applied failsafe brake Heavy duty high efficiency ball bearing on all running surfaces Planetary gears for maximum mechanical efficiency Cast steel foot mountings Fabricated steel drum Supplied in steel base plate ready to mount Enclosed drum flanges to prevent rope becoming trapped between drum and support castings Quiet running Emergency stop function switch is available upon request Specifications Lifting capacity kg wire rope top layer : 500 kg Lifting speed / first layer : 12 m/min Lifting speed / top layer : 18 m/min Motor type : Induction Motor rating IP44 : 1.5 kw × 4 poles Gear ratio : 57:1 Maximum lifting height : 58 m Braking methods : Electromagnetic Wire rope :  9 mm × 60 m Drum length : 240 mm Drum dia.  : 140 mm Drum flange dia.  : 280 mm Mounting bolts pattern  : 400 mm x 325 mm Note : Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20% Use a snatch block for double line operation, to increase line pull by approximately 85%.

• Driven Type: Electric
• Rope material: Mild Steel
• Color: Red
• Automatic Grade: Semi Automatic
• Application: Boats, Construction
• Country of Origin: India
