Milling Cum Drilling Machine Dealers in Chitra, Bhavnagar

In order to attain maximum client satisfaction, we check the product quality on several counts at several stages. Online payment processing that we offer is secure, instant and hassle free. Apart from online payment, we also facilitate payment against purchases through offline mediums.

we offer milling drilling machine. prabhat enterprise bhavnagar gujarat offers radial & pillar drill machine with a drilling cap. 20, to 40mm back geared with fine feed. the main spindle & ram are made of en-8 steel with six slots and helical gear for lower sound and a long life. the machines are 8 speeds. these machines are suitable for auto parts, engineering, fabrication, institute and production workshop.

• Application: Drilling Meta
• Certification: CE Certified
• Weight: 100-200kg
• Voltage: 110V
• Automatic Grade: Automatic
• Power: 6-9kw
• Driven Type: Electric
• Warranty: 1year
• Item Code: SI-6DMU

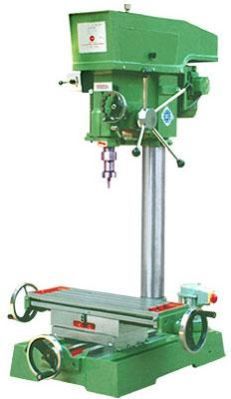

We are an acclaimed Manufacturer, Supplier and Exporter of Drilling Cum Milling Machine (SI-6DMU). Used for various engineering applications, our Drilling Cum Milling Machine is appreciated for its robust construction, higher efficiency and longer functional life. Customers can avail Drilling Cum Milling Machine from us at most reasonable rates. Some Important Features : Proportioned column for rigidity of machine Rough & smooth feed available by manual and power feed. Provision of window for change of gear on top cover. Quill spacer made of mild steel Main spindle made of EN steel with 6 slots. 8 speed in either direction. Grounded parts finished on imported grinding machine. Major parts castings are of standard grade. Head stock is bored on imported boring machine Spindle sleeve is properly guided in honed drill head bore on 6 ball & roller bearings for smooth & accurate running. Standard Accessories: Motor Pulley, Electrical Motor & Starter, Drift Key, Milling Collect Adapters. Optional Accessories: Coolant Pump, Electrical Motor & R & F Switch, Fabrication base stand

We have attained immense appreciations, owing to our Milling Cum Drilling Machines-38300, which are known for low noise and reduced vibration. These machines are used to drill holes on various surfaces such as concrete. Applications: Engineering industry Construction industry Automobile industry

• Drilling Capacity In Steel: 40 mm
• No of Speed: 8 Speed

Working Table Base is Without Tilting Fix Type, Square Working Table Dimension 425 mm x 425 mm Max Dist. of Spindle Nose to Base 1000 mm,Max Dist. of Spindle Nose to Table530 mm Center of Spindle to Column 300 mm.

• Type: Drilling cum milling
• Model Number: DCM-40/300
• Brand Name: MAAN

We offer drilling cum milling machine. Cap. 38mm heavy duty drilling cum milling machine with fine feed and without electrical. Model: maan dcm-40300 specifications in mm capacity drilling capacity in m.s. : 38 rough boring in m.s. : 50 tapping in m.s. : 25 end milling in m.s. : 25 drilling head spindle hole taper mt-4 spindle travel 250 no. Of spindle speedrange 880-2600 rpm diameter of ram 78 auto feed range(mm x rev) fine feed collet holder mt-4 e 40 working range maxmin dist from nose to table 550155 dist. From spindle center to coloum 305 working table 815 x 250 longitudinal travel 425 cross travel 305 column diameter 110 machine measurement 1300 x 1170 x 1870 power electric motors 2 hp 1440 rpm v-belt b-60 note: we reserve right to alter or modify dimensions without prior notic. Optional accessories: (at extra price) table stand coolant pump with tank and fitting machine lamp drill chuck with key & arbor drill sleeve drill vice special t-bolts foundation bolt service tool wooden box packing & forwarding

• Weight: 100-1000kg
• Color: Green
• Voltage: 220V
• Rated Power: 3-5kw
• Automatic Grade: Automatic
• Warrenty: 1 Year

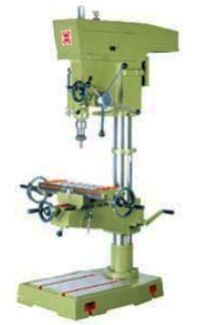

To cater to diverse drilling requirements of varied industries, we, at Siddhapura Enterprise are engaged in offering precision-made Milling Drilling Machine. The Milling Drilling Machine, we offer, is made up of high-grade parts and therefore has a high functional life with excellent efficiency. We offer the Milling Drilling Machine in the market at very competitive price. Our Milling Drilling Machine Is Demanded For Strong built Efficient working Economical rates Long functional life

• H.P. of the motor: 1.5
• Vee Belt: B 55

Milling cum drilling machine Spindle center to column: 260, Max. travel of spindle: 250, Max. dist. spindle nose to table: 740, Max. dist. spindle nose to base: 1050.

We are Offering "india" Brand Milling Cum Drill Machine Cap 25,32,38,40,50,&63mm.
