Portable Drilling Machine Dealers in Vithalwadi, Bhavnagar

• Angle of arm rotation: 360 Degree
• Angle of drill head rotation: 360 Degree
• Taper in spindle: MT4
• Maximum spindle travel: 200mm
• Numbers of spindle speed: 8rpm
• Spindle speed range: 53

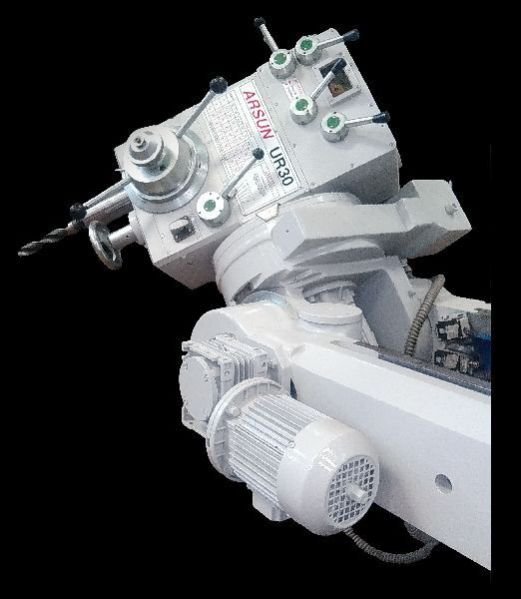

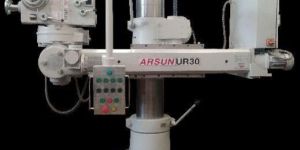

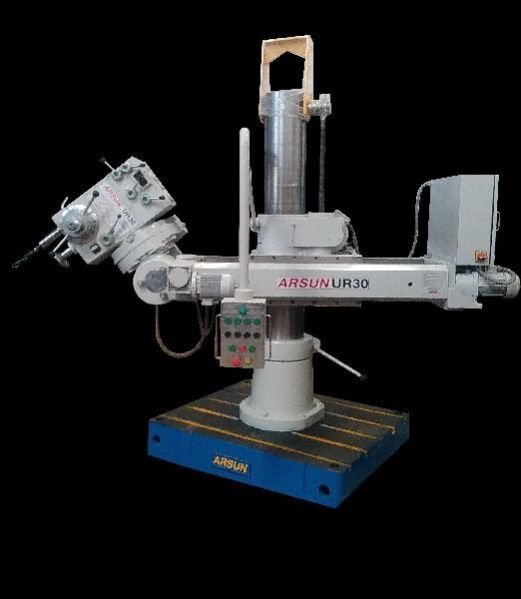

ARSUN UR Series of Portable Universal Radial Drills are most suitable for drilling operations on heavy and sizable components which require quick and efficient preparations in terms of capacity as well as accuracy. Its drill head rotates 360º and swivels 90º up & 90º down on two planes. These rotational and swiveling movements make possible drilling operation at any angular direction.   Features : Robust machine with easy operation. Easily moveable, easily transportable. Powerful : 30 mm drilling in steel at any angular direction. The drilling head rotates 360º and swivels 90º up & 90º down. Ideally suitable for large & stationary jobs, for drilling hard to reach places and on-site drilling. Fixed Column Type : It is a small foot print machine having centrally fixed column on a bulky base. This robust base prevents imbalance during working at extreme position of arm. It is a double column type machine with manual sleeve locking mechanism. Its various motorized movements – i.e. arm up/down, arm traverse, head swiveling & head rotation – makes easier to fix drilling location. Its wide range of 8 speed and 5 feed rates are most suitable for drilling, tapping, reaming operations within full working range and various positions of arm and drill head. Application : This machine finds applications for drilling, reaming and tapping operations on components of large machine tools and forming machines, bulky parts of valves, pumps, turbines, generators, compressors, different kind of steel constructions, boilers, containers, chemical equipment, furnaces of cement plants, ship building, etc.   Standard Equipment Set of Taper Sockets – 4/3, 3/2, 2/1 Automatic Lubrication with Motorized Lube Pump Machine Lifting Arrangement at Sleeve Top Work Lamp Electrical suitable for 415V / 50Hz / 3Ph AC Supply Tool Kit Technical Documentation Special Equipment : Coolant device | Foundation bolts | Spares for 2-5 years
