Radial Drill Machine Dealers in Chitra Gidc, Bhavnagar

Available with us is the Radial Drilling Machine with Auto-feed and without box table & Electrical. We provide the Radial Drilling Machine in the market at reasonable price. Salient Features Arm and drill-head guide ways are precisely hand-scraped for minimum play and rigid clamping of drill-head with armHeavy Duty –38mm drilling in steelGears made from best quality material are helical teethed on imported hobbing machine for smooth and noiseless runningPillar & other parts being provided in machine are ground and finished by imported grinding machine8 spindle and 2 auto feed System for drilling, tapping, reaming operationsSix splined EN8 steel spindles running in a set of 4 bearings offers rigidity and precision while drillingMT-Bore is provided internally grinded by internal grinding machineProvides 8 Speeds by accurate balanced pairs of cone pulleys, which runs on two ball bearingsGrinding is provided on protector for swiveling of radial arm to required degreeWell adequately ribbed base plate, arm & arm bracket for maximum rigidity & minimum deflectionStrongly ribbed and thick walled base plate having built-in coolant tankSpindle sleeve is properly grinded and hardened is guided in honned, Drill head bore spindle is mounted on five ball & bearing for smooth and accurate runningBy simple adjustment of only tapper wedge facility to set drill head on arm guide way Standard Accessories Standard Motor Pulley-2 Nos.Instruction & Spares Parts Manual Book. Optional Accessories (At Extra Price) Coolant Equipment consisting of Coolant Pump with motor, On/Off Swtich, Buitt in tank, piping and SpoutMachine Lamp (Without Bulb) with Transformer Facitity 60w CapacityBox TableDrill SleeveDrill ViceDrill Chuck with key & arborSpecial T-boltsWooden Box Packing & ForwardingV- BeltElectric Motor & Wireing Technical SpecificationsCapacity Capacity 38mm Drilling Capacity in Solid In Steel having 600 Mpa Tensile Strengh38mmIn Cast Iron having 180BHN40mmTapping Capacity Metric Threads up to size [MM]30mmAny Other Threads [Inch]1-3/16" Fine Pitch Boring in Steel Boring in Steel 80mm Drilling in Head Taper in Spindle - [Nose]MT - 4Spindle travels - [Auto/Manual]250mmSpindle Diameter at Front Bearing56mmRAM Diameter72mmNo. of Spindle Speeds/Range8/65 - 1982 RPMNo. of Auto Feeds [Rev./mm.]2/0.04 - 0.08 Rapid Feeds Travel of Rail - [Vertical]750mmTravel of Drilling Head - [Horizontal]450mm Manual Electrical Power Supply415V, 3 PHASE, 50HzDrilling Head Two Speed Motor1.5HP, 1440 RPMArm Elevating Motor0.5HP, 1440 RPMCoolant Pump- Working Range Drilling Radius Max895/440Distance between Base Plate to Spindle Min/Max [Spindle Retracted]240/930Distance From Column Face to Spindle Min/Max360/810Max Drilling Head Traverse450MMColumn Sleeve Diameter170mmVertical Traverse of Arm [Auto]750mmRotation of Arm [Both Side]0-180 Deg.Height1850mm Base Plate Working surface [L x W]820 X 660Overall size1300 X 800 X 170 [R x S x Q]No. of T – Slots & Nominal size4/16Weight with Standard Accessories[APPROX] Net/Cross800Kg General 'V' Belt Section of Spindle Drive MotorB' 47'V' Belt Section of Arm Elivater MotorA' 23 Space Required by Machine [L x W x H ] Space Required 1300 X 2600 X 1900 Box Table Size [L x H x W ] Box Table Size 390 X 300 X 300 Color[S] Color[S] MMT Green (Special)

• Warrenty: 1year
• Color: Other
• Automatic Grade: Automatic,Manual,Semi Automatic
• Condition: New
• Driven Type: Electric
• Weight: 500-1000kg
• Voltage: 440V
• Type: Radial Drill Machines,Other
• Power: 1-3kw,3-5kw
• 40mm back gear radial drill machine: With fine feed collum dia.170mm castiron
• Ram dia.78mm steel: Spindle taper mt-4
• Ram dia.78mm: Collum dia.170mmcastiron
• Spindle taper mt-4: Motors 3phase 1440rpm 2 h.p.and lifting0.5h.p.1440 rpm

• Type: Radial Drilling Machines
• Weight: 100-1000kg
• Color: Metallic
• Rated Power: 3-5kw
• Automatic Grade: Automatic
• Warrenty: 2 Years

We are a credible Manufacturer, Exporter & Supplier of Radial Drilling Machine (SER-25). The Radial Drilling Machine (SER-25) is best suited for drilling tough and tensile items. The Radial Drilling Machine (SER-25) offered by us is high on demand because of the supreme quality, robust construction, efficiency and corrosion resistance. Design Features Main spindle made from EN Steel with 6 slots in machined by hobber and Morse taper bore is provided internally grinded. By Simple adjustment of only tapper wedge facility to set drill head on are guide way. Spindle sleeve is properly guided in honed drill head bore on 6 ball & roller bearing for smooth & accurate running. Standard Equipments Motor Pulley 2 Nos. Drill Drift Extra Equipments Box Table Electrical Motors & Control Panel V belts Coolant Pump with Tank & Fittings.

• Weight: 100-1000kg
• Color: Green
• Voltage: 220V
• Rated Power: 3-5kw
• Automatic Grade: Automatic
• Warrenty: 1 Year

We are reckoned as a chief Universal Radial Drilling Machine Manufacturer, Exporter and Supplier in Gujarat. The Universal Radial Drilling Machine, we offer, is made using quality material such as C.I., M.S. Bar, etc. that makes us assure the high quality and fine functioning. The clients can avail the Universal Radial Drilling Machine from us at the market leading price. Why Our Universal Radial Drilling Machine? Extremely low vibrations High performance Hassle free operation Low maintenance cost

The company is the trustworthy Exporter and Supplier of high efficient Universal Radial Drilling Machine (Model I). Widely accredited for its excellent functionality, compact design and easy handling, our Universal Radial Drilling Machine is widely demanded across the world. We make available Universal Radial Drilling Machine in safe packaging to ensure zero defects at buyers end. Moreover, we are capable of undertaking bulk orders.

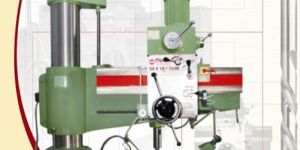

We offer 50mm heavy duty double column radial drill machine. Cap. 50mm all geared heavy duty radial drill machine with auto feed, double column and electrical.

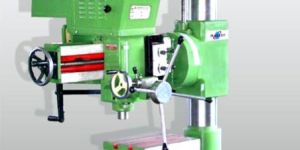

Radial Drilling Machine (40/900) is used in various refineries, shipyards and offshore platforms. Our Radial Drilling Machine is fabricated using high strength castings and alloy steel. The Radial Drilling Machine, offered by us, is known for its high frequency and supreme quality. Our Radial Drilling Machine is well- equipped with strength spindle with limiting protection for limiting position. Further, the Radial Drilling Machine comes with a length worktable.

• Country of Origin: India
• Type: Radial Drill Machines
• Weight: 500-1000kg
• Automatic Grade: Manual
• Driven Type: Electric
• Warrenty: 1year
• Brand Name: Sp
• Condition: New
• After-Sales Service Provided: Yes

40mm capacity Radial Drilling Machine

• Type: Radial Drilling Machines
• Weight: 4000-6000kg, 475kg (approx)
• Condition: New
• Automatic Grade: Manual
• Country of Origin: India
• Drilling (m.s.): 25mm
• Drilling (c.i.): 32mm
• Boring: 40mm
• Tapping(m.s): 15mm Tapping
• (c.i): 20mm
• Spindle nose: MT-4 Spindle nose
• outside diameter: 44mm Spindle
• slive diameter: 75mm
• Travel of spindle: 165mm
• Column diameter: 130mm
• Distance from spindle to base: 140*840mm
• Distance from column to centre-: 345*660mm
• Drilling head Travers: 300mm
• Drilling radius: 720mm H
• High of base plate: 125mm W
• Working surface: 600*725mm
• Width of cast side: 16mm
• Number of t slot: 3
• Overall dimension: 1100*800*1600mm
• Size of box table: 280*280*400mm
• V Belt: no(.A-22)(B-41)
• Radial: 25

we are bhavnagar based auto feed universal radial drilling machine manufacturer, supplier and exporter. Our auto feed universal radial drilling machine accurately performs 38mm drilling operation. These auto feed universal radial drilling machines are manufactured in compliance with the international standards of quality. We offer the auto feed universal radial drilling machine that is highly demanded in diverse industrial applications. why our auto feed universal radial drilling machine? needs minimal manual intervention smooth functionality optimum speed durable finish   description capacity & size drilling capacity in ms 38 mm drilling capacity in ci 38 mm spindle nose tapper mt-4 spindle travel 220mm number of spindle speed 8 range of spindle speed 62-1980 rpm number of power feed 2 range of power feed 0.08-0.04 rpm drilling radius max. min. 895 440mm max. min. Distance column to spindle 810 360mm maximum drill head travel 450mm max. min. Base plate to spindle 930 230 diameter of column 165 swivel of arm lr side 90   box table size 380 x 300 x 300 base plate size 750 x 1250 x 150 working surface 820 x 610 no. of t-slot size 4 16mm overall height 2000 wooden case (lxwxh) 1250 x 1550 x 2000mm    standard equipments: motor pulley 2 no’s, drill drift. Oil can. optional equipments: box table with t-slots, v-belt, coolant pump & tank with fittings.                 electric control panel, electric motor.

•  : MM
• Drilling Capacity in M.S.: 38
• Drilling Capacity in C.I.: 40
• Tapping in M.S.: 15
• Spindle Hole Taper: MT-3
• Spindle Travel: 200
• Spindle Speeds (RPMxStep): 70-2000x8 Speed
• Diameter of RAM: 72
• Auto feed Range: Fine Feed
• Max. Dist. Spindle Nose to Base: 914x200
• Max. Dist. Spindle center to coulmn: 812x325
• Box Table Size: 290x290x375
• Diameter of Column: 157
• Gear Motor: 1 HP 1440 RPM
• Elevating Motor: 0.5 HP 1440 RPM
• V-Belt: B-44, A-32
• Weight Approx: 750 KG.

We are offering heavy duty radial drill machine "india" brand radial drill machine cap 25,32,38,40,50,&63mm.

Highlights AR Series of radial drilling machines are characterized by their easiness in operation, powerful drilling performance, high precision and rigidity. They provide robustness, efficiency and dependability in one-off and batch production environment. The machines are double column type having generously provided ribs and appropriate wall thickness for base-plate, arm, inner column & column sleeve and are rigidly built to withstand static as well as severe dynamic loads. It is double column design and wide clamping area of base-plate with ample rigidity of the machine makes it suitable for drilling, tapping and reaming operations. Its drill-head comprises of an oil-filled sturdy gearbox and a power full feed box, which offers 8-speeds and 5-auto feeds. Auto feed is fitted with a ball clutch, which disengages at preset drilling depth as well as against too high drilling pressure, thus prevents breakages or damages of internal moving parts.     Applications The machine is suitable for one-off or for batch production. It finds application in tool-rooms, engineering & fabrication shops, manufacturing of dies, moulds & machineries, automobile & ship building industries, railways, defense and bridge construction.

Drilling Capacity In Steel 25 mm, Spindle Travel 170 mm, Taper in Spindle Mt-3, No of Speed 8 Speed, Spindle Speed Rang 70 RPM to 1980 RP, Column Diameter 130 mm, Spindle Diameter 72 mm, MaxMin Center of Spindle to Column 660 mm 295 mm.Drilling Motor1 HP 1440 RPM.

We offer radial drill machine. A well known radial drill machine supplier company.

• green: green
• 40mm: 40mm

We manufacture radial drill machine.

Radial Drill, pillar drills, Milling Machine, Drilling Cum Milling Machine

Radial Drilling Machines, Drilling Machines, radial drill press

Radial Drilling Machines, Pillar Drilling Machine, Mining Machinery

radial type drill machine, Machine Tools, Pillar Type Drill Machine

Radial Drilling Machine, Pillar Drill Machine, Tapping Machine

We are a leading Manufacturer, Supplier and Exporter of Double Column Heavy Duty Radial Drills. These being of superior quality and also cost effective, are known as the Best Import Substitute in India. We also provide customization as per the specification of our clients. Some of our range includes Double Column Radial Drilling Machines and Heavy Duty Radial Drilling Machines.

V.p. Machine tools - we are highly delighted to introduce, our self as a professionally managed manufacturer and supplier of radial drilling machines in india.

Radial Drilling Machine

Radial Drill Machine, Drill Machine, Pillar Drill Machine, Taping Machine
