Siddhapura fine Feed Radial Drilling Machine
111,000 Per Piece
1 Piece(s) (MOQ)

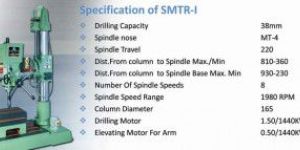

Universal Radial Drilling Machine SMTR-I Technical Specification : Capacity : M.S. C.I. Drill Capacity 38 mm 38 mm Drill Head : 1. Spindle nose MT 4 2. Spindle Travel 220 3. No. of Spindle Speed 8 4. Range of Spindle Speed 62-1980 5. Range of Power Feed mm / Rev. (2) 0.08-0.04 Power : H.P. V. Belt Main Motor 1.5 B-44 Arm Elevating Motor 0.5 A-23 Working Table : L x M x W mm. 380x300x300 Working Range : 1. Drilling Radius Max./Min. mm. 895/440 2. Distance from column to Spindle Max./Min. mm. 810/360 3. Max Drill Head Travel mm. 450 4. Distance from Base to Spindle Max./Min mm. 930/230 5. Diametere of Column mm. 165 6. Swivel of Arm L/R Side mm. 90 Base Plate : 1. L x W x H mm. 925x600x120 mm 2. Working Surface mm. 820x610 mm 3. No. of T-Slots mm. 4/16 mm 4. Overall Height mm. 2000 mm Wooden case size L x W x H mm. 1250x1550x2000 mm
38mm Radial Drilling Machine
Get Price Quote
1 Piece(s) (MOQ)
We are one of the renowned Manufacturers and Suppliers of 38MM Radial Drilling Machines. We produce quality 38MM Radial Drilling Machines using the latest techniques and raw materials like cast iron and EN bar. The 38MM Radial Drilling Machines are used for drilling, boring, reaming and honing in steel, cast iron and many other materials. The 38MM Radial Drilling Machines are used for production purposes as well as the tool room jobs.
Best Deals from Radial Drill Machine
62mm All Geared Double Column Radial Drilling Machine
800,000 Per Piece
1 Piece (MOQ)
Double Column Radial Drilling machine 75mm Cap.
Get Price Quote
Portable Radial Drili with Universal Head - UR50
4,290,000 Per INR
1 Piece (MOQ)
40MM Fine Feed Radial Drilling Machine
Get Price Quote
With us, buyers can stay completely assured for top-notch products as we make use of the premium material and modern work methods for preparing them. Besides, the material is sourced from the genuine places. We can be entrusted for delivering the orders within the promised time frame as we have sophisticated transportation facilities. Features : Heavy Duty spindle Running in a Set of 4 Taper Roller bearing Ball Bearings Eliminating Vibration due to hanging spindle Box table Having its four Faces machined with T Slots on one end V groove On Other Side All Main gears made by MS And Main parts From En steel Elongated bottom for greater rigidity to reduce vibration Heavy-duty column with heavily ribbed base plate with in Built Coolant Tank Specifications : Drilling Capacity in Steel - 40 MMMax/Min Distance Spindle Center To Column - 850/360Machined Area Of base - 925 x 740�Dia Of Column - 170Spindle Travel - 225 MMMax Distance Spindle Nose to Base - 950Vertical adjustment of Arm - 1028Size Of Box Table - 350 x 310 x 310No. of spindle Speeds - 8 speed (80 to 1700 RPM)Spindle Bore - MT-4Drill Motor - 1.5 HP (960) 50 HZ 3 Phase Elevating Motor - 0.5 HP (1440) 50 HZ 3 PhaseNet Weight - 850 Kg Over All Height - 1875Belt Size - B-23 B-46 Standard Accessories - Drill Drift , Motor Pulley 2 Nos Additional Information : Item Code - 40MM-Radial-Drilling-Machine Pay Mode Terms - T/T (Bank Transfer) Port of Dispatch - Nava Sheva Production Capacity - 15 Machines Delivery Time - 15 Days Packaging Details - Standard Wooden Box Packing
40mm Radial Drilling Machine
120,000 - 125,000 Per Piece
AUTO FEED RADIAL DRILL MACHINE
Get Price Quote
1 Piece(s) (MOQ)
A clutch assembly through gear drives the spindle which in turn rotates in both directions (anti-clock and clock wise) with the help of friction clutch. This is designed to return in higher speed in reverse direction after clock wise tapping operations. helps in perceptible feel of the force exerted on the tap thus reducing tap breaking due to excessive force exerted. Rigid machine structure offers vibration free machining All the gears are supported through good quality bearings instead of bushes Oil bath gear box and hardened gears give very long life to the machines Autofeed gears are also hardened For extra rigidity & stability machine base is reinforced by ribs Octagonal shape Pillar bracket acts like rib providing more rigidity Available with six spline and supported through taper roller bearings to withstand thrust load Drive to the spindle is through six splined sleeve inside The RAM is made from special alloy steel pipe of more thickness
Radial Drill Machine
Get Price Quote
0.0
View Profile
Geared Radial Drilling Machine with Auto Feed
Get Price Quote
We are offering geared radial drilling machine with auto feed. model: jidc42 make: jay 42mm cap. Double column radial drilling machine with 6- autofeed ranges. Drilling capacity in m.s. 42mm ram diameter : 80mm column dia. 320 mm spindle taper : mt - 4 spindle speed ranges: 9 spindle auto feed ranges: 6 spindle travel: 225mm approx weight: 1500 kg.
0.0
View Profile
Radial Drilling Machine
Get Price Quote
Sourcing from trusted manufacturers, we are a prominent Supplier of optimum Radial Drilling Machine. Known for efficient working, Radial Drilling Machines are made from high-grade metals and certified components in adherence to all industry norms. Tested on all defined quality tests, we make sure that only the best reaches our buyers. We are distinguished from our competitors owing to our competitive prices and delivery of all orders on time.
0.0
View Profile
25 mm Radial Type Drilling Machine
64,500 - 67,300 Per NOS
Model No. - MMT 40X8-360
Get Price Quote
We provide Pillar Drilling Machine having fine feed System. This Pillar Drilling Machine is ideal for drilling, tapping, and various other operations. Known for the precise make and high performance, this Pillar Drilling Machine is extensively used at several industries. Features Heavy Duty –40mm drilling in steel8 Spindle speeds and 2 auto feeds for drilling, tapping, reaming operationsThis machine may be Capable of drilling, milling, tapping, honing, counter-boring, spot-facing, reaming, and boring and other similar utilitiesSpeeds can easily changeThread tapping operations can be done in either rotation and working depth can be controlled using a positive stop gaugeWith Auto Feed and with 255mm Traveling and with ElectricalSingle Column Construction for Rigidity and effortless centeringGenerously Proportional & Well adequately ribbed base plates, column and arm for Maximum Rigidity and Minimum deflectionThe high quality of this machine and its ease of operation make it suitable for use by students, amateurs' and home hobbyists, as well as skilled techniciansHardened and ground gears for minimum wear and tearAll gears are made of alloy steel, nitride hardened & lapped running in oil bath fitted with splined shaftsPrecision hardened and ground spindleMachine tested as per IS: 2199-1982 Standards Standard Accessories Electrical consisting of two motors, contractors, limit switches, control transformers, wiring etc. Optional Accessories (At Extra Price) Coolant Pump with FittingMachine LampDrill Chuck with key & arborDrill SleeveDrill ViceSpecial T-BoltsFoundation BoltService ToolWooden Box Packing & Forwarding Technical SpecificationsDrilling Capacity in Solid Drilling in Steel40mmDrilling in C.I.50mmTapping capacity in steel30mmBoring in Steel90mmDrilling in Head Spindle travel [Manual]255mmSpindle taperMT-4No. of spindle speeds / Range8/60 - 1760 RPMRAM Diameter87mmNo. of Auto Feeds2 / 0.1 – 0.2Electrical Power Supply415V, 3 PHASE, 50HzElectric Motor3 H.P., 1440/2800 RPMCoolant Pump-Working Range Max. dist. between spindle centre to column face435mmMax. dist. between spindle nose to Base Plate1100mmMax. dist. between spindle nose to working table600mmColumn diameter150mmTilting working tableFixedMax. Vertical Traverse of Arm and with Table [manual]675mmRotation of Arm & Body [both Side]0-180 Deg.General Working Surface of Base Plate [L X W]535 X 520Working Surface of Table [Square]500 X 500Overall Size of machine1650 x 795 x 535No. of T-Slots & Nominal Size [Base & Table] 2/13Base Size (Machined Area mm)535 x 798V'-Belt SectionB – 70"Weight of machine(Approx.)575kgSpace Required by Machine [L x W x H ] Space Required1300 x 1250 x 1800Color[S] Color[S]MMT Green [special]
0.0
View Profile
Radial Drill Machine 40mm capacity
168,000 - 170,000 Per Nos
1 Nos (MOQ)
40mm capacity Radial Drilling MachineÂ
0.0
View Profile
Radial Drilling Machines
95,000 Per unit
0.0
View Profile
Radial Drill Machine
Get Price Quote
We are offering radial drill machine, all type manufacturing drill machine and special purpose machine .
0.0
View Profile
Universal Radial Drilling Machine (Model No. SER- 35)
Get Price Quote
We should like to take this opportunity in introducing "SIDDHAPURA ENTERPRISE" (ISO 9001:2008 Certified Company), as one of the leading global manufacturer of Universal Radial Drilling Machine (Model No. SER- 35) in Bhavnagar, Gujarat, INDIA. It's a unit of Siddhapura Group of Industries, which began its journey 34 years back in 1979. SIDDHAPURA ENTERPRISE aims at creation of wider industry platform in the manufacturer of drilling machines in wider ranges in mutual benefit between supplier and maintaining service, help and closer links. SER - 35 : 35mm Radial Drilling Machine Design Feature Main spindle made from EN Steel with 6 slots in machined by hobber and Morse taper bore is provided internally grinded. By Simple adjustment of only tapper wedge facility to set drill head on are guide way. Spindle sleeve is properly guided in honed drill head bore on 6 ball & roller bearing for smooth & accurate running. One piece arm provides high rigidity along with accuracy. Standard Accessories Motor Pulley 2 Nos. Drill Drift Oil can Extra Accessories Box-Table with 'T' Slotted Coolant Pump with Fitting Electrical Motors and V-Bets.
Radial Drilling Machine (Model II)
Get Price Quote
Radial Drilling Machine (Model II) that we export and supply is widely in demand amongst buyers owing to its flawless functionality, easy handling, and longer service life. Our Radial Drilling Machine is procured from the most reliable sources after stringent checking on all quality parameters. We thus ensure a defect-free range at buyer’s end. Obtain from us, bulk quantities of Radial Drilling Machine at the most competitive rates.
0.0
View Profile
auto feed radial drilling machines
Get Price Quote
We are offering auto feed radial drilling machines. Cap. 38mm all geared radial drilling machine with auto feed and electrical. Specification in mm cap. In m.s. : 38mm cap. In c.i. : 42mm tap. In m.s. : 25mm tap. In c.i. : 30mm spindle traveling: 200mm spindle speed rang : 850-1750rpm auto feed rangspeed : 20.6-0.10
0.0
View Profile
Geared Radial Drilling Machine
360,000 Per Piece(s)
1 Piece(s) (MOQ)
We are offering 45mm cap all geared radial drilling machine. radial drilling machine model sdm-45 (specification) drilling capacity in steel 45mm size of morse taper mt-4 diameter of column 210m spindle travel 200mm no. Of spindle speed 8 range of spindle speed 60 to 1350 rpm no. Of power feed 3 range of power feed 0.10, 0.20, 0.30mm column to spindle centre min/max 290/1000mm base plate to spindle nose min/max 440/1120mm drilling head travel 710mm swivel of arm l / r side fix base plate working surface 1020 x 690mm no. Of slots / size 3/ 16mm main head motor 3 & 2 hp/ 2 speed arm motor 1 hp 1440 rpm v- belt all geard wooden case size 1650 x 1000 x 2200mm standard equipments: � electricals & starter optional equipments: � box table � drill chuck/coolant pump.
