Rope Making Machine Dealers in Bhavnagar

Rope Making Machines are available in 2, 3 & 4 Strands ( 2, 3 & 4 Ply ) in different Models for Rope dia. 1.5 mm To 32 mm for the production of finished coiled ropes from natural and synthetic fiber from start to finish in one continuous operation. Ropes can be made from Nylon, Monofilament, Dan line, PP/HDPE Tapes, Multifilament, Cotton, Jute, Manila and Sisal etc. from the same machine.

• Finishing: Powder Coated
• Type: Plastic Rope Making Machine
• Brand Name: Maruti Plastotech
• Certification: ISO & CE Certified
• Color: Black & White
• Condition: New
• Driven Type: Electric
• Warranty: 5 Years
• Country of Origin: India
• Operating Mode: Semi Automatic
• Machine Structure: Horizontal
• Automatic Grade: Automatic
• Warrenty: 5 years

We are Manufacturer of High Speed Rope Making Machine. 5 HP Motor Low Power Consumption. Best Rope Finishing. Maximum Output Production. Special Designs of the Machine. Full Cover Machine.

• Country of Origin: India
• Type: Rope Making Machine
• Warranty: 1 Year
• Brand Name: MTPL
• Material: All Natural Synthetic Fiber Yarn & Plastic PP Tape, HDPE Monofilament & PP Danline.
• Operating Mode: Automatic
• Shape: Square
• Corrosion Resistance: No
• Certification: CE Certified
• Machine Structure: Horizontal
• Color: Light Green & White
• Reverse Rotation: Yes
• Is It Variable Speed: Yes
• Condition: New
• Driven Type: Both Mechanical & Electric
• Phase: Depend on Size
• Width: Depend on Size
• Machine Weight: Depend on Size

• Certification: Iso 9001:2008, Ce Certified
• Voltage: 440V
• Condition: New
• Power: 3-5kw, 5-7kw
• Type: Rope Making Machine
• Brand Name: S.P
• Weight: 500-1000kg
• Automatic Grade: Automatic, Manual
• Warrenty: 1 Year

We are Manufacturer & Exporter Of Rope Making Machine

KEY FEATURES OF ROPE MAKING MACHINES We are specialized in manufacturing Rope making machine of various diameters with range of various diameters with range of product and capacity. Best Row finishing. Maximizing output / production. Excellent quality twist. Special designs of the machine. Rope Lay S & Z Type. Adjustable Twist in Stand. A.V.M. Paid for vibration free & smooth working. Sliding Cover for smooth & quick operation for safety propose. ‘V’ Belt and Timing Belt Drive. High speed Rope making machine. Optimum production & Easy to operate. Best yarn quality & high productivity. Uniform counterbalancing.

For the basic manufacturing process, the fibers and filaments are made into yarn. They are then twistedbraided or plaited according to the type of rope being made. Yarn is passed through register plates then into compression tubes which twist it to the desired direction and finally form three strands of the yarn. Natural fibers must be lubricated with natural oil and fed into machines which eliminate dirt, straighten the fibers, and comb them off with steel toothed combs. The strands go through a set of combs to produce a sliver. Several of these fibers are grouped together in a process called doubling or throwing. This process is similar for synthetic fibers which align more easily. Rope making machines have continued to have high demand in the industry. This is due to continued demand for ropes especially in the maritime industry. Advances in the technology of construction of this machine have led to improved quality of the final products as well as faster manufacturing and production times.

• Material: Polypropylene
• Phase: 3 phase
• Brand Name: Shiv Shakti Mechanical
• Country of Origin: Made in India
• Automation Grade: Fully AutoMatic With Pogramable Logic Control System (PLC)
• Product Type: pp baler twine making machine

• Type: Pp Baler Twine
• Material: PP

maruti plastotech pvt ltd | bhavnagar| gujarat| india| rope making machine|rope dia 2mm to 60mm| fully plc control based machine | maruti plastotech pvt ltd. Is a pioneer and front runner as a manufacturer and exporter with the wide range of “rope making machineries & plastic extruion plant” in india with the vision to supply the best quality of machineries to the world of plastic ropes. Rope making machine key features 1) we are specialized in manufacturing rope making machine with various diameter of rope and with wide range of product. 2) best quality rope . 3) maximum output/production. 4) excellent quality of twisted rope. 5) special design of machine. 6) less noise pollution.

Rope Making Machines are available in 2, 3 & 4 Strands ( 2, 3 & 4 Ply ) in different Models for Rope dia. 2 mm To 16 mm for the production of finished coiled ropes from natural and synthetic fiber from start to finish in one continuous operation. Ropes can be made from Nylon, Monofilament, Dan line, PP/HDPE Tapes, Multifilament, Cotton, Jute, Manila, Sisal and with any synthetic Fiber etc. from the same Rope Making Machine.

We are offering electronic rope making machine.

Key Features of high speed Rope Making Machines We are specialized in manufacturing Rope making machine of various diameters with range of various diameters with range of product and capacity. Best Row finishing. Maximizing output / production. Excellent quality twist. Special designs of the machine. Rope Lay S & Z Type. Adjustable Twist in Stand. A.V.M. Paid for vibration free & smooth working. Sliding Cover for smooth & quick operation for safety propose. ‘V’ Belt and Timing Belt Drive. High speed Rope making machine. Optimum production & Easy to operate. Best yarn quality & high productivity. Uniform counterbalancing.

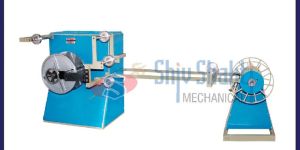

• Brand Name: MTPL
• Country of Origin: Made in India
• Weight: 400 Kgs.
• Dimension: 6'7" x 4'3" x 4'0"
• Rope Range: 4 mm to 8 mm
• Head Speed: 250 RPM (Max.)
• Coil Size Max.: 15 Kgs.
• Motor Power: 1.5 KW, A.C. Motor
• Traverse System: Auto Adjustable
• Features: Easy to operate, Layer to layer uniform windingItem CodeSelf adjustable traverse system
• Item Code: MTP-CL-4
• Pay Mode Terms: T/T (Bank Transfer),Other

Key Features: . Anti twisting unit. . User friendly touch screen dislpay with PLC control. . All parameters will be shown on display. . RPMTPM & twist factor adjustment by display. . Weight & meter set point. . Direct coiling head. . Denier & twisting calculator in display. . Door location warning. . Machine lubrication warning. . A.C. drive fault alarm indication. . 16 program memory storage facility. . Wi-fi connectivity system for computer. . Daily, weekly & monthly report system. (Direct save in excel format)

• Take up Capacity: 15 Kg

Additional driving mechanism at pay off side to pull yarn from bobbin, Digital length counter meter, Door Sensor, Electric chain hoist arrangement for final bobbin removing system (Optional Feature), Electrical clutch system (Optional Feature), AC Drive.

Key features : • user friendly design • extra yarn tension arrangement to control the ballooning, • simple but robust design & light weight rotating parts, • auto stop after yarn breakage to control wastage, • take up output on m.s. Bobbin. optional features : • door sensor • a.c. Drive specification rope range : 2mm to 6mm model : sse 2v6-3 strand flyer rpm : max. 2000 rope flyer rpm : max. 1000 rope lay : z twist range : 40 to 130 tpm pay of package size : 250mm diameter x 250mm traverse take up capacity : 11 kg (approx.)

We are offering rope making machine mtp12.

We are leading manufacturer, supplier and exporter of huge range of Rope Making Machines.

Rope Coiling Machines, Needle Loom Machine, Rope Making Machine

Model AI3 - 1.53 Number of ply (3 - Ply) Rope Size 1.5 mm to 3 mm Strand flyer RPM Max. 3000 Rope flyer RPM Max. 1500 Twist per minute Twice the flyer speed Rope lay Z Twist range 40 to 180 TPM Twist in strand Adjustable Pay of packages 1 x 3 = 3 (200 mm Dia x 200 mm Traverse) Motor 5 HP A.C 440 volt, 50Hz, EFF 2, F - Class Take up 300 mm Diameter X 300 mm Traverse

Rope Making Machines, electronic machine equipments

Rope Making Machines, bobbin winders, coiling machines, Monofilament Plant

Rope Coiling Machines, radial type drill machines, pillar type drill machines

plastic rope making machines, twine making machines, Monofilament Plant

We are offering rope making machine 2mm to 24mm range.

Plastic Rope Making Machine, Plastic Rope, Machine Repair Service, Ropes
