Universal Drilling Machine Dealers in Bhavnagar

we provide radial drilling machine having fine feed system. This radial drilling machine is ideal for drilling, tapping, and various other operations. Known for the precise make and high performance, this radial drilling machine is extensively used at several industries. salient features heavy duty 30mm steel drill 8 spindle speeds fine feed and 250mm travelling six splined en8 steel spindles running in a set of 4 bearings offers rigidity and precision while drilling gears made from best quality material are helical teethed on imported hobbing machine for smooth and noiseless running provides 8 speeds by accurate balanced pairs of cone pulleys, which runs on two ball bearings by simple adjustment of only tapper wedge facility to set drill head on arm guide way mt-bore is provided internally grinded by internal grinding machine spindle sleeve is properly grinded and hardened is guided in honed arm and drill-head guide ways are precisely hand-scraped for minimum play and rigid clamping of drill-head with ar drill head bore spindle is mounted on five ball & bearing for smooth and accurate running without box table and electrical grinding is provided on protector for swiveling of radial arm to required degree well adequately ribbed base plate, arm & arm bracket for maximum rigidity & minimum deflection pillar & other parts are ground and finished by imported grinding machine standard accessories standard motor pulley-2 nos. instruction & spares parts manual book. optional accessories (at extra price) coolant equipment consisting of coolant pump with motor, onoff swtich, buitt in tank, piping and spout machine lamp (without bulb) with transformer facitity 60w capacity box table drill sleeve drill vice drill chuck with key & arbor special t-bolts wooden box packing & forwarding v- belt electric motor & wireing technical specificationscapacity capacity 30mmdrilling capacity in solid in steel having 600 mpa tensile strengh 30mm in cast iron having 180bhn 35mm tapping capacity metric threads up to size [mm] 20 mm any other threads [inch] 34 & 1316" fine pitch boring in steel boring in steel 50mm drilling in head taper in spindle - [nose] mt - 3 spindle travels - [automanual] 250mm spindle diameter at front bearing 55mm ram diameter 72mm no. Of spindle speedsrange 885 - 1880 rpm no. Of auto feeds [rev.mm.] fine feed rapid feeds travel of rail - [vertical] 725mm travel of drilling head - [horizontal] 330mm manual electrical power supply 415v, 3 phase, 50hz drilling head two speed motor 1hp, 1440 rpm arm elevating motor 0.5hp, 1440 rpm coolant pump -working range drilling radius max700300distance between base plate to spindle minmax [spindle retracted]125900distance from column face to spindle minmax330670max drilling head traverse330mmcolumn sleeve diameter140mmvertical traverse of arm [auto]725mmrotation of arm [both side]0-180 deg.height1620mmbase plate working surface [l x w]510 x 600overall size960 x 620 x 140 [r x s x q]no. Of t - slots & nominal size316weight with standard accessories[approx] netcross500kggeneral v' belt section of spindle drive motor b' 47 v' belt section of arm elivater motor a' 24 space required by machine [l x w x h ] space required 1000 x 1400 x 1700 box table size [l x h x w ] box table size 300 x 210 x 210 color[s] color[s] mmt green (special)

Drilling cap. In Steel 25 Drilling cap. C. I. 32 Tapping in M. S. 12 Spindle center to col. 670 Spindle travel 145 Spindle nose to base 650 Dia. of column 130 Dia. of RAM 72 Size of table 290 x 235 x 235 Overall base size 930 x 635 No. of spindle speed (8 speed) 105 to 2650 RPM Taper in spindle base MT-3 Machine area of base 660 x 500 Drill motor (gear drive) 1 HP & 0.5 HP Total height 1425 V-Belt size A-23, B-50 Net Weight 450 Kgs

Features   Robust machine with easy operation. Easily moveable, easily transportable. Powerful : 30-50 mm drilling in steel at any angular direction. The drilling head rotates 360º and swivels 90º up & 90º down. Ideally suitable for large & stationary jobs, for drilling hard to reach places and on-site drilling. Fixed column type   It is a small foot print machine having centrally fixed column on a bulky base. This robust base prevents imbalance during working at extreme position of arm. It is a double column type machine with manual sleeve locking mechanism. Its various motorized movements – i.e. arm up/down, arm traverse, head swiveling & head rotation – makes easier to fix drilling location. Its wide range of 8 speed and 5 feed rates are most suitable for drilling, tapping, reaming operations within full working range and various positions of arm and drill head. All movements are motorized   Its various movements – i.e. arm up/down, arm horizontal traverse, 360º head rotation, head swiveling (90º up/down), column traverse along bed, sleeve locking/unlocking – all these movements are motorized, which offers fatigue free easy location while drilling. It has wide range of 15-speeds and 6-feed rates makes the machine suitable for drilling, tapping and reaming operations within its full working range and various positions of arm and drill head.

• Certification: CE Certified
• Weight: 100-1000kg
• Voltage: 220V
• Rated Power: 3-5kw
• Warrenty: 1 Year
• Standard Equipments: Motor pulley 2 Nos.Drill drift

Universal Radial Drilling Machine that we offer is manufactured as per the set industry standards under the strict vigilance of experts. It is subjected to stringent quality tests so as to ensure that only the defect-free product reaches the customers’ end. We are named among the renowned Manufacturers, Exporters and Suppliers of Drilling Machine. Buyers prefer to buy Drilling Machine from us as we make it available at the best market price. Some Important Features : Important parts are made from close graded casting. Main Spindle made from EN steel. Main Quill and spindle are hardened and grounded and spindle tapper bore is also internal grinded. Main spindle run out of tolerance as per IS:2199 Drill Head are made from best quality martial and boring on imported boring machine of Japan. Precision anti-friction bearing for all rotating members. Extra equipments : Box Table, Electric Motors & Control Panel, V-belt & Coolant Pump with Tank & Fitting.

• Weight: 100-1000kg
• Color: Green
• Voltage: 220V
• Rated Power: 3-5kw
• Automatic Grade: Automatic
• Warrenty: 1 Year

We would like to take this opportunity in introducing “SIDDHAPURA ENTERPRISE” (ISO 9001:2008 Certified Company), as one of the leading manufacturer of Radial & Pillar type Drilling Machine in Bhavnagar, Gujarat, INDIA. SIDDHAPURA ENTERPRISE is a leading global name in the drill industry.SIDDHAPURA ENTERPRISE aims at creation of wider industry platform in the manufacture of drilling machines in wider ranges in mutual benefit between supplier and buyer maintaining service, help andcloser links. Feature : Main spindle made from alloy steel with 6 slots is machined by hobber machine and MT-Bore is provided internally grinded by internal grinding machine. Provides 8 Speeds by accurate balanced pairs of cone pulleys, which runs on two ball bearings. By simple adjustment of only tapper wedge facility to set drill head on arm guide way. Top cover provided with window for changing gears and setting VBelt for desired R.P.M. Lever facility for V-Belt tension. Pillar & other parts being provided in machine are ground and finished by WMW GERMAN MAKE GRINDING MACHINE. Automatic adjustable depth control. Auto as well as manual feeds.   Standard Accessories Motor Pulleys 2 Nos. Drill Drift Oil Can Extra Accessories Box table with T- Slots V-Belt Coolant pump & tank with fittings Electric Control Panel Electric Motors Note : We reserve the right to after of modify dimension design without orior notice.

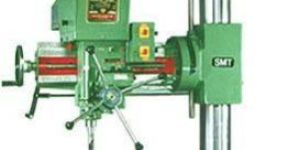

The company is the trustworthy Exporter and Supplier of high efficient Universal Radial Drilling Machine (Model I). Widely accredited for its excellent functionality, compact design and easy handling, our Universal Radial Drilling Machine is widely demanded across the world. We make available Universal Radial Drilling Machine in safe packaging to ensure zero defects at buyers end. Moreover, we are capable of undertaking bulk orders.

Our organization is a renowned Universal Drilling Machine Manufacturer, Exporter and Supplier based in India. The rotator drill of our Universal Drilling Machine ensures fast drilling speed. The Universal Drilling Machine, offered by us, is designed with maximum penetration speed to complete full face drilling in a minimum time and to maximize production. Our Universal Drilling Machine features milling/drilling and grinding function, brushless motor, touch switch and spindle speed read out. Also, we provide our Universal Drilling Machine with standard attachments like grinding attachment, cutting attachment, grinding wheel etc.

universal heavy duty pillar type drill machine, Machine Tools
