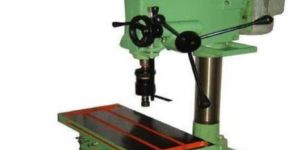

vertical drilling cum milling machine
115,000 Per Piece
1 Piece (MOQ)
Features: Fabrication Table for the Machine Milling Adaptor Attachment for the Machine Coolant Pump with Fitting Coolant tank for Pump Machine Lamp Rotary Table Drill Chuck with Key & Arbor Drill Sleeve Drill Vice Special T-Bolts Foundation Bolt
Siddhapura Vertical Drilling Cum Milling Machine with Auto Feed
98,000 Per Piece
1 Piece(s) (MOQ)
In : Drilling 40 mm Cast : Face Mill 100 mm Iron : End Mill 25 mm : Tapping 22 mm In mild Steel Drilling 35 mm Column Diameter 114 mm Swing 560 Vmm Working Surface 725 x 224 mm Longitudinal Travel Manual 340 mm Cross Travel 305 mm Vertical Travel 830 mm Quill Travel 220 mm Spindle Taper MT-4 Range of Spindle Speed 75 to 2070 RPM No. of Spindle Speed 8 Range of Power Feed (2) 0.08 & 0.04 Distance Spindle To Base 830 mm Overall Height with Guard 1780 mm Main Electrical Motor 1.5 HP Shipping Case ( L x W x H ) 1170 x 915 x 1570 mm
Best Deals from Vertical Drilling Machine
Vertical Drilling Machine (SI-06DMU)
Get Price Quote
We are involved in manufacturing, exporting & supplying of Vertical Drilling Machine (SI-06DMU). Made using latest technology, the Vertical Drilling Machine (SI-06DMU) is used for various industrial drilling applications. The Vertical Drilling Machine (SI-06DMU) offered by us is known for its excellent performance, durability, corrosion resistance and easy maintenance. Salient Features Proportioned Column for rigidity of Machine. Rough & Smooth feed available by manual and power feed. Provision of window for change of gear on top cover. Quill Spacer made of mild steel. Main Spindle made on EN steel with 6 slots 8 speed in either direction. Grounded parts finished on imported grinding machine. Major parts casting are of standard grade. Head stock is bored on imported boring machine. Spindle sleeve is properly guided in honed drill head bore on 6 ball & roller bearing for smooth & accurate running. Standard Accessories Motor Pulley Drift Key Milling Collect Adapters Extra Accessories Coolant Pump Electrical Motor Starter
