Y.A. Marine Kumbharwada, Bhavnagar, Gujarat

Brand Name : WARTSILA

cyl liner Piston Piston rod Cyl Head Piston Crown Actuator Piston Skirt Staffing box injector valve spindle valve seat bearing fuel pipe Air starting valve valve cage piston ring liner gasket

We are the main supplier of this product.

Type : Turbocharger

Application : ENGINE

On ships separators as auxiliary units ensure smooth operation of the ship through, among other things, treatment and conditioning of fuel contaminated by water and dirt particles. On ships separators as auxiliary units ensure smooth operation of the ship through, among other things, treatment and conditioning of fuel contaminated by water and dirt particles. To guard against wear and tear in engine components and resulting losses of performance or breakdowns, separators on ships as well as in industrial plants likewise keep lubricating oil free of water and other contaminants.The liquids and particles of greater density are pressed by centrifugal force against the drum wall of the separator and separated out.Some types of centrifugal separators are chamber separators (with ring-shaped fittings called chambers) and bowl separators (with conical bowls which offer more surface area for collecting solid substances).Because of the strong forces acting on the inside of the separator during the separation process, the requirement on the excellent quality of the spare parts is particularly high.   Spares for SeparatorsWe at Y.A. Marine can provide wide range of spare parts for separators of different functional principles. For a separator to be able to separate the substances in a mixture, these must be of different densities. In the separation of dirt particles and fuel the particles have a greater density than the liquid fuel and can therefore be easily separated by centrifugal force. For all types of Separators:Whether you are using solid bowl separators or bowl separators – we will procure you the suitable spare parts for separators in excellent quality at economic prices.

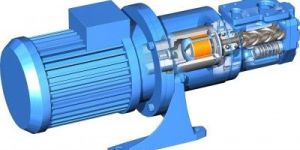

Pumps serve to convey various media such as seawater, oil or fuel. They are used in nearly all industrial plants as well as on board ships. Rotary pumps or centrifugal pumps on the other hand are deployed when high flow volumes are to be conveyed. The continuous flow of the medium to be pumped permits a smooth process run. Pumps must withstand extreme conditions on ships and in industrial plants. Damage to pumps leads to cost-intensive plant shutdowns and production stops which should be avoided at all costs. Spares for Pumps We can provide spares for pump for all types of equipment.

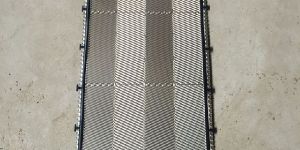

Plate heat exchangers or plate heat conductors serve to exchange and conduct thermal energy from one element to another. That is why they are used predominantly in heating, refrigeration and air conditioning systems. This catalogue lists spare parts for plate heat exchangers.Sealed models are bolted together and plates can thus be quickly and easily replaced. They are sealed with rubber seals between the two plates. These are vulnerable to aggressive media such as ammonia. For this reason welded or soldered plate heat exchangers are used instead. These can however only be replaced completely or in modules (cassettes).In our selection you will find suitable spare parts for every design of heat exchanger. Plate Heat Exchanger Advantages Easy to Remove and Clean You simply remove the tie bolts and slide back the movable frame.  The plate pack can then be inspected, pressure cleaned, or removed for refurbishment if necessary.  Expandable A significant benefit of the plate heat exchanger is that it is expandable, allowing an increase in heat transfer capability.  As your heat transfer requirements change, you can simply add plates instead of buying an entire new frame unit, saving time and money.  High Efficiency The pressed plate patterns and narrow gaps allow for very high turbulence at relatively low fluid velocity. Combined with counter directional flow results in very high heat transfer coefficients.  Compact Size The high efficiency requires less heat transfer area resulting in a much smaller heat exchanger than would be necessary for the identical effectiveness of other heat exchanger types.  Typically a plate heat exchanger requires 20-40% less space than required by a shell & tube heat exchanger.  Close Approach Temperature The same features that give the plate heat exchanger its high efficiency also makes it possible to reach close approach temperatures which is particularly important in heat recovery and regeneration applications.  Approach temperatures of 1ºF are possible.  Multiple Duties in a Single Unit The plate heat exchanger can be built in sections, separated with simple divider plates or more complicated divider frames with additional connections.  This makes it possible to heat, regenerate, and cool a fluid in one heat exchanger or heat or cool multiple fluids with the same cooling or heating source.  Avoid cross contamination Each medium is individually gasketed and as the space between the gaskets is vented to the atmosphere, cross contamination of fluids is eliminated.  Less Fouling Very high turbulence is achieved as a result of the pattern of the plates, the many contact points, and the narrow gap between the plates.  This combined with the smooth plate surface reduces fouling considerably compared to other types of heat exchangers.  Lower Costs High heat transfer coefficients mean less heat transfer area and smaller heat exchangers, and sometimes even less heat exchangers.  This and less space requirements, reduced flow rates, and smaller pumps means.

Mak 6m20, 6m332 ak spares cylinder liner piston crown piston ring fuel pump cylinder head piston rod piston bearing injectors injector holders.

Brand Name : MAK

Material : Spares

Condition : New

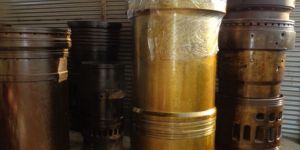

Man b&w 2330 & 2330 h spares cylinder liners -cylinder heads -connecting roads -pistons -main bearings -cr bearings -inex valves -inex valve seats -plungers -nozzles -fuel pumps.

Type : Plant

Brand Name : MAK

Application : Power Plant

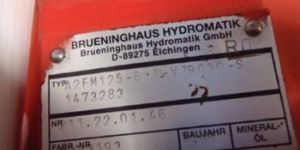

Brand Name : HYDROMATIK

Application : Machinery

Condition : New

Application : Heat Transfer

Type : WARTSILA 22

Model Number : 8R22

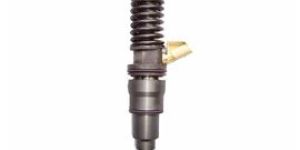

Spares for Fuel Injection: Contact us for new needles and plungers, reconditioned fuel injection pumps and pump elements of European make for all makes of Diesel Engine. Complete injection valve assemblies for major two and four-stroke diesel engines  Nozzles and Automisers Fuel Injection Pumps Pump Elements Reliable suction, spill, delivery relief and circulation valves Pressure Pipes (High Pressure and Low Pressure)

Fresh water generator, one of the important machinery on board a ship, is something that cannot be done without. Fresh water produced from fresh water generator is used for drinking, cooking, washing and even running other important machinery which use fresh water as a cooling medium. Generally the heat source available is taken from the main engine jacket water, which is used for cooling the main engine components such as cylinder head, liner etc.  The main body of a fresh water generator on the ship consists of a large cylindrical body with two compartments. One of the compartments is the condenser and the other is the evaporator. The fresh water generator also consists of an educator which helps in generating the required vacuum. The fresh water pump and ejector pump helps in transfer of water to and from the fresh water generator. Various types of fresh water generators used on board ships are mainly : Submerged tube type fresh water generator. Plate type fresh water generator, and Reverse osmosis plant Spare Parts for Fresh Water Generator: We at Y.A. Marine can provide wide range of spare parts for Fresh Water Generators of different functional principles.  We deal in following Makes:

We at Y.A. Marine specialize in  main components of engines, 2-Stroke and 4-Stroke, Slow speed and Medium speed engines, in major  important heavy parts of various makes and models. As the main unit they provide propulsion for the ship. As auxiliary units diesel engines are used for power generation on board, but also in industry for the power supply of stationary plants. The requirements on the reliability and operating security of diesel engines are particularly high. We specialise in high-quality diesel engine spare parts as follows: ENGINE FRAME AND BEDPLATES  CRANKSHAFTS  CONNECTING RODS  LINERS  FUEL PUMPS  CYLINDER COVERS  PISTON RODS  PISTONS  CAMSHAFTS  VALVE SPINDLES & SEATS  NOZZLE & PLUNGERS VARIOUS OTHER PARTS (On specific requirement) MOST KNOWN MAKES AND MODELS MAN-B&W, Daihatsu, Yanmar, Bergen, Niigata, Himse

Compressors are used to compress gases. On board a ship and power plants compressors are the auxiliary units that assist smooth operation of a ship as well as effective process and production flows. Various compressors are used depending on volume flow and pressure. Originally compressors were almost exclusively liquid-lubricated – usually with oil, and more rarely with water. This has two disadvantages: The lubricant has to be changed regularly, and the compressors must therefore be built in such a way that they can be maintained without difficulty. Economic Spare Parts with reliable quality The demands on the quality of the compressor spare parts are particularly intense. We supply only high-quality and reliable compressor spare parts to avoid a cost-intensive failure of your compressors.  We will offer you the required spare parts for your compressors without delay and at low prices. Whether you need air intake filters, seals, O-rings, safety valves or release valves for your compressor – our spare parts portfolio is practically gapless.

Alfa laval fopx 610 oil separator purifier alfa laval separators are used for separating solids from liquids and in purifying different types of oils. Fopx 610 alfa laval separator does the same, while it has certain features as below: fopx 610 centrifuge removes all impurities minor particles from oil. Used in oil industry , oil recycling or refining companies & ships. Used in industries like marine, chemical, power, food etc. Can be used in clarification & separation of fluids. Reconditioned alfa laval fopx 610 centrifugal purifier is available for diesel purification for marine and other industries. Fopx 610 centrifuge is used for filtration of mineral oil and fuel oil used in power plants and in ships of various types. Alfa laval fopx 610 purifier is a self-cleaning disc separator. It works with the capacity up to 6000 literhour to purify and separate the dust particles and solid substances from the oil. The speed of the disk bowl is maximum at the time of separation and simultaneously the centrifugal force helps to separate the two phases of the incoming liquid and solids are removed intermittently through openings in the bowl walls.

Condition : Used

Brand Name : TANABE

Type : Centrifugal

Power Source : Diesel

Weight : 1000 KGS
