twisted pair cable
Telephone Drop Wire
The pvc drop wire is used in telephone connectivity. The drop wire is available in oval shape to add in conductor field separation. These are two round solid copper covered steel wires that serve dually as conductors and strength members. It comes with good tensile strength, conductivity and elongation property. The bonding of insulation with the conductor is controlled to assure that the full conductor strength is transferred to the wire support clamp. These wires are conductor resistant, insulation resistant and minimal breakage possibility. It does not get any burn in the first 60 seconds and lasts longer than usual drop wires. Available range:- 0.51mm, 0.61 mm, 0.71mm, 0.91mm
...more

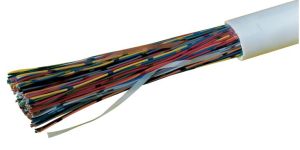

Telephone Cable
High conductivity solid annealed bare copper industrial telephone (switchboard) cables with high density polyethylene insulation, paired, polyester and sheathed with high oxygen index, fire retardant, pvc compound, grey outer sheath generally conforming to tec specification 01 pair to 128pair.
...more
Shielded Cable
A shielded cable is an electrical cable of one or more insulated conductors enclosed by a common conductive layer. The shield may be composed of braided strands of copper or aluminum mylar tape, or a layer of conducting polymer. Usually, this shield is covered with a jacket. The shield acts as a faraday cage to reduce electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interfere with other devices (see electromagnetic interference). The shield minimizes capacitive coupled noise from other electrical sources. The shield must be applied across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may act as screening only.
...more
security cables

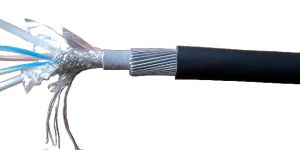

RS-485 Data Cable
32 awg stranded (7x32) tc conductors, polyethylene insulation, twisted pairs, overall alu-mylar (100% coverage) + tc, inner sheath, gi armour & overall jacket.
...more
rf cable assembly

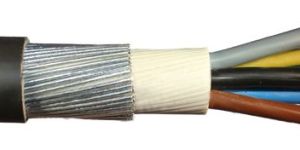

Power Cables
High quality cables for house hold and commercial use. Suitable for fixed wiring, flexible operation and for use on ac single phase systems for rated up to and including 1100 volts and dc systems for rated voltage up to and including 1500 volts to earth.
...more
PCM Cables (Screened)
The pcm cables manufactured by our organization find wide usage in mobile communication and installation of antennas. These allow flawless communication between control rooms and transmitters that emit low level signals. We offer our entire range in standard sizes, and can also manufacture them as per the needs of the clients 0.50mm solid annnealed bare copper foam pe insulated 2 core twisted in pair , polyester tape , almyler tape with 0.50 mm drain wire individual shielded ,1,10,16 pair laid up togather polyester tape ,al myler tape,polyester tape with drain wire over all screened, rip cord ,pvc st-1 sheathed cable
...more

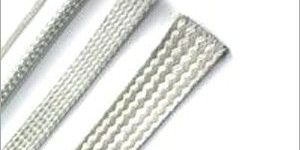

LED flexible strip
We produce a wide quality range of braided copper flexible. These strips are designed using top quality raw material in compliance with the set quality parameters of the industry. These strip are recognized for their significant qualities like longer service life, high performance and efficiency. These offered strips can be availed in different sizes and specifications at industry leading prices. These flexible copper wire braided products are manufactured for diverse application like; copper flexible connectors, motor brush leads, circuit breaker shunts, flexible bus bars, jointing kits, air break switches , de-soldering braids, television sets & ground strap for flexible earthing solution
...more
Lan Cables
Octel brings to you lan cables best suited to your specific applications. The cables are verified to the performance category 5e6 requirement to tiaeia 568 – a & ul 444 for transmission performance. Octel lan cables are suitable for voice, data, video and low voltage control, it is suitable for all lan topologies including horizontal and vertical distribution plenum and riser. The conductor is made of electrolytic plain annealed solid copper of size 0.5 mm, high quality polyethylene insulated with suitable colour code, twisted pair, unshielded light grey pvc jacketed with improved fire characteristic meeting requirements of iev -332- high oxygen and temperature index. The iso – 9001 certification ensures the quality of cables and its intended performance.
...more
Jumper Wire
Conductor : annealed high conductive electrolytic grade bare tinned solid copper of 0.5 0.6 mm diameter generally conforming to is:8130-1984 insulation : hard grade specially designed pvc as per type 2 of is:13176:1991 suitable for a conductor temperature upto 70ºc ref specs: gwir-1003 sep 2006, cw-1257 cw-1423cw-1109 colour code : as per standard standard packing : 100 m 500 m high conductivity solid annealed bare copper industrial telephone.
...more
Jelly Filled Telephone Cables
House Wiring Cables
Pvc insulated single core unsheathed industrial (flexible-multistrand class-5) cables – pvc fr frls with bright annealed electrolytic bare copper conductor for voltage grade upto 1100 volts.
...more
Elevator Cable
electric power cables
dcc copper wire
This product is widely used as an instrument transformers and power transformers up to 220 kv class. Main features of this product. Manufacturing range :- cross sectional area 1.0 sq mm to 500 sq mm wire gauge 31 swg to 45 swg diameter of braid 1.5mm to 40mm *special sizes available on request material : bare copper wire, aluminium wire, tin plated copper wire, silver plated copper wire (spc)
...more

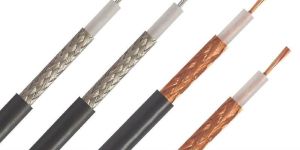

Coaxial Cable
Coaxial cables offer excellent resistance to heat shocks and is thereby suitable for high-speed winding. We manufacture these with the specifications given by the clients. Our quality experts make sure that our range is free from any kind of defects and ideal for use. Furthermore, we meet the bulk demand of our clients within the committed time frame
...more
Cctv Cables
26awg center copper conductor pe dielectric, 60% abcalloy braiding pvc st-1 75 ohm coaxial cable with 26awg copper conductor 123456 pvc insulated core and overall pvc st-1 sheathed composite cable. high-definition 26awg and low capacitance precision video coax 75 ohm delivers crystal clear video & error free data transmission. 26awg power wires with earth ground are ideal for preventing voltage drops over long cable run. flexible rohs jackets is durable, yet easy to work with
...more
Cat-5e Armoured Cable
Octel lan cables are suitable for voice, data, video and low voltage control, it is suitable for all lan topologies including horizontal and vertical distribution plenum and riser. The conductor is made of electrolytic plain annealed solid copper of size 0.5 mm, high quality polyethylene insulated with suitable colour code, twisted pair, unshielded light grey pvc jacketed with improved fire characteristic meeting requirements of iev -332- high oxygen and temperature index. The iso – 9001 certification ensures the quality of cables and its intended performance.
...more
Cable Job Work
All types of wires & cables flexible cables, control & power cables (unarmoured & armoured), telephone cables (unarmoured & armoured), submersible cables, data flow cables, instrumentation cables, coaxial cables, compensating cables and frls cables.
...more
Cable Assembly Connectors
We have total solutions in wiring cable assembly from designing and developing them as per customer requirements. In-house capability for design and manufacturing of cables, jigs, assembly boards and circuit checking boards enable process design control and flexibility.
...more
Screened Cables
Switchboard Cables
assembly job work
