Cee Dee Industries Govind Pura, Bhopal, Madhya Pradesh

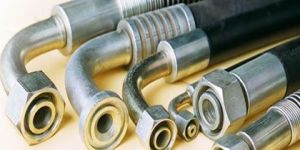

Thermoplastics hoses for solvents, air, water and medium and high pressure hydraulic applications. Ideally used for non transfer of static current. Ideally finds application where Rubber hose is not suitable. Size- 3/16�?(4.7 mm) to 1�?(25.4 mm) Transparent PVC braided hoses, Duct hoses for dust collection, Green PVC for suction and delivery application.

Synthetic rubber tube braided with rayon and or GI/ SS wire, suitable for working temperature of -40°C to + 100°C and for low pressure oil and fuel applications. The hoses are ideally suited for Petroleum based hydraulic fluids, diesel, Petrol and lubricating oils. Hoses are available from 3/16�?ID (4.7 mm) to 2�?ID (50.4 mm). Produc

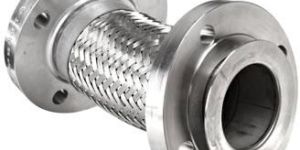

In a bid to make Stainless Steel Flexible Hoses bent conveniently while remaining liquid/gas tight, they are made available in convolutions of Stainless Steel grades (AISI) 321, 316, 316L, & 304. Hoses of different length are manufactured as per custom requirements (like Female Swivel Nuts, Floating/Fixed Flanges etc.)With flange/thread type end fittings made of are made of Carbon Steel / Stainless Steel / Copper / Brass with to DIN/IS/SAE/BS/ANSI Standards.   With a view to take care of external damage and to increase pressure ratings, the flexible hoses are made to be available in Stainless Steel wire braids. After being made with close pitch angular corrugation from butt-welded tube, Corrugated Metallic Hoses are and reinforced by one or two metallic wire braids (SS 304 / SS 316). These operate in the temperature range of -269° C to +800° C Nominal Bores 6 mm. to 300. The products find applications in plants that deal with high temperature, heavy pressure and corrosive nature of substances used and where conventional rubber or PTFE flexible hose do not work. The typical applications to deal with include: Compressed Air & Pneumatic liner, Cryogenic Application, Nuclear Plants, fluids associated with high temperature and of high pressure in paper plants, Tyre moulds, Air Conditioning Plants, Textile Machinery, Steam-Conveying Lines, Power Houses, Oil Refineries and Toxic Application etc. The hose Assemblies are TIG Welded or Silver Brazed. Of late these hoses are replacing rubber hose bugger than 2�?for flowing any fluid, as these are economic, less in weight, more in flexibility than traditionally used rubber suction hoses for oil or water.

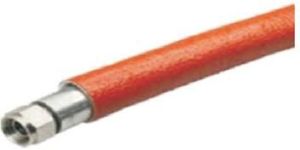

Single Ply Silicon Coated Hose Pipes are UV and weather resistant and considered standard for air flow of high temperatures and for fume removal. Finds application in processes that require Dehumidified Air as in the case of Plastics Machinery Drying(Hopper Dryer , Lamination , Multi Layer Film, Converting , Printing), Tiles & Ceramic Machinery, Computer Cooling, , Direct heaters, Hot air Converging System, Vehicle Exhaust, Air Craft and Automotive industries. Available in sizes of 1" - 14"ID (25mm to 355mm) with a standard length of 5 Mtrs and operate between temperatures ranging -75° to 1200° F & above. Double Ply Fibre glass-silicon Coated Hose Pipes are manufactured with an internal ply that provides a smoother bore for minimising friction loss.

Soft annealed steel pipes of Copper, CDW and Seamless Pipe, with or with out fittings with bends as per customers requirement, for rigid pipe lines application for automobile and Industrial. Size- 3 mm to 50 mm. Bundy Tubes for air, oil and fuel line for automobiles and Fuel Injection pipes for engines. Size- 4.7, 6,8,& 10 mm We have developed Jacketed Fuel injection Pipes for Marine ID �?1.5,1.8, 2, 2.25 mm

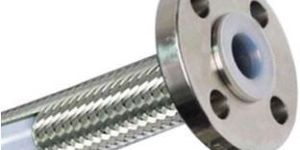

The inner tube is smooth bore made of PTFE resin with little thickness to see that the permeability values are medium. PTFE flexible hoses offer good resistance to impulse stress with fire resistance properties and are reinforced by a layer of stainless steel wire. These are also temperature resistant operating between -70°C and +260°C for longer periods of time and have great shelf life. These are not affected by chemicals except melted alkaline metals. Finds applications dealing with acids, caustics, lacquers, solvents, fuel/oil/gases, food and drug industries withstanding a maximum steam pressure of 250 PSI. In addition to the plain PTFE hoses, the company also manufactures Corrugated PTFE Hoses, PST-4 for applications requiring added flexibility. Hoses are available from 3/16�?ID (4.7 mm) to 2�?ID (50.4 mm)

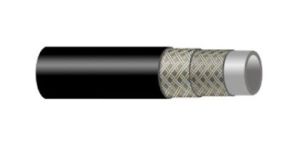

Synthetic rubber tube suitably reinforced with rayon and or high tensile steel wire, suitable for working temperature of -40°C to + 100°C and for high and medium pressure applications. The hoses are ideally suited for Petroleum based hydraulic fluids, diesel, Petrol and lubricating oils. Hoses are available from 3/16�?ID (4.7 mm) to 4�?ID (101.6 mm).

At CEEDEE we have a vast range of hoses for Industrial application, such as for Air, Water, Welding, Sand /Shot Blasting, Chemical, Steam, Suction, Water Delivery, Oil Suction & Discharge, Cement Grouting, Carbon Free, Brewery, Fly Ash, etc. Size- 4.7 (3/16�? mm to 355 mm (14�?.
