"generic name lmr-200 flex type flexible impedance 50 ohm dielectric type pe (f) velocity of propagation 83 % jacket diameter 0.195 in jacket material pe no. Of shields 2 attenuation at 1 ghz. 10.5 db rf shielding 90 db frequency, max 5.8 ghz max operating temperature 85 deg c center conductor type solid inner conductor, number of strands 1 minimum bend radius, one time 0.5 in minimum bend radius, repeated 2 in coax type coax lmr-200 part number from is a lmr-200 coax cable that is flexible. Lmr-200 flexible coax cable is 50 ohm and has a pe (f) dielectric. Our lmr-200 coax is constructed with a 0.195 jacket made of pe. Lmr-200 coax has a shield count of 2, a rf shielding of 90 db and the maximum frequency for this cable is 5.8 ghz. Lmr-200 coax cable has an attenuation at 1 ghz of 10.5 db. lmr-200 coax cables are part of over 40,000 rf, microwave and millimeter wave components. Lmr-200 cables and our other rf parts are available for same day shipping worldwide. Custom rf cable assemblies using lmr-200 or other coax can be built and shipped same day as well."

"this is the antenna for gsm modems. A small, high-quality, quad-band, standard sma terminated, cellular antenna. Has a length of 2 inches. specifications of our offered gsm antenna are : 90 degree connector gsm850e : 824 to 894mhz gsm : 880 to 960mhz dcs : 1710 to 1880mhz pcs : 1850 to 1990mhz

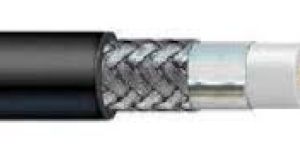

Rg8 coax cable that is flexible. rg8 flexible coax cable is 50 ohm and has a pe (ld) dielectric. Our rg8 coax is constructed with a 0.405 jacket made of pvc (nc). Rg8 coax has a shield count of 1 and the maximum frequency for this cable is 1,000 mhz. Rg8 coax cable has an attenuation at 1 ghz of 8 db and a maximum power of 190 watts at 1 ghz. Rg8 coax cables are part of over 40,000 rf, microwave and millimeter wave components. Rg8 cables and our other rf parts are available for same day shipping worldwide. Custom rf cable assemblies using rg8 or other coax can be built and shipped same day as well.

"RG142 coax cable that is flexible. RG142 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our RG142 coax is constructed with a 0.195 jacket made of FEP. RG142 coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this cable is 8 GHz. RG142 coax cable has an attenuation at 1 GHz of 13 dB and a maximum power of 650 watts at 1 Ghz RG142 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG142 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG142 or other coax can be built and shipped same day as well.

"cable construction material diameter 1.inner conductor copper clad steel or bare copper 1.29mm 2.insulation layer foam polyethylene (fpe) 5.72mm 3.outer conductor single-sided aluminum tape and tinned copper 5.20mm wire or aluminum magnesium alloy braiding 4.jacket polyvinyl chloride(pvc ) 8.10mm ".

"rg6 coax n male to n male cable using rg6 coax its uses a 75 ohm n for connector 1 and a 75 ohm n for connector 2. Our male n to male n cable assembly uses a flexible cable type that is 75 ohm. Its cable assembly is constructed with rg6 coax and the maximum vswr is 1.4:1."

"rg58 coax its n male to bnc male cable using rg58 coax.these n male to bnc male cable assembly uses a 50 ohm n for connector 1 and a 50 ohm bnc for connector 2. Our male n to male bnc cable assembly uses a flexible cable type that is 50 ohm.

"rg316 coax its sma male to n male cable using rg316 coax. Its cable assembly uses a 50 ohm sma for connector 1 and a 50 ohm n for connector 2. our male sma to male n cable assembly uses a flexible cable type that is 50 ohm. Cable assembly is constructed with rg316 coax and the maximum vswr is 1.4:1."

"rg217 coax its n male to n female cable using rg217 coax. This cable assembly uses a 50 ohm n for connector 1 and a 50 ohm n for connector 2. our male n to female n cable assembly uses a flexible cable type that is 50 ohm. Cable assembly is constructed with rg217 coax."

"rg213 coax its n male to n female cable using rg213 coax. This cable assembly uses a 50 ohm n for connector 1 and a 50 ohm n for connector 2. Our male n to female n cable assembly uses a flexible cable type that is 50 ohm. "

"RG188 coax cable that is flexible. RG188 flexible coax cable is 50 Ohm and has a PTFE dielectric. RG188 coax is constructed with a 0.122 jacket made of PTFE. RG188 coax has a shield count of 2 and the maximum frequency for this cable is 10 GHz. RG188 coax cable has an attenuation at 1 GHz of 30 dB and a maximum power of 160 watts at 1 GHz. RG188 coax cables are part of over 40,000 RF, microwave and millimeter wave components. RG188 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using RG188 or other coax can be built and shipped same day as well."

"rg174 coax cable single shielded with black pvc jacket rg174 coax cable that is flexible. These rg174 flexible coax cable is 50 ohm and has a pe (ld) dielectric. Our rg174 coax is constructed with a 0.1 jacket made of pvc. Rg174 coax has a shield count of 1 and the maximum frequency for this cable is 1 ghz. Rg174 coax cable has an attenuation at 1 ghz of 32 db and a maximum power of 16 watts at 1 ghz. Rg174 coax cables are part of over 40,000 rf, microwave and millimeter wave components.

"rg11 is a 14-gauge wire, a higher gauge than other video cables, giving it more room to transfer signal. Rg11 cable provides 3ghz frequency for catv, hdtv, tv antenna, and video distribution. It is ideal entry-point feeder systems running into building and extending to each floor and room of commercial and residential buildings. It is also great for improved audio and video performance in home theater applications. Our rg11 coax cable is ul andor etl verified as well as rohs complaint—our cable meets and exceeds industry standards. While rg11 coax cable does provide higher speeds, it lacks flexibility necessary for casual use and isn’t designed to bend around sharp corners or turns. Because of its thick size, rg11 coaxial cable is most often used as long-length, “backbone” cable thereby fully taking advantage of its high speeds, excellent attenuation feature, and low signal loss. End-users of rg 11u coaxial cables benefit from higher signal quality for television, cable and internet transmission and increased safety. We carry all of your rg11 connectors. Check out this rg11 bnc connector and rg11 f-type connector. With these compression connects you will get a great connection for your rg11 coax cable runs."

"we offer patch panel antenna to our clients. These patch panel antenna are extensively demanded amongst our customers due to their various uses in suitable applications such as indoors for floor-to-floor connectivity or to provide a narrow beam. Besides this, we ensure to satisfy the entire requirements of customers. 2.4ghz, 8dbi panel mount indoor antenna:- freq. Range 2400-2483.5mhzgain 8dbiv.s.w.r

"lmr-400 is designed for flexibility, low loss, rf shielding, and weatherability. lmr-400's cable design enables the tightest bend radius for any cable of similar size and performance. the cable has the lowest loss of any comparable cable. With 90 db of rf shielding this cable is suitable for applications with a large amount of emi. Lmr-400 can be installed both in and outdoors. use times microwave brand lmr-400 cable for any application (e.g. Wll, gps, lmr, wlan, wisp, wimax, scada, mobile antennas) requiring an easily routed, low loss rf cable. Lmr-400 is a drop-in replacement for rg-8. Select your cable length and specify the required connector during checkout. cable type: lmr-400 impedance: 50 ohm center conductor: bare copper covered aluminum (bccai) jacket: polyethylene (pe) outer diameter: .405 inch indooroutdoor rated drop-in replacement for rg-8 attenuation @ 900 mhz100 ft: 3.9db100ft attenuation @ 2.4 ghz100 ft: 6.65db100ft any application (e.g. Wll, gps, lmr, wlan, wisp, wimax, scada, mobile antennas) requiring an easily routed, low loss rf cable max continuous length: 1000 ft"

"specification frequency range -mhz 800mhz-960mhz,1880mhz-1930mhz v.s.w.r =2.0 gain-dbi 3 dbi polarization vertical impedance-o 50 maximun input power-w 50w connector smammcxtnc etc length of cable as per your requirement coaxial cable 17458 height as per your requirement.

Rg-59u is a specific type of coaxial cable, often used for low-power video and rf signal connections. The cable has a characteristic impedance of 75 ohms, and a capacitance of around 20pfft (60pfm).[1] the 75 ohm impedance matches a dipole antenna in free space. Rg (for radio guide) was originally a unit indicator for bulk radio frequency (rf) cable in the u.s. Military's joint electronics type designation system. The suffix u means for general utility use. The number 59 was assigned sequentially. The rg unit indicator is no longer part of the jetds system (mil-std-196e) and cable sold today under the rg-59 label does not necessarily meet military specifications.

"lmr 240 coax features & benefits: flexibility & bending: lmr 240 coax cable is manufactured with a flexible outer conductor, allowing for the tightest bend radius of any cable of similar size and performance. Low loss: lowest loss of any flexible cable; comparable loss to semirigid hard-line cables rf shielding: 50 db greater than typical single shielded coax (40 db) - multi-ply bonded foil outer conductor rated conservatively at 90 db weatherability: lmr 240 coax is designed for outdoor exposure and is uv resistant. Lmr 240 is built to be long-lasting and offers a life expectancy of over 20 years."

"lmr-195 flexible 50 ohm coax cable with pe jacket is rated for a 5.8 ghz maximum operating frequency. This 50 ohm 0.195 inch diameter and low loss flexible coax cable is built with a shield count of 2 and rf shielding of 90 db. Fairview microwave lmr-195 coax is constructed with pe (f) dielectric and a maximum operating temperature of 85 degrees c. Times microwave lmr-195 coax cable specs for this wire properties can be found on its rf coax cable lmr-195 datasheet pdf specifications above. Lmr-195 cable is part of more than one million rf, microwave and millimeter wave parts in stock at fairview. This times microwave low loss lmr-195 coax cable is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency twinaxial and coaxial cable types that ship same-day from our allen, tx warehouse in the as with the rest of our other rfmicrowave and millimeter wave components."

"Low Loss Flexible LMR-100-PVC IndoorOutdoor Rated Coax Cable Double Shielded with Black PVC Jacket LMR-100-PVC coax cable that is flexible. Its flexible coax cable is 50 Ohm and has a PE dielectric. Our LMR-100 coax is constructed with a 0.11 jacket made of PVC. LMR-100 coax has a shield count of 2, a RF shielding of 90 dB and the maximum frequency for this cable is 5.8 GHz. LMR-100 coax cable has an attenuation at 1 GHz of 24 dB. LMR-100-PVC coax cables are part of over 40,000 RF, microwave and millimeter wave components. "Generic Name : LMR-100-PVC Flex Type : Flexible Impedance : 50 Ohm Dielectric Type : PE Velocity of Propagation : 66 % Jacket Diameter : 0.11 in Jacket Material : PVC No. of Shields : 2 Attenuation at : 1 Ghz. 24 dB RF Shielding : 90 dB Frequency, Max : 5.8 GHz Max Operating Temperature : 85 deg C Center Conductor Type : Solid Inner Conductor, Number of Strands : 1 Minimum Bend Radius, One Time : 0.25 in Minimum Bend Radius, Repeated : 1 in Coax Type : Coax.....

"electrical specification: frequency(mhz) : 1800-2170 gain(dbi) : 7 vswr : 1:1.5 h plane bw(degrees) : 55 e plane bw(degrees) : 40 polarization : linear, vertical impedance(ohms) : 50 front to back ratio(db) : 20 cross polarization discrimination (db) : 20 maximum power handling (watts) : 100 connector termination : n-female mechanical specification: dimension(mm) : 600 x 120 weight with mounting(kg) : 0.300 mounting hardware : ms galvanized & powder coated mounting style tower and pole mounting adjustment environmental specification: temperature range(degree c) : -40 to 70 wind speed survival(kmhr) : 200 humidity: 95 % no condensation vibration : qm333, category d environmental protection : qm333, category d".

"indoor ceiling antenna is used for multi band coverage which includes gsm bands. These antennas are compact in size with excellent performance and can be easily installed in the indoor environment. Specification:- frequency: 824 - 960 mhz. Frequency range (mhz) 824 – 960 and 1710 - 2700 mhz gain (dbi) > 1.0 2.0 vswr < 1.5 polarization vertical power handling (watts) 50 hpbw - v (degrees) 60° hpbw - h (degrees) 3600 impedance 50 connector n-type dimension 180φ x 120 mm.

"LMR-600 Coax LMR-600 coax. This N male to N male cable assembly uses a 50 Ohm N for connector 1 and a 50 Ohm N for connector "Connector Series 1 : N Connector Gender 1 : Male Connector Polarity 1 : Standard Connector Angle 1 : Straight Connector Mount Method 1 : None Connector Impedance 1 : 50 Connector Series 2 : N Connector Gender 2 : Male Connector Polarity 2 : Standard Connector Angle 2 : Straight Connector Mount Method 2 : None Connector Impedance 2 : 50 RF Cable Type : LMR-600 RF Cable Impedance : 50

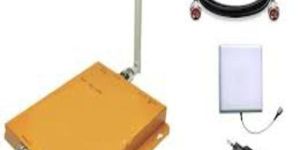

Mobile signal boosters work in the same way as the towers of cellular operator, which broadcasts signals to the subscribers. The basic difference is that a mobile signal booster is much smaller in size and you can get the benefit for a limited area. Mobile signal boosters, depending on their formation, can expand the handset’s coverage up to more than a few thousand square feet. There are even suitable mobile signal boosters available that can be used inside your car.cities all over the world are going in for high-rise buildings viz., commercial, office complexes, shopping malls & residences. All the areas in shadows of these high rise buildings and offices in basements do not receive mobile phone signal leading to bad mobile phone connectivity. To overcome this problem, sharp vision has introduced mobile signal booster system to amplify mobile signal level for better mobile connectivity.
