Eteily Technologies India Pvt Ltd Vidya Nagar, Bhopal, Madhya Pradesh

The USB Female Connector 4Pin 2.0 DIP Type-A is a standard female USB connector used for various electronic applications that require USB connectivity. Here's a brief description: Type: USB Type-A Female Connector, which is a common and widely used USB port type. Version: USB 2.0, supporting data transfer rates of up to 480 Mbps. Pins: 4 pins (Power, Ground, Data+, Data-), with each pin responsible for power delivery and data transmission. Mounting Style: DIP (Dual In-Line Package), which means the connector is designed for through-hole soldering on printed circuit boards (PCBs). Application: This connector is used in devices that need USB connectivity such as PCs, laptops, chargers, and various other USB-powered or USB-interfacing devices. Form Factor: Rectangular design with a robust and standardized shape that ensures secure connections with male USB Type-A connectors. Power: Supplies 5V to connected devices, typically used for both power and data transmission.

Type : USB Interface

Certification : CE Certified, ISI Certified

Application : Electricals, Electronic Device

Color : Grey, White

Condition : New

Connection Type : Female

Feature : Easy To Connect, Electrical Porcelain, Four Times Stronger, Proper Working, Shocked Proof, Sturdy Construction, Superior Finish, Water Proof

The Universal Automotive OBD Diagnostic Cable Male to Female 16 Pin is a diagnostic cable used in automotive applications to connect an OBD-II (On-Board Diagnostics) scanner or diagnostic tool to a vehicle's OBD port. This cable facilitates the communication between the vehicle's ECU (Engine Control Unit) and the diagnostic tool, allowing technicians and car owners to read and clear fault codes, monitor vehicle performance, and perform other diagnostic functions. Key Features: 16-Pin Male to Female Design: One end of the cable features a male 16-pin connector, while the other end has a female 16-pin connector. This configuration makes it compatible with a wide variety of vehicles equipped with OBD-II ports. Universal Compatibility: Suitable for most cars, trucks, and other vehicles that support OBD-II protocols (standardized for vehicles manufactured after 1996). Durable Construction: Typically made from high-quality, flexible materials to withstand regular use and ensure a reliable connection between the diagnostic tool and the vehicle’s OBD-II port. Length: Available in various lengths to ensure flexibility and ease of use when connecting to the vehicle's OBD port, especially when it is located in hard-to-reach areas. Common Uses: Car Diagnostics: Reading and clearing trouble codes related to engine performance, sensors, emissions systems, and more. Real-Time Data Monitoring: Monitoring live data such as engine temperature, RPM, fuel efficiency, and more. Vehicle Maintenance: Performing system checks and maintenance on various vehicle systems like ABS, airbags, and transmission. This cable is an essential tool for automotive professionals, DIY car enthusiasts, and anyone looking to perform OBD-II diagnostics on their vehicle.

Certification : CE Certified, ISI Certified

Feature : Crack Free, Durable, High Ductility, High Tensile Strength, Quality Assured

Voltage : 100V AC,DC

Length : Customized

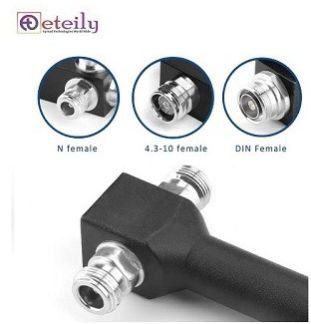

This high-performance RF splitter is designed for a wide frequency range of 698-2700MHz, offering versatile applications for both indoor and outdoor use. Available in 2, 3, and 4-way configurations, it delivers low VSWR (≤1.25:1) and minimal insertion loss (≤3.3 dB, ≤5.2 dB, ≤6.4 dB depending on the model). With in-band ripple values of ≤0.3 dB, ≤0.4 dB, and ≤0.5 dB, it ensures optimal signal quality. The splitter handles high average power—200W, 300W, or 500W—depending on the model, and boasts impressive 3rd order intermodulation distortion (IMD) values of ≤-155 dBc @ 2x43dBm for exceptional signal integrity. Designed with a 50Ω impedance and N-Female connectors, it’s built to withstand temperatures from -20°C to +55°C. Finished with a durable black plating for added protection, this splitter is ideal for both commercial and residential RF systems, offering reliability and high performance in demanding environments.

Condition : New

Application : Automotive Industry, Electricals, Electronic Device

Certification : CE Certified, ISI Certified

Feature : Easy To Connect, Electrical Porcelain, Four Times Stronger, Proper Working, Shocked Proof, Sturdy Construction, Superior Finish, Water Proof

Type : Power Splitter

Frequency : 698

Country of Origin : India

Fiber & Power Feeder Clamp· The clamp is designed to secure 2 to 6 fiber cables and power cables· It is installed on cable ladder, rung, bracket, i-beam, profile such as towers, ladders and masts at telecom site· Without additional adapters, provide sturdy, reliable, long-term support · Easy-to-install· Wind loaded· UV and corrosion resistant with SUS304 bracket· Capable to working in extreme temperature· Recommend distance of clamps:0.5m· Provide various fiber cable and power cable with rubber insert· Each block holds two runs of cable to reduce installation cost     Product Details The clamp is designed to support 6 cables with the dimension of 15-17mm It is installed on cable ladder, rung, bracket, i-beam, profile such as towers, ladders and masts at telecom site Without additional adapters, provide study, reliable, long-time support Each block holds two runs of cable to reduce installation cost Easy-to-install Wind loaded UV and corrosion resistant with SUS304/steel dacro bracket Capable to working in extreme temperature Recommend distance of clamps: 0.8~1.0m Product Specifications Product Classification Product Type Double hole Specification Size 15-17 mm Compatible Diameter maximum 17mm | 0.67 in Compatible Diameter minimum 15 mm | 0.59 in Includes Angle adapter, plastic clamp, threaded rod, nuts and washer Material of metal part Stainless steel 304 Material of plastic part PP/PA Cables per clamp 6 Salt spray test 168 h Surface treatment Passivated Warranty 3 years Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F) UV Resistance ≥720 hours OEM Accepted Application Telecom cable installation Packaging & Delivery   Packaging Details Plastic bag, Carton, Pallet Delivery Time 3-15 days

Brand Name : ETEILY

Size : 15-17 mm

Application : Telecom cable installation

Country of Origin : India

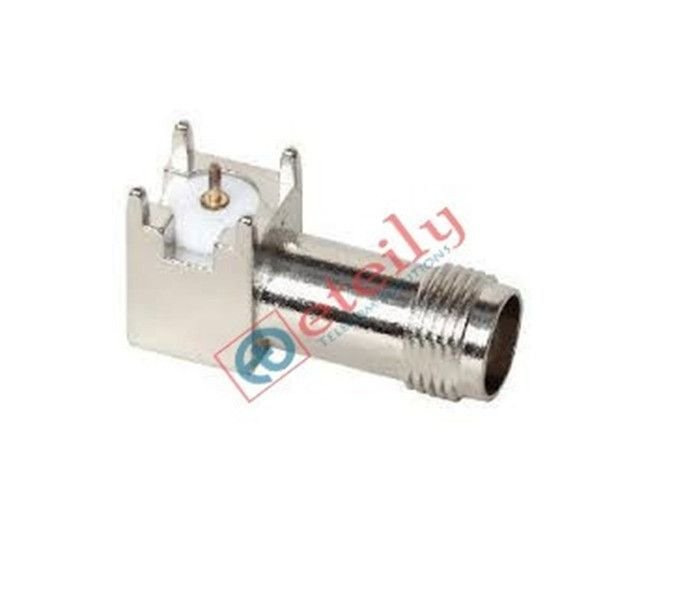

The TNC (F) Right Angle PCB Mount Connector is engineered for reliable RF connections in compact electronic assemblies. Its right-angle design allows for efficient space management on printed circuit boards (PCBs), making it ideal for applications where vertical space is limited. Key Features: Compatibility: Designed for standard RF applications, this connector provides excellent performance with various coaxial cables, particularly 50-ohm types. Right Angle Configuration: The right-angle design facilitates easier routing of cables, minimizing stress on the connector and cable during installation. PCB Mount Design: Specifically crafted for mounting directly onto PCBs, providing secure connections and stability in electronic devices. Durable Materials: Constructed from high-quality materials to ensure longevity and reliable performance in diverse environments. Impedance: Typically features a 50-ohm impedance, making it suitable for a wide range of RF applications, including communication and wireless systems. Applications: Wireless communication devices Antenna systems Test and measurement equipment Networking hardware This TNC (F) Right Angle PCB Mount Connector is an essential choice for designers seeking efficient, high-quality RF connections in space-constrained applications.

Brand Name : ETEILY

Condition : New

Connection Type : Female

Certification : CE Certified, ISI Certified

Type : TNC Connector

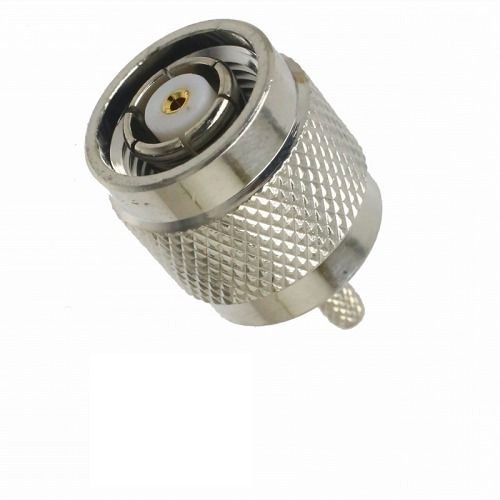

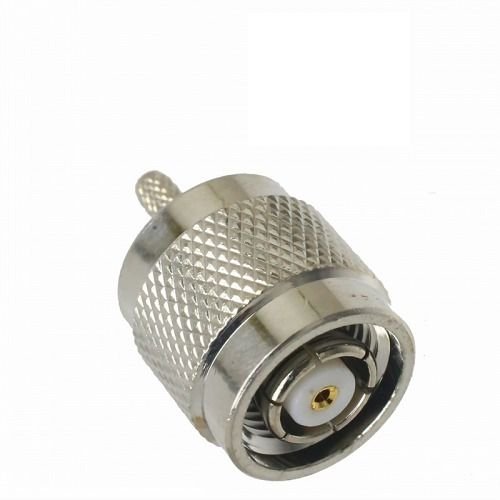

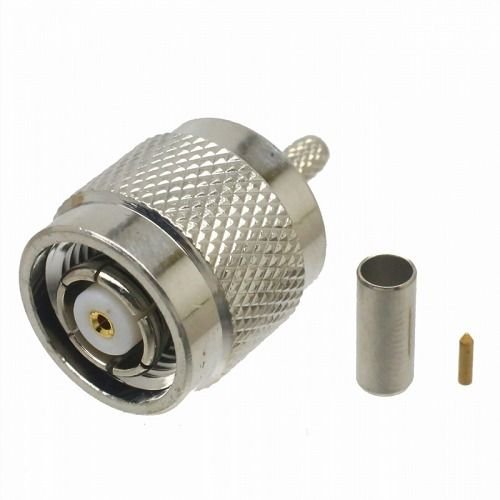

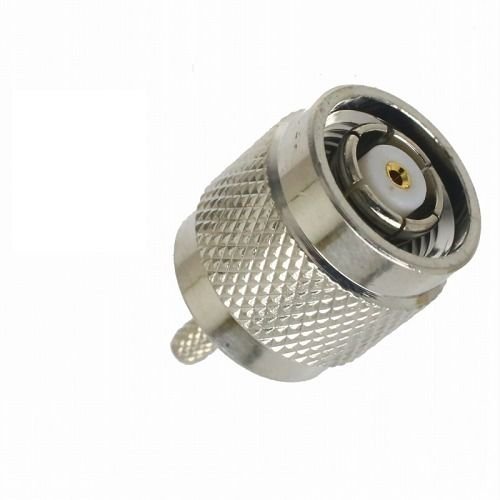

The RP TNC (Male) Straight Connector is a high-performance, right-angle connector designed for use with RG316 coaxial cable. It is commonly used in wireless and RF applications where reliable and secure connections are crucial. The RP (Reverse Polarity) TNC connector is a variant of the standard TNC connector with reversed gender and polarization, ensuring compatibility with RP TNC female connectors. Key Features: Connector Type: RP TNC (Male) - Reverse Polarity TNC connectors are designed with reversed gender and polarization compared to standard TNC connectors, which helps prevent accidental mismating and ensures correct connectivity. Straight Configuration: The straight (or axial) design allows the connector to be mounted directly without angling, making it suitable for applications where the connector needs to be aligned with the cable or PCB without requiring a change in direction. Compatibility: Specifically designed for RG316 coaxial cable, a type of cable known for its flexibility and high-frequency performance. The connector ensures a secure and reliable connection to RG316 cable. Durable Construction: Typically constructed from high-quality materials such as brass or stainless steel with a plating of gold or nickel to ensure durability, conductivity, and resistance to corrosion. Benefits: Reliable Performance: Ensures a stable and low-loss connection for high-frequency signals, reducing signal degradation and interference. Secure Connection: The RP TNC design helps prevent mismating with standard TNC connectors, ensuring that connections are correct and secure. Durability: Made from robust materials to withstand environmental stresses and provide long-term reliability.

Brand Name : ETEILY

Material : Brass, Nickel

Color : Grey, Brown, Creamy,Dark Brown,Ivory,Light Grey,Off White,White

Condition : New, Old

Application : Connecting Cables

Certification : ISO 9001:2008 Certified, CE Certified, ISI Certified

Warranty : 1year,2years,5years

Type : TNC Connector

The TNC (F) 4 Hole Panel Mount Connector for RG174 Cable is designed for secure, high-performance connections in a variety of RF applications. Its panel mount feature allows for easy installation on enclosures, panels, or chassis, making it ideal for both professional and DIY projects. Key Features: Compatibility: Specifically designed for RG174 coaxial cable, ensuring excellent signal integrity and performance. Panel Mount Design: The 4-hole configuration allows for secure mounting on panels, providing stability and reducing strain on the cable. Durable Construction: Built with high-quality materials to withstand environmental factors and provide reliable connectivity. Impedance: Typically 50 ohms, suitable for a range of RF applications, including wireless communication and networking. Easy Installation: Features a straightforward mounting process with standard hardware, making it user-friendly. Applications: Communication devices Antenna systems Test equipment Networking solutions This TNC (F) panel mount connector is an essential component for achieving reliable and efficient RF connections in various setups.

Brand Name : ETEILY

Condition : New

Certification : ISI Certified, CE Certified

Type : TNC Connector

Gender : Female

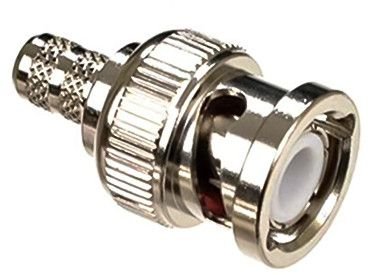

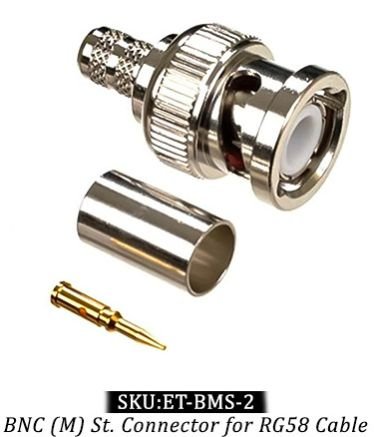

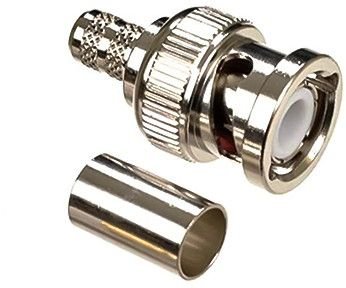

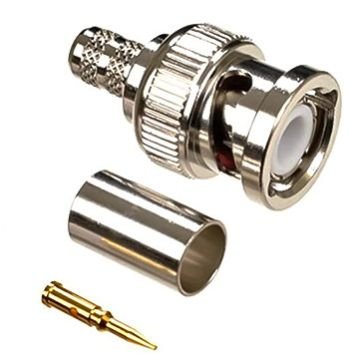

The BNC (Bayonet Neill-Concelman) male connector for RG58 cable is a type of coaxial cable connector commonly used for connecting coaxial cables in various RF (radio frequency) applications. Here's a detailed description: BNC Male Connector for RG58 Cable **1. Purpose: Used to connect RG58 coaxial cables to other equipment or cables, typically in RF communication systems, networking, and video applications. **2. Connector Type: BNC Male: Features a pin (center conductor) that fits into a corresponding BNC female connector. **3. Cable Compatibility: Specifically designed for use with RG58 coaxial cables, which are characterized by their 50-ohm impedance and are commonly used in networking and communication applications. **4. Design and Construction: Pin: The center conductor is a pin that makes contact with the center conductor of the RG58 cable. Body: Made from metal, often brass or stainless steel, which provides durability and ensures good signal integrity. Insulation: The connector usually includes an insulating material to ensure proper alignment and signal isolation. Shielding: Often incorporates a metal shield to protect against electromagnetic interference (EMI) and ensure signal integrity. **5. Mounting Type: Bayonet Lock: Features a bayonet mount mechanism that ensures a secure connection through a simple twist-and-lock action. This design helps prevent accidental disconnections and provides a reliable and stable connection. **6. Frequency Range: Typically supports a frequency range up to several GHz, making it suitable for various RF and high-frequency applications. **7. Applications: Networking: Used in Ethernet over coaxial cables in older network setups. Video: Common in analog video applications, such as CCTV systems. Communication: Utilized in radio and other communication equipment.

Brand Name : ETEILY

Material : Brass, Nickel

Color : LIght White, Grey

Condition : New

Application : Electric Industry

Certification : ISO 9001:2008 Certified, CE Certified

Type : T-connectors,BNC Connector

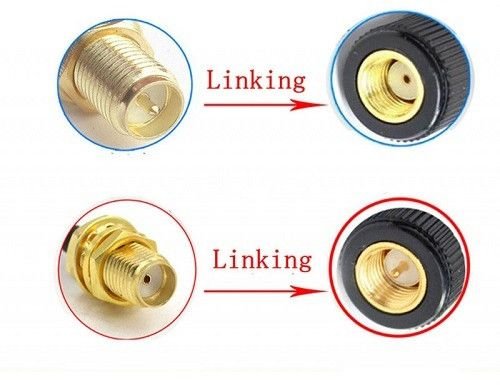

The SMA (F) B/H Connector for 1.13mm RF Cable is designed for reliable and efficient RF signal transmission. Here are its key features: Connector Type: SMA (F) connector is female, designed for use with SMA male connectors, ensuring a secure connection. Compatibility: Specifically designed for 1.13mm RF coaxial cables, providing a snug fit and optimal performance. High Frequency Performance: Suitable for applications operating up to 18 GHz, making it ideal for various RF communication tasks. Robust Construction: Made from high-quality materials, offering durability and resistance to environmental factors, ensuring long-term reliability. Easy Installation: Compact design allows for straightforward installation in various setups, whether for testing, prototyping, or permanent installations. Versatile Applications: Commonly used in telecommunications, antenna systems, and RF testing equipment, supporting a wide range of electronic applications. This SMA (F) B/H Connector is essential for anyone working with RF systems requiring a dependable connection for 1.13mm cables.

Brand Name : ETEILY

Condition : New

Connection Type : Female

Application : Electrical Adaptor, Electronic Adaptor

Certification : CE Certified, ISI Certified

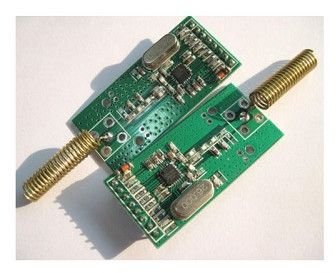

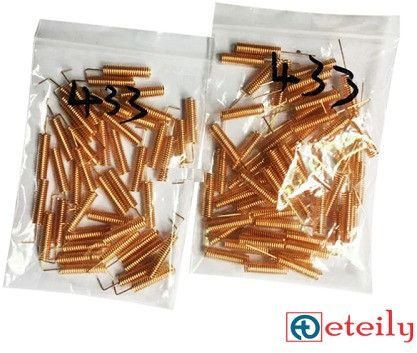

The 433MHz Right-Angle (R/A) Helical Spring Antenna is a compact, high-performance antenna designed for use in applications operating within the 433MHz frequency band. Its helical spring design and right-angle configuration make it ideal for devices where space is limited and a compact form factor is essential. Key Features: Frequency Range: Optimized for the 433MHz ISM band, commonly used for short-range communication and various wireless applications. Helical Spring Design: The helical spring structure provides a compact, flexible solution with good radiation characteristics. This design enhances the antenna's performance by ensuring effective signal transmission and reception. Right-Angle Configuration: The right-angle (R/A) design allows for the antenna to be positioned at a 90-degree angle relative to the mounting surface. This is particularly useful in applications where space constraints or specific placement requirements need to be addressed. Compact and Flexible: The helical spring construction is not only space-efficient but also offers some flexibility in positioning, making it adaptable to various mounting configurations. Benefits: Compact Form Factor: The helical spring design and right-angle configuration make it ideal for space-constrained environments where traditional antennas may not fit. Flexibility in Mounting: The right-angle mount allows for versatile installation options and can help manage space within a device. Effective Performance: The helical spring structure provides good signal reception and transmission characteristics within the 433MHz band.

Brand Name : ETEILY

Material : Phosphorous Copper

Shape : Spiral

Condition : New

Type : Coil Antenna

The SMB (M) Straight PCB Mount Connector is a type of coaxial connector designed for use in printed circuit board (PCB) applications. Here’s a detailed description of its features and functionality: Connector Type: This is an SMB (SubMiniature version B) connector with a male (M) straight configuration. SMB connectors are widely used in RF (Radio Frequency) applications for both low and medium-frequency ranges. The male connector refers to the pin that is inserted into the corresponding female connector. PCB Mount: The connector is designed for PCB mounting, meaning it is intended to be soldered onto the surface of a PCB. This makes it ideal for integrating with circuit boards in devices such as communication equipment, RF systems, and other electronic systems that require a compact connection. Straight Orientation: The straight configuration refers to the alignment of the connector pins, which extends perpendicularly from the board, as opposed to right-angle connectors. This configuration is commonly used in applications where space permits a direct, unobstructed connection. Size and Compactness: The SMB connector is known for its small size, making it suitable for applications where space is limited. It offers a reliable connection while maintaining a minimal footprint on the circuit board. Frequency Range: SMB connectors are typically used in systems operating at frequencies from 0 to 4 GHz, depending on the specific design and application. They are commonly used in RF communication systems, including wireless devices, GPS, and other radio systems. Durability and Reliability: The connector is built to be robust, offering good durability and long-term performance in a variety of environments. It is designed to withstand moderate mechanical stresses and environmental factors while maintaining a reliable electrical connection. Applications: The SMB (M) Straight PCB Mount Connector is often used in applications such as: Wireless communication systems GPS devices Cellular systems Networking equipment RF testing equipment Medical devices with wireless communication In summary, the SMB (M) Straight PCB Mount Connector is a compact, reliable, and efficient connector used for connecting RF components to circuit boards in a variety of electronic systems. Its small form factor and ease of integration make it an excellent choice for high-frequency applications where space and performance are crucial.

Brand Name : ETEILY

Condition : New

Connection Type : Male

Application : Electronic Components Connecting

Certification : CE Certified, ISI Certified

Type : SMB Connector

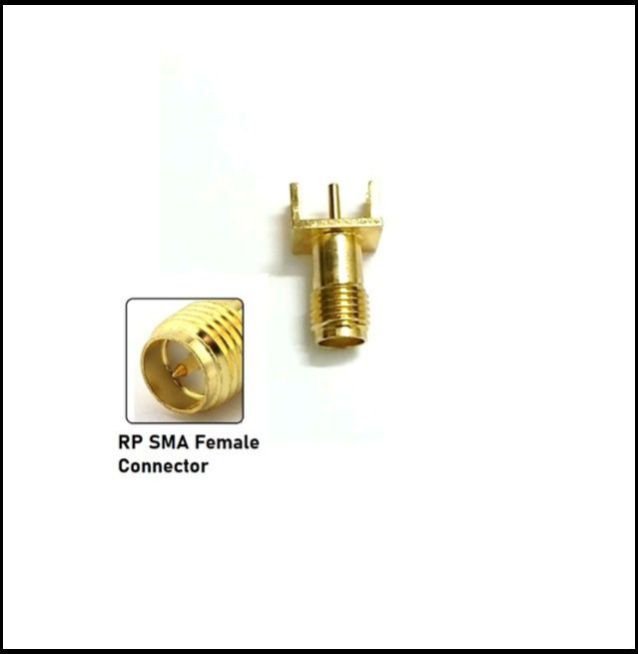

The RP SMA Female Straight Edge PCB Mount Connector is a robust and high-performance connector designed for seamless integration into RF (radio frequency) applications. This connector features a straight edge PCB mount design, allowing easy and secure attachment to printed circuit boards. It is built with reverse polarity (RP) SMA, ensuring compatibility with RP SMA male connectors for applications that require this specific configuration. Ideal for various communication systems, the connector provides reliable, low-loss signal transmission. Its durable construction and precision engineering ensure excellent signal integrity and long-lasting performance in demanding environments, making it perfect for both commercial and industrial uses.

Certification : CE Certified, ISI Certified

Connection Type : Female

Condition : New

Brand Name : ETEILY

Type : SMA Connector

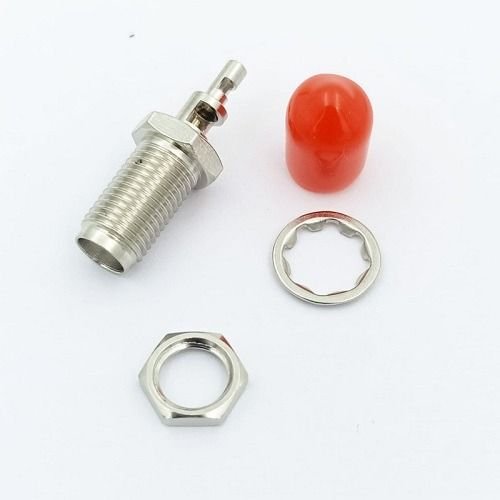

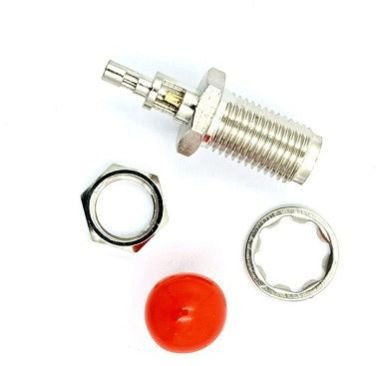

The SMA (Female) Bulkhead Connector for 1.13mm RF Cable is a high-performance connector designed for use in RF (Radio Frequency) applications. This connector allows for a secure and reliable connection to RF cables, specifically those with a 1.13mm diameter, commonly used for high-frequency signal transmission in various electronic systems. Product Overview: Connector Type: SMA Female Bulkhead Application: Designed for use with 1.13mm diameter coaxial RF cables. Gender: Female (receptacle) Mounting Type: Bulkhead (panel-mounted) Polarity: Standard (Non-Reverse Polarity) Features: Connector Design: The SMA Female Bulkhead connector is designed to provide a reliable connection and can be mounted on a panel or chassis. This makes it ideal for applications where the cable needs to be accessed from outside a housing or enclosure. Compatible Cable Size: This connector is specifically designed to work with 1.13mm RF cables (typically a small, flexible coaxial cable used for high-frequency applications). The precise fit ensures minimal signal loss and optimal performance. Material and Construction: Body Material: Typically brass, which ensures durability and reliable signal transmission. Plating: Gold plating for enhanced conductivity, corrosion resistance, and long-term reliability. Mounting Type: Bulkhead Mount: The connector is designed for easy integration into panels or enclosures. The bulkhead mount allows for a secure, stable connection while also providing a clean, flush appearance on the exterior. Applications: RF Equipment: Commonly used in wireless communication systems, RF test equipment, GPS systems, and antennas. Enclosures & Panels: Ideal for situations where a cable must pass through a panel or other housing and be securely fastened. Frequency Range: This connector is designed to perform optimally at high frequencies (up to several GHz), making it suitable for advanced RF communication systems and precise applications that require low signal loss and high fidelity. Conclusion: The SMA Female Bulkhead Connector for 1.13mm RF Cable is a compact, reliable, and highly efficient connector designed for use in RF systems, offering ease of integration and high performance. Whether used for panel-mounted RF systems or precise communication applications, this connector ensures a stable and durable connection, making it ideal for both prototyping and long-term use in professional applications.

Brand Name : ETEILY,Eteily

Condition : New

Connection Type : Female

An SMB (F) St. PCB Mount Connector refers to a specific type of SubMiniature version B (SMB) connector designed for printed circuit board (PCB) mounting. Here’s a breakdown of its features: SMB Connector Type: SMB connectors are a type of RF (radio frequency) connector. They are smaller than SMA connectors and are used for high-frequency applications. The SMB connector typically provides a snap-on coupling mechanism, meaning it locks in place when the male and female connectors are pushed together. (F) Female: The "(F)" designation refers to the female version of the connector. This means it has a socket or receptacle that is designed to mate with a male SMB connector. St. (Straight): "St." stands for straight, which means that the connector has a straight orientation, with the pins or sockets facing directly outward from the PCB for easy insertion and connection. PCB Mount: The connector is designed for mounting directly onto a printed circuit board (PCB). This allows for easy integration into electronic devices, providing a reliable method of transmitting signals through the board. Key Characteristics: Frequency Range: SMB connectors are typically used in high-frequency applications, often supporting frequencies up to 4 GHz or higher, depending on the specific version. Size: SMB connectors are compact, which makes them suitable for applications where space is limited. Applications: Used in various applications such as communication equipment, test instruments, automotive, and industrial devices where RF signals are transmitted. In summary, an SMB (F) St. PCB Mount Connector is a female SMB connector with a straight design that is specifically meant for mounting onto a printed circuit board for RF signal transmission.

Brand Name : ETEILY

Condition : New

Connection Type : Female

Certification : CE Certified, ISI Certified

Type : SMB Connector

The 865MHz 5dBi Rubber Magnetic Antenna with RG174 Cable (L - 3 Meter) and an SMA Male Connector is a specialized antenna designed for reliable wireless communication. Here's a detailed description of its components and functions: Frequency Range (865MHz): The antenna operates at a frequency of 865 MHz, which is typically used in applications such as RFID systems, IoT devices, and other short-range communication technologies. This frequency is popular in regions like Europe, where it is used for UHF RFID operations. Gain (5dBi): The antenna offers a gain of 5dBi, providing a moderate boost in signal strength and coverage compared to a standard 0dBi antenna. A 5dBi gain ensures a wider coverage area and improved signal reliability, making it ideal for use in environments where signal strength is important. Rubber Material: The antenna is made from durable rubber, making it flexible, weather-resistant, and less likely to break or crack under stress. The flexible nature also makes it easier to install in various environments. Magnetic Base: The antenna is mounted on a magnetic base, allowing for easy installation on metal surfaces such as cars, trucks, or other metallic structures. The magnetic base ensures stable positioning and easy removal or repositioning. RG174 Cable (L - 3 Meter): The antenna comes with a 3-meter-long RG174 coaxial cable, which is flexible and lightweight. RG174 is commonly used for low-power applications like wireless communications and is ideal for connecting antennas to devices. The length of the cable provides extra flexibility in positioning the antenna. SMA Male Connector: The antenna features an SMA male connector, a widely-used type of connector for radio-frequency (RF) signals. The SMA male connector is commonly used to interface with RF devices such as radios, routers, and other wireless equipment. Key Features: Frequency: 865 MHz (suitable for UHF RFID, IoT, and other wireless applications) Gain: 5dBi (providing extended range and improved performance) Antenna Type: Rubber, flexible, and weather-resistant Mounting: Magnetic base for easy attachment to metal surfaces Cable: 3 meters long RG174 coaxial cable Connector: SMA Male connector for compatibility with a wide range of RF devices Applications: RFID Systems: Ideal for use in UHF RFID applications in warehouses, logistics, and asset tracking. IoT Devices: Perfect for enhancing signal strength in IoT communication devices. Wireless Communication: Can be used for wireless networks, routers, and other RF-based devices requiring reliable signal coverage. This antenna is designed to provide a combination of performance, flexibility, and ease of installation for various wireless communication needs.

Gender : Male

Type : External Antenna

The BNC(M) to SMA(M) RF Adapter is a versatile radio frequency (RF) adapter that allows you to connect devices with BNC Male connectors to devices with SMA Male connectors. This gender-changing adapter is commonly used in RF communication systems, test equipment, and other applications where BNC and SMA connectors are used in different parts of the signal path. Key Features: BNC Male to SMA Male: The adapter features a BNC Male connector on one end and an SMA Male connector on the other, making it ideal for connecting cables or devices that have different connector types. Durable Construction: Typically made from brass or stainless steel, the adapter is built to last and ensures secure connections with excellent electrical conductivity and minimal signal loss. Wide Frequency Range: Suitable for use in RF systems that operate across a broad frequency spectrum. Typically, SMA connectors are used for higher frequency applications (up to 18 GHz), while BNC connectors are common in lower frequency ranges (up to 4 GHz). This adapter allows seamless connectivity across these different frequency ranges. Compact Design: Small and lightweight, this adapter is easy to integrate into a wide range of applications, from simple setups to more complex systems like network analyzers, test equipment, and communication devices. Corrosion-Resistant: Many BNC to SMA adapters are finished with nickel plating or other corrosion-resistant coatings to ensure reliable performance in diverse environments. Applications: Test and Measurement Equipment: Commonly used to connect BNC-terminated test equipment with SMA-terminated devices, such as oscilloscopes, signal generators, and analyzers. RF Communication Systems: Ideal for radio-frequency systems where different equipment uses BNC and SMA connectors, such as in antenna systems, routers, modems, and signal transmission systems. Antenna Connections: Used in scenarios where an antenna with a BNC connector needs to be connected to a device with an SMA male port, such as connecting an antenna to a wireless router or cellular modem. Amateur Radio: Often used in ham radio applications, where both BNC and SMA connectors are used in equipment like transmitters, receivers, and antennas. CCTV Systems: Useful in closed-circuit television (CCTV) installations, where BNC connectors are common for video connections, and SMA connectors may be needed for wireless communication or other RF devices.

Certification : CE Certified, ISO 9001:2008

Connector1- Material : Brass

CONNECTOR2 : SMA Male

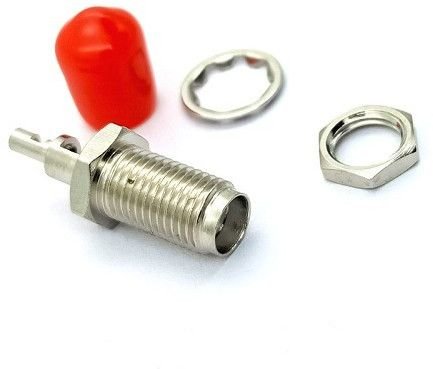

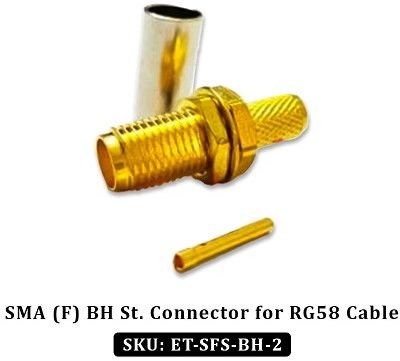

The SMA (F) BH St. connector for RG58 cable is a widely used RF connector designed for high-frequency applications. Here’s a detailed description: Specifications: Connector Type: SMA (F) (female) with a bulkhead mount (BH) configuration. Compatible Cable: Specifically designed for RG58 coaxial cable, which is commonly used in RF applications. Material: Typically made of brass with a nickel or gold plating for better conductivity and corrosion resistance. Impedance: 50 ohms, suitable for RF applications. Features: Compact Design: The SMA connector is small and lightweight, making it ideal for space-constrained applications. Secure Connection: The bulkhead mount allows for a secure and stable connection, often used in panel or enclosure applications. Frequency Range: Suitable for frequencies up to 18 GHz, making it versatile for various RF systems. Applications: Telecommunications: Used in mobile and wireless communication systems. Antenna Connections: Commonly utilized for connecting antennas to transmitters and receivers. Test Equipment: Ideal for RF test and measurement equipment due to its reliable performance.

Brand Name : ETEILY

Condition : New

Connection Type : Female

Application : Electrical Adaptor, Electronic Adaptor

Certification : CE Certified, ISI Certified

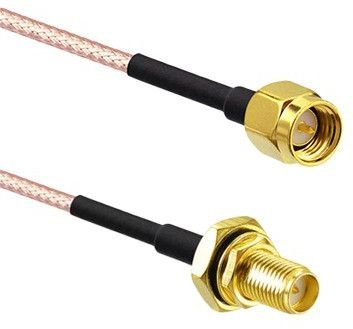

This product is a Cable Assembly designed to connect components using RG316 cable and SMA connectors. Below is a detailed description of the product: Product Overview: Cable Type: RG316 Cable Length: 1 Meter (1Mtr) Connectors: Connector 1 (SMA Male): Polarity: Standard Orientation: Straight Material: Brass Plating: Gold Connector 2 (SMA Female Bulkhead): Polarity: Reverse Polarity (RP) Orientation: Straight Material: Brass Plating: Gold Features: Cable Type: RG316 is a flexible, low-loss, coaxial cable suitable for high-frequency applications, offering excellent performance for short to medium-length connections. Connectors: The SMA connectors (SMA Male to RP SMA Female Bulkhead) are commonly used in RF (Radio Frequency) applications, ensuring secure, reliable, and high-quality connections. The gold plating on both connectors enhances conductivity and prevents corrosion, ensuring a long lifespan and optimal performance. Reverse Polarity: The reverse polarity SMA (RP-SMA) is used in applications where reverse gender configurations are needed to prevent unintended connections in RF equipment. This cable assembly is ideal for use in RF applications such as wireless communication, antennas, and other systems requiring high-frequency signal transmission with secure and stable connections. The 1-meter cable length is suitable for short to medium-range setups.

Brand Name : ETEILY

The SMA(F) to SMA(M) RF Adapter is a high-quality connector designed to provide a secure and reliable connection between two devices with different SMA connectors. Here's a detailed description: Connector Type: The adapter features a SMA female (F) connector on one end and a SMA male (M) connector on the other. The SMA female end has a threaded outer connection with a hole in the center for the male pin to fit into. The SMA male end has a threaded outer connection with a central pin for a secure connection with the female end. Usage: This adapter is used to connect two RF devices with different SMA connectors, such as antennas, routers, or communication equipment. It ensures proper signal transmission and minimal interference. Material and Build: Typically made of brass with gold or nickel plating to ensure excellent conductivity and durability. It may also feature a PTFE insulator for optimal performance, particularly in high-frequency applications. Frequency Range: The adapter is designed to support RF signals over a wide frequency range, typically from DC to 18 GHz, depending on the specific design. Application: Commonly used in RF applications such as: Antenna connections Testing equipment Communication devices Laboratory setups Networking and signal transmission devices Size and Mounting: Compact and lightweight, making it easy to use in tight spaces. Its threaded design allows for a secure connection without worrying about accidental disconnections. This SMA(F) to SMA(M) RF Adapter is an essential tool for anyone working with RF systems, offering an easy solution for connecting devices with differing SMA connectors.

Type : SMA Connector

Frequency : 50-60 Hz

Connector1- Material : Brass

CONNECTOR2 : SMA Male

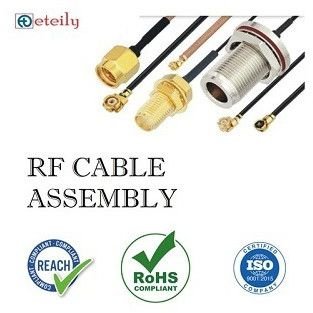

The SMA (F) B/H RF 1.13MM Cable with Nickel-Plated Connector is a high-quality RF cable designed for reliable signal transmission in various applications. Featuring a compact 1.13mm diameter, this cable is perfect for use in tight spaces while maintaining excellent performance. Key Features: Connector Type: SMA (F) connector, offering a secure and reliable connection for RF applications. Cable Diameter: 1.13mm, ideal for applications where space is limited. Nickel-Plated: The nickel plating provides enhanced durability and corrosion resistance, ensuring a long-lasting connection. Flexible Design: The cable's flexibility allows for easy routing in complex setups. Versatile Use: Suitable for RF communication, antennas, and other electronic devices. Applications: Wireless communication systems Antenna connections IoT devices RF testing and measurement This SMA (F) RF cable is an excellent choice for anyone needing a compact, durable solution for their RF connectivity needs.

Brand Name : ETEILY

Condition : New

Connection Type : Female

  A specific type of RF (radio frequency) connector assembly commonly used in electronics, particularly in applications like antennas or wireless communication modules. Let's break down the components you mentioned: SMA (F): This stands for SubMiniature version A, Female connector. SMA connectors are threaded coaxial RF connectors used in a wide range of applications, especially in high-frequency RF and microwave environments. St. B/H: This likely refers to a specific type or variant of SMA connector, but without additional context or a datasheet, the exact meaning of "St. B/H" isn't clear. It could denote a particular subtype or variant of SMA connector. With 1.13 Mm Black Cable (L-10cm): This specifies the type of cable attached to the SMA connector. "1.13 mm" refers to the diameter of the coaxial cable, which is quite thin and suitable for applications where flexibility and minimal signal loss are critical. "Black" denotes the color of the cable sheath, which typically does not affect functionality but may help in identifying different cables. + MHF4 Connector: MHF4 (Micro High Frequency 4) is a type of miniature RF coaxial connector. It's commonly used in applications where space is limited but high-frequency performance is still required. It's often found in Wi-Fi cards for laptops and other compact wireless devices. In summary, the phrase "SMA (F) St. B/H With 1.13 Mm Black Cable (L-10cm) + MHF4 Connector" describes an RF connector assembly with an SMA female connector (possibly a specific variant denoted by "St. B/H"), attached to a 1.13 mm diameter black coaxial cable that is 10 cm long, and terminating with an MHF4 connector. This assembly would typically be used for connecting RF components in a circuit or device where high-frequency signals need to be transmitted with minimal loss and good performance.

Brand Name : ETEILY

Material : Brass

Color : Golden, Black

Condition : New

Connection Type : Female

Application : Electronic Adaptor

Certification : CE Certified, ISI Certified

Feature : Easy To Connect, Proper Working, Shocked Proof, Superior Finish

Type : Sma Connector, SMA Cable

Warranty : 1year

Country of Origin : India,India

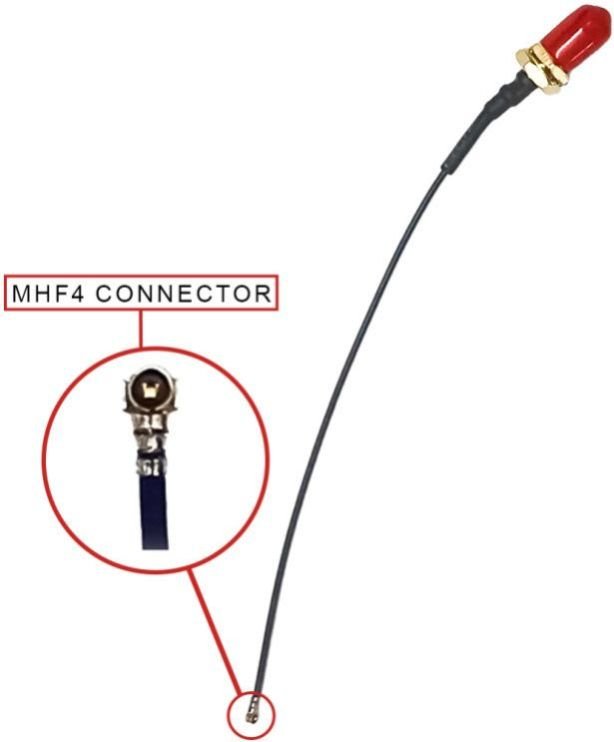

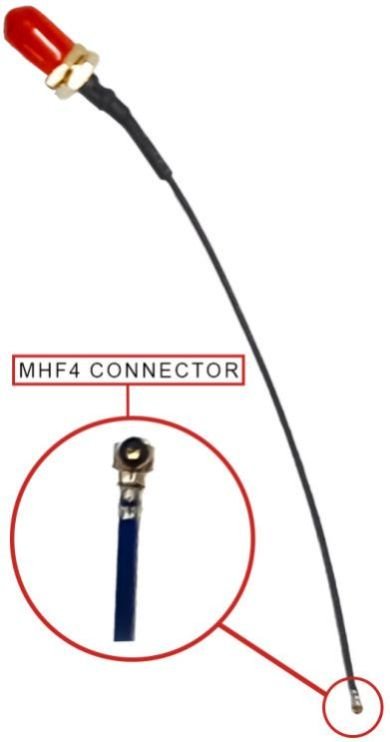

SMA (F) B/H With 0.81mm Cable (L -15cm ) + MHF4 Connector: This is a coaxial cable assembly featuring: SMA (F) B/H: A female SMA connector designed for RF applications. 0.81mm Cable (L -15cm ): A coaxial cable with a diameter of 0.81mm and a length of 15cm. MHF4 Connector: A miniature coaxial connector used at the other end of the cable. This assembly is typically used in RF systems where a compact yet reliable connection is required, such as in wireless communications and antenna setups.

Brand Name : ETEILY,Eteily

Material : Brass

Current Type : DC

Condition : New

Connection Type : Female

Certification : CE Certified, ISI Certified

Gender : Female

Feature : Easy To Connect, Electrical Porcelain, Proper Working, Superior Finish

Type : Sma Connector,SMA Cable Assembly

Warranty : 1year

Country of Origin : India,India

The SMA (F) 4 Hole Panel Mount Connector is designed for secure installation on panels, providing a reliable RF connection. This connector features a threaded coupling mechanism, ensuring a stable and robust connection with SMA-compatible devices. The 4-hole design allows for easy mounting and alignment. The included RG178 cable is 10 cm long, known for its flexibility and durability, making it ideal for tight spaces. This coaxial cable offers excellent signal integrity, ensuring minimal loss over short distances. At the end of the cable is a UFL (Ultra Miniature Form Factor) connector, commonly used for compact applications. The UFL connector is designed for high-frequency applications, providing a low-profile connection that’s perfect for devices with limited space. Overall, this combination of components is perfect for applications requiring a compact, reliable, and high-performance RF connection.

Brand Name : ETEILY

Condition : New

Application : Electrical Adaptor, Electronic Adaptor

Certification : CE Certified, ISI Certified

The SMA Male PCB Edge Mount Connector is a precision-engineered connector designed for direct mounting onto the edge of a printed circuit board (PCB). It is commonly used in RF and microwave applications where a high-quality, reliable connection is essential. The edge mount design allows for easy integration into compact and space-constrained designs, making it suitable for a variety of electronic and communication devices. Key Features: Connector Type: SMA Male - The SMA (SubMiniature version A) connector is known for its high-frequency performance and is used in many RF and microwave applications. The male version features a threaded coupling mechanism for a secure connection. PCB Edge Mount: Designed for mounting on the edge of a PCB, this connector allows for direct and efficient integration into circuit designs. The edge mount configuration facilitates a straightforward connection while saving space on the PCB. High Frequency Performance: Optimized for high-frequency applications, typically operating up to 18 GHz or more, depending on the specific design and manufacturer specifications. Durable Construction: Made from high-quality materials such as brass or stainless steel with gold or nickel plating to ensure excellent conductivity, durability, and resistance to corrosion. Applications: RF and microwave communication systems Test and measurement equipment Antenna systems Networking and telecommunications Embedded systems Aerospace and defense electronics Benefits: Space-Efficient Design: The edge mount configuration allows for efficient use of PCB space, making it ideal for compact and densely populated circuit designs. Secure Connection: The SMA male connector’s threaded coupling mechanism ensures a stable and reliable connection, reducing the risk of disconnection or signal loss. High-Performance: Capable of handling high-frequency signals with minimal signal degradation, ensuring effective communication and performance in demanding applications.

Feature : Easy To Connect, Electrical Porcelain, Four Times Stronger, Proper Working, Shocked Proof, Sturdy Construction, Superior Finish, Water Proof

Connection Type : Male

Condition : New

Application : Electrical Adaptor, Electronic Adaptor

Certification : CE Certified, ISI Certified

Type : Sma Connector

Gender : Male
