HUMA TRADERS Hamidia Road, Bhopal, Madhya Pradesh

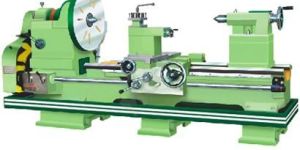

»Standard Accessories:  •Single Tool Post  •Rapid Travel of Cross Slide  •Vertical Lifting and Lowering of Cross Rail 4 Chuck Jaws  •Complete Electrical Fitting with Control Panel with Centralized Control station »Optional Accessories:  •Constant System with splash Guard  •DRO In X & Y axis  •Auto Feed tripping  •Grinding Att. Pendent push button station  •Operator's sie Coloumn ram Head

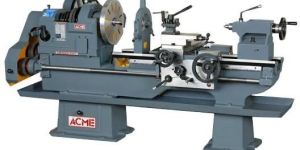

»Bed Lenth 1000 to 10000 mm, »Bed Width 375450 mm Min.Max., »Job Diameter 20 to 300 mm, »Admit Between Center 300 to 9000 mm, »Spindle Bore 100 mm, »Main Spindle RPM 0.1 to 1 RPM »Main Spindle Motor 3 H.P with ac Variable Frequency Drive

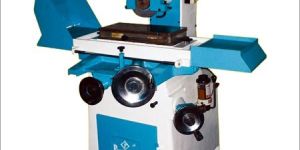

»Hydraulic Surface Grinder: Offering a quality range of grinding machine, surface grinding machine, hydraulic surface grinding machine, hydraulic grinding machine and CNC surface grinding machine. »Features: Low energy consumption Trouble free performance Long working life

•Rigid Construction hence smooth and Vibration free operation. •Fine gained castings and dully Seasoned. •All gears are Machines cut and Properly fitted. »Extra Accessories : Rotary Table with 36 : 1 Ration (250mm) Electric Motor True Chuck Switch V-belt

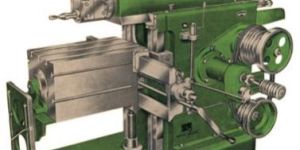

• Naturally Seasoned Casting.• Heavily cross ribbed, Rodust and sturdy construction ensure free working.• Specially designed for increased-production, precision Performance and Deep cut.• Fully Hand Scrapped.• Quick Return Motion.• Selected special alloy steel used for screws and other steel parts.

Material : Mild Steel

Voltage : 220 V and also available in 440 V

Material : Plastic

Application : Household,Industrial

Color : Red

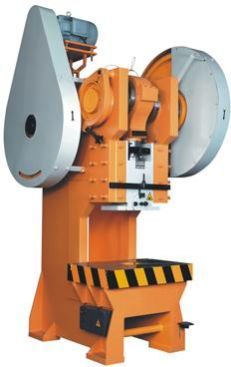

»Crank Shaft : Made of Spacial alloy Steel »Gears & Clutch : Gears are made of Cast Iron & Clutch is provided of Pin Rolling Key Rigid type for mass production & clutch for continuos stroke. »Table & Ram : It is made of high grade Cast iron properly seasoned & perfectly aligned to obtain high accuracy & precision operation.

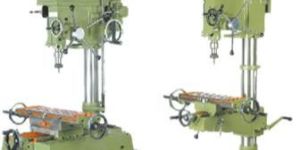

ALL PARTS FINISHED ON IMPORTED MACHINES : •Closed grain Cast Iron Column, Arm, Work Head & Gears •EN Forged Steel Main Spindle & Pinion •Alloy Steel Spindle Ram •Parts Finished on Imported Grinding M/c. All Moving parts Finished to Close Tolerance •Parts properly balanced prior assembly. Main Gear & Pulley

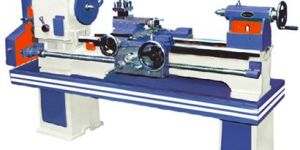

Standard Accessories : Chuck PlateChain Gear Set (Inch & mm) Carriage TrayMotor Rests with Mounting BoltsSwitch StandTool Post Key2 nos.Deadcenter 01-nos SleeveMotor Pulley

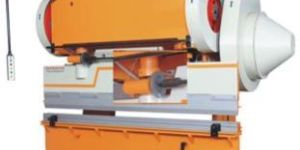

»FRAME CONSTRUCTION FOR PRESS BRAKE : •Frame Is Made of steel fabricated construction of interlocked robust design, press brake machines are constructed with safeguard against undesired deflections and breakage. The frame distributes the stresses, supporting the bed directly on the frame. •The double support shoe of frame gap provides extremely high rigidity, alignment, accuracy and keeps frames structure at right angles to the bed. »RAM & BED : •Ram and bed are straight and parallel of both the working surface under the rated load. •The bed is accurately machined and upper surface is grinded to keep the die in correct alignment. •The ram is guided and supported throughout the stroke by accurately machined guide ways.

Standard Accessories : Chuck PlateChain Gear Set (Inch & mm) Carriage TrayMotor Rests with Mounting BoltsSwitch StandTool Post Key2 nos.Deadcenter 01-nos SleeveMotor Pulley

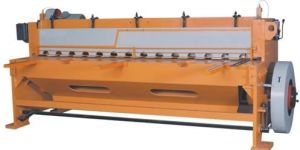

»Feature :•Moving beam Synchronized by differential cylinders.• Hardened rollers guide beam for constant blade gap.• Blade gap easily adjustable by calibrated levers.• Rake angle adjustable to suit thickness and material.• Activation from consol and movable foot switch.•Sheet clamped Hydraulically before cut starts.•Stroke length - position can be set for short jobs.•Beam returns on releasing foot switch for smaller cuts.•Cutting area illuminated for clear view of ends.

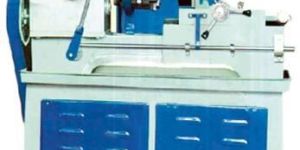

» Special Features. • The Spindle Bore 40mm Fitted with Taper Bearing. • The Machine Has Two Speeds 60 & 90 RPM. • All Gears are Tempered (Oil Seals 42-12-65) • Motor Pulley 12" Diameter, V-belt Drive Vice Fitted with Jaw. • All the Gears are made of cast hardened steel. • Noilseless Opearation

Standard Accessories : Chuck PlateChain Gear Set (Inch & mm) Carriage TrayMotor Rests with Mounting BoltsSwitch StandTool Post Key2 nos.Deadcenter 01-nos SleeveMotor Pulley

«Standard Accessories : ›Chuck Plate. ›Gear Set. ›Centre Adaptor. ›Dead Centres. ›Dial Indicator. ›Square Tool Post. ›Tool Post Key.

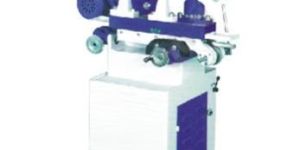

•The provision of tilling head simplifies the cutting face angle quickly and accurately. •Work head holding fixture is fully adjustable with swivel base. •An adjustable stopper limits the longitudinal table reciprocation movement. •The tool & cutter grinding machine runs at mono speed of 3600 RPM and the drive form the motor to spindle is by means of v-belt. •Almost all cylindrical side & face, involute gear, Concave as well as convex cutters. •Bevel lead angle reamers & Cutting face of tap flute can be resharpened with standard accessories. •Drill pints, tap lead & Radius grinding jobs can also be done without problem with extra accessories.

Our range of Centerless Grinding Machine is being highly preferred owing to its remarkable attributes such as longer service life, fine-finish, resistance against corrosion and performance. The offered machines are able to hold aforesaid features attributes as these are being fabricated using supreme quality required basic material and cutting-edge methodology.Product specification:Models available:Cylindrical (external)PUI-250, PUI-300, PUI-450, PUI-600PUI-800, PUI-1000, PUI-1250, PUI-1500PUI-2000 & PUI-2500Internal (bore):PUI-300, PUI-450 & PUI-600.Centerless:PUI-50 & PUI-80
