Transformers Dealers in Bhopal

• Certification: ISI Certified
• Output Type: AC Single Phase, AC Three Phase
• Feature: Four Times Stronger, Sturdy Construction
• Cooling System: Air Cooling
• Warranty: 1 year

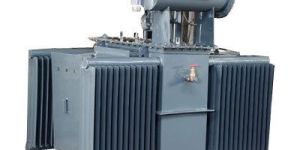

we are supplier of 3311 kv power and distribution up to 2000kva of transformer oil immersed.

• Application: Switching Use
• Feature: High Quality, Simple Usage
• Max Current: 5-10amps
• max voltage: 220-380V
• Automation Grade: Fully Automatic
• Finish: Coated

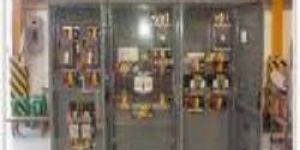

We are offering Auto - Transformer Starters.Our in house quality testing team performs various quality checks on each of our product to ensure only the most reliable and quality product reaches to our valued clients. Fully Automatic Auto Transformer Starter with adequate nos. of tapping suitable for starting of Squirrel cage Induction motors of 415Volt, 50Hz AC supply. ATS will be constructed/fabricated with 2mm thk. MS sheet steel, dust & vermin proof, dam & drip-proof, front operated, self supported, free standing type constructions. ATS will be duly spray painted with approved paint shade and accommodate all switch-gear items required to meet the technical requirements as per attached Annexure-Bill of Materials of ATS.

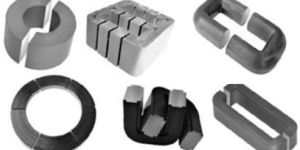

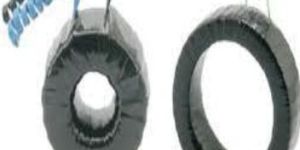

We are considered as one of the leading Manufacturers, Suppliers, and Exporters of Toroidal Core Transformer. Our Toroidal Transformer Core is fabricated under the guidance of experts to ensure its premium quality and dimensional accuracy. We conduct a special process with high degree of precision to manufacture Toroidal Transformer Core to meet the diverse needs of Reactors, Chokes and so on. Manufacturing process The manufacturing of strips wound cores is a specialized process, which requires a high degree of precision. These cores are manufactured from selected coils of crgo electrical steel to yield closely controlled electro-magnetic characteristics and dimensional accuracy. Cores are wound after slitting is done as per the required shape, on the core winding machine. The winding machine automatically stops when the pre-decided dimension is reached. The start and finish ends are firmly spot welded. After winding, the cores are stress-relief annealed to restore the magnetic properties. The cores are bonded where necessary, to provide increased firmness. All cores are spray painted or varnished (as required by customers) and are tested for magnetic properties. Testing Strip wound cores, unlike strip lamination, constitute a complete product and every core must meet the specified performance requirement. Consequently, quality control in the manufacturing of wound cores is vitally important at every stage of process. Dimensional tolerances The coils of crgo steel from which the cores are manufactured are carefully selected on the basis of tests carried in our laboratories to ensure that the correct grade of steel is used. Strict checks are made at every stage from winding to the final stage of spray painting & varnishing to ensure that the finished product is of a high quality. Moreover, each core is subject to inspection and electrical tests at BSP to make certain that our customers are provided with the specified performance requirement. Apart from being fully equipped to meet the exacting standards of testing required, BSP possesses the technical knowhow, the research facilities and the necessary raw-materials. Inside Diameter (d)Outside Diameter (d)Height (h)OverUptoTol.OverUptoTol.OverUptoTol.30100+ 1.230100+ 1.50150+ 1.0-0100150+ 1.5100200+ 2.0150200+1.2-0150200+ 2.0200400+ 3.0200500+2.0-0200400+ 3.0400800+ 4.0500+3.0-0400700+ 4.0------ Characteristic It is toroidal and wounded in the same direction of closed flux path, no magnetic leakage, so its magnetic performance is best of all. The coil winding is easy and high efficiency with toroidal winding machine. Application Used in 50 Hz and 400 Hz transformers Current transformers Reactors Chokes Magnetic components of electronic equipments

• Country of Origin: India
• Brand Name: Tesla Transformers Global
• Material: Copper
• Packaging Type: Wooden Box
• Usage: Outdoor, Industrial, Commercial, Electricity Distribution

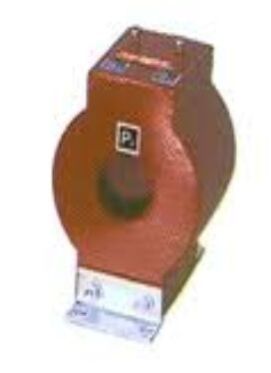

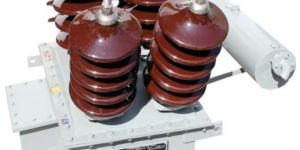

We are a distinguished Manufacturer and Supplier of 33 KV Current Transformer based in Madhya Pradesh. Available in customized specifications, our Current Transformer is indoor and outdoor oil-cooled current transformer. These transformers are widely applauded for their high quality, reliability and durability. Ensuring optimum performance, our Current Transformer is suitable for metering and protection applications. 1 A and 5 A are the mostly used secondary rated currents in our transformers. Customers can purchase from us quality Current Transformer at the best market prices. Three type of designs available : Live Tank type : This design is a single bushing design which is high on performance. In this top tank of current transformer is at high potential and Core- Coil assembly is placed in the top tank of the transformer. Dead Tank type : This design is double bushing design and most commonly used, reliable and easy to handle and has lesser leakage points. Dead Tank Top-Bottom Design : This design is single bushing design, it comprises of top tank and bottom tank but unlike Live tank the core-coil assembly is placed at the bottom tank, This design is more stable as bottom tank is heavier than the top. For resin casted Indoor type CT’s we have 3 designs : Slot CT/ Window CT : This type of Current transformer does not have primary winding and is mounted in line with the bus bars (bolted on both sides). The bar type CT is fully insulated to the switchgear voltage. A window type CT has the incoming or outgoing insulated / shielded cables pulled through it. The high voltage shielded cables are pulled through the hole or ``window`` in the middle of the CT. Bar type CT : This type of current transformer consists of a bar of suitable size and material forming a integral part of the transformer. Wound Type CT : In This type of This type of CTs have a primary winding of more than one full turn wound over the core of Current transformers. The magnitude of the secondary current is dependent on the turns ratio of the transformer.

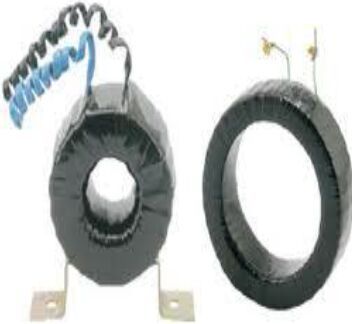

With our expertise in this domain, we bring forth high quality crgo toroidal cores. The crgo toroidal cores are fabricated from cold rolled grain oriented (crgo) steel in grades m3, m4, m5, m6 and also from the superior crgo grades like hi-b m-oh, m-1h, m2h, etc. We are the foremost crgo toroidal cores manufacturers and suppliers. These crgo toroidal cores are manufactured for power & current transformers. We design these crgo toroidal cores as per the specific requirements of the clients.

Offers transformer bushing metal parts as per customers' requirement.

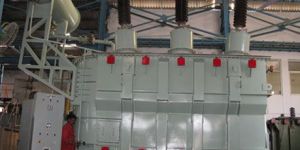

We have a strong foothold as Manufacturer, Exporter and Supplier of Power Testing Transformer from Madhya Pradesh, India. Designed according to the set national and international standards, our Power Transformers are upto 15 MVA. The Transformers are installed in power stations, transformers stations and auxiliary plants for generating stations, special transformers for industry and transport, reactors and accessories. Ours are high-performance transformers that offer reliable power supply.   Tesla Power Transformers with the following specifications can be provided : Incorporating OFF Load Tap Changer Incorporating ON Load Tap Changer

• Certification: ISI Certified
• Frequency: 60hz
• Warranty: 1 year
• Application: Industrial Use
• Output Type: AC Single Phase
• Tensile Strength: 125-150Mpa
• Feature: Sturdy Construction, Superior Finish

We are the main supplier of this product.

PRODUCT DISCRIPTION & FEATURES   Efficient Electrical Design Insulation H Class Compact and Sturdy with aesthetic Exterior Easily Maneuverable Negligible Maintenance Powder Coated Cabinet   TECHNICAL SPECIFICATIONS

• Rated Voltage: Upto 11kV
• Core Type: As per requirement
• Frequency: 50 / 60 Hz
• » Type : Outdoor Epoxy Cast
• » STC Rating: Upto 26.5KA/1sec or as per requirement
• » Primary Current: Upto 2000Amp
• » Output Accuracy: As per requirement
• » Insulation: Cycloaliphatic Resin
• » Standard: IS 2705/ IEC 60044.

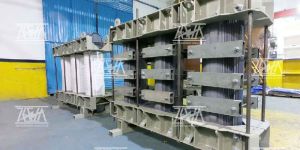

Dry type Transformers, class 'H' insulated, have insulating materials which are with high dielectric strength and are capable to withstand high temperatures. The temperatures are generally made to comply with IEC-60076/IS-2026/IS-1171. Range upto 1600 KVA and 11 KV Class.   Available versions :   Open type execution for installation in an existing panel or enclosure. Well ventilated enclosure with lip-cut louvers & baffles for outdoor installation. Non ventilated enclosure for outdoor installation. Advantages :   Use of non-biodegradable materials makes these suitable for strict environmental   conditions. No fire or explosion hazards because of use of nonflammable materials & absence of any liquid insulation. Non-requirement of oil sump makes these ideally suitable for installation near   load centers thus reducing cabling costs and improving voltage regulation.

We have carved a niche amongst the most trusted names in this business, engaged in offering comprehensive range of Off Circuit Tap Switch.

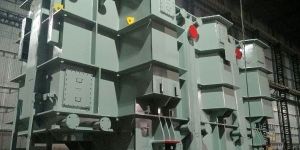

Transformer Tanks:- The range manufactured is from 650kVA to 1200MVA Transformer tanks. EMPL is closely associated will all the prestigious projects of all the transformer manufacturers. Export tanks for European markets of BHEL Bhopal, HVDC converter transformer tank are amongst the most important jobs made for BHEL. Areva T&D has trusted us with their first 400kV & 765kV jobs.   We are also first company for manufacturing Transformer tanks: India's first 500 MVA Transformer for Power Grid Corporation of India Ltd. through Crompton Greaves Limited, Mandideep. India's first 800 kVA & the largest 1Ø Transformer Tank for Crompton Greaves Ltd.

• Brand Name: Selec
• Mounting Type: Panel Mount
• Model Name/Number: PIC101A-T-230
• Display Range: 48 x 96mm
• Supply: 230V AC, +-20%

• Single phase: Input: 240V, 50/60 Hz, 1 phase Output: 0-270V, 50/60 Hz, 1 phase Current range: 1A to 600A
• Three phase: Input: 415V, 50/60 Hz, 3 phase Output: 0-470V, 50/60 Hz, 3 phase Current range: 1A to 600A
• Construction: Panel mounted / Portable enclosed

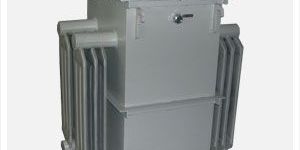

Auto Variable Transformers Reguvolt » Torrodial wound » Excellent regulation » High efficiency » Smooth & Linear output » Low magnetizing current

• Tanks: Transformer

In continuous to regular market requirement of Transformer Parts & Assemblies from our valuable clients. United Engineering Industries have further diversified for manufacturing of Transformer Tanks & accessories for Distribution & Power Transformer. We have well qualified experienced & dedicated Team for manufacturing & monitoring of Transformer Division Projects. Our Range of Manufacturing for Transformer Tanks & accessories is 3.15 to 500 MVA.

Insulation H ClassCompact and Sturdy with aesthetic ExteriorEasily ManeuverableNegligible MaintenancePowder Coated Cabinet

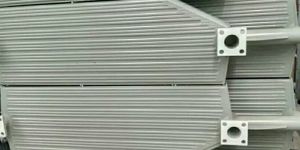

• Fins/Tubes Material: CRCA
• Maximum Number Of Fins: 35 fins
• Centre Length: 3500 mm
• Width: 520 mm
• Finishing: Coated

• Features: The dimension and weight values above are presented for reference purpose only, The specifications are subject to change without advanced notice, For-3-phase - R-Core Transformers Dimensions on reques

transformer oil cooler, Self Cleaning Strainer, Finned Tube, Heat Exchanger

Auto Transformer Starter, which works in Delta formation, directs online and is used for initial high torque applications. With the help of Auto Transformer Starter, the motor is started at low voltage, in DOL formation, with the help of contactors and auto transformer at 60% /70% / 80%. We make Auto Transformer Starter available in desired specifications, so as to provide clients with maximum satisfaction. Highlights Low maintenanceHighly efficientDurableEasy installation

Custom Transformer, Distribution Transformers, Dry Type Transformers

Low Tension Transformer, High Frequency Transformer, dc transformer

Transformer Accessories

Transformer Bobbins, sheet metal transformer spare parts

armature stamping for traction motor tm-165, and various locomotive engine motor stampings, TAO659, we manufacturer & supply according to customer demands.

Transformer Tanks, Fabrication Services, Hydraulic Equipment
