Red Phase Engineers Daria, Chandigarh

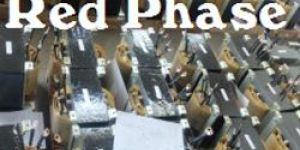

RED PHASE voltage stabilizers come with an experience of 10 years and are renowned for their high quality, reliability and durability AUTOMATIC VOLTAGE STABILIZER RED PHASE Automatic voltage stabilizer controls and transforms the excessively low or high voltage into the safe operating range, thus protecting electronic equipments like refrigerators, air conditioners, washing machines, bottle coolers, research and laboratory equipments etc. against excessive voltage variation. SALIENT FEATURES It has all solid state electronics circuit which provides reliability, durability and servicing and it operates at all power factors. Minimum energy losses and less heating is another feature of this heavy duty transformer. Selection switch provides the facility of input and output voltage reading. It is sleek, attractive and comes with special stoving paint finish.

Weight : 1-2kg

Voltage : 220V

Frequency : 50hz, 60hz

Power : 10-15kw

Warrenty : 2years

Automation Grade : Automatic

Feature : Auto Cut, Shocked Proof, Stable Performance, Works In Low Voltage

Did you know that most AC power lines are superimposed & dangerous spikes, surges, transients, sags, RFI noise and harmonics? This is due to Inductive and SMPS loads, electronic ballasts, PWM switching systems, or even improper earthing. Such electrical noise often damages costly Hi-Tech machinery, unduly interrupt factory operations and increase down time resulting in increased expenses. The lack of adequate protection in such environments results in the steady rise of failure rate in such equipments. Isolated power supply has therefore become a necessity in order to prevent such breakdown time and costs. Ultimate Protection against Electrical Noises RED PHASE Ultra Isolation Transformer is the most powerful solution to help eliminate all types of noise, particularly Common Mode Noise, Spikes, Surges and Transient Noise, which act as silent killers inside factories and commercial parks alike. The RED PHASE series offers transformers with various levels of noise attenuating capabilities, including the most commonly used 100 and 120 dB, and other custom requirements can also be met. Designed for Energy Efficiency & Reliable Performance RED PHASE transformers are built to meet the stringent requirements of the most sophisticated equipment being used today, resulting in a clean and noise-free power supply. Each RED PHASE is intelligently designed using advanced technologies and proven engineering principles to provide reliable performance and energy efficiency year after year. Furthermore, by completely isolating primary and secondary sides as well as the neutral to ground bond on the secondary side, RED PHASE creates a separately derived power source to combat current loops. KEY FEATURES Total Protection Shields electronic equipments that produce different types of electrical noise, typically CNC Machines, Drives, Hardening machines and Telecommunication equipment Energy Efficient Reduces operating costs due to high efficiency design and high quality of magnetics Noise Elimination Prevents damage due to circulating noise interference within electronic equipments

Phase : Double Phase

‘RED PHASE’ series of Servo voltage stabilizers offer a reliable and tested economic solution to inconveniences caused by voltage fluctuation. To use ‘RED PHASE’ SCVR is a real investment because the elimination of the inconveniences means a reduction in costs and an increase in productivity. Very often it is only necessary to avoid a few minutes machine downtime or just one failure to repay the cost of the stabilizers. ‘RED PHASE’ SCVRs are particularly suitable for applications that require: Silent Feature High reliability Capability to compensate wide mains voltage variations High precision of stabilized voltage Stabilizing of high power services Simple and limited maintenance Networking ‘RED PHASE’ SVS regulate through a series transformer. A micro based control circuit drives the variable autotransformer that supplies the required voltage to the series transformer either in phase or phase opposition to bring the mains to the rated value. Unbalanced Load models that, having three separate control circuits, individually regulate each phase and are therefore suitable for unbalanced lines and load unbalance between phases up to 100% phase opposition to bring the mains to the value.

Voltage : 220V

Output Type : AC Single Phase

Frequency : 50hz, 60hz

Automatic Grade : Automatic

Feature : Auto Cut, Shocked Proof, Works In Low Voltage

Warrenty : 2years

Produce Power : 10-15kw

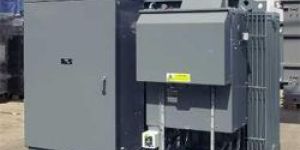

Based on our RED PHASE technical expertise we are able to supply Compact Type Substation is compartmentalized with suitable medium voltage, low voltage sections & transformer section with separate doors for each compartment. Our Packaged Sub-Stations are tested as per latest IEC standard 62271-202. These Packaged Sub-Stations are designed & manufactured as per the tailored requirement of the customer. Variety of HV/ LV Switchgear /VCB can be chosen & the CSS is designed accordingly. They are also designed to withstand electrical impulses, thermal and dynamic stresses. They are fully compartmentalized, thus safe to use & require minimum maintenance. One of the biggest advanctage of using a PSS is that there’s no need to use abling thus being more economical as well as safer than using bulky non-aesthtic cables.

Red Phase Control Panels are well equipped with high-tech machineries, qualified personnel having expertise in control panel design, panels manufacturing and development, project planning, testing & commissioning of all types of electrical panels. Introduction A Electrical distribution Panel board is a component of an electricity supply system which divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit in a common enclosure. Our Wide Range of Distribution Panels:– 1. Outdoor Feeder Panel Low-voltage feeder pillars form a basic part of most public and many private distribution networks. Feeder pillars are connected to the distribution board. These pillars are usually made of strong and weather proof materials like Galvanized sheet steel, stainless steel. Feeder pillars are mainly used in electrical installations. 2. Distribution Panel with Power Factor Controller Automatic Power Factor Control Panel to achieve unity/near unity power factor. The power factor controller of our APFC Panels monitors the reactive power which intern helps in saving energy. 3. AMF Control Panels AMF panel are designed to provide emergency power during a mains supply failure. During operation, the control panel of the AMF monitors the mains entering the building. If a mains failure occurs, the panel will disconnect the mains from the load, the generator is started and its output connected to the load (which is the appliances, lights, etc in use within the factory/office/house at the time of mains failure). The generator continues to supply the building until the mains supply returns. The generator then automatically disconnects, stops and the mains is re-connected to the load.The AMF panel reverts to the standby mode ready to respond in the event of another mains failure. With the generator in ‘Auto’ mode, the incoming main is monitored continuously. If the mains voltage falls outside the preset limits, a ‘mains failure’ has occurred and the process of starting the generator set is initiated. 4. Synchronization Control Panel Synchronizing panel will operate on an automatic mains failure system, so that when the main supply is interrupted on one or all phases (after an adjustable delay period) the generator sets will start-up together. After an initial warm-up period (adjustable) the generators will synchronize with each other by means of motorized circuit breakers or contactors onto a common busbar. Next, the motorized change-over switch will be closed and the load will be connected to the main distribution box. 5. Automation Panels. Low-voltage feeder pillars form a basic part of most public and many private distribution networks. Feeder pillars are connected to the distribution board. These pillars are usually made of strong and weather proof materials like Galvanized sheet steel, stainless steel. Feeder pillars are mainly used in electrical installations.

Frequency : 50hz, 60hz

Tensile Strength : 0-25Mpa

Feature : Easy To Install, Four Times Stronger, Proper Working, Superior Finish

Phase : AC Single Phase

Temperature : High Temperature

Warrenty : 2yrs

Automation Grade : Automatic

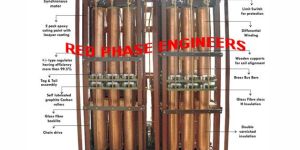

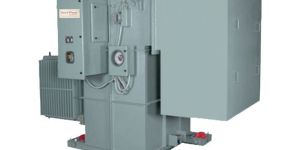

The Technology concept of Differential wound linear regulator with Series Transformer in RED PHASE’S make Automatic Voltage Controller. We are manufacturing Industrial type Automatic Voltage Regulators (Stabilizers/Rectifiers) using the differential wound Vertical Roller Type Regulators. Manufacturing LINEAR TYPE +/- Heavy Duty Regulators with rollers rolling on both the sides of the coil (as illustrated in the brochure enclosed). The size of conductor used is more than THREE TIMES than used in conventional design regulators. Being + type, the same winding is used for boosting the voltage on one side and bucking the voltage on the other side of the regulator. So, the rating of the regulator required is half of the conventional design regulator. The losses of differential wound linear regulator should be 1/18th of the conventional type regulator and due to heavy section of copper used in our regulator, overall size is more and practically the losses of our regulator are 1/5th of the conventional type regulator. The manufacturing material cost of differential wound linear regulator is almost more than THREE TIMES the cost of conventional design Regulator. As per the Regulator design, the regulator is technically OUT OF CIRCUIT, When the input voltage is LOWEST/HIGHEST as per the voltage range of the stabilizer while in stabilizer with conventional brush type regulators, the regulator is maximum in the circuit and losses are maximum at LOWEST/HIGHEST as per the range of the stabilizer. The Actual Efficiency of our stabilizer in running conditions at 100% Load for the (360-460 V) model will be 99.5% in comparison to less than approx. 95-96% of conventional type stabilizer for the Automatic Voltage Controller of similar rating.

Voltage : 220V

Application : Stabilization

Output Type : AC Single Phase

Power : 10-15kw

Warrenty : 2years

Feature : Auto Cut, Easy Operate, Stable Performance, Works In Low Voltage

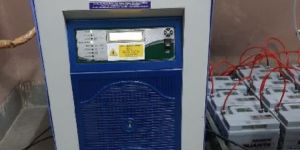

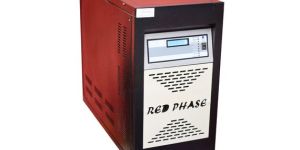

The RP Series includes the 1 KVA to 200 KVA (1 Phase, 3 Phase) double conversion On-Line UPS with an isolation transformer at Output. The Load is supplied continuously by the inverter with clean, stabilized and regulated sine wave output power. Input & Output filters increase the immunity of load from power disturbances and surges. RP Series is useful for mission critical applications like IT, Call Centres, Hospitals, and Industrial Automation etc. Thanks to state-of-the-art microprocessor / DSP based outstanding advanced technology design. RP Series is supplied with software which can be used for monitoring various parameters of the UPS and also can be useful for remote monitoring / control on the web by adding SNMP Card. SALIENT FEATURES Fully Programmable Rectifier, Inverter, Batteries, Static Switch & Dynamic Behavior. Jumper Selectable O / P Frequency 50 Hz, 60 Hz or 400 Hz Isolation Transformer for Better Performance Latest Microprocessor / DSP Technology 24 MIPS Highest Speed for Better Control Advanced Battery Management Isolated Output Upto 7 Units in Parallel Sixth Generation Low exhaust IGBT GUIDED. PC Testing for Easy Installation Single Control Card for Higher MTBF 100 % Unbalanced Load Acceptable ECO Mode Static & Manual Bypass Isolation Transformer User Friendly Touching Screen Display Communication Solutions A wide range of common communication options are available with UPS that ensure your command and control over the installed UPS system wherever they are located worldwide.

Frequency : 50Hz, 60Hz

Driven Type : Electric

Feature : Easy To Install, Four Times Stronger, Proper Working, Sturdy Construction

Phase : Double Phase

Production Power : 0-3kw

Temperature Capacity : Low Temperature

Frequency : 0-50Hz

Tensile Strength : 0-25Mpa, 100-125Mpa

Feature : Easy To Install, Four Times Stronger, Sturdy Construction

Current Type : Single Phase

Warrenty : 2yrs

Automation Grade : Automatic

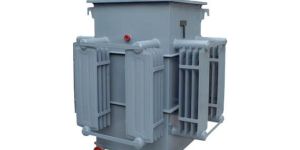

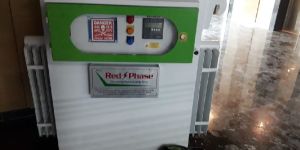

Red Phase brings you the finest products designed and engineered by the people who have been in the same field for the last 30 years. Rectifier is an economical and most efficient method of obtaining DC from AC supply. Red Phase manufactures a wide range of rectifiers covering 0-500 Volts and upto 15000 Amps. capacity suitable for Electroplating, Anodising, Hydrogenation and many other Electrochemical processes. The entire manufacturing process is under one roof ensuring 100% quality control at every stage of production. We believe in quality & customers satisfaction. Starting Circuitry Red Phase’s Rectifiers are designed for 3 phase 50 Hz AC input supply and are available for operations at any voltage between 380 and 440 volts, covering a wide range of voltage fluctuations. It is recommended that the input to the rectifier should be connected through a proper protective device, to provide positive protection to personnel and the system, in the event of maintaining or in case a fault occurs. DC Output Control The function of the variable output controls is to control the voltage or current or its operating range by varying input voltage to the main transformer primary. The DC output voltage variation is achieved steplessly 0-100% by means of an ON LOAD roller type Red Phase’s make voltage regulator. Salient Feature  Red Phase’s rectifier equipments are wound with electrolytic Prime grade italics to minimise power losses, in comparison to Aluminium italic conductor used by many other manufactures. Our equipments are designed liberally as per capacity and are ideally suitable for marginal over loading conductions. We use verticle Rolling contact type voltage regulator wound with heavy section of copper strips suitable for 100% continuous duty cycle for industrial applications, in comparison to conventional wire wound Regulators used by other manufacturers. The carbon rollers move on both sides of the winding.   DIODE : Silicon diodes are tested in house, similar PIV batch and same forward drop diodes are used in the equipment for equal load sharing and reducing the power losses of diodes.  LAMINATION CORE : We use imported CRGO Lamination core which have minimum power losses and results in better efficiency of equipment and saving in energy bill PAINTS : Epoxy paint is used which is resistant to acidic environment of plating process and enhance the life of the equipment by preventing it from corrosion. METER : We use reputed make AE/RISHAB make DC meters only which are very accurate and durable. CONSTANT VOLTAGE CONTROLLER (CVC) (OPTIONAL) : We offer CVC Electronic attachment with rectifier equipments, which will maintain constant Output Voltage or Current as per setting automatically-irrespective of input voltage variation.   SERVICING : RED PHASE’S have maintained enviable reputation in market in after sales services. This fact can be varified from any of our customers.

Application : Electronics Use

Input Voltage : 220V

Frequency : 50 Hz, 60Hz

Power : 2-4kw

Phase : Double Phase

Warranty : 2years

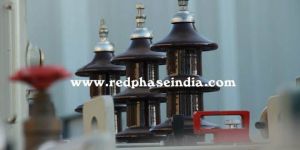

The demand of electricity in India has been increasing rapidly in the last few years. There is a mushroom growth in the high rise buildings, shopping areas, CNG and petrol stations, residential colonies, etc. Due to the scarcity of space in cities, installation of conventional oil type transformers in such congested and populated areas is always a big safety risk. The developed as well as many developing countries are installing dry type transformers as a solution for ensuring safety in such scenarios. Types of Dry Type Transformers There are primarily two main manufacturing techniques for dry type transformers; Cast Resin and Vacuum Pressure Impregnated (VPI) with their own typical features. The main difference is their insulation class; Cast Resin is Class F (155°C) and VPI is Class H (180°C). The Vacuum Pressure Impregnated transformers not only offers in-build safety feature but there are many other advantages of using these transformers such as improved reliability, reduced losses, minimal maintenance, enhanced overloading capability etc. RED PHASE’s Initiative for Technology Transfer Considering these advantages of dry type transformers, Pak Elektron Limited (RED PHASE) took the initiative and went into a Technology Transfer Agreement in March 2007 with DuPont India Limited (DPOL) for Designing and Manufacturing of Vacuum Pressure Impregnated dry transformers with Nomex® paper. RED PHASE is now pleased to announce that RED PHASE will be the first local company in the production of dry type transformers in India. Advantages of Dry Type Transformers with VPI Technology using NOMEX Enhanced Safety With the increasing costs of low voltage cables, it has become a trend to bring high voltage lines close to installed loads. For cost reasons, transformers are located near habitable areas such as buildings where fire risk has to be minimized. Additionally, industries such as chemical, mining, etc. are also a potential risk of fire. Ventilated Dry type transformers (VDT) have no fluids to spill, explode or burn, and the insulation used (NOMEX®) does not support combustion in air. Therefore, these transformers ensure enhanced safety of equipment against fire hazards.

Frequency : 0-50Hz

Tensile Strength : 0-5Mpa

Feature : Easy To Install, Four Times Stronger, Water Proof

Production Power : 3-6kw

at red phase, we maintain the highest levels of customer satisfaction by offering effective customer specific a products at uncompromising quality levels. We offer a widest range of power & distribution transformers that is appreciated all over the world for its strict quality measures and testing standards in all respect. our transformers are designed and developed using latest technologies and can be provided with a variety of terminations so as to suit the requirements for new installation or replacement. Optimum efficiency is ensured by delicate proportioning of core and winding losses using crgo m3 to ms moh lamination, electrolyte grade 99.9% pure copper, with transposition in l.v. Coil for current sharing in parallel conductors, electric grade press paper, board and mineral oil. Also, these have cooling systems with on load and off load tap changing facility. Thus better regulation is achieved resulting in higher efficiency and longer life. the power & distribution transformers offered by red phase find extensive usage in multiple sectors like state electricity boards and housing complexes. Our transformers are available in different ratings and voltages according to the requirements of the client.

Frequency : 60 Hz

Voltage : 220V

Application : Stabilization

Output Type : AC Single Phase

Power : 10-15kw, 20-25kw, 25-50kw

Cooling System : Air Cooling

Automation Grade : Automatic

Feature : Auto Cut, Shocked Proof, Works In Low Voltage

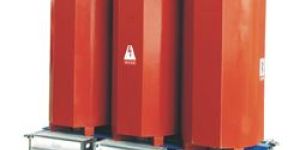

In view of the requirement of Indian Industry, we have introduced RED PHASE Cast Resin (Dry Type) Transformers. This introduction supplements our existing product viz. Vacuum Resin Impregnated Dry Type Transformers. Dry Type Transformers of both the above varieties are in use. The Company has Resin Impregnated Dry type Transformers up to 5 MVA, 11 KV Classand Cast Resin Dry type Transformers up to 2.5 MVA, 11 KV Class In view of the requirement of Indian Industry, we have introduced RED PHASE Cast Resin (Dry Type) Transformers. This introduction will supplement our existing product viz. Vacuum Resin Impregnated Dry Type Transformers. Dry Type Transformers of both the above varieties are in use in the Indian Industry. They manufacture Cast resin Power and Distribution Transformers, Converter Transformers, Transformers with On Load Tap Changers (OLTC), Motor – starting Transformers, Testing Transformers, etc. Their specialty is to make special transformers to meet customers’ requirements.

Type : Cast Resin Transformer

Finishing : Polished

Phase : Three Phase

Warranty : 2 Yrs
