Active Harmonic Filter Dealers in Chennai

• Brand Name: InPhase
• Place of Origin: Bangalore

IPC150-AHF Series is an IGBT Based instantaneous voltage source converter. This IGBT Based system mitigates the Har-monics by generating Anti-Harmonics into the system and there by cancelling the Harmonics present in the system. IPC150-AHF Series can not only compensate Harmonics but also for reactive power and unbalanced current loads (Negative Se-quence). This makes it a highly efficient Power Quality Equipment. part from harmonics compensation, the InPhase IPC150 offers two more important function in power quality one is fast dynamic reactive power compensation both for Inductive and Capacitive mode to maintain the desired Power Factor to meet the Grid guide lines and get the maximum benefit for the Users. Another important function is to reduce the Load unbalance, which mainly causes due two phase connected loads. PC150-AHF active filters provide a very economical and most reliable solution to this problem by continuously correcting the current harmonics in real time by injecting equal magnitude and opposite phase harmonic currents in the network to get a clean and sine wave current from the supply network. Active Harmonic Filters are the most complete solution to solve those quality problems caused, in either industrial or commercial facilities, not only by harmonics but also for current unbalance and reactive power consumption.

Unicorn offers one stop solution for HT Consumers towards Harmonics Compensation. This help the HT-1 and HT- III consumers to limit their harmonics dumping within CEA limits and get rid of compensation charges from Utility supplier.With other harmonic mitigation solutions, expensive and time-consuming site data collection, power quality surveys and computer generated studies are usually needed. Most harmonic filters are designed to accommodate just one or a few harmonic orders. The Active Harmonic Filter corrects a full range of harmonic order, and will not create a resonance condition with other existing equipment, so only minimal up-front analysis is required. This product can be Easily and conveniently added in parallel with other active filters, to accommodate future facility expansions or equipment additions. Virtually no time is lost for installation, supporting the important uptime operation of your facility.The rating (size) of this Active Harmonic Filter is based on nonlinear load requirements (corrective current), not both linear and nonlinear, like traditional filter equipment. That means that you can install this product at a reduced ampere rating, which will lower initial capital costs.Active harmonic filters use power electronics to monitor the nonlinear load and dynamically correct every harmonic order from the 3rd to 31st. Additionally this product has been performance tested to the 51st harmonic order, and will operate in a resonance condition, maintaining consistent, maximum performance. By injecting a compensating current into the load, the sine wave is restored, and distortion is dramatically reduced to less than 5% THD. Product Highlights:     Injects equal and opposite Harmonic currents from 3rd – 31st     Response Time upto 300 micro Secs     25 – 200A ratings 3 and 4 wire     Voltage ratings 208 – 480 – 50/60Hz     Straightforward installation as retro-fit with minimal down time     Reduces THD to less than 5% to meet stringent IEEE 519, CEA and G5/4 Standards Solutions Methodology:       Our Harmonics Compensation Solution comprise a methodology that comprise the following steps:     Harmonics Audit & Assessment     Product Identification and Customisation     Supply     I & C of Harmonic Filters

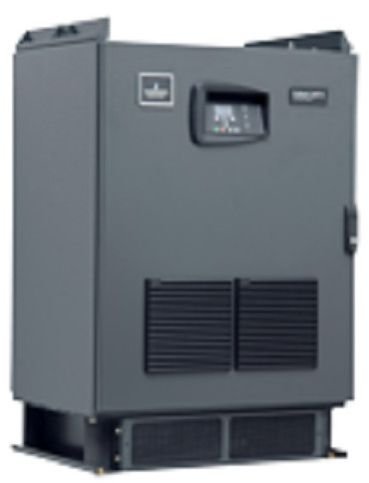

We are authorized dealer for EMERSON Make Products of Active filter & Online UPS.We are also manufacturing, Sales & service of Power Conditioning Products of Servo Controlled Voltage Stabilizer, Isolation Transformer, Online UPS & APFC Panel.We are providing solution for harmonics for your Industries or Machines. We will do site study, making reports and provide solutions for harmonics using Active Filters and Detuned APFC Panels. Features of Harmonic Filter: Synchronous Rotating Reference Frame principle 32 bit, DSP control PF compensation, leading as well as lagging Load Balancing Employees high speed IGBTs in power circuit Internal CAN Communication Closed loop active filter with source current sensing High attenuation up to 96 % of individual harmonics Programmable selective harmonic elimination Required PF can be set from 0.7 to unity Selection between PF and harmonic compensation Remote monitoring and diagnosis Self current limiting, under overloading condition Automatic current limit modification with respect to ambient temperature Alarm log with date and time stamp for fault diagnosis. User friendly PC Interface CE Marking APPLICATIONS: Textile Industries Printing Industries. Processing Industries. Pharmaceutical Industries. Auto mobiles Industries. Information Technology Hospitals. Film Industries. Food Processing industries. Hostels. Engineering Plant. LT & HT Industries Electrical installations.

• Features: Sturdy construction, High operational fluency, Low maintenance

Closed loop active filter with source current sensing, Programmable selective harmonic elimination, Aram long with date and time stamp for fault diagnosis.

ELITE offers Active harmonic filters. Active harmonic Filter is a state of the art harmonic filter and the preferred choice of customers across variety of industries to solve their harmonic problems to avoid penalties and to improve performance of their electrical system. In cases where the preventive action presented above is insufficient, it is necessary to equip the installation with filtering systems. Operating Principle These systems, comprising power electronics and installed in series or parallel with the non-linear load, compensate the harmonic current or voltage drawn by the load. Parallel-connected active harmonic conditioner (AHC) compensating the harmonic current (Ihar = -Iact). The AHC injects in opposite phase the harmonics drawn by the non-linear load, such that the line current Is remains sinusoidal.   Commercial installations with a set of non-linear loads representing less than 500 KVA (variable-speed drives, UPSs, office equipment, etc.) Installations where current distortion must be reduced to avoid overloads.

Compliance with prescribed harmonic limits – No penalty, Unity Power Factor – higher savings, Reduced energy (kVAh) charges – higher savings, Reduced peak demand charges – higher savings, Reduced fuel consumption in generators – higher savings, Ultra fast compensation – effective with fast fluctuating load, Optimum capacity utilization of electrical infrastructure, Optimum capacity utilization of backup generators.

With other harmonic mitigation solutions, expensive and time-consuming site data collection, power quality surveys and computer generated studies are usually needed. Most harmonic filters are designed to accommodate just one or a few harmonic orders. The Active Harmonic Filter corrects a full range of harmonic order, and will not create a resonance condition with other existing equipment, so only minimal up-front analysis is required. This product can be Easily and conveniently added in parallel with other active filters, to accommodate future facility expansions or equipment additions. Virtually no time is lost for installation, supporting the important uptime operation of your facility.

An active harmonic filter is something like a boost regulator. The concept used in an active filter is the introduction of current components using power electronics to remove the harmonic distortions produced by the non-linear load. Active harmonic filters are mostly used for low-voltage networks.There are three types of active harmonic filters based on the way they are connected to the AC distribution network.     The series filter is connected in series with the AC distribution network. It serves to   offset harmonic distortions caused by the load as well as that present in the AC system.   The parallel filter is connected in parallel with the AC distribution network. Parallel filters   are also known as shunt filters and offset the harmonic distortions caused by the non-linear load.   The hybrid filter is a combination of an active and a passive filter and could be of a series   or a parallel configuration.   Apart from the above classification, active harmonic filters can be either 3-wire or 4-wire filters. 3-WIRE FILTERS: Are power units that are large and typically used in variable speed drives and other such applications, which have a large number of non-linear loads.4-WIRE FILTERS: Are those that can filter the neutral conductor of the triple-n harmonics. These filters are used to eliminate harmonics that are generated by switch-mode power supplies and Information Technology equipment, typically commercial applications.

IORA 3000 Active Harmonic Filter is a state of the art harmonic filter and the preferred choice of customers across variety of industries to solve their harmonic problems to avoid penalties and to improve performance of their electrical system. The IORA 3000 systems are rated from 30A to 600 Amps (largest single system rating globally) and is also available with Neutral compensation and for different levels of low voltage power systems.

Active Harmonic Filter, amway products, plc drive, hvac panel

Active Harmonic Filter, Aluminium AC Filter Capacitors

Active Harmonic Filter, Okaya SMF Battery, sealed lead batteries

Active Harmonic Filter, Temperature Controller, Electronic Card

Active Harmonic Filter, Solar Inverter Duty Transformer

ABB Active Harmonic Filters, Radial Fan, power management
