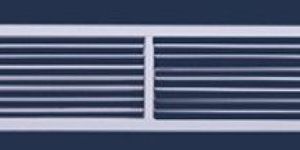

Product Description The grille consists of single deflection horizontal blades, Frame and face bars are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity. Horizontal face bars with 0, 15 – 1 way throw and 15, – 2 way throw are fixed rigidly to the frame with 8-mm pipes. Grilles are fixed rigidly with opposed blade  damper by grippers. This ensures positive control over the air stream. Damper blades can be screw operated from the face opening. For perfect unbroken appearance of continuous runs, alignment strips are provided with no additional cost. Foam gasket is sealed around the back of the frame as option to avoid air leakage. Supplied with C clamps for concealed fixing. Model ARLG is available without dampers.

Product Description Double deflection Grilles are generally used in walls for supply / return HVAC applications . The Grille frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity. Grilles have two sets of parallel aerofoil blades with one set mounted vertically on the front and other set horizontally at the rear. Frame is separated from the aerofoil deflection blades by nylon bushings. This method of assembly ensures quiet, smooth and rattle free operation. Deflection blades can be adjusted manually and individually, to provide air deflection in both horizontal and vertical planes. Grilles are rigidly fixed with opposed blade damper by grippers. Damper blade is screw operated from the face opening. Foam gasket is sealed around the back of the frame as option to avoid air leakage. Natural anodized aluminium finish. Powder coated color finish as per RAL color codes. Flexibility of finishing is available as option. Other Models in double deflection grilles/registers ASR-V – same as ASR-H , with vertical front blades and horizontal back blades. ASG-H – same as ASR-H , without damper. (Double deflection grille – can be used for return air application) ASG-V – same as ASG-H , with vertical front blades, without damper (Double deflection grille- can be used for return air application)
