All India Hoses & Polymers George Town, Chennai, Tamil Nadu

Construction : Valve Seal is provided with double construction of 100% PTFE core with spiral wrapping of PTFE tape. Application : The core fills all voids and confirms to uneven spindles and flanges while the spiral wrapping of PTFE tape prevents extrusion at both ends of the spindle. Valve Seal is chemically inert, self-lubricating and does not adhere or harden on use. It is widely recommended for use on valves in various industries for obtaining practically Zero Leakage. Can also be used in place of gasket in flanged joint.

Pressure : 200 Kg/cm2

We leverage on our wide industrial expertise in the fabrication of an exclusive range of PTFE products that are widely used in hot and cold rolling mills. These are widely appreciated for durability, quality, high performance and low maintenance and are rigorously tested as per international standards. PTFE-Teflon Rods, PTFE Teflon Sheets We manufacture high quality PTFE-Teflon rods, bushes, PTFE tubes and PTFE sheets for different requirements of our clients. Superior in quality, these products are known for their durability and performance and are available with following specifications. Bushes Specifications O.D: 32-150mm (standard) I.D: 12.5-127mm (standard) Length: 100mm (standard) upto 300mm in special cases We can also supply larger sizes on request

Our boards are manufactured from specially selected asbestos fiber and cement formed into fully compressed boards under high pressure. Mechanically strong, these boards possess good arc and heat resisting characteristics. In view of the relatively high water absorption, where these boards are used in situation in which water absorption, where these boards are used in situations in which they are liable to absorb water, reduction in electrical insulation, which may be severe, should be recognized. Composition Asbestos fiber and Portland cement. Appearance Light grey in colour with smooth sanded surface. Temperature Classification Our boards can withstand a continuos temperature upto 350 centigrade. Size of the sheets 4ft x 3.5ft A fully equipped machine shop is available for the supply of cut and drilled sheets fully machined parts to individual requirements. Available Thickness Ranges from 3mm to 75mm and can go up to 200mm for special purposes. Machineability Our boards can be easily machined by normal engineering methods provided certain, simple precautions are observed. A comprehensive technical service is available to customers seeking advise on the choice of material and its subsequent machining for customers wishing to purchase machined components to drawings or specifications, the highest standards of accuracy and quality are assured.

Service : High resistance to hot oils, fuels, hydrocarbons and refrigerants. Good steam resistance. Excellent creep resistance. Very low gas permeability. Available with wire gauze insertion. Also available with anti-stick coating or graphite coating. Identity Colour : Grey Technical Data Temperature Rating Max. Short Term Service Temperature : 450oC Max. Continuous Service Temperature : 250oC Max. Operating Temperature for Steam : 200oC Max. Operating Pressure in Bar : 150 bars

Description : This is a specialised asbestos fibre jointing sheet which is intimately bonded with an acid resisting compound to withstand the corrosive action of acids and chemicals. Services: Recommended for use against hot concentrated organic, inorganic and mineral acids including hydrochloric, sulphuric (oleum) and nitric acids, under service conditions of temperature and pressure commonly encountered in chemical industries. Identity Color : CreamLight Gray

Rubber Cork is produced from high-grade cork granules specifically selected and mixed with synthetic natural rubber binders (Neoprene, Nitrile, SBR or Natural). This combines the resilience of rubber with the natural compressibility of cork. Rubber Cork is available in various grades for many applications including automotive, electrical transformers, control gear, switch gear,etc. Every gasketing application requires material that is best suited to that particular pressure, temperature, media and or environmental factors. Rubberized Cork sheet combines the compressibility of cork with the properties of resilience as well as resistance to mechanical action of rubber. Rubber cork can be a easily bent round sharp corner without cracking. They are strong, flexible and easy to cut and can be used for gaskets even with very narrow borders. The unique cellular structure compresses under pressure and creates a reverse pressure on the restraining forces. This "fight back" is a primary requirement in any good gasket material. Elasticity is particularly important when gaskets are exposed to varying pressure and temperature over long periods of time. Rubber cork retains this elasticity for long periods of time under extreme temperature and liquid immersion conditions. Rubber cork is available in a wide range of different grades. Apart from the standard size of 610 x 915 mm and 915 x 915 mm, we are able to produce made to order sizes to minimize wastages at customers end. These can be supplied in different lengths and widths, in sheets as well as in rolls.

PVC water stops are for use in concrete joints subjected to hydrostatic pressures. After being embedded in concrete, PVC water stops fill up the joints to form a continuous watertight diaphragm that prevents the passage of fluid. The water stop must be designed and installed properly to accommodate joint expansions, contraction and lateral & transverse movements. In addition to these consideration the water stop must be compatible with the concrete system and the liquids and chemicals to be contained or controlled. We maintain the position of industry leadership by responding to the specific needs of our customer. Installation: Most popular way of the placement of the water stop seal is tied to the steel frame works or small eyelet by means of small wires, certain metal clamps made to grip the water stop seal to keep it in proper position. Applications Public utilities: bridges, Road Embankments, Concrete Roads, Tunnels, Water Tanks, Swimming Pools, Municipal hyraulic projects, Water Filteration Plants, Sewage Plants, Clarifiers, Sewage Disposal systems, Neutralisation tanks. Buildings Basements & Foundations Floor-Slabs Terraces, Concrete Runways, Retaining Walls, Overhead & Underground Water Tanks, Multistoreyed buildings.

PVC Green (medium duty) suction hose-pipe PVC Nylon braided hose-pipe PVC Reinforced Duct hose-pipe PVC (heavy duty) grey suction hose-pipe PVC water garden hose-pipe PVC Nylon braided welding hose-pipe & Super Spray hose-pipe PU Duct Hose, Silicon Hose, Neoprene Hose & TPR Hose High Pressure Power Spray Hose & Canvas Flathose with Rubber Lining for water Delivery PVC Braided (Thunder Hoses)

Construction : Diagonally braided from pure expanded flexible graphite yarn. Application : Very flexible and supple packing, excellent alternative to pre-formed graphite-rings. The benefits of this packing are low friction and excellent thermal conductivity. It can be used with steam, water, oils, alkalies, acids, solvents, paints, varnishes on pumps and valves in high temperature and high pressure environments prevailing in power plants, boiler houses, refineries, steel mills, petrochemical industries, etc.

Pressure : 200 Kg/cm2

Construction : High quality carbon fibre impregnated with graphite and an inert lubricant. Application : This packing is extremely flexible and has excellent heat dissipating properties and very low coefficient of friction. It can be used for sealing boiler feed pumps, valves, mixers, etc., in pulp & paper, chemical & pharmaceutical industries, power plants, etc.

Construction : Combination packing made of a high-grade PTFE yarn with aramid corners. Application : A non toxic and dimensionally stable packing suitable for corrosive chemicals and abrasive media. This packing is also used as an anti extrusion rings as it can withstand high pressure in rotary as well as reciprocating applications. Widely used in food and pharmaceutical industries, dairies, refineries, fertilizer plants, etc.

Pressure : 20 Kg/cm2

Our long standing reputation as a quality supplier of PTFE thread seal tape is guaranteed by UNDERWRITERS LABORATORIES INC., USA. These high density PTFE thread seal tapes are available in yellow, pink and white colours having various densities and widths as given below. Suitable for lines carrying propane, butane, natural gas, water, oil and chemicals, usable on all type of pipes & threads, and capable to withstand pressure upto 100 PSIG, and temp. of -240�° C to +260�°C. We also manufactures Super Seal, Kohinoor, Crown & Cooper brand PTFE Thread Seal tapes as per BS 4375 & MIL - T - 27730A

Width : 0.5

Thickness : 0.0030

Construction : High tensile yarn made from a special grade PTFE, impregnated with PTFE dispersion and lubricated with inert high temperature lubricant. Application : This packing has particular characteristics such as low coefficient of friction and excellent tightness, making it suitable for rotary, reciprocating and static applications. It is widely used in all type of industries where purity and safety are vital criteria, such as food processing, pharmaceutical, chemical industries, etc.

Pressure : 100 Kg/cm2

Construction : An extremely low friction extruded soft and dense packing made from a special grade of PTFE, graphite and high temperature lubricant. Application : This self-lubricating packing has excellent thermal and chemical resistance. It reduces friction to shafts and resists gas permeation. It is used in pumps, valves, stirring equipment and static applications for use with acids, dyes, solvents, adhesives and abrasive media. It is recommended to use rings of Style 62 or Style 71 on both ends.

Pressure : Kg/cm2

Construction : A high quality combination packing of Graphite bonded PTFE yarn with aramid corners. Application : This packing has good sliding properties and thermal conductivity, making it an excellent packing option for high pressure pumps with sliding velocity. Aramid yarn corners prevent gap extrusion in high pressure & high temperature applications. It is widely used in applications involving abrasive media.

Materials Products are made from CR Mild Steel, Carbon steel, alloy steel and stainless steel materials to meet as per customers requirements. Quality Standard All these years Klipco adhered and laid stress on Quality products only i.e. TQM and could build world class quality products exceeding the requirements stipulated in different Clamps specifications.Klipco is a certified Co. for TQM under ISO:9001, ISO:9002 and ISOTS:16949.Klipco Worm Drive Clamps are tested as early as 1965 and approved by National Test House. ISI mark was obtained in the year 198485. From 1966 meeting OEM requirements particularly of Automotive, Tractors, Defence, Engineering, Chemicals, Oil fields etc, and general home and export markets. CAPABILITY , SALES AND SERVICES: Klipco is now producing more than 1,80,000 Hose Clamps a day, in various sizes, designs and materials, in their four plants spread over 1,00,000 sq.ft area, with India wide network for sales and service at Delhi, Mumbai, Chennai, Kolkatta, Jamshedpur, Pune, Bangalore, Hyderabad, Indore, Lucknow, Ahmedabad, Baroda and Jabalpur & have authorised Dealers in major cities.Klipco has in house facility for Tool-room, Fabrication of special purpose machine Tools, Heat Treatment facility, plating plants with its own CAD-CAM centres.Constantly, initative is taken on R&D for technology development and up-dating the products to meet the ever changing demands of valued buyers.

Low pressure, textile braided rubber hoses mainly used for general industrial applications like water delivery, suction, steam, cement grouting, breweries, petrol pump, oil suction and discharge and chemicals etc. Indorub manufacture a wide range of industrial hoses and each type of hose is having different type of construction. For e.g.… a carbon free hose is a non - conductive (electrical) hose used as an outer protective covering for power cable in steel mills, glass works etc. Similarly, a furnace coolant asbestos covered hose is specially designed for applications where hose resistant to heat radiation open flame and splashes of hot metals is required and a rubber multi purpose water delivery hose is designed for service at all construction sites, dams, irrigation, mines, fire fighting and for gardening and domestic use etc…

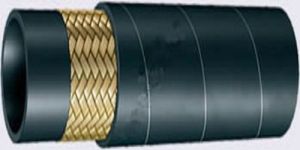

We offer a wide range of hydraulic hoses that is manufactured using quality synthetic rubber and raw material. These find their application in various industries. These hydraulic hoses are widely used in high pressure fuel lines, fuel oil, antifreeze solutions and air and water. Due to good quality and maintaining smooth pressure, these are appreciated by our customers. We also offer our range in customized sizes and length as per the customers’ specifications.

Construction : A packing with a center of hollow silicon core or solid silicon cord braided around by yarn of style 51, 62, 71, 82 & 83. Application : A specially developed packing for use on rotating equipment having excessive shaft deviation. It also reduces shaft sleeve wear. The center of silicon core cord gives it strong restoration properties, and exerts back-pressure, resulting in total sealing. This packing is suitable for pumps, reactors, mixers, agitators, etc.

This powerful diverse range of pneumatic fittings is easily fitted for a clear control system. The high quality of these products is supported by an ISO 9001 certificate and are economically priced.

Standard executions for annular corrugated S.S.Hose and *Teflon Hose The fitting are available in Mild Steel, Carbon Steel, Stainless Steel, Brass, Gun Metal, Rolled bronze. Flange connection with fixed & floating flanges to meet IS, DIN, ANSI* ASA standards or as per customer's specification.

Color : Black, Transparent
