Array Junction Box Dealers in Chennai

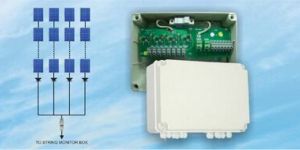

Ideal for use with all Thin film /Cd-Te type Solar panels, used to connect large numbers of low current, high voltage PV panel strings before being connected to String Monitor Box. Available in current ranging from 1 A upto 4A per string, and from 3 upto 16 strings input, the PST string combiner can be designed for wide range of solar panels used in MW range solar installation. Housed in IP65 protection, polycarbonate boxes, the PST has specially designed diode isolation and termination arrangement. Heat Management of the entire box comes with 24 years experience in Power design of semiconductor devices. Thus it will ensure long life oftheStringCombiner Box.   TECHNICAL DETAILS OF PST RANGE STRING COMBINER BOX   Ambient : -10°C upto 55°C Type of enclosure : IP65 type 100% Polycarbonate enclosure Peak Voltage : upto 1000V DC String current : 1A upto 4A Total output capacity : 20A maximum Number of strings : 3 to 16 Type of protections : 1000V DC fuse with base Optional : Fuse trip indication Terminals / Cables : 4mm2 to 16mm2 as per requirement Expected life : 25 years Top cover : Opaque/Transparent   PRODUCT RANGE FOR SOLAR APPLICATIONS   Hybrid Solar Inverter Off-Grid Solar Inverter 24V/ 48V MPPT Charge Controllers 110V/ 220V MPPT Chargers Intelligent String Monitor 24V/ 48V DC Solar-Mains-DG-Hybrid System MW Solar Inverter Solution from Answer Drives, Italy 3 Phase Bi-Directional solar Inverter

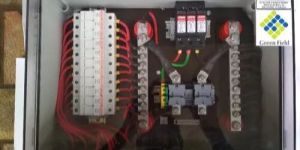

• Material: Polycarbonate
• IP Rating: IP66/67
• Brand: Green Filed

• IP 65/66 Protected: Compact & Sleek Design

We are offering solar array junction box is designed for assembly of silicon photovoltaic systems reduces assembly time and production costs for pv-panel manufacturers. Rugged and durable, ip65-sealed, dc connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. they are designed for direct connection to solar junction boxes, field installations and pv grid wiring, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications. the junction box is an enclosure that is placed on the back side of the solar panel with the main function to convert the current carrying ribbon from the panel into cable andor connectors. there are many different sizes in panel junction box to generate different amount of outputs. And thus nordic india provides 3-rail, 4- rail and a 6-rail junction box and also according to the customer needs. The 4-rail can be used on the 3-rail and the 4-rail solar panel, while the 6-rail junction box can be used on the 4-rail, 5-rail and 6-rail panel.

• Application: Solar
• Size: As per customer demand
• Voltage: 600 to 1000 V DC

• Brand: Nordic Asia
• Voltage: 500 V,1000 V
• Packaging Type: Box
• Power: 1 KW to 50 KW
• Usage/Application: Solar Inverter
• Number Of Strings: 1 to 24 V

Array Junction Boxes (AJB), also referred to as PV combiner boxes, basically collect DC power from PV strings with blocking diodes on each string for protecting panels from reverse current flow. The collected power is then transferred to power inverter.   Array Junction Box Array Junction Box is meant for combining all the incoming lines from the solar panel strings/arrays and deriving one common array output for the multiple array inputs   Main Functional Features of The Array Junction Box: To Block the reverse flow of current from the battery to solar panels during nights or low radiation levels. To obstruct the sudden surges due to lightening strokes during cloudy and rainy conditions and ground the surges immediately. Efficient String Monitoring – Optional Disconnect DC at the sources Fuses for overload protection on each string Blocking Diodes for reverse current flow protection Easy DC-termination Easy and decent Cable management Time effective as well as money effective for cabling Step by step trouble shooting methodology contemporary DC combining and disconnecting Space saving and orientation flexibility Load-break rated disconnecting Increased granularity Traditional DC combining Reliable electric safety to avoid hazard Online Monitoring* (Optional for DCDB/ACDB)

• Material: ABS
• IP Rating: IP65/66/67/68
• Brand: Daystar Solar
• Packaging Type: Box
• Power Source: Electric
• Voltage: 500 V
