Calibration Block Dealers in Chennai

TUBULAR NODES 12MM 35DEGREE UT FLAWED SPECIMENS (AS PER BINDT PCN CLASSIFICATION SPECIMENS)

2,000 Per Piece

• Finishing: Polished

tubular nodes 12mm 35ᵒ ut flawed specimens (as per bindt pcn classification specimens).dimensions: tubular nodes dihedral angle 35ᵒ main pipe segment 20” dia. 20 to 25mm wt & branch 152mm dia. and 12mm.tolerance: +/- 2mm.specimen: tubular nodes.flaws: 3 per specimen, randomly placed specimen.documentation: ndt verification reports and cad drawings and test sheets.material : carbon steel.

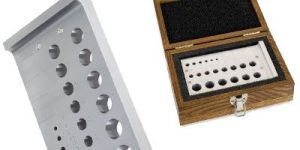

ASTM DistanceArea Amplitude Set of 10 NDT Calibration Blocks

800 Per Piece

1 Piece(s) (MOQ)

• Type: Calibration Block
• Material: Metal
• Application: NDT
• Application: Ultrasonic Testing
• Brand Name: NDE Flaw Technologies
• Place of Origin: india

Basic set of ten flat-bottom hole blocks used to determine dead zone, sensitivity, distance and area amplitude linearity measurements. In accordance with ASTM E428. Includes our NIST traceable dimensional certification report, ultrasonic inspection report and two response plots from Tactic Inc, and the certified material test report. Note that we use a 5.0 MHz quartz transducer for block characterization as required by ASTM E127, Section 11. � Dimensions: 364� at 3.000� MTD; 564� at .125�, .250�, .500�, .750�, 1.500�, 3.000� and 6.000� MTD; and 864" at 3.000" and 6.000" MTD. Block diameter is 2.0". � Made from 4340 Carbon Steel, Nickel-plated.

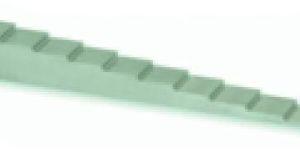

4 Step NDT Calibration Blocks

Get Price Quote

• Dimensions: 75mm x 43mm x 12.5mm.

Paut Type B Block

Get Price Quote

1 Piece (MOQ)

• Brand Name: ODAK
• Material: CARBON STEEL
• Dimension: 150 mm x 100mmx 25mm
• Length: 150 mm
• Shape: REC
• Thickness: 25 mm

DC calibration Block

3,000 Per

1 Piece (MOQ)

• Material: SS
• Color: Silver
• Country of Origin: Made in India
• Product Type: Calibration Block
• Brand Name: Vibrant
• Model Name/Number: VNSPL/DAC
• Thickness: 12.5 mm
• Diameter: 50.0 mm

Calibration Block

Get Price Quote

• Material: Steel
• Application: Industrial
• Feature: High Accuracy
• Color: Grey
• Brand Name: Radent
• Size: 12.5X43X75mm

UT Thickness Gauge Calibration Block

Get Price Quote

UT Thickness Gauge Calibration Block, Heat Treatment Control Unit
