Vibration Instruments
We make available different types of Vibration Instruments such as vibration analyzer, vibration meter and vibration data collector cum balancer. The name of our company surfaces prominently among the trusted Manufacturers, Exporters and Suppliers of Vibration Instruments from Tamil Nadu, India. The entire range of our Vibration Instruments is manufactured using high-grade components and sophisticated technology at our highly advanced manufacturing unit. Our Vibration Instruments are well-tested and therefore, are safe to use.
...more

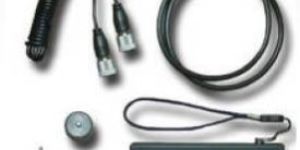

Vibration Meter. Model S908
50,000 Per 1 No.
1 Piece (MOQ)
Features: • Measuring vibration velocity, displacement and acceleration. • Small size, transducer included, battery powered, no other component required. • Optional for inner or external Accelerometer. • One button control both power and measurement. Very easy for use. • 3 1/2 LCD digital display, sampling per second. • Holding function. • Automatic power off. • Suitable for monitoring machinery vibration caused by out-of-balance, misalignment, gear damage, bearing faults and etc. Specifications: Amplitude Ranges: • Displacement 1—1999 μm (or 200 mil) peak-peak • Velocity 0.1—199.9 mm/s (or 20 in/s) true RMS • Acceleration 0.1—199.9 m/s2 (or 20 g) Peak • Overall accuracy: +5% • Temperature range: 0 - 40ºC Frequency response: • Displacement 10-500Hz • Velocity 10-1000Hz • Acceleration 10-1000Hz • 10-10000Hz (Depending on external accelerometer model) • Battery: 9V 6F22, 25 hours of continuous operation. • Pickup: Accelerometer with handheld probe and /or magnetic base • Dimension: 13X6X23 cm; Weight: 200 Gms
Country of Origin : India
Type : Vibration Meters
Shape : Rectangular
Display Type : Digital
Power Source : Battery
Warranty : 1Years
...more

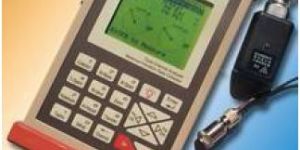

vibration analyzer
280,000 Per 1 No.
1 Piece (MOQ)
Technical Features: Easy to use data collector 2 channels simultaneous sampling & display On-site 400-lines FFT spectrum and waveform display; Transfer function analysis; Data storage: 62 1024-point time waveforms and 240 data sets Acceleration envelope demodulation for rolling bearing and gear-box diagnosis On-site spectrum comparison function Inner or external trigger selectable Full featured 1 and 2-planes field balancing (10 sets balancing data storage; balancing process clarified by vector graph; trial weight estimation; can remain or remove trial after balancing; balancing weight decomposition) Balancing report automatic generation. 907 is the same instrument but without communication port for computer nor the software capability SPECIFICATIONS: Input signal: accelerometer, and voltage Amplitude ranges & Frequency Response Displacement 0.001 – 5 mm peak-peak 10 - 500 Hz Velocity 0.1 - 200mm/s true RMS 10 - 1000 Hz Acceleration 0.1 - 250m/s2 peak 10 - 10000 Hz Envelope 0.1 - 20m/s2 true RMS 5 - 2000Hz from 15-40 KHz Voltage 0.1 - 10V peak-peak 0.5 - 10000 Hz · Amplitude spectrum analysis: 100 and 400 Lines, hanning windowed ·Frequency range of spectrum analysis: 100, 200, 500, 1K, 2K, 5K, 10KHz ·Data storage: 62 1024-point time waveforms and 270 data sets ·Notepad: 10 condition codes for visual inspection Output: RS232C for communication with PC Power: rechargeable battery for 8 hours continuous operation, low battery warning ·Operating Environment: 0～55℃, 90% humidity non-condensing ·Rotating speed measurement with laser-aimed tacho sensor, 180-24000 RPM ·Dynamic Range: 60dB with 48dB adjustable gain range ·Anti-aliasing filter: 8th order elliptic low-pass ·Dimensions: 21×13×4 cm; weight: 1.2 kg
Country of Origin : India
Type : Vibration Analyzer
Application : Vibration
Weight : 0-5kg
Condition : New
Driven Type : Battery
...more
S909Z-6 Multi-Parameter Vibration Measuring Instrument
60,000 Per 1 No.
1 Piece (MOQ)
features: multi-parameter vibration, bearing parameter (acceleration envelope) & ir temperature measuring one button control power, parameter selection, iso10816 group selection, measurement and holding. with remote switch and magnet base to avoid handheld problem to get reliable and consistent data. measuring vibration velocity, displacement & acceleration envelope to check machine/bearing health with yellow/red/green led indicator. build-in iso10816-2 & -3 groups selectable. with magnet base and remote switch. sensor included, easy to use. automatic power off. 4 digital lcd display. metal case, robust, reliable. metric(acc: m/s2, vel:mm/s, disp:micron) & english(acc:g, vel:inch/s, disp:mil) units selectable. specifications: liner accuracy at 80hz: + 5% + 2 digits measurement range & frequency response & accuracy: acceleration peak (m/s2): 1 to 100, 10~960hz, 10%; 1 to 35, 20~950hz, 5% velocity rms (mm/s): 1 to 70 / 10hz~1000hz, 10%; 1.0 to 50, 20~1000hz, 5% displacement p_p(micron):1 to 500 / 20hz~500hz , 10%; 2 to 500, 20~450hz, 5% enveloped acceleration (unit):1to25,5hz~2khz demodulated from3khz~10khz, 10% temperature (oc):-33 to 220 battery: 1/2 aa, 3.6v, 20-29ma, >100 hours of continuous operation. pickup: integrated accelerometer with extension stinger and magnet base dimensions: 110x35x17 mm; weight: 100 g (including battery).
Country of Origin : India
Type : Precision Measuring Instrument
Application : Measuring Use
Power Source : Battery
Warranty : 1year
...more
fft analyzer
150,000 Per 1 No.
1 Piece (MOQ)
FFT Analyzer is a small sized economical vibration Spectrum analyzer & data collector. It can be used for overall vibration measurement, vibration spectrum analysis & machinery condition monitoring. Measurement of high frequency acceleration envelope makes it very effective for bearing fault detection. The data can be sent to computer for database and trending analysis.Features:♦ All in 1 screen, a very easy to use spectrum analyzer♦ Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector♦ 400 line spectrum analysis, ♦ Parameter selection of Acceleration, velocity, displacement and acceleration envelope♦ Date/Time & Battery Status Display♦ True RMS measurement Specification: Parameter Measurement Range Maximum Resolution Frequency RangeDisplacement 2 mm 1 micron 10 – 500HzVelocity 200mm/s 0.1 mm/s 10 – 1000HzAcceleration 180m/s2 0.1 m/s2 10 – 2500HzEnvelope 20unit 0.1unit 5Hz-2kHz #
Country of Origin : India
Type : Fft Analyzers
Weight : 1-4 Kg
Condition : New
Display Type : Digital Display
...more

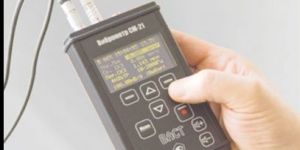

CM-21 VibroMeter
140,000 Per Piece
1 Piece (MOQ)
Vibrometer CM-21 With stethoscope, pyrometer, tachometer functions Vibration and operation parameters are the most frequently measured magnitudes for the condition monitoring applications. Multifunctional vibrometer CM-21 allows all these measurements. CM-21 is used for periodic monitoring of vibration according to ISO 10816 in all standard frequency bands. Additionally it allows measurements of additional parameters for condition monitoring in rotating machines. These are high frequency vibration levels, temperature, peak factor. CM-21 Specifications Sensors Types of sensors External: accelerometer, Tacho probe Integrated: pyrometer Vibration Magnitude Displacement, Velocity, Acceleration Detector RMS, peak, peak-peak, peak factor (true peak divided by RMS) Frequency range 0,5 - 25600 Hz Accuracy + 5% Passbands for vibration Measurements: - ISO 10816 standard 2..1000, 10..1000, 10..2000 Hz - additional 10-5000Hz 6.4 - 25 kHz, 10 - 25 kHz, 15 - 25 kHz Combined Low + High frequency band 50-300Hz + 8-10 kHz Temperature Range from -40 C up to +350 C Accuracy +/ - 4 C Stethoscope Volume Adjustable in 9 steps Audio output Vibration signal Headphones 3.5 mm jack connector (advanced kit) Rotation speed RPM range 60 40000 rpm Accuracy + 1% Tacho probe range Up to 200 mm General Display 128X64OLED, can work at freezing temperatures Keypad membrane, tactile effect Data exchange USB Data storage More than 10000 measurements Route hierarchy Machine, Measurement point, Direction Environmental protection IP65 Working temperatures - 20 up to +70 C Weight 300 gramms. Dimensions 126 80 24 mm excluding external sensors. pocket size Working time from batteries 10 hours (1750 mAh battery) Battery type Internal Li-Ion 1750 mAh Charging time 2 hours mains supply charger, 8 hours from USB port
Country of Origin : Russia
Type : Vibration Meters
Display Type : Digital
Warranty : 1Years
Brand Name : CM-21
...more

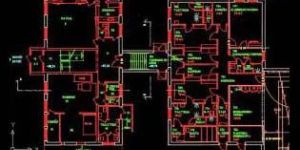

Cad Services
If you searching for a company that provides comprehensive CAD Services in Tamil Nadu? If yes, you are free to contact us anytime. We provide a full range of CAD services that include conversion, 2D drafting, 3D modeling, piping and Sketch up. Our goal is to ensure each client receives the highest possible level of satisfaction while availing our CAD Services. With highly skilled staff members available, representing a range of expertise, we can provide exceptional service no matter the complexity or size of your project. Each member of our team is well trained to use state of the art technology including up-to-date workstations and software, all protected by top tier security systems.
...more
On Site Balancing Services
All your requirements regarding diagnosis and troubleshooting of machine will get answered here. Based in Tamil Nadu, we offer a complete range of On Site Balancing Services to diagnosis, troubleshoot and correct machine condition regularly as well as annual maintenance contract [AMC]. Under AMC, we carry out condition Monitoring Job on different kinds of equipments and submit a detailed report along with recommendation. The On site balancing Services that we offer provide a practically efficient method for test facilities, assembly and plant maintenance to balance complete rotor assembly in position, avoiding disassembly of equipments, cost of transport, labor and down-time. We follow Standard-IS 11724, ISO 2372, BS 4675, VDE 2056 Specifications while providing On Site Balancing Services. We provide On Site Balancing Services for various applications such ID/FD Centrifugal Basket assembly Cooling Tower Fan, assembly Turbine Alternators etc.
...more
Architectural Services
Are you on the lookout for a perfect destination from where you can get comprehensive Architectural Services? If your answer is in affirmative, feel free to contact us anytime. Based in Tamil Nadu, we have been working in this industry for a number of years and have helped thousands of clients. We provide Architectural Services like Floor Plans, Elevations, Landscaping, 3D Modeling, rendering and walk through with qualified engineers and designers. Some of our main Architectural Services are listed below : 2D Drafting Services : Our Architectural CAD Outsourcing service from India includes 2D Auto CAD Drawing, Designing, Drafting & Conversion, 3D CAD Modeling & Rendering etc. 3D Modeling Services : 3D-Ace provides custom 3D modeling services, including 3D Modeling, Animation & Visual Effects. With us you get unmatched 3D content ready for any use.
...more
