Control Equipments Kodambakkam, Chennai, Tamil Nadu

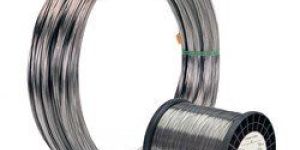

We have a modern warehousing unit, we are the distributors and supplier of wide array of all Kanthal Wires. This Kanthal A1 Wires & Strips is manufactured using optimum quality raw material and advanced technology . we can customize the entire range in various sizes and shapes. Our offered range has gained exceptional value among all our clients for its defined features.   Features:   Precisely designed Accurate dimensions High tensile strength

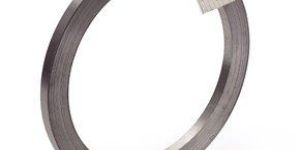

Resistance heating strip for furnace heating elements and other heat-generating applications. The strip is normally delivered in cold-rolled condition with ground surface. Our wide range of resistance heating alloys in strip form makes it possible to select the most appropriate grade and size for each respective application, resulting in optimum end-product performance. The consistent resistivity from delivery to delivery facilitates trouble-free production.   Size range Thickness: 0.10-4 mm (0.00394-0.157 inch) Width: 4-200 mm (0.157-7.874 inch) Other sizes can be delivered on request.

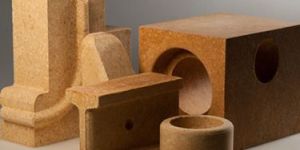

Product description:   We are renowned exporter and supplier of finest quality Furnace Bricks. Our offered bricks provided accurate size and give the accurate frame work to your construction and the single shapes allows excessive savings on cement and mortaring during construction. These bricks are processed utilizing superior quality ceramic and other allied material with the latest technology. Clients can avail these bricks from us at the most affordable rates.   Features:   Heat resistant properties Crack resistance Ruggedness

Ceramic Rope _ Ceramic Rope is a compression packing for very high temperature duties. It is manufactured from an exceptionally stable fibre material that is soft, non-irritating, non-hazardous .   SERVICE CAPABILITIES - STATIC AND SLOW ROTARY DUTIES ONLY Maximum temperature (constant): +1000°C Maximum temperature (intermittent): +1100°C Minimum working temperature: -50°C

Ceramic Papers are manufactured from high purity refractory fibers and designed for high temperature insulation. Advanced production techniques ensure uniform fiber distribution and close control of thickness and density. Papers are being produced from Alumina silicate fibres with minimum addition of carefully selected Bonds, which burn out cleanly in service. Type : Bulk Refractory fibre Classification temperature STD Paper : 1260 ° C AZS Paper : 1400 ° C   Applications • Insulating gaskets • Expansion joints • Die cut gaskets for domestic appliances • Gaskets , seals & parting media • Ladle lining back up • Mould liners • Parting media • Heat loss reduction in sub entry nozzle • Thermal barrier for vehicles (Silencers, catalytic exhaust and heat shields)   Main Properties   Physical Properties STD Paper STD Paper Classification temperature0C 1260 0C 1400 0C Chemical composition (%) Al2O3 > 42 > 32 SiO2 < 56 < 52 ZrO2 - < 19.5 Loss on ignition % < 10 < 10 Density (Nominal) kg/m3 150 150 Tensile strength (Kgf/m2) 9000 9000 Linear shrinkage % - 24 hrs (Max) 2.0 (At 11000C) 2.0 (At 12000C)

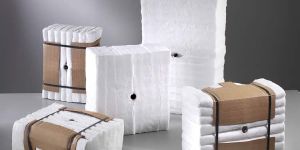

Ceramic fiber module has excellent refractory, energy saving and insulating effects, and low heat storage. Ceramic fiber module can be directly fixed on the shell of the industrial furnace; installation is fast and easy. Ceramic fiber module improves the refractory and insulating integrity of furnaces and improves furnace construction process. KT Refractories has 2300F, 2600F, and different sizes of ceramic fiber module in stock. Our ceramic fiber modules are made from high-quality spun fiber blanket, then folded and compressed to certain dimensions.

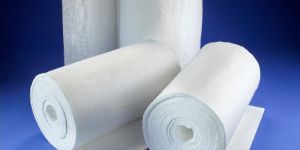

The Ceramic family of lightweight needled blankets are manufactured from refractory ceramic fibres and provide effective solutions to a variety of thermal management problems. blanket products offer superior insulating performance, excellent chemical resistance, flexibility and resilience. Blanket products are completely inorganic and so retain their strength, flexibility and thermal properties in many working environments, without the generation of smoke or fumes. Available in a wide range of density and thickness combinations, Ceramic blanket range is one of the most versatile available in the market today.

High integrity construction suited to arduous operating conditions at temperatures from -200ºC to +1400ºC (dependent on sheath material and thermocouple type) Custom built to your specification and terminated in a weatherproof 316 Stainless Steel, screw top terminal head with the tube entry and cable entry at a right angle to each other, with a ceramic terminal block. Suitable for simplex and duplex assemblies. Supplied with a 20mm x 1.5mm ISO metal pinch gland on the cable entry for cables from 6mm to 14mm diameter
