Application Air supply or air return in between 2.6 meters to 4.0 meters high is Armstrong Tech Zone ceiling systems to give superior performance and asthetics in Airconditioning,Ventilating and Heating systems. Mounting Directly replacing the Armstrong Tech zone ceiling tile. Features • Cosmic make Tech zone diffusers are made of high quality extruded aluminium with powder coated to standard RAL colours. Pattern control designed for easy adjustment of horizontal and vertical throws. • Cosmic make Tech zone linear slot diffusers are available in 2 slot and 3 slot configuration to suit the Tegular ceilings ( 8mm drop towards the floor) or flush armstrong ceilings. The direction of discharge can be adopted on site to the required room conditions. • Cosmic make Tech zone slotted diffusers are available in two opening sizes 19mm and 25mm with or without hit and miss dampers also with standard or non-standard size plenum boxes. Sizes Cosmic make Tech zone diffusers are available in normal grid size: 600mm, 1200mm, 1800mm long and continuous run without breaking the uniformity of the slots and also available in non — standard sizes. STANDARD FINISHES: Natural Aluminium, Anodized or power coated in standard RAL white

Application Air supply or air return between 2.6 mtrs and 4.0 mtrs high in Air-conditioning, Ventilating and Heating systems. Mounting Overlapped in false ceiling by means of hidden fixing systems or by means of visible screws on the flanges. . Implementation Extruded aluminium construction. Ideally designed for ceiling installation. High diffusion rates leading to rapid temperature and velocity equalization. Effcient and draft free horizontal air flow pattern. Frame with flat frontal face of 30 mm and 45 degree angled center blades assembly made of aluminium. Available in one way or two way , all standard and non-standard sizes. STANDARD FINISHES: Available in Natural Aluminium, Anodized or Powder coated in standard RAL white colours

Application Air supply into large spaces like Airports, Cinema theatres, Shopping malls and in high roofing industries. They are specially designed to achieve a long throw in Air-conditioning, Ventilating and Heating systems. Mounting Overlapped in the false ceiling by means of hidden fixing systems or revetted on to visible ducts according to the requirements. Implementation External ring with a flat circular and spherical inner nozzle manually adjustable to any desired angle within ± 40°. Using the mechanical principle of ball and socket joint made of aluminium and available in the sizes of Ø 75, Ø 100, Ø 200, Ø300 Et Ø400mm respectively with or without collar dampers. STANDARD FINISHES Available in Natural Aluminium, Anodized or Powder coated in standard RAL white colours.

Noise control in air conditioning systems is in many cases just as the critical as the environmental conditioning itself. Sound is transmitted through the ducts systems by the fans and also generated by some of the duct mounting elements and accessories. Sound attenuators are designed for attenuation of fan noise in ventilation and air conditioning systems. A sound attenuator is a multi variable system, it consists of an arrangement of duct mounted absorbent splitters arranged with air flow passages between them. Attenuation is achieved by reflection, impedence and absorption type. The absorption type attenuators are dependent upon • Attenuator Width • Attenuator Height • Attenuator length • Thickness of attenuation splitter • Distance between the splitter (or) air way gap • Number of attenuation splitter Sound other then the wanted signal in room acoustics, the irreducible noise level measured in the absence of any building occupants is called Back Ground Noise. For the transmission or radiation of noise from some part of the duct systems to an occupied space or passing through the fan casing is called break out noise. 1.Sound Power Level 2.Sound Pressure 3.Frequency HZ 4.Noise Criteria(NC Curves) 5.Decibel 6.Octave Band

Application Air supply or air return in Air-conditioning, Ventilating and Heating systems. Mounting Overlapped in sidewall or in false ceiling by means of hidden fixing systems. Implementation Extruded aluminium construction. Frames with flat frontal face of 20 mm or 30 mm and individually adjustable blades to regulate the throw of air in the pitch of 20 mm gap. Available in front horizontal back side vertical bars, both side adjustable louvers. Front horizontal with fixed bars and rear vertical with adjustable blades also available. For single deflection grille blades available horizontally or vertically in front side only. All standard or non standard sizes, with or without collar dampers can be made. Standard Finishes Natural Aluminium, Anodized or Powder coated in standard RAL white colours.

Application Sand trap lovers are designed to be used as a primary filter for fresh air intakes in areas where air born sand or dust are prevalent of air handling units, Roof top fresh air units and fresh air intakes industrial pollutions. It has a high degree of separation of sand and dust particles even incase of high dust concentrations. Vertically arranged blades and drain holes for sand or dust drainages ensure that the sand trop louver is self cleaning and maintenance free. Mounting Fixing by predrilled face fixing holes or rear mounted concealed fixing with legs. Material Consutruction Outer Casing: 1.2mm thick 30mm flaged, High quality aluminium outer frames on all sides as a standard or higher thickness can be used for larger sizes. Inner Blades : Vertically mounted fixed core. Channel 1.2mm thick x 75mm or 1.2mm x 100mm Sizes accordingly to suit the required sizes of the louver. Implementation Tow rows of vertically arranged channels sections to form a form for the air path. Base frame on the outer casing has drain holes for the sand ensuring the louvers is self clearing and maintenance free. Models Available Cosmic make sand trap louvers are available in the following models 1. Sand trap louvers with bird screen 2. Sand trap louvers with filter provision 3. Sand trap louver with volume control dampers. STANDARD FINISHES Available with powder coated in standard RAL White colors or without powder coating.

Application Suitable to control the air volume in Air distribution ducts in Air conditioning, ventilating and Heating systems. Ensures duct systems air balancing. Mounting Mounted in the branches of air distribution Round ducts by means of bolts or by hidden fixing systems Implementation Frame and blade both are Galvanised steel sheet. Frame joints made by welding or by Ducting mulcut method. Two grooves are formed on both the ends for hidden fixing systems. Blade and frame connected by bushes and spindles. With the handle for manual operation Air volume adjusted by a lockable quadrant with status indicator, indicating open or closed position. For motorized operation extended spindle will be provided to fix the motor. Available with actuator or without actuators. AVAILABLE SIZES Available in minimum for 100x100 mm to maximum any standard or Non Standard sizes STANDARD FINISH Galvanised steel with Aluminium paints and available in high quality aluminium.

Application Air supply or air return to different heights from 2.6 mtrs to 4.0 mtrs in Air-conditioning,Ventilating and Heating systems. High air handling capacity. Useful in modular ceiling application, where a ceiling tile can be replaced by a round diffuser of any neck size. Mounting Overlapped in false ceiling by means of hidden fixing systems or revetted onto a visible circular duct as well as directly on the plenum boxes. Implementation Constructed in high grade aluminium. External frame with flat frontal face and angled internal cores. Removable center core assembly can be removed easily for concealed fixing purpose and also for operating the damper by means of screws. For air supply butterfly damper can be revetted on the back side of the diffusers. STANDARD FINISHES: Available in Natural Aluminium, Anodized or Powder coated in standard RAL white colours.

Application For low pressure relief applications from 5 to 75 pascals in air-conditioning, ventilating systems. Used for room pressure control or a basic non-return valves Mounting Mounted on unit mouths and ducts or on the valves by using bolt and nut systems. Frames are constructed in galvanized steel and blades in galvanized and also in high grade aluminium sheets. Frames are either flanged for surface or in channel frame for sleeve. Blades are connected by means of screws or rods with the frame. Available in outwards airflow or in inwards airflow types. STANDARD FINISHES Galvanized steel finish or aluminium with or without powder coated.

Application Plaque diffuser designs ensure true omni directional air flow as well as quiet, unobtrusive operation. It gives a clean look for your commercial air distribution projects. Mounting Overlapped in false ceiling by means of hidden fixing systems or replacing a false ceiling tile. Implementation Extruded aluminium construction 360° air distribution offers indirect and high volume air deliverly while providing the clean asthetics prefered by the occupants, external frame with at 33mm frontal face and inclined in internal core, centre core assembly fully conseald and removeable type to remove easily for cleaning consealed fixing and damper operation purpose. Available in all standard or non standard sizes. STANDARD FINISHES: Available in natural aluminium, anodireed or powder coated in standard RAC white colours.

Application Air supply between 2.6mtrs and 4.0 mtrs high or air return according to model in Air-conditioning, Ventilating and Heating systems. Suitable for clean rooms in Pharmaceuticals and Hospitals where laminar flow pattern is envisaged. Mounting Overlapped in false ceiling by means of hidden fixing systems or replacing a false ceiling tile. Implementation High quality aluminium sheet construction. External frame with flat frontal face of 30 mm and internal uniformly punched sheet. Can be available in fixed type or removable type. The perforated panel is removable to ensure easy access for cleaning of filters and air balancing. In all standard or non-standard sizes can be done as per your requirements available with or without collar dampers. STANDARD FINISHES: Available in Natural Aluminium, Anodized or Powder coated in standard RAL white colours

Application Air supply or air return in Air-Conditioning , Ventilating and heating systems Mounting Overlapped in sidewall or in false ceiling by means of hidden fixing systems as well as for continous grilles fixing by means of concelead bridge type fixing Implementation Extruded aluminium constructoin. Frames with flat frontal face 16mm, 20mm, 25mm or 30mm and inner blades of 0, 15, 30, 45 degree deflections. Avaliable with or without end flanges as well as of standard or non-standard sizes. Optional mittered corners available The models available in linear fixed bar Grilles are one way type/two way type, Curved Grilles and removable core Grilles Standard Finishes Natural Aluminum, Anodized or powder coated in standard RAL white colours

Application Air supply or air return between 2.6mtrs and 4.0 mtrs high in Air-conditioning, Ventilating and Heating systems. Mounting Overlapped in false ceiling by means of hidden fixing systems. They all keep the formation of continuous line diffusers with active and inactive areas without breaking the uniformity of the slots. Implementation Frames and blades are high quality extruded aluminium profiles. Frame with flat frontal face and vanes in linear layout. Hit and miss dampers available for control the air throw. Available from 1 slot to 10 slots diffuser or more on request. All standard or non-standard sizes are available. STANDARD FINISHES: Natural Aluminium, Anodized or Powder coated in standard RAL white colours.

Application Air supply into large spaces like airports, large halls, ware houses, shopping malls, cinema theatres, concert halls, museums etc., Cosmic jet nozzles are special in so far as they can achieved a long throw in Air — Conditioning, Ventilating and Heating Systems Mounting Overlapped in false ceiling by means of hidden fixing system or directly revetted on to a visible circular duct and also in rectangular ducts by means of multi nozzles frames . Implementation External ring with a curved profile and spherical inner nozzle using the mechanical principle of eye ball (ball and socket principle) engineered to swivel 360°. Made of high quality aluminium STANDARD FINISHES Available in Natural Aluminium, Anodised or powder coated in standard RAL white colours

Application Jet Diffusers are to be used for very high ceilings like Airports, Cinema theatres, Shopping malls, Exhibition halls and high roofing industries. For ceiling mounting supply of large quantities of air or side wall installation with very long throws. High air handling capacity with low noise level. Mounting Fixing by means of visible metal screws on flanges in sidethrow or to be fixed directly with plenum boxes. Implementation Frame and inner rings are made of high quality aluminium . Jet diffusers are mounted in aluminium square plate covered by flanged border. Di ffusers can be adjustable 30° upwards or downwards to achieve required throw as per site conditions. STANDARD FINISHES Available in Natural Aluminium, Anodized or Powder coated in standard RAL white colours.

Application High performance circular swirl diffusers are designed especially for spaces with a height of more than 3.6 mtrs high with varying heat loads. Can be suitable for use in industrial and comfort conditioning environments, such as airport, theatres, auditorium, stadium and factories etc. Due to the rotary swirling motion of the air discharge. Induction of room air occurs very quickly. Mounting Fixed directly with plenum boxes by means of screws or directly with the round ducts. Material of Construction and Advantages • Cosmic Make High Performance Circular Swirl Diffuser with blades are constructed of spun aluminium sheet. • Suitable for both horizontal and vertical throws in HVAC Systems. • Rapid swirl discharge gives longer throw distance and high air handling capacity. • Large dynamic and high induction suitable for cooling at very low temperature. Available sizes The standard available sizes are 315 mm Dia, 500 mm Dia, 400 mm Dia, 630 mm Dia and 800 mm Dia. Standard Finishes Available in standard RAL White Colour, other shades also available on request.

Application Air expelling in Air conditioning, Ventilating and Heating systems Mounting Overlapped in the wall by means of visible screws. Implementation Frame with flat frontal face of 30 mm and inner leaves of aluminium sheets connected by means of metal screws with the frame. Recommended along with exhaust fan installation louvers to open when fan is in operation at duct branches. Designed to prevent rain penetration. Standard or non-standard sizes also available. STANDARD FINISHES Available in Natural Aluminium, Anodized or Powder coated in standard RAL white colours.

Application Suitable to control the air volume in ducts in air conditioning. Ventilation and heating systems. Ensures duct system air balancing and also suitable to use in Air handling units, where high air velocities and pressures are ncountered. Mounting Mounting in the branches of air distribution ducts and mouth of the air handling units by means of bolt and nuts. Construction Details Frames: High quality galvanized steel frame with standard flange size of 30mm having standard depth of 150mm or as per the client's requirement depth and flange sizes. Blades: High quality galvanized steel 'V' grooved blades having 150mm height or as per client requested height blades. Linkage Details: Standard 3mm thick x 20mm Electro Plated Linkages Spindles and bearings: Outer Ø 14.5 mm / Inner Ø 9.3mm Electro plated EN-1A bush bearings and Ø 9.2mm x63mm long electro plated spindle rods or brass bushes as per client's requests. Locking Quadrants: for manual operated VCD's Heavy gauge galvanized steel handle position indictor with locking screws. Motorized volume control dampers are supplied with high quality knurling electro plated shaft and motor fixing bed provisions to mount the actuator. VCD's will be supplied with suitable torque / model actuators as per client request Implementation Frame with flat frontal face and inner 'V grooved multi blades assembly. Frames are welded and inner blades are connected to the frame by means of spindle rods and bushes. Bushes are available in brass / bronze. All blades are connected by a suitable flat link arrangement with handle to operate the dampers in opposed blades type operation with status indicator lockable screws indicating open or closed position. Available in manual control or motorized control operations, as well as in standard or Non-Standard sizes also available. For motorized operation extended spindle rod will be provided to fix the motor. Actuators available with various torque capacities to meet the large size requirements

Application Suitable to control the air volume in oval ducts in air conditioning. Ventilating and heating systems. Ensures duct system air balancing. Mounting Mounting in the branches of air distribution oval duct by means of Screws. Construction Details Frames: High quality galvanized steel frame as per the client's requirement depth. Blades: High quality galvanized steel 'V grooved blades as per client requested height blades Linkage Details: Standard 3mm thick x 20mm Electro Plated Linkages Spindles and bearings: Outer 0 14.5 mm / Inner 0 9.3mm Electro plated EN-1A bush bearings and 09.2mm x63mm long electro plated spindle rods or brass bushes as per client's requests. Locking Quadrants: for manual operated VCD's Heavy gauge galvanized steel handle position indictor with locking screws. Motorized volume control dampers are supplied with high quality knurling electro plated shaft and motor fixing bed provisions to mount the actuator. VCD's will be supplied with suitable torque / model actuators as per client request Implementation Galvanized Steel oval shape outer casing as per the standard oval sizes or as per the template given, 'V Grooved blades assembly. Welded outer casing and inner blades are connected to the frame by means of spindle rods and bushes. Blades connected by a suitable link and handle to operate the damper with status indicator lockable screws indicating open or closed position. Available in manual or Motorized Control Operations. Available in standard or Non- Standard sizes. For motorized operations extended spindle rod will be provided to fix the motor. Actuators are available with various torque capacities to meet the large size requirements. AVAILABLE SIZES Available in Any standard or Non Standard sizes

Application Air supply or air return in under floor Air-conditioning, Ventilating and Heating systems. Suitable for any application under heavy foot or equipments traffic is experienced. Especially in computer server area and telecommunication centres. Mounting Replacing a tile in heavy duty raised access floors or directly in an opening made in the ground Implementation Extruded aluminium construction. Frames with flat frontal face of 30mm special reinforced aluminium and inner blades of 0°, 15°, 30°, or 45° deflections. To withstand heavy load, Electro plated 12mm square fixed on the frames of the floor grille frame. Available in oneway, twoway, threeway or fourway types, with or without four quadrants type individually operated collar dampers, Standard Finishes Natural Aluminium, Anodized or Powder coated in standard RAL white colours

Air Flow Volume in M3/hr Cosmic Flex is used for Low / Medium / High pressure air conditioning and ventilating systems in all Commercial, Industrials, Hospitals, Hotels, Shopping Malls, Software Companies and Office Buildings. Cosmic Flex ducts are Class I air duct manufactured by the Australian Technology and made of Aluminium laminated Double film permanently bonded to a coated spring tough steel wire helix. The Outer Jacket is made of double laminated film which acts as a vapour barrier as well. This range has been developed to minimize the heat loss or heat gain resulting from temperature differential between the air flow and the surrounding ambient air Cosmic flex ducts are extremely durable, Strong and will maintain dimensional stability in fully extended position and also a fire resistant with flexibility of being compressed to 10% of its extended length.

Application Air supply or air return between 2.6mtrs and 4.0 mtrs high in Air-conditioning, Ventilating and Heating systems Mounting Directly to the plenum box by means of hidden fixing systems or replace the false ceiling tile. Implementation High quality aluminium sheet construction. Ensure a swift reductions in temperature and flow velocity by means of swirling discharge and the addition of induction air, excellent performance that eliminates drafts and stratification. Rapid entrainment and intermixing capabilities. Aluminium square sheet uniformly punched in a radial layout. Standard outer size of 595 x 595 available with the inner sizes of 21" dia STANDARD FINISHES: Available in Natural Aluminium, Anodized or Powder coated in standard RAL white colours.

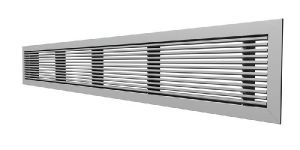

The models available in linear fixed bar Grilles are one way typetwo way type, Curved Grilles and removable core Grilles, Extruded aluminium constructoin. Frames with flat frontal face 16mm, 20mm, 25mm or 30mm and inner blades of 0, 15, 30, 45 degree deflections. Avaliable with or without end flanges as well as of standard or non-standard sizes.

Fire damper without sleeve model are fixed for duct mounting and the extended sleeve fire dampers are suitable for wall mounting by means of bolts and nuts.Available in three model as follows fire dampers with shutting mechanism by thermal fusible link, Motorized fire dampers with spring return Actuator, Control panels and motorized fire damper with extended sleeve type especially for mounted on the walls. In this sleeve model the damper actuators and optional accessories are normally externally mounted on one side of the dampers sleeve, these items are kept on the right side of the sleeve normally.
