Digital Energy Meter Dealers in Chennai

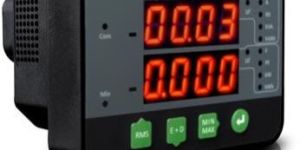

The New Generation KRYKARD Load Managers change the way energy is measured and managed on electrical panels. With increasing non-linear loads, meters with conventional measurement technology offer inaccurate measurements resulting in limited energy management benefits. The New PLM Cube Series offers guaranteed accuracy even on non-linear loads that enable you to take accurate & best possible energy management decisions. The wide spectrum of panel meter models comprehensively meets all the measurement & monitoring needs of industry, thereby providing you with an unbeatable combination of performance & range.

• Type: Energy Meter
• Warranty: 1Year
• Country of Origin: India
• Size: 96x96
• Mouniting: Panel
• Accuracy: Class 1 / Class 0.5
• System: Three Phase 4 wire / 3 wire

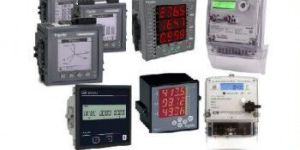

Digital Energy Meter, LCD/LED Display,  Parameter: kWh /VAh , kW, Rh, Single / Three Phase, CT/PT Programmable, Accuracy Class 1 /0.5, Aux Supply: 100 -240VAC/DC, Communication RS485

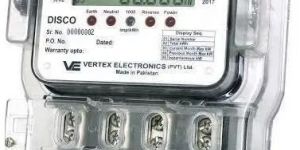

• Type: Digital
• Phase: Single
• Model Number: VTX-12
• Brand: Vertex Electronics
• Relative Humidity: Up to 95 %
• Starting Current: Less than 40mA
• Reference Frequency: 50Hz
• Operating Voltage: 240 Volts
• Accuracy Class: 1

• Display Type: Digital Only
• Weight: Unpacked 300 gms, Packed 400 gms
• Sensing/Measurement: True RMS, 1 Sec update time

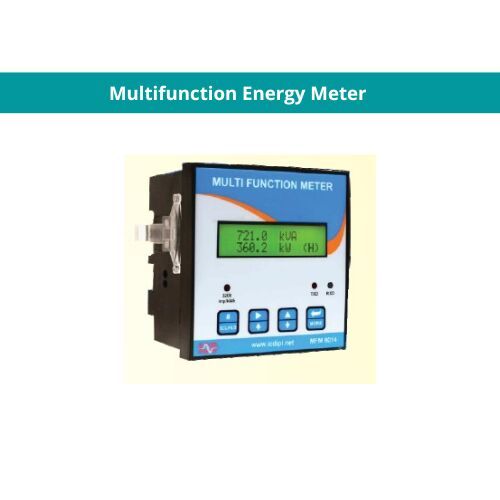

• Phase: Three Phase
• Input Voltage: Programmable 110-415V LL Nominal (Range 80 to 550V LL) upto 999 kV
• Aux Supply (Control Power): 80 - 300V AC, 40-70Hz (40V-300V DC Optional), Burden 4VA Max
• Overload: 10A max continous, 50A max for 3 sec
• Accuracy Class: Class 1 (Default) IEC 61036, CBIP 88, Class 0.5 (Option)
• Display: 4 digits display with 10mm height
• Baud Rate: 2400 bps to 19200 bps(Preferred 9600 bps)
• Isolation: 2000 volts AC isolation for 1 min between communication and circuits
• Communication: RS485 serial channel connection, Modbus RTU protocol(RS232 optional)
