Double Deflection Grille Dealers in Chennai

Application Air supply or air return in Air-conditioning, Ventilating and Heating systems. Mounting Overlapped in sidewall or in false ceiling by means of hidden fixing systems. Implementation Extruded aluminium construction. Frames with flat frontal face of 20 mm or 30 mm and individually adjustable blades to regulate the throw of air in the pitch of 20 mm gap. Available in front horizontal back side vertical bars, both side adjustable louvers. Front horizontal with fixed bars and rear vertical with adjustable blades also available. For single deflection grille blades available horizontally or vertically in front side only. All standard or non standard sizes, with or without collar dampers can be made. Standard Finishes Natural Aluminium, Anodized or Powder coated in standard RAL white colours.

Manufactured in high quality aluminium extrusion profiles.  Grilles are suitable for duct ceiling, and side wall application.  Horizontal and vertical deflection blades are adjustable by manually.  Designed with nylon bushes for efficient and smooth operation.  With or without opposite blade damper. Standard Finish: Natural anodized & Powder coated.

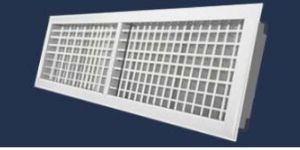

Product Description Double deflection Grilles are generally used in walls for supply / return HVAC applications . The Grille frame and blades are of high quality extruded aluminium profiled construction with the advantages of corrosion resistance and rigidity. Grilles have two sets of parallel aerofoil blades with one set mounted vertically on the front and other set horizontally at the rear. Frame is separated from the aerofoil deflection blades by nylon bushings. This method of assembly ensures quiet, smooth and rattle free operation. Deflection blades can be adjusted manually and individually, to provide air deflection in both horizontal and vertical planes. Grilles are rigidly fixed with opposed blade damper by grippers. Damper blade is screw operated from the face opening. Foam gasket is sealed around the back of the frame as option to avoid air leakage. Natural anodized aluminium finish. Powder coated color finish as per RAL color codes. Flexibility of finishing is available as option. Other Models in double deflection grilles/registers ASR-V – same as ASR-H , with vertical front blades and horizontal back blades. ASG-H – same as ASR-H , without damper. (Double deflection grille – can be used for return air application) ASG-V – same as ASG-H , with vertical front blades, without damper (Double deflection grille- can be used for return air application)
