Farm Implements (india) Pvt. Ltd. Nungambakkam, Chennai, Tamil Nadu

Wood chipper range includes machines able to reduce the volume of large masses of green or dry material, including logs and branches with diameters that vary fraom 10 to 25 cm, without excluding any other residues of pruning, scrubs, brambles and anything else resulting from maintenance of the woodland, avenues,parks, gardens and cemeteries. The machines can be built to operate in staitc conditions, or enabled for attachment to the 3-point hitch to be towed by a tractor or mounted on a trailer for road transport (at low or high speed). Functioning The special features that distinguish this chipping machines is the large size of the feeding hopper of the material to be chipped, which are followed by two notched rollers which, with independent hydraulic activation, take the material to the cutting flywheel onto which the knives are attached. Long experience has allowed to structure this flywheel in a way to assure the best cutting effectiveness through time, without requiring particular maintenance interventions. A "no stress" electronic protection device automatically adjusts the feed flow of the material to be chipped, in relation to the power available, according to the force of the amount of material being chipped. This device lengthens the machine's life. The chipped material is then expelled using the unloading conveyor, equipped with movable deflector that allows to direct the flow to the ground or towards a container (eg. transport vehicle container). Driving These chipping machines-backing the customer's requirements can be driven by tractor power-take-off (G), an autonomous Disel (M), or electric (E) motor. The range These Pz series chipping machines distinguish themsilves for their capacity to reduce large volumes of green or dry material in very short times.

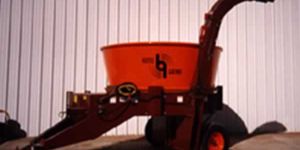

MULTIPLE USES Hay and Staw, Ear Corn, Small Grains: Shelled Corn, Milo, Wheat & Barley, Cardboard & Paper, Wood Chips & Bark, Silaged Bales. The TUB GRINDER has no belt, chain or gear box drives to wear out. This simplicity of design allows the TUB GRINDER to be sold at such a low price. The most astonishing feature of the TUB GRINDER is its lower horsepower requirements and smoother operation. The rotor cuts across the tub floor from the outside to the center and much of the grinding is done in the tub before the material reaches the main grinding area. The rotor is three to five times heavier per inch of shear length than competitive machines and this extra weight builds inertia that makes the TUB GRINDER the smoothest running grinder on the market and the easiest on tractor power take-offs.The capacity will surprise you. Ten to twenty ton per hour in fairly dry conditions with 70 to 80 horsepower can be expected. Also the TUB GRINDER uses shear plates instead of screens which makes it even more desirable in wet, tough conditions. Individually adjustable shear plates replace screens to control particle size, these shear plates are adjustable from ground level and can be adjusted with speed and ease. A High Capacity-Low Cost grinder that can grind dairy quality alfalfa without getting it too fine. We can now grind this good quality alfalfa to the desired length for all operations. Any length from 2" to 6" stems. We accomplish this by using a special ALFALFA HAMMER that weighs 38 a piece. These hammers will stay extended in this good quality feed at 540 This lower tip speed does not powder the leaves. Horsepower requirement is reduced to about half (from 60 and up) and the capacity remains high. LOW PROFILE SPECIAL: Same as above but for the operator who wants to use a lower lift Skid Steer loader to feed the Tub Grinder. Only 7'4 high and 8 6 wide at the top of the tub.

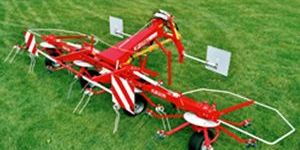

Optimum security of spring tines Clamp A retains the spring tine if it should brake, protecting the forage harvester or baler from damage Strong and flexible rake tines 8 rake tines on each rotor ensure very good clean raking, close to 100%. Cranked tines are part of this high working quality. The adjustment from spreading to raking is quick and easy: You simply change the position of the rake tines using a spring loaded dowel. The rake tines are fabricated from high-class spring steel. ensuring long life and low maintenance costs.

Weight : 610 Kgs

Pruning makes the tea bud grow faster and makes cutting the tea leaf easier. This process requires high performance pruning machines from OCHIAI. These pruning machines are sure to satisfy your needs.

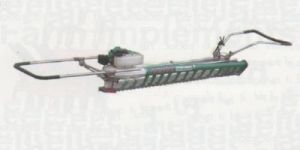

Tea Leaves will be HARVESTED by this Harvester machine without any damage to the leaves or Plant. Quality can be maintained and quantity of plucking will be enhanced. Various sizes of clipping width 340 mm, 410 mm, 1200 mm, 1400 mm, 1600 mm plucking machines available.

SUGAR CANE PLANTER is an equipment attached to tractor. Full size of the cane is fed by the operator and it automatically cut the sett. On levelled filed it will form a hurrow, palce the sett as per required space and cover sett with soil will be done in single pass. 2 ROW and 3 ROW planters are availble. *Tractor PTO operated planters also available.

The SUBSOILER is a tractor drawn heavy duty implement which is very useful to ease the compactness of the soil below 400 - 500mm of the surface due to usage of heavy equipments in various filed operations. This will reduce the compactness for better root penetration and better aeration for good crop yield. Available in SINGLE LEG/DOUBLE LEG/TRIPLE LEG model for suitable tractors.

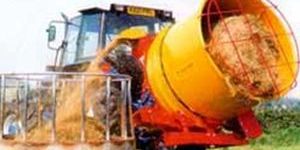

The shredder is meant to shred/chop wooden, fibrous, grass leaves, cardboard packing cases, waste fruit and vegetables, wooden boxes, pallets, etc. The fineness of the shredding material can be adjusted through a screen. The shredder can be operated either by electric motor or by diesel engine or by tractor PTO. The out put capacity of the equipment starts from 3 to 60 cub.mtr/hr.

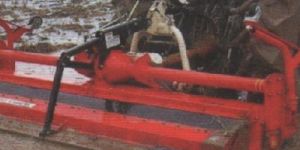

Rice harrow is a combination of Rotavator and perfect levelling device and suppresses the which is highly recommended for rice fileds using rice transplanter. A tractor PTO operated(540 rpm) implement. Rice harrow is recommended for rice field which are going to be transplanted with mechanical transplanter. It gives perfect levelling. Required medium Hp tractors only. wide coverage 9-11 ft. High productivity. Fuel saving and less maintenance. Less time of operating with minimum water.

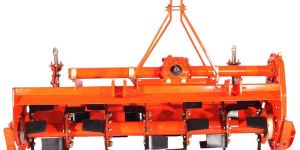

Rotavator, unlike traditional implements can produce a seed bed with one or two passes. Since the rotavator requires no traction, the tractor/rotavator combination can commence cultivation much sooner after rai than traditional drawn implements. This makes it ideal in wet paddy condition to cultivate, while at the same time assisting the push through muddy conditions. It is most suitable for sugarcane stubble removal, eradication of rhyzomes such as couch grass and broken fern.

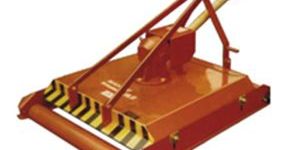

Tractor operated PTO driven machine - grass height can be maintained by this versatile machine useful for large areas - Golf Club, School play ground, Runways etc. Models 1. HS 22/90   - ( 36 Inch ) - 25 - 35 HP Tractors - 540 RPM PTO 2. HS 22/120 - ( 48 Inch ) - 35 - 50 HP Tractors - 540 RPM PTO 3. HS 22/150 - ( 60 Inch ) - 50 - 75 HP Tractors - 540 RPM PTO

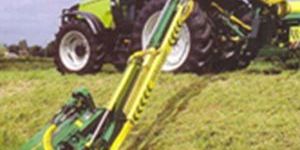

Reach mowers with telescopic arm has maximum sideways reach of 6.4m with the flexibility and convenience of a 5.6m reach machine. Tractor matched to power units of 4,000Kg and over, the telescopic reach mowers extends the capability of farmers and their contractors with dykes to mow and hedges to cut. Hard-wearing nylon type wear pads support the sliding section of the telescopic arm and are easily adjustable without any arm dismantling. While the reach mowers 3 point linkage as standard, it can also be fitted to the tractor rear axle for maximum stability. When it is to be used for extensive grass mowing, the optional high capacity oil cooler is recommended.

Ratoon Manager is a tractor drawn implement mounted on a 3 point linkage driven by the PTO. This is a combination of Stubble Shaving, Off-baring and Harrowing. If required, fertilizer & pesticide applicator can also be provided as an optional. Ratoon Manager will be the best if the field preparation ( Ridges and Furrow ) is done with tractor and suitable for different row spacing. It shaves the stubbles evenly and the Off-baring helps to trim the roots. Harrowing promotes better aeration and water penetration to rejuvenate and induce the growth of the sugarcane.

Power Harrow is a heavy duty Implement. This is tractor PTO operated equi pment attached to the tractor 3 point linkage. It is designed to work in the soil in vertical position and thus pulverise the soil by 9-10 inches depth. This is highly suitable for deep rooted dry cultivation for crops like cashewnut, etc. Power harrow comparatively better useful than any other primary tillage implement by its performance, coverage etc. .

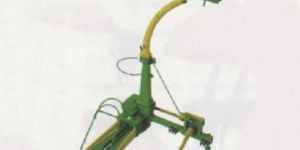

Tractor PTO operated FORAGE HARVESTER which can harvest,collect,chopp and collected in trailer. The Forage Harvester can be used both in Row crops and broadcasted crop field with modified attachment. This is suitable for Fooder crops like grass,maize and sugarcane.

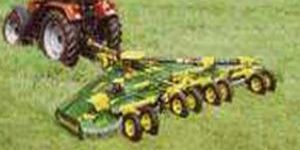

The new Rotary mowers folding wing mower sets new standards in cutting performance with a total of 15 heavy duty cutting blades chopping and mulching everything from fine grasses to light scrub up to 50mm diameter. With a six gearbox driveline, each with slip clutch protection, high horsepower inputs are widely spread to deliver exceptional reliability and durability. The high output 6.2mm cutting width enables over 6ha to be cleared every hour. The traveling width of 2.80m and rubber suspension on all wheels and the linked drawbar ensures safe high speed transport between sites.

Tractor PTO operated Implement attached with 3 point linkage of the tractor Hydraulic_ Fertilizers in the form of powder,granules can be used. The flow quantity can be regulated by a mechanical regulator on the Implement. It will cover about 5-6 hectares in a day. The Throw will be about 12-15 ft on each side. The operating cost will be minimum, with higher area coverage,and uniform Distribution.

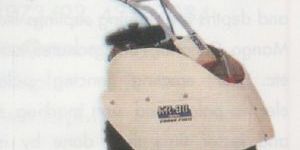

Cultivator is self propelled machine which cultivate the soil for better aeration near the plant. Large area can be covered with less operation with this mechanical cultivator

Features :: 1. Farmhand - built premium 2-cycle engine. 2. High Torque Engine 3. Magnesium Alloy Case 4. Chrome plated cylinder 5. 2 - ring piston design 6. Extremely adjustable boot mounted Walbro WT carb 7. 1 - piece electronic ignition 8. Fully adjustable, automatic chain oiling pump 9. 3- Shoe centrifugal clutch 10. 7 - Point anti-vibration system 11. Anti-kickback chain brake 12. Rim - type sprocket 13. Easy access air filter

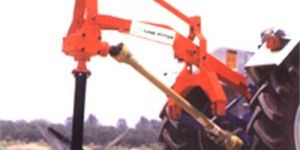

Cane pitter is an implement that drills holes for planting sugarcane. Cane pitter is an attachment to the tractor 3 point linkage with category I & II mountings. Auger is driven through PTO drive shaft containing the tractor. Features 1. For medium stress work in normal, soft, stone-free soil. 2. Transmission through universal drive shaft with shear bolt torque limiter. 3. Replaceable auger points and cutting blades. 4. Standard fish tail type auger point and flat blades. 5. Strudy profile frame fitted with spring loaded stabilizer bar. 6. Frame serves as lifting boom by removing gear box. 7. Tractor power take off : 540 RPM 8. Auger size : 90cm.

Bunf former is a boon to the former where ret menace and seevage of water is a perennial problem. It makes a perfect bund which will reduce the damages occured due to rat, leakage etc. By using bund former equipment will get proper size and perfect cemented shape bunds. with this equipment with lesser operating cost higher number of bunds forming is achieved It is easy to operate It is a implement to rebuild the existing bunds of the field The process of rebuilding eliminates rodents(Which are major) and burrows This saves the loss water in the rice field. Reduces the damage occured by rodents to the crops.

Eco friendly machine. Easy to operate and less maintenance machine. Ideal for small garden, lawns, etc.

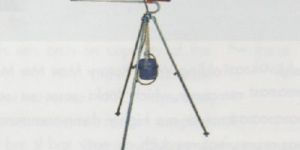

It is a plant protection equipment to scare the animals, birds from damaging the crops. This is operated by butane or normal LPG which will produce a noise of about 80 decibal. NO SMOKE (OR) NO FIRE,ONLY SOUND will save the precious crops damage from the birds/animals.
