Fermentation Tank Dealers in Chennai

Fermentation Tanks

Get Price Quote

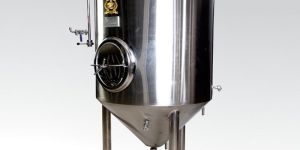

The Fermentation Tank is made out of stainless steel and it is insulated in its exterior by Polyurethane insulation material. The Fermentation Tank is provided with dimpled jackets to allow even cooling of the fermenting beer. The temperature of the jackets can be set in the PLC or temperature controller provided and automatic glycol valve is provided to open or close to achieve the set temperature.Details : Air and vacuum release valves are provided as safety on top of the fermentation tank. Pressure gauge along with Co2 exhaust valve is provided in the system.A cone shaped bottom is provided for yeast settling after fermentation process has been completed.

Fermentation Tank

Get Price Quote

The Fermentation Tank is made out of stainless steel and it is insulated in its exterior by Polyurethane insulation material. The Fermentation Tank is provided with dimpled jackets to allow even cooling of the fermenting beer.The temperature of the jackets can be set in the PLC or temperature controller provided and automatic glycol valve is provided to open or close to achieve the set temperature. Air and vacuum release valves are provided as safety on top of the fermentation tank. Pressure gauge along with Co2 exhaust valve is provided in the system.A cone shaped bottom is provided for yeast settling after fermentation process has been completed.

MICROBREWERY BEER FERMENTATION TANK

Get Price Quote

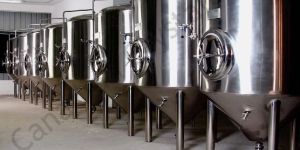

Our fermentation tanks are constructed using SS 304 or SS 316 as desired, designed as cylinder conical tanks with cone angle between 65 to 72 degrees. These tanks are equipped with dimple jacketed glycol cooling system and insulated with 50 – 60 mm poly urethane foam. Tanks are fitted with high quality solenoid valves that regulate tank temperature. The cooling surface includes the cone and cylinder area. Independent cooling for cone and cylinder areas can be optionally provided. All tanks are fitted with high quality RTD sensors for accurate temperature indications. Tanks are pressure tested to 3.0 bar and are fitted with a safety pressure valve set at 2.5 bar. Single or dual CIP spay balls are fitted for CIP operation. Overhead cross arm extending to the side is provided with a pressure regulating device and a sanitary air trap for releasing and regulating carbon dioxide during fermentation. Standard provision include front or overhead manhole opening. In the event the fermentation tanks is used as a uni-tanks for maturation and beer distribution, tanks can be fitted with beer python line outlet and carbonation inlets, and kegging outlets. Arrangements for applying counter pressure of Carbon Dioxide is provided in the cross arm assembly. Tanks are also optionally equipped with sampling outlets and inspection glass with light. Tanks are available from 200 liters to 2000 liters in the microbrewery range, and larger capacities for full scale brewery.

Fermentation Tank

Get Price Quote

Our fermentation tanks are constructed using SS 304 or SS 316 as desired, designed as cylinder conical tanks with cone angle between 55 to 72 degrees through the ideal angle is 60 degrees. These tanks are equipped with dimple jacketed glycol cooling system and insulated with 50-60 mm poly urethane foam.Tanks are fitted with high quality solenoid valves that regulate tank temperature. The cooling surface includes the cone and cylinder area. Independent cooling for cone and cylinder areas can be optionally provided. All tanks are fitted with high quality RTD sensors for accurate temperature indications.

Fermentation Tank

Get Price Quote

Fermentation Tank, Sensor & Temperature Controllers

Fermentation Tank

Get Price Quote

Fermentation Tank, micro brewery
