Furnace Structure Dealers in Chennai

• Certification: CE Certified
• Voltage: 220V
• Condition: New,New
• Application: Laboratory
• Power: 1-3kw

FEATURES Fast Heat-up and Cool-down rates Heating elements with Kanthal Metal alloys or Molybdenum disilicide Kanthal Rigid Ceramic fiber insulation Temperature Control through Eurotherm temperature controllers Power Control through Solid State Relays or Thyrsitor units (Phase angle fired)

• Country of Origin: India
• Type: Continuous
• Brand: JR Furnace

JR FURANCE offers Mesh Belt Conveyor Furnaces which will be used for Continuous Copper Brazing, Silver Brazing and Annealing up to 1150°C If you produce light or medium weight parts where low cost, high volume production is required; JR FURNACE Mesh belt furnace will process your work efficiently and economically, typically free of oxidation and discoloration with less scale than other processes.

The furnace is supplied in vertical and horizontal model, as per request. Double walled chamber outer chamber made of cold rolled mild steel sheets and finished in powder coating. The inner chamber is formed by high Alumina tube capable of withstanding temperature up to 1200â�°C. The tube will have one end closed or both ends opened as per the requirement of customers. Insulation with high-density superior quality ceramic fibre blanket. The furnace is heated by KANTHAL heating elements. The temperature is controlled by Digital PID Controller with S.S.R. output. The sensor will be Cr/A1 type thermocouple. The size of the tubes available are 40 to 100 mm ID and with length of 350 mm to 650 mm.Temperature Range : 600 – 1200â�° C Power supply : 230 Volts, Single Phase

Sited in Chennai(India), we guarantee safe side deliveries of consignments in a time limited period. We make smooth and on-time deliveries of the product range that we keep safe in our capacious inventory. Features : Maintenance free Smooth operations Superior performance Price Range : Rs 55,000 - Rs 600000

• Type: Tubular Furnace
• Material: Aluminum, Stainless Steel
• Certification: ISO 9001:2008 Certified
• Color: Black, Blue, Brown, Green, Red, White
• Voltage: 220V
• Condition: New
• Application: Heating Process
• Driven Type: Electric
• Warranty: 1yrs
• Automation Grade: Automatic

We are main supplier of this product.

• Country of Origin: India
• Size: 1.1/2inch, 1.1/4inch, 1/2inch, 1inch, 2inch, 3/4inch, 4/5inch, 5/6inch, 6/7inch
• Type: Vacuum Traps
• Material: Alloy Steel, Carbon Steel, Forged Steel, Stainless Steel
• Certification: ISI Certified, ISO 9001:2008 Certified
• Color: Black, Brown, Grey, Sky Blue, White
• Feature: Blow-Out-Proof, Casting Approved, Corrosion Proof, Durable, Good Quality, Investment Casting
• Pattern: Dotted, Plain
• Condition: New, Used
• Finishing: Coated, Non Clated
• End Connection: Butt Weld, Flanged, Screwed, Socket Weld Ends
• Number of ways: 3way, 4way
• Brand Name: BUHARINE
• Classification: 1
• Case Material: 1
• Compressor: 1

• Max Temperature (degree Celsius): >2500
• Usage: Industrial
• Size: Customied
• Power (KW): 100-500KW

• Material: Stainless Steel
• Brand Name: Kent
• Color: Silver
• Warranty: 1 year
• Product Name: KENT Vacuum Pot-SS 1.2 L
• Product Code: 16046
• Capacity: 1200 ml
• Product Dimensions (mm): 137 (L) X130 (W)X 195 (H)

• Capacity: 3.5 Tons.
• Size: 2400 L x 1800 W x 1600 H mm
• Temperature: 1250oC
• Year of Installation: 2016

Gas fired Box furnace with quench fork for water quenching of Stainless Steel castings

Application: Pre Heating Hardening, Tempering, Annealing,Etc.

Application: Heat Treatment Heating Mode: Electrical Gas and OilTemperature: Up to 1200 Deg C

• Temperature Range: 500°C to 700°C (for Aluminium Alloys)
• Chamber Design: Cylindrical / Rectangular

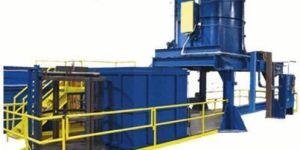

DBQ or drop bottom quench solution treatment furnace is primarily used for solutionizing of aluminium parts prior to forming. The requirement is a quick quenching of aluminium parts usually within 5 to 10 seconds so that the material comes to ideal precipitation hardened condition. When heated evenly to a temperature of upto 550°C, a solid solution of copper is formed in the aluminium structure which flows throughout the microstructure. The furnace is inverted type with charge lifting and lowering facility to accommodate the high speed quenching including de-clamping, door opening and quenching. The furnace can be stand alone type with charge carrier loader and quenching tank moving on the floor or floor mounted with charge carrier loader and quench tanks sliding in a pit. As the requirement is very fast quenching it is fully automated by the use of PLC and SCADA. These furnaces can also be used for continuous ageing cycle ranging from 16 – 24 hrs time. Various quench media such as water, glycol or other polymer oils as per process requirement are used. Area of application is generally used in aeronautical industries for solutioninzing and ageing of structural parts, also in forging industries of aluminium alloy forgings.

Technico tubular furnace is supplied in vertical or horizontal model, as per request of customers. Double walled chamber outer chamber made of cold rolled mild steel sheets and finished in powder coating. The inner chamber is formed by high alumina tube capable of withstanding temperature upto 1200°C. The tube will have one in closed or both ends opened as per the requirement of customers. Insulation with high density superior quality ceramic fibre blanket. The furnace is heated by Kanthal A1 heating elements. The temperature is controlled PID, controller working in conjuction with Cr/Al type thermocouple. The size of the tubes is available 50 to 100mm OD and with length of 450mm to 650mm.   Technical Specification:  Operating temperature range : 600 to 1000°C   Maximum temperature : 1150°C   Temp.Accuracy : +/-1 Deg. C   Operating Voltage : 230 Volts Single. Optional Accessories: Microprocessor based Digital Programmable controller with Thyristor output for better accuracy of 2 to 3 °C   End fittings for inerr atmosphere purging   Quartz tube with end fittings

Toshniwal can provide a large range of heavy duty Chamber Furnaces manufactured by Termolab (Portugal). Furnaces with maximum temperatures ranging from 13500◦C to 18000◦C with normal door or Bottom-loading or Top-hat variants are available. Termolab also manufactures Graphite furnaces with maximum temperature at 25000◦C, Graphite hot zone and Vacuum or controlled atmosphere options. FEATURES Fast Heat-up and Cool-down rates Dimensions from 3 liters to 250 liters available Kanthal Super-heating elements Rigid Ceramic fiber insulation Temperature Control through Eurotherm temperature controllers Power Control through Solid State Relays or Thyrsitor units (Phase angle fired)

We are offering electrical heated bell furnace. Fine quality electrical heated bell furnace which are used for functions such as heat treatment, bright annealing, normalizing. These could be heated from electricity, gas, oil and are provided in various specifications, sizes, designs and shapes. We test the products on various quality standards and these are customized to suit clients’ requirements. features: lifting through gear motor hydraulic system temperature: up to 1200 deg c.

Air-circulation chamber furnaces with temperature range up to 850 °C, are mainly used for annealing, tempering, ageing, pre-heating, drying, shrinking, baking and testing. These air circulation chamber furnaces are available for maximum operating temperatures of 450 °C, 600 °C or 850 °C and are perfectly suited for demanding processes. Due to their robust and solid design even heavy loads can be heat treated. These furnaces are suited for use with baskets, pallets, and mobile furnace racks. All furnaces are available with electric or gas heating.

Our conveyor furnaces are used for heat treating products where high volume production and low cost are favored. These furnaces are designed according to the customers’ process requirements and cycling time such as drying, preheating, curing etc. Uniform heating is achieved by mounting heating elements on support tubes, which facilitate high free radiation and excellent service life of the heater. The products are moved within the chamber on a mesh belt, supported by a belt drive made of rubber coated belt drums.

Working Temperature up to RT to 1200°C Tailor made box size as per the customer requirement Kanthal heating element from Sweden 1°C accuracy at dwell temp Rapid heating rate(1 to 20°Cmin) programmable Suitable for nanotechnology applications Imported indigenized Insulation Indigenous VBCC Make phase control thyrister controller Nippon PID programmable digital temperature indicator cum controller

• Voltage: 220-380V
• Power Source: Electric
• Material Loading Capacity: 500-1500 kg
• Brand Name: JR
• Temperature: 500-700deg C
• Standard Applications: Solution Annealing / Solutionizing, Ageing
• Chamber Design: Cylindrical / Rectangular
• Insulation: Ceramic Fibre Blanket + Brick / Ceramic Fibre Module & Board
• Heating Elements: Nichrome Wire / Special Alloy Resistance Heating Wire
• Instrumentation options: Thyristor, Programmable Temperature Controller, Temperature Recorder, PLC, SCADA, HMI

• Operating Voltage: 230 volts single Phase 50 cys
• Maximum Temperature: 1400°C

Digiqual 1400 * Box Type Stand Alone Furnace construction comprises of double walled chamber, outer made of cold rolled mild steel sheets and finished in powder coating paint. inner chamber formed by High temperature withstand zirconia vacuum board followed by ceramic fibre blankets on all the sides. double walled door mounted on heavy-duty hinges in the front is provided with effective locking arrangements. optionally, the door can be provided with door limit switch to cut off the power supply whenever the door is opened and The furnace will be heated by means of HIGH QUALITY SILICON CARBIDE RODS. Temperature is maintained and controlled by Digital PID temperature controller with SSR output. Alternatively a Microprocessor based PID Controller auto tuned with Thyristor control Device working in conjunction with PtPtRh 13% Thermocouple. to restart when the door is closed

Rasci Heating Cooling Chamber outer fabrication of Mild steel with powder coated and Inner Fabrication of Stainless Steel .The RHCC are insulated with ceramic fiber mat to reduce the radiation Cool loss to Minimum This is suitable for Low Temperature Process Testing application. High accuracy temperature controller With Tyristor Contactor based control circuit. The RHCC Cooled by High Quality Compressor and Maintain Temperature use Heater .Insulation with high quality superior quality Insulator. The temperature inside is maintained any desired level with in the operating range by a digital automatic temperature controller and Mp based high accuracy customized controller

Double walled chamber outer chamber made of cold rolled mild steel sheets and finished in powder coating. The inner chamber is formed by high alumina re-crystallized tube capable of withstanding temperature up to 1100ºC. The tube will have both ends opened. Insulation with high density superior quality ceramic fibre blanket. The furnace is heated by super Kanthal and controlled by a digital controller cum indicator. The Instrument will also be supplied with end fitting for gas purging.

Process Capabilities Neutral Hardening & Tempering Carbonitriding Shallow Case Carburising Austempering Carbon Restoration & Hardening Consistency of quality is better obtained when components are continuously quenched, a few pieces at a time instead of in a batch at periodic intervals. Of the total tonnage of heat treated components the majority do not require fixturing and can tumble into a quench tank. The ideal plant for all such components in terms of quality, capital cost as well as operating cost is a continuous conveyorised heating and quenching system. Components spend less time at temperature and consume less energy compared to batch furnaces. Continuous quenching, a few components at a time, ensures a high degree of quality consistency in terms of hardness, case depth and physical properties. Such plants with conveyorised auxiliary equipment for loading, washing and tempering are normally fully automated.   Equipment Features LOADING Soft handling, weigh feed, metered loading, vibratory conveyor, reciprocating feeder. WASH MACHINES High intensity jet spray, dunk & spray, steam wash, ultra sonic, vapour degreasing & in line centrifuge, drying, continuous dirt filtration, oil seperation/recovery, salt recovery. FURNACE Gas tight hardening furnace shell, microporous insulation, atmosphere circulation, alloy belt with raised edges & auto alignment, electric radiant tube heaters, multizone thyristorised temperature control, gas fired recuperative radiant tubes, waste heat recovery from spent atmosphere & by hot belt return, multi atmosphere capability, endogas generator, methanol dissociater, PSA, onsite nitrogen & ammonia cracker. QUENCHING Oil, hot oil or polymer, clog resistant cascade curtain, variable agitation, continuous dirt removal, air/water heat exchangers, air knife, electric heaters or gas tube burners, temperature, level & flow controls. TEMPERING High convection (high uniformity) tempering, rapid heat up feature, jet heating system, nitrogen atmosphere capability, steam tempering facility, post temper blackening tank. CONTROLS computer/touch screen HMI for user interface, SCADA programming based automatic plant and process control, production alarm & energy logging, several reporting formats. UNLOADING into bins, weigh & discharge, auto bagging with data acquisition. EXTRAS chiller tank (for 52100 steel parts, where required)

We are a prominent Exporter and Supplier of Electrical Tubular Furnace. These Industrial Furnaces are sourced from leading manufacturers of country. We assure high durability and long service life of our each Industrial Furnace. Made from high quality materials, these Industrial Furnaces are highly resistant to corrosion and are available at market leading prices. Range : Annealing FurnaceBogie Hearth FurnaceElectrical Muffle FurnaceElectrical Tubular FurnaceElectrical Tunnel FurnaceFusion Furnace

We manufacture furnaces which can be made in electrical, oil or gas firing system as per the customers requirement.This type of furnace is widely used for the following applications such as:Spherodised Annealing of Steel Wire Rod Coils.Soft Annealing of Steel Wire Rod Coils,Black and Bright Annealing of Steel Strips.Material: Low carbon, medium carbon, high carbon and alloy steel and bearing steel.

We offer a sturdy range of batch type melting furnace which has superior high impact resistance bricks. It is featured with electro-hydraulic tilting procedure for pouring aluminum. Equipped with safety features like lowhigh molten metal level, excess temperature of molten metal and exhaust gas, flame failure, gasair low pressure, etc. The batch type furnace offered by us is one of the best in the industry. Its fuel consumption is 7,50,000 kcalt of al. During melting and standard capacities: 500 kghr to 2000 kghr.

industrial batch furnace, atmosphere controlled furnaces, Industrial Furnaces

We offer rotary tubular furnace. Working temperature up to rt to 1800°c tailor made tubular size as per the customer requirement 90% to 99.7% alumina tubes as per customer requirement heating elements from us 1°c accuracy at dwell temp controlled heating rate(1 to 10°cmin) programmable suitable for nanotechnology applications imported indigenized insulation indigenous vbcc make phase control thyrister controller taie pid programmable digital temperature indicator cum controller
