WORK POSITIONING
Hydraulic Rotary Indexing Tables : Hydraulic Rotary Indexing Tables (315mmØ to 1000mmØ) fitted with imported Hirth couplings, are designed for use on Special Purpose Machines, which ensure accurate indexing and repeated positioning. Both Universal (Maximum 8 indexing stations) and Fixed indexing models are available. An adjustable speed-control is available. Clockwise or anti-clockwise rotation is optionally available. Pneumatic Rotary Indexing Tables : Pneumatic Rotary Indexing Tables (160mmØ to 315mmØ) fitted with imported Hirth couplings, are designed for use on Special Purpose Machines, which ensure accurate indexing and repeated positioning. Both Universal (Maximum 8 indexing stations) and Fixed indexing models are available. An adjustable speed-control is available. Clockwise or anti-clockwise rotation is optionally available.
...more
Universal Ball Lock Chucks
We are offering universal ball lock chucks. Power operated gmt universal ball lock chucks (ublc) are designed to clamp components and ensure face butting. Power operated ball lock chucks have certain distinctive advantages over wedge and lever type chucks. Jaw movement is achieved by sliding and swivel of the base jaws, which are amply proportioned. this results in less wear, less bearing pressure and less stress concentration in the jaws when compared to same sizes of wedge or lever type chucks. Apart from the radial clamping forces, these ball lock chucks provide an axial force to pull the component against the butting face. This is achieved as the jaw movement is along an arc. Wedge, base jaw, spherical aligner, spherical bushes are made of nickel chrome steel, case hardened and precision ground on all working surfaces.
Brand Name : GMT
...more

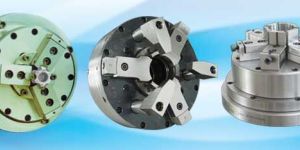

Diaphragm Chuck
GMT Diaphragm Chucks are primarily used for light accurate turning, fine boring, facing and grinding operations. Diaphragm Chuck enables improved accuracy and consistent concentricity to be obtained during precision machining operations.
...more
Thread Cutting Tools
GMT the World's Most Comprehensive Range of Carbide Threading Inserts. None of the large cemented carbide manufacturers have anywhere near the same range as that available from GMT. The reason is simple. Threading is a fairly small part of all machining operations, and has been neglected by major carbide companies who offer only a limited range of the most common profiles.
...more

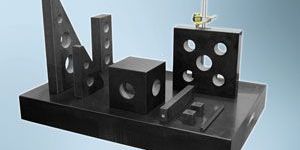

Surface Plate
gmt make ci surface plate, angle plate, box angle plates, straight edge, bench centre. granite surface plate, granite straight edges, granite master squares, master cylinders.
...more
rotary indexing tables
quick change chucks
CNC Lathes are used particularly to machine small and medium sized batches. This involves frequent changeover of the chuck jaws which can be accomplished without undue cost by using chucks with quick change jaws. Power Operated Quick Change Jaw Chuck provides a super high speed range.GMT is one of the leading power chuck manufacturer in India and has designed a power chuck with a quick change jaw system. This chuck helps in reducing the jaw changing time to a minimum. The wedge bars are designed to help counteract the effects of centrifugal force, and in fact this is done by setting them into the angled pockets in the body of the chuck. Moreover, the angles chosen by GMT for the piston shoulders and wedge bar teeth provide high mechanical efficiency ratio that provides for both sensitive and high pressure clamping. To withstand the most arduous working conditions, all PHQC chucks are designed with a high factor of safety. PHQC Chucks are operated by means of rotary cylinders controlled by proximity switches that provide signals concerning the state of the chuck i.e. clamping or de-clamping.
...more

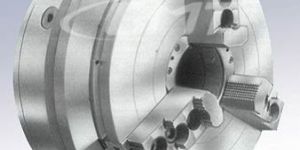

Power Operated Pneumatic Chucks
We offer gmt power operated pneumatic front end chuck: power operated pneumatic front end chucks are designed to utilise in full, the spindle bore for barpipe work. This design avoids rear mounting of the actuating cylinder and necessary draw bar connections. The chuck can be mounted on the lathe spindle with an adaptor flange as needed. The actuating cylinder is built into the chuck. The stationary air distribution system with the ports to supply air to the respective sides of the piston is mounted separately on the chuck.
Brand Name : GMT
...more
Power Operated Finger Chuck
We offer power operated finger chuck : gmt has developed specialized power chucks for second operations where radial clamping is not possible. A suitable locator is used to locate the component center. The fingers located in a rod, which has a helical groove ensure that the component is flat against the chuck. This enables loading yet ensures accurate location. Gmt-make hydraulic rotating cylinder is used to move the chuck fingers swings in and clamps the component in a single motion. Actuator pin is located on helical groove for actuating the finger. Fingers during de-clamping lift and swings out for component unloading and loading. The chuck firmly clamps the component without any distortion or surface damage. features : chuck has a locator for locating the component. Power operated twist finger chucks cannot perform without locating the component. Fingers are located in a rod, which has a helical groove. Actuator pin located on helical groove for actuating the finger. Fingers during clamping and de-clamping lift, swings in and out, for component loading and unloading. application : automotive, wheel turning, aerospace, aircraft, commercial vehicles, energy, heavy duty machines, defence production, oil, wind generators.
Brand Name : GMT
...more

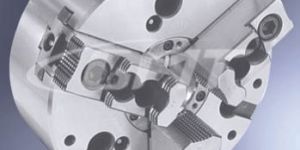

Power Operated Chucks
1 Piece(s) (MOQ)
We are offering power operated chucks without through bore can be used as a replacement for manual chucks on a conventional lathe to increase the productivity. these can be actuated by hydraulic, pneumatic or electro- mechanical actuators. the actuating unit imparts a linear motion of the wedge is transformed to radial movement of base jaws. This transformation provides a mechanical advantage of 1:4. This ensures a minimum of 1:2 mechanical advantage after providing for internal losses, self locking effect and losses in gripping power at high speed.
Brand Name : GMT
...more
Power Chucks
polymer concrete
GMT represents CPT, manufacturers of Polymer concrete used in precision engineering applications which require corrosion and vibration proof low thermal expansion materials.Cleveland Polymer Technologies (CPT) manufactures precision polymer castings - also known as mineral castings, composite castings, polymer concrete, epoxy castings - for a variety of industries and applications for the US and foreign markets. CPT operates in Elmira, NY utilizing the HarcreteR facility from Hardinge, Inc., a prestigious International manufacturer of super precision CNC lathes and the first US company to manufacture polymer casting machine tool bases over 20 years ago. Manufacturing facility The manufacturing facility includes multiple overhead cranes of various lifting capacity, temperature and humidity controlled production room, automated aggregate weigh and dispensing system, full size heated and ventilated painting booth (30' x 12'), separate finishing area with independent in-wall built-in dust collection system, multi frequency, high capacity vibratory compaction table to handle up to 55,000 lbs gross weight.
...more
pneumatic chucks
Power Operated Pneumatic Front end Chucks are designed to utilise in full, the spindle bore for barpipe work. This design avoids rear mounting of the actuating cylinder and necessary draw bar connections. The chuck can be mounted on the lathe spindle with an adaptor flange as needed. The stationary air distribution system with the ports to supply air to the respective sides of the piston is mounted separately on the chuck.These power chucks are available in various sizes ranging from size 160mm Ø to 1000 mm Ø. The chucks are offered with standard jaw stroke of 4.2mm to 12mm and extended jaw stroke of 19mm to 25.4mm. The extended jaw stroke to hold pipes, casings and tool joints.For holding long oil pipes, one chuck is mounted on the front end of the spindle, and one chuck at the near end of the spindle. Power Operated Pneumatic Front end Chucks have twin non-return valves, which prevent the clamping air from returning through the port unless air is let in on the other side of the piston. This ensures retention of clamping force even when the air supply is switched off. The maximum operating pressure of the chuck is at 10 bar pressure.
Size : 160mm Ø to 1000 mm Ø
...more
Lapping Machine
We are offering lapping machine (model no. : 06-03) has a 610,900 and 1200mm diameter and are heavily ribbed and constructed on a solid fabricated structure. We pay special attention to the design of the main spindle bearings, giving great axial load capacity, maximum stability, durability and optimum performance, even under heavy loading. In addition, the lap plates are manufactured from close-grained alloy cast iron, stress relieved after pre-machining and finally finish-machined and lapped position. salient features heavy duty structured steel with integrally mounted drive motorgear reduction unitabrasive pumpabrasive distribution systemcomplete with electrical control panelstirrer motorheavy duty work tablemanually adjustable verticallyalloy cast iron serrated lap platethree felt padsreverse mechanismremovable drain containermain drive motor with gear reduction unitthree cast alloy pressure plates with eye boltswrenches, instruction manualthree adjustable conditioning rings with roller yoke assembliesadjustable timer, tank, feeding system with adjustable flow control.
...more
Lapping Machine
We are offering lapping machine. the lapping machine (model no. : 06-05) is a 1500, 1800 and 2100 mm diameter machine with massive with heavily ribbed fabricated bases. Large heavy duty roller bearings have been provided to take care of heavy and other radial loads. The drive is taken from the main motor through ‘v’ belts, through a fluid coupling to ensure smooth working. The drive to the lap plate is through a heat-treated pinion and a high tensile spheroidal cast internal gear. In addition, variable speed drive for lap plate, reverse mechanism for conditioning ring is also supplied.
...more
Lapping Machine
We are offering lapping machine (model no. : 06-05) comes with 610,900 and 1200mm diameter and are heavily ribbed and constructed on a solid fabricated structure. We pay special attention to the design of the main spindle bearings, giving great axial load capacity, maximum stability, durability and optimum performance, even under heavy loading. In addition, the lap plates are manufactured from close-grained alloy cast iron, stress relieved after pre-machining and finally finish-machined and lapped position. salient features heavy duty structured steel with integrally mounted drive motorgear reduction unitabrasive pumpabrasive distribution systemcomplete with electrical control panelstirrer motorheavy duty work tablemanually adjustable verticallyalloy cast iron serrated lap platethree felt padsreverse mechanismremovable drain containermain drive motor with gear reduction unitthree cast alloy pressure plates with eye boltswrenches, instruction manualthree adjustable conditioning rings with roller yoke assembliesadjustable timer, tank, feeding system with adjustable flow control
...more
Lapping Machine
We are offering lapping machine (model no. : 06-03) has a 610,900 and 1200mm diameter and are heavily ribbed and constructed on a solid fabricated structure. We pay special attention to the design of the main spindle bearings, giving great axial load capacity, maximum stability, durability and optimum performance, even under heavy loading. In addition, the lap plates are manufactured from close-grained alloy cast iron, stress relieved after pre-machining and finally finish-machined and lapped position. salient features heavy duty structured steel with integrally mounted drive motorgear reduction unitabrasive pumpabrasive distribution systemcomplete with electrical control panelstirrer motorheavy duty work tablemanually adjustable verticallyalloy cast iron serrated lap platethree felt padsreverse mechanismremovable drain containermain drive motor with gear reduction unitthree cast alloy pressure plates with eye boltswrenches, instruction manualthree adjustable conditioning rings with roller yoke assembliesadjustable timer, tank, feeding system with adjustable flow control
...more
Lapping Machine
We are offering lapping machine (model no. : 06-02) is available with 300mm and 400mm diameter. Moreover, the lap plate and conditioning rings are made from close-grained cast iron. salient features heavy-duty steel fabricated housingabrasive distribution system with pumptank and infinitely variable flow controlcast alloy lap plateradially serratedthree adjustable conditioning rings with yoke and bearing assembliesautomatic lapping cycle timerdrive unit0.37 kw motor with gearboxreverse mechanismthree pressure plates with lifting eyeboltsthree felt pads
...more
Lapping Machine
We are offering lapping machine (model no. : 06-01) comes with 300mm and 400mm diameter and has a robust construction. In addition, the lap plate and conditioning rings are made from close-grained cast iron. salient features heavy-duty steel fabricated housingabrasive distribution system with pumptank and infinitely variable flow controlcast alloy lap plateradially serratedthree adjustable conditioning rings with yoke and bearing assembliesautomatic lapping cycle timerdrive unit0.37 kw motor with gearboxreverse mechanismthree pressure plates with lifting eyeboltsthree felt pads
...more

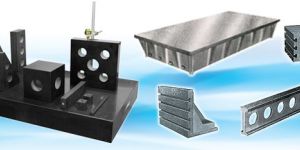

metrology products
Granite Surface Plates : Granite Surface Plates are manufactured in five grades. The typical application of these five grades of plates is : GRADE 00 as per DIN : 876 : 84 is of laboratory grade, GRADE 0 is of inspection grade, GRADE 1 is of tool room grade and GRADE 2 & 3 are intended for use in shops for general inspection. Granite Master Square : Made of Fine Black,Metrology Grade Granite, GMT 6-Face Master Squares is used on any work that requires the checking of squareness or parallelism. Master squares has 6 finished faces . One large square face is finished flat and perpendicular to the four sides, which are parallel and perpendicular to one another. Granite Straight Edge :GMT Granite Straight Edges are used for inspection of flatness and parallelism between two machine parts or components. GMT Straight Edges are free from curves. They are lapped on both top and bottom faces. Straightness and parallelism are maintained as per International Standards and are available in various dimensions. Granite Trisquare : GMT Granite Tri-Squares provide an excellent, economical way for accurately checking the X-Y-Z axes on CNC machines, milling machines, coordinate measuring machines. All 6 sides are lapped to maintain flatness, squareness and parallelism.
...more

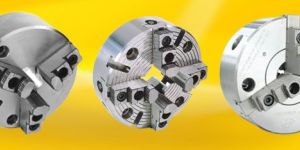

MANUAL CHUCKS
hand operated chucks : the conventional range of hand operated chucks. these sturdily built chuck delivers high gripping force. the conventional bevel gear and scroll have been replaced by a worm & worm wheel to operate the jaws. the worm & wormwheel and the circular cam gives the chuck an amazingly high mechanical advantage and gripping power. download data hand operated independent jaw chuck : gmt hand operated independent jaw chuck is used to hold irregular shape of components and concentricity is adjustable as required. it delivers high gripping force. download data
...more

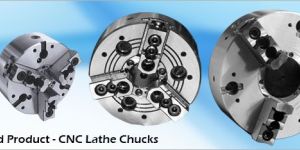

CNC Lathe Machine Chucks
Power Operated Three Jaw Chuck with Through Bore (PHNC) : GMT Power Operated Hollow High Speed Chucks are designed to rotate at high speeds on CNC lathes. The compact construction of the PHNC Power Chucks offer further advantage of less weight and low inertia which have positive influence on the dynamic effect of CNC machine spindle. These power chucks have a large through bore and are therefore suitable for bar work. The base jaws and top jaws weight are reduced in these chucks. This not only reduces the mass but also lowers the centre of gravity, which make the centrifugal losses low.
...more
lapping machines
GMT started manufacturing lapping & polishing machine in 1971. It was built for in-house use and until then hand lapping process was used for finishing surface plates. Critical parts for our workholding devices required a finishing and buffing machine. There was demand in the market for valve lapping and lapping plates. Since GMT had a captive ferrous foundry, castings for lap plate and lapping machine were easier to source. Since then GMT has become one of India's largest lapping machine manufacturers and suppliers with over 350 installations throughout India mainly to the valve and pump industry. When a buyer in Japan wanted a super finishing machine for lapping large granite plates, GMT designed and supplied a 3000mm dia flat lapping machine. Pump manufacturers, electronic industries, valve manufacturers, etc., have found a sure way of obtaining positive sealing.
...more

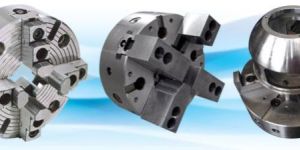

jaw chucks
The following features of the GMT four jaw chuck makes this chuck superior to other four jaw independent chucks available.The chuck body is made of forged medium carbon steel. It is hardened and tempered to ensure long life and strength to the chuck body. Base jaw slots in the body are precision ground to close tolerances for obtaining a good sliding fit, ensuring a play free functioning, high load carrying capacity and maximum wear resistance.GMT system of independent four jaw chucks has separate jaws and reversible hard jaws. This gives the flexibility to use special hard jaws to suit specific component. The hard jaws are fixed to the base jaws by tongue and tenon, so that they can grip a wide range of components, either on their OD or ID.Base jaws are made of alloy steel and case-hardened. Itis made deeper and wider for providing large bearing areas with reduced unit bearing pressure, thereby increasing the life of the chuck. Square threads cut on the screws and on the underside of the base jaws have longer mesh with each other, which results in efficient transmission and conversion of applied torque. Screws are heat treated to prevent breakage, a common complaint in the commercial quality chucks.
...more

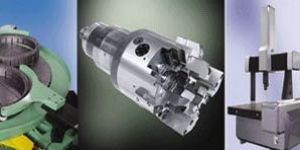

Machine Repair Service
SERVICE / COMPLAINTS OF ANY GMT PRODUCT - Write, e-mail or fax us the details (includes product name, model, size, serial number etc.) and nature of the problem along with your full address. Our service department will get in touch with you and provide you with necessary support.
...more
Reconditioning GMT Make Chucks/Cylinders
GMT reconditioned chucks are factory refurbished by GMT, we do not sub contract reconditioning, which means we use the same machines and technology that we use to build new chucks, so you don’t have to sacrifice quality to save 40% and more on a new chuck. We will inspect and study the chuck and give you the report and costs. Standard products will usually be reconditioned within 7 working days after Order Acceptance. After order acceptance, the parts will be cleaned, rebuilt, thoroughly tested and individually set to factory specs – restoring them to GMT factory standards!
...more
